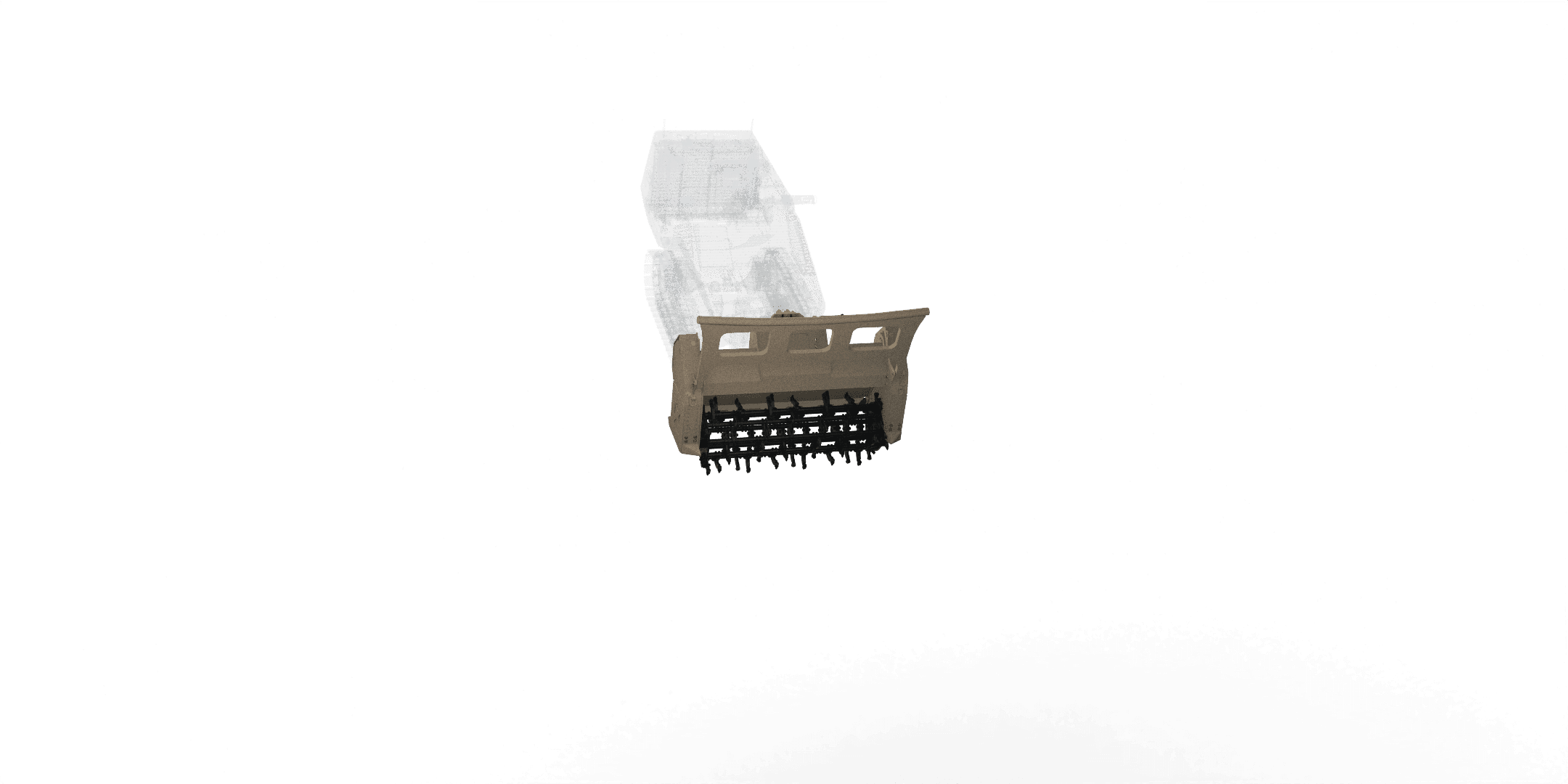

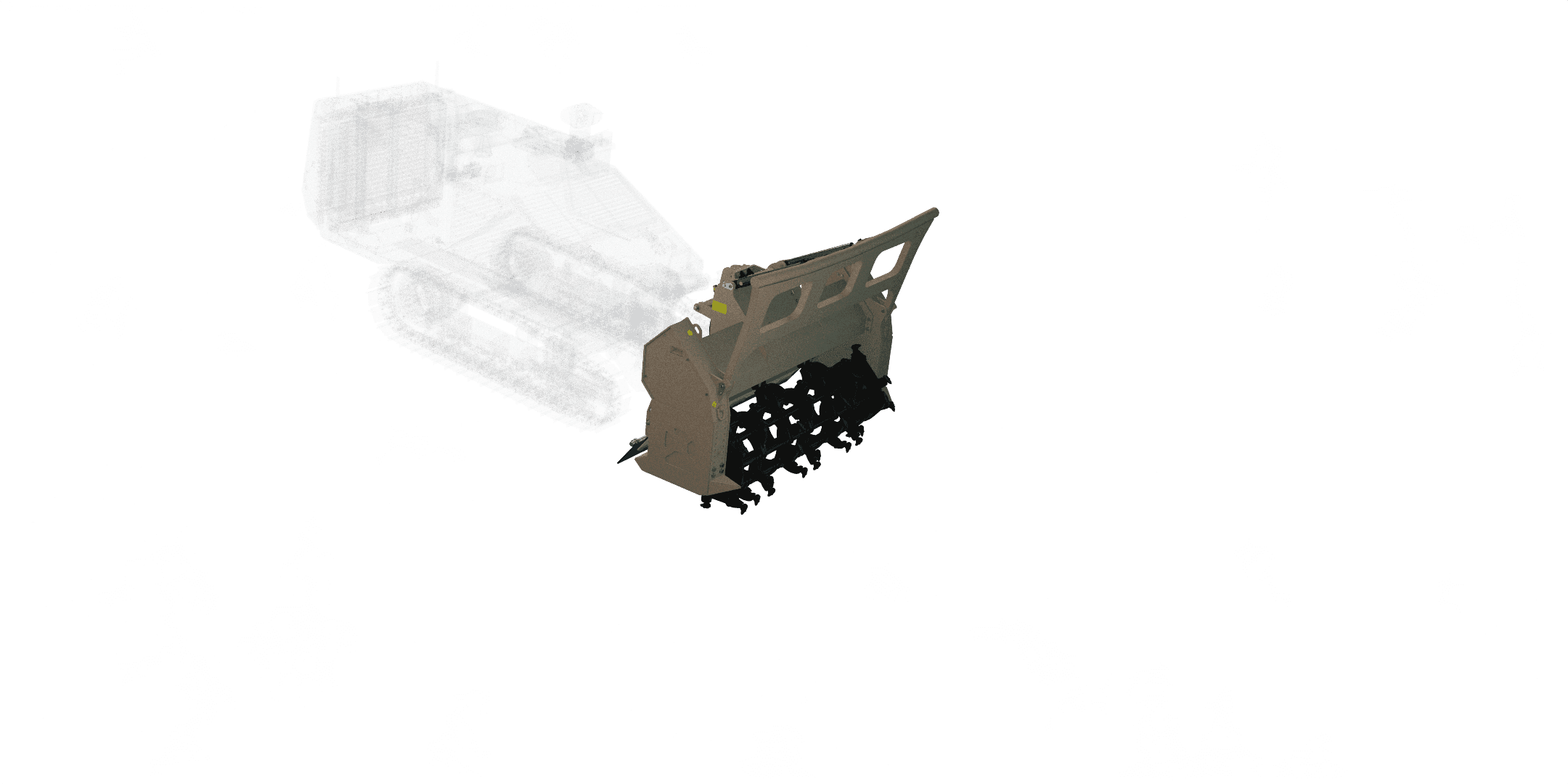

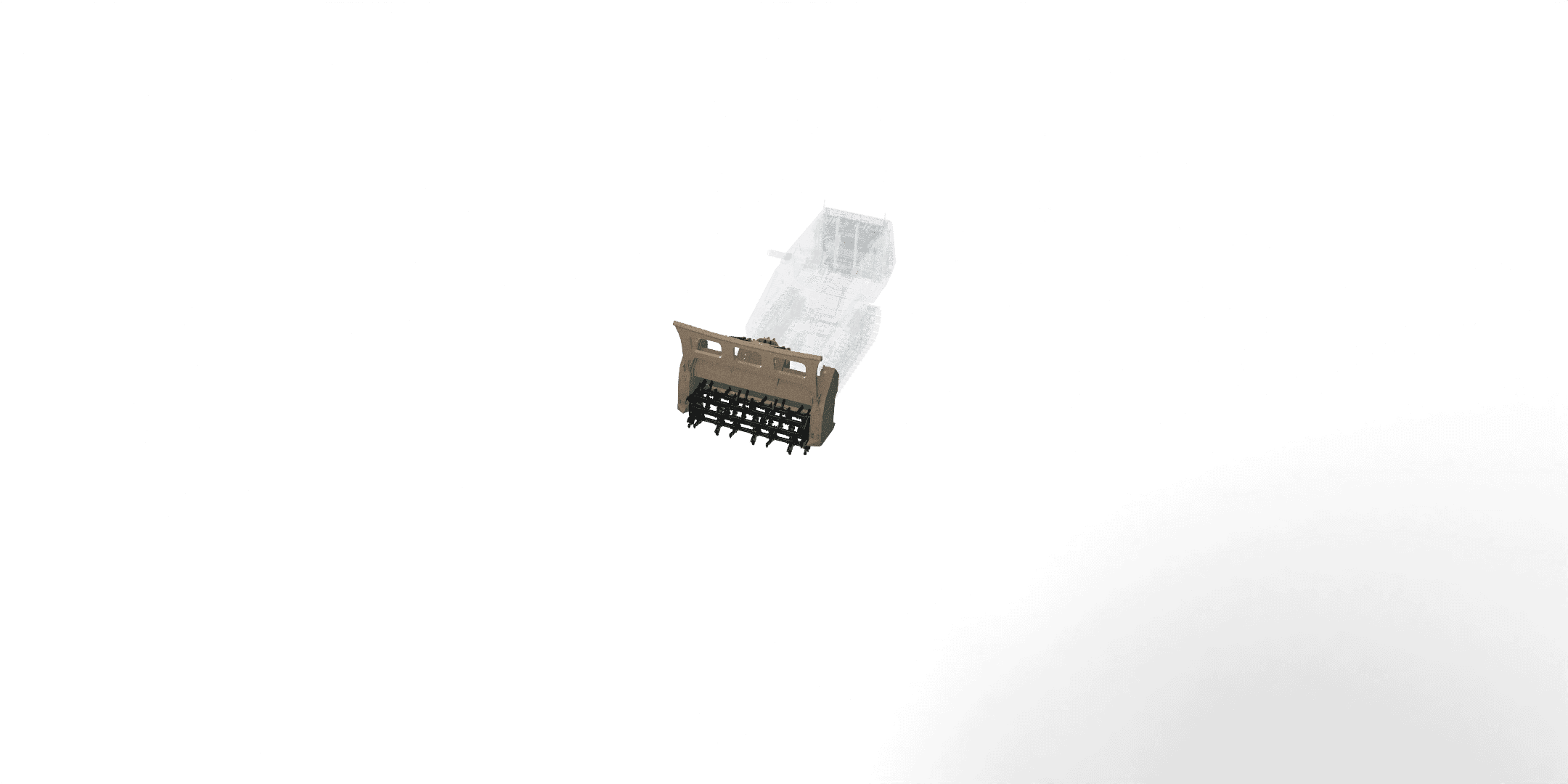

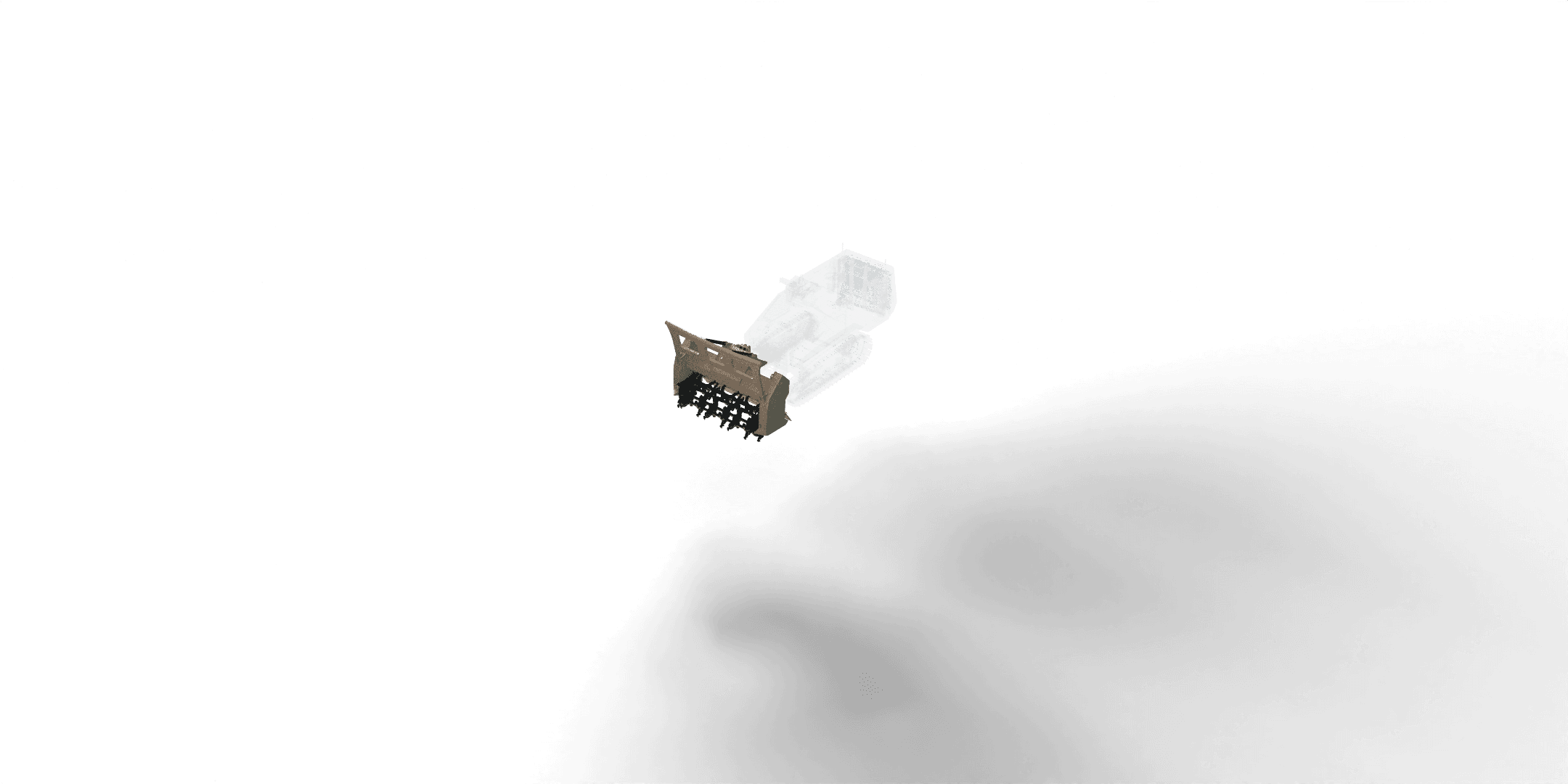

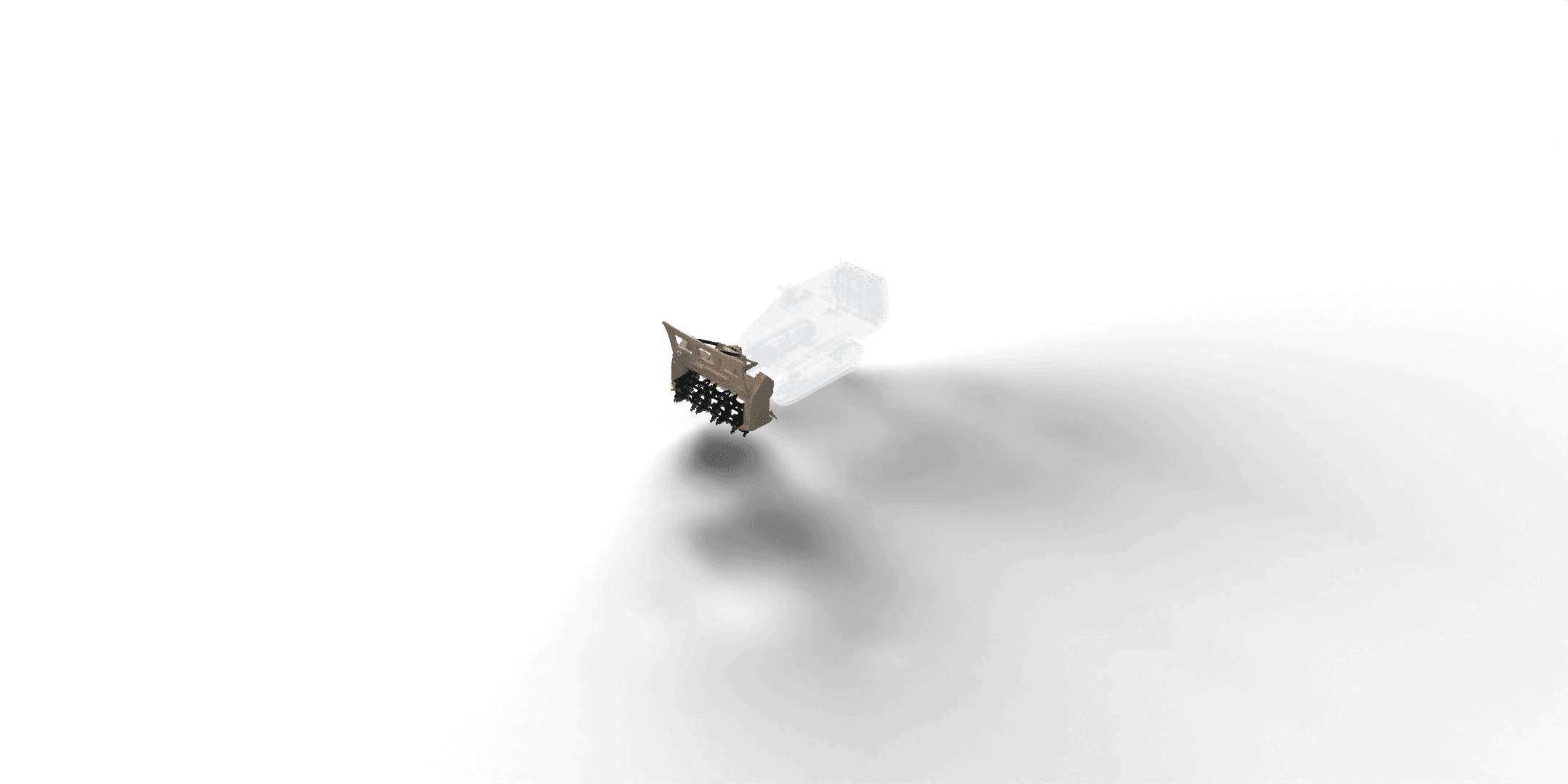

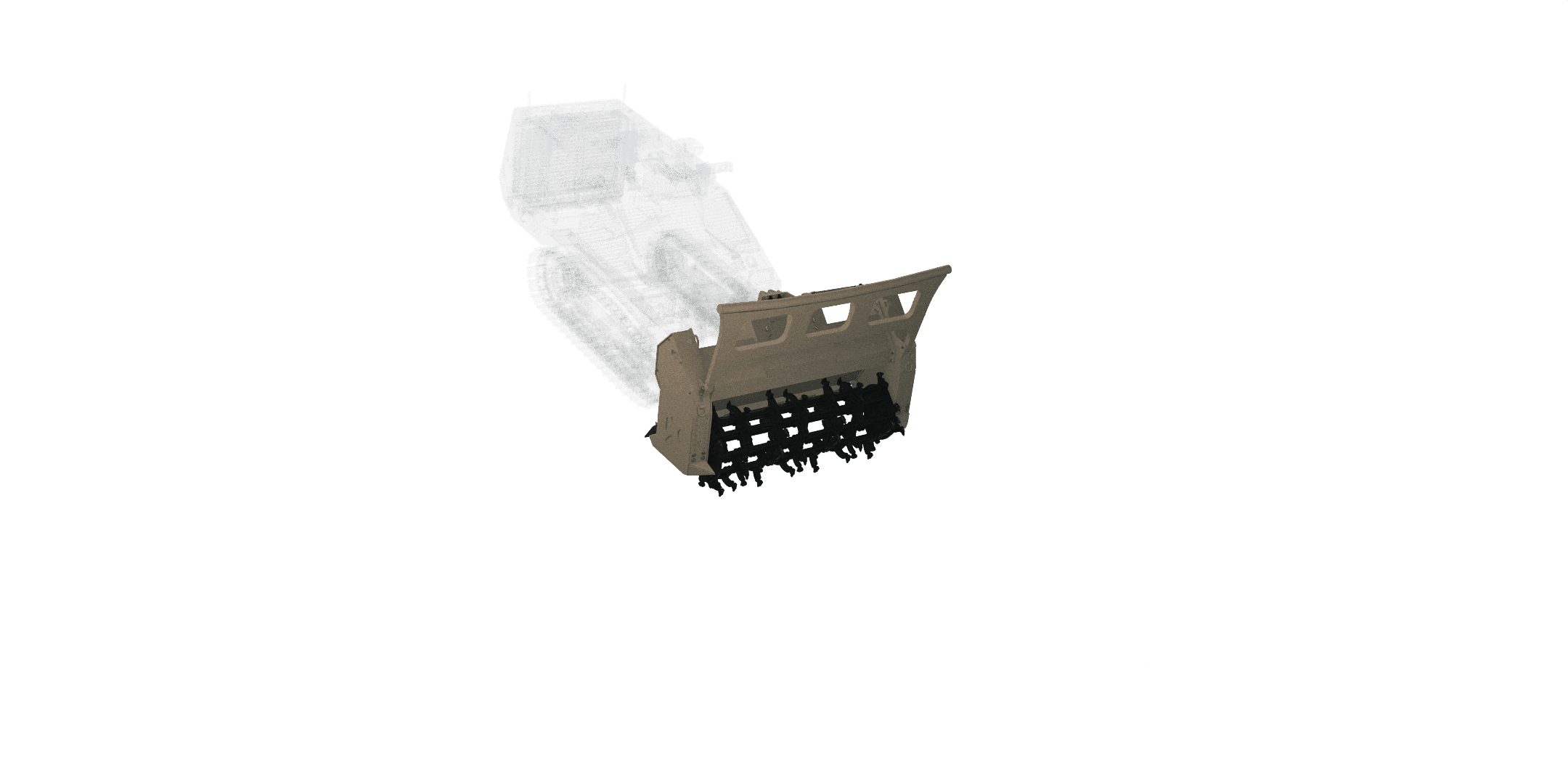

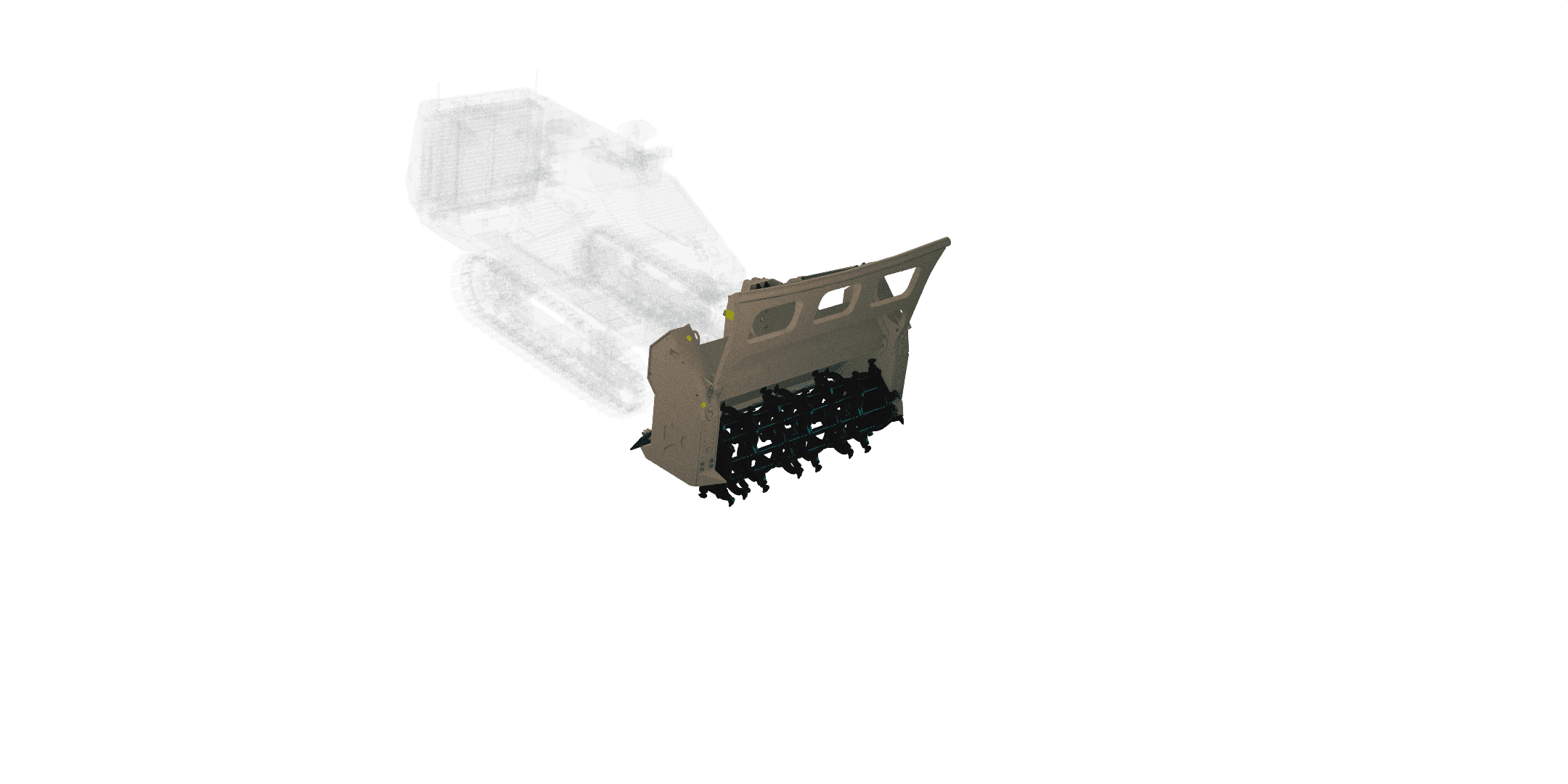

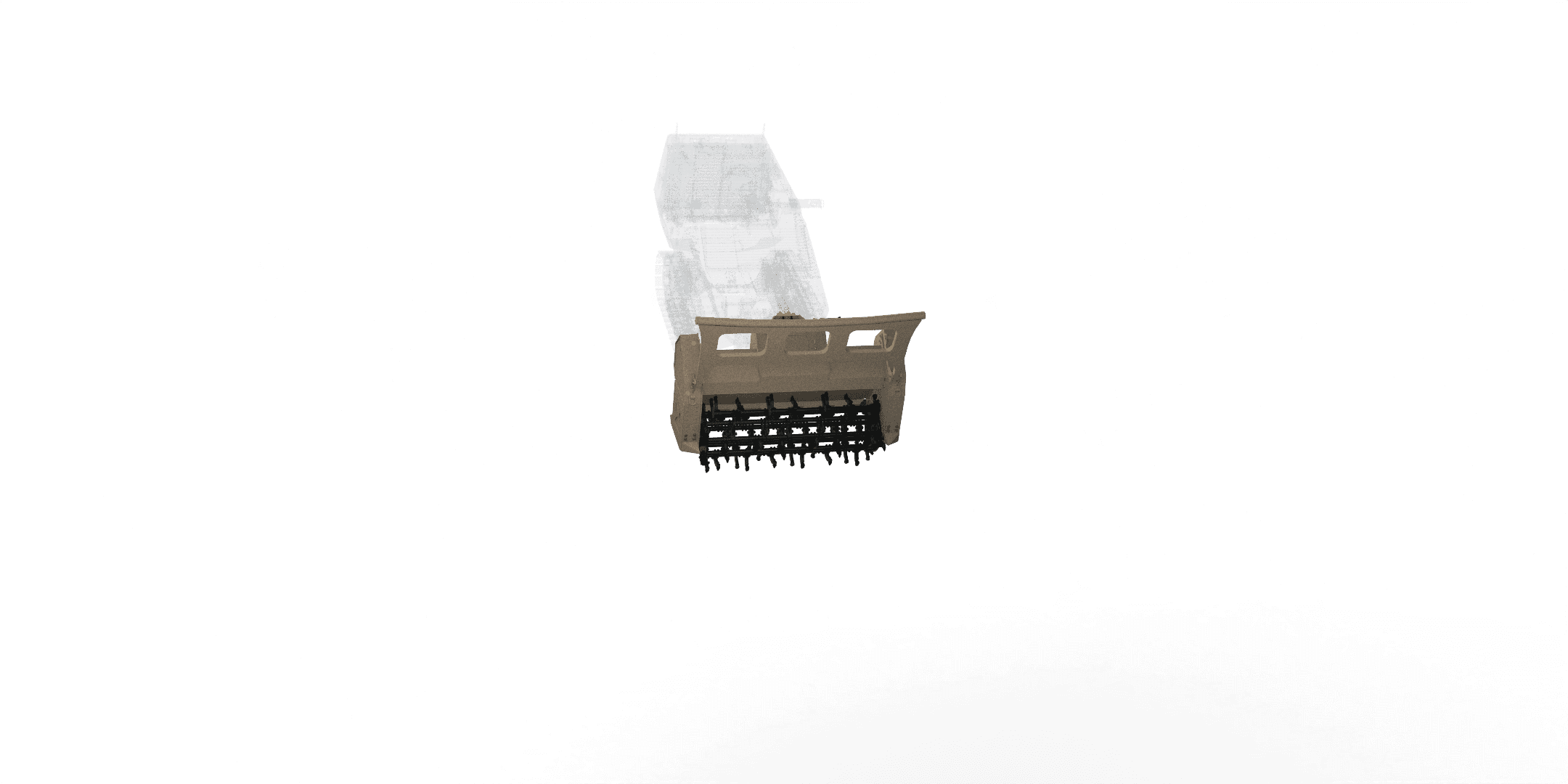

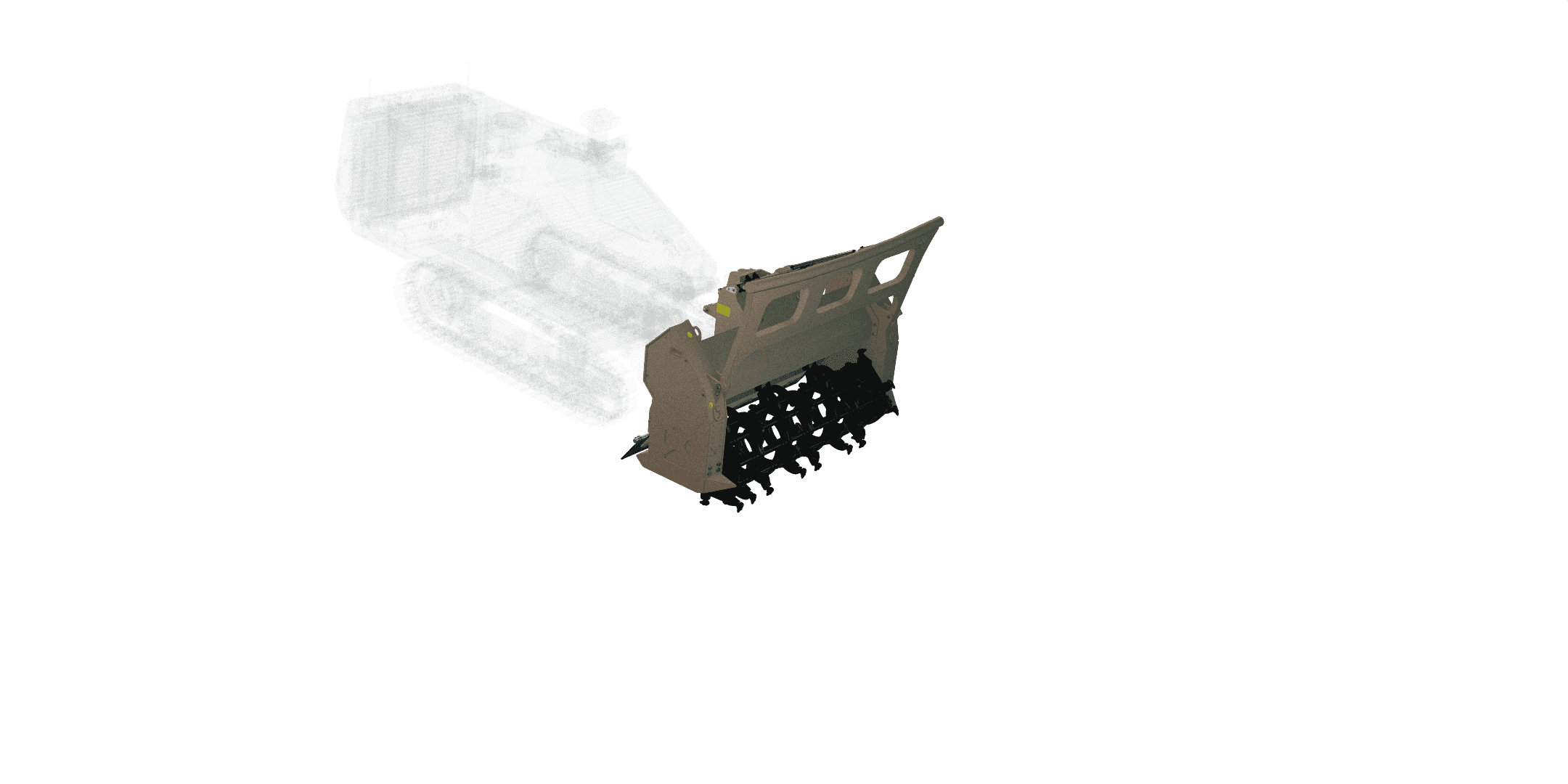

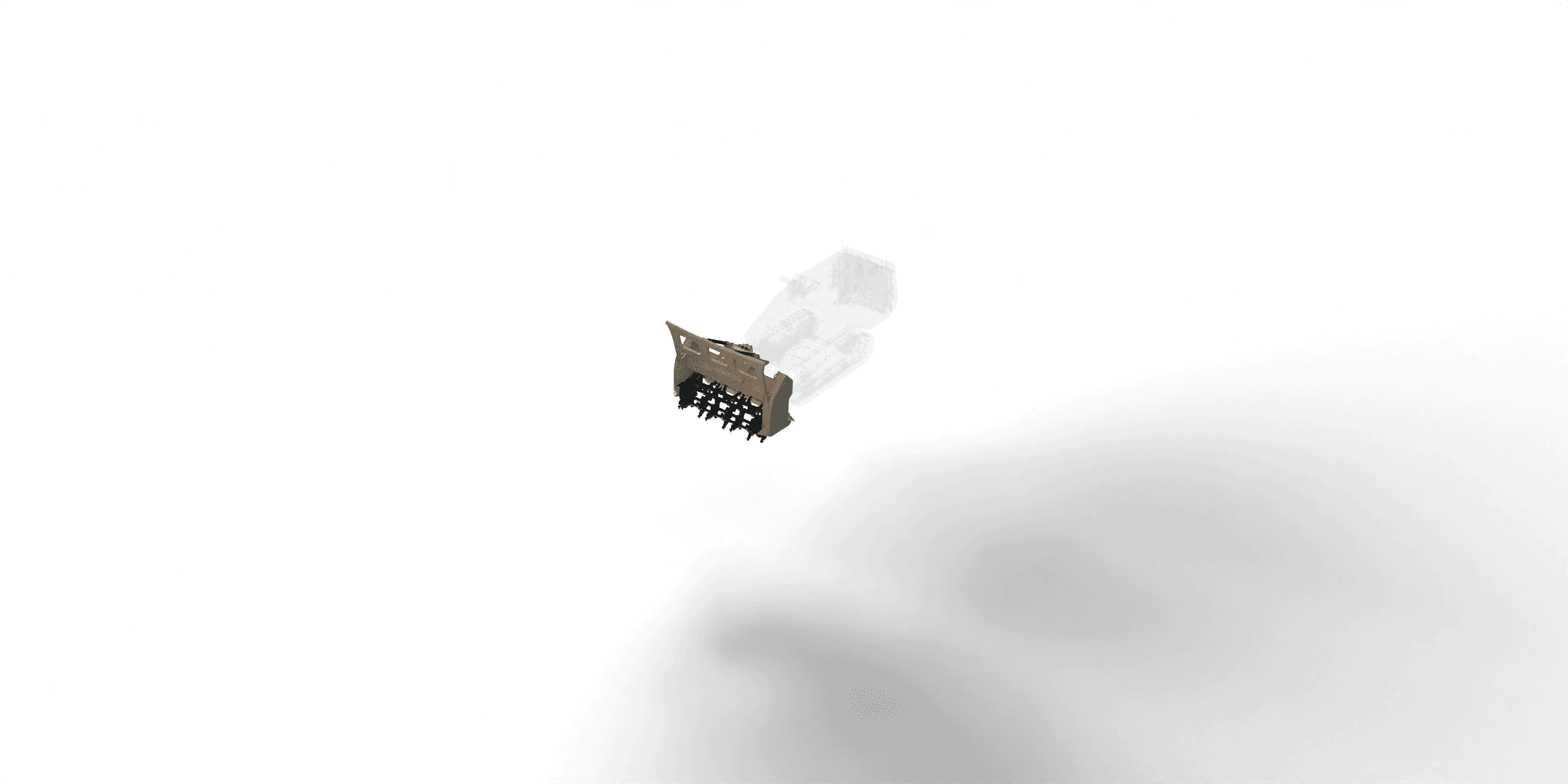

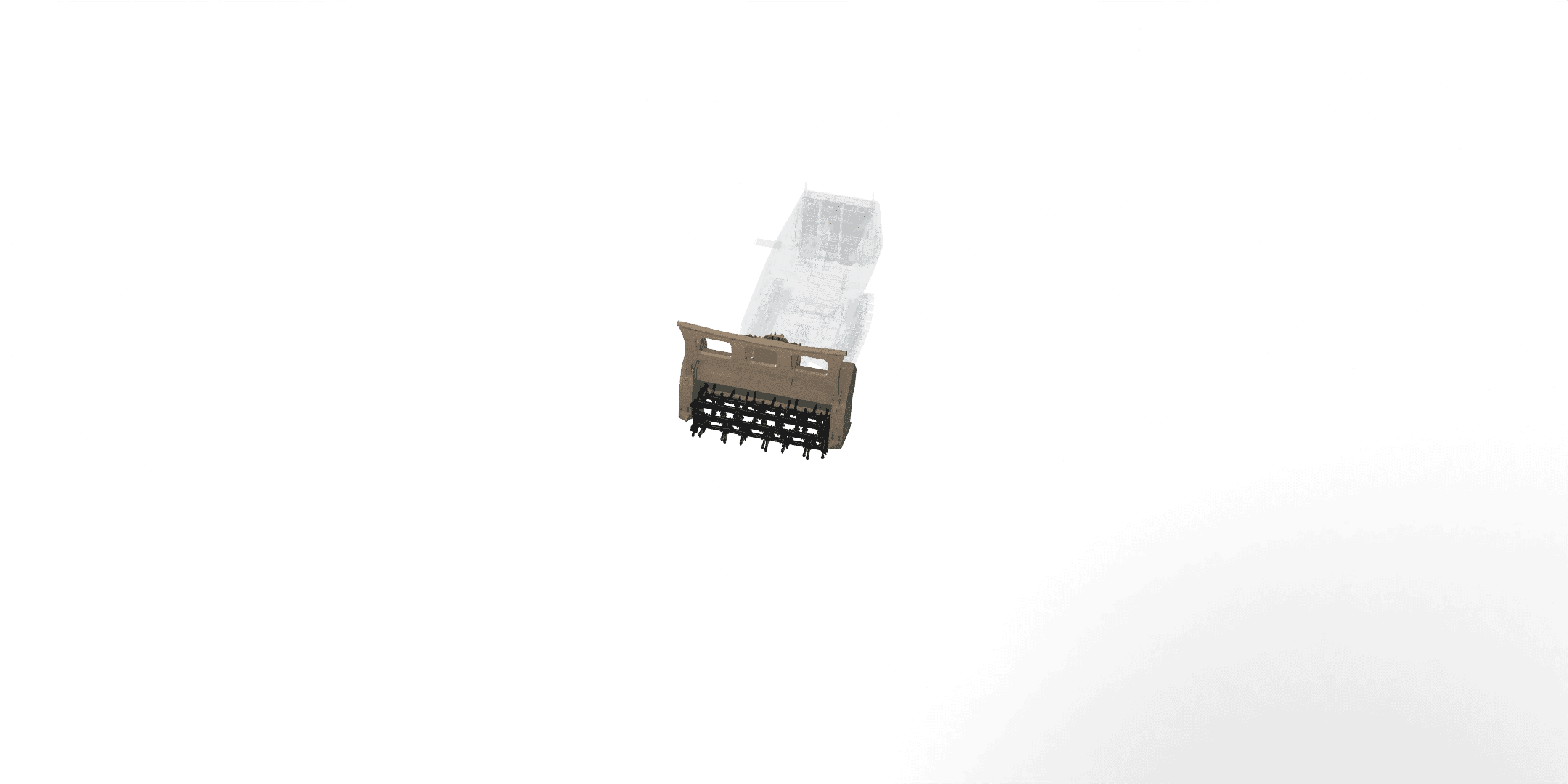

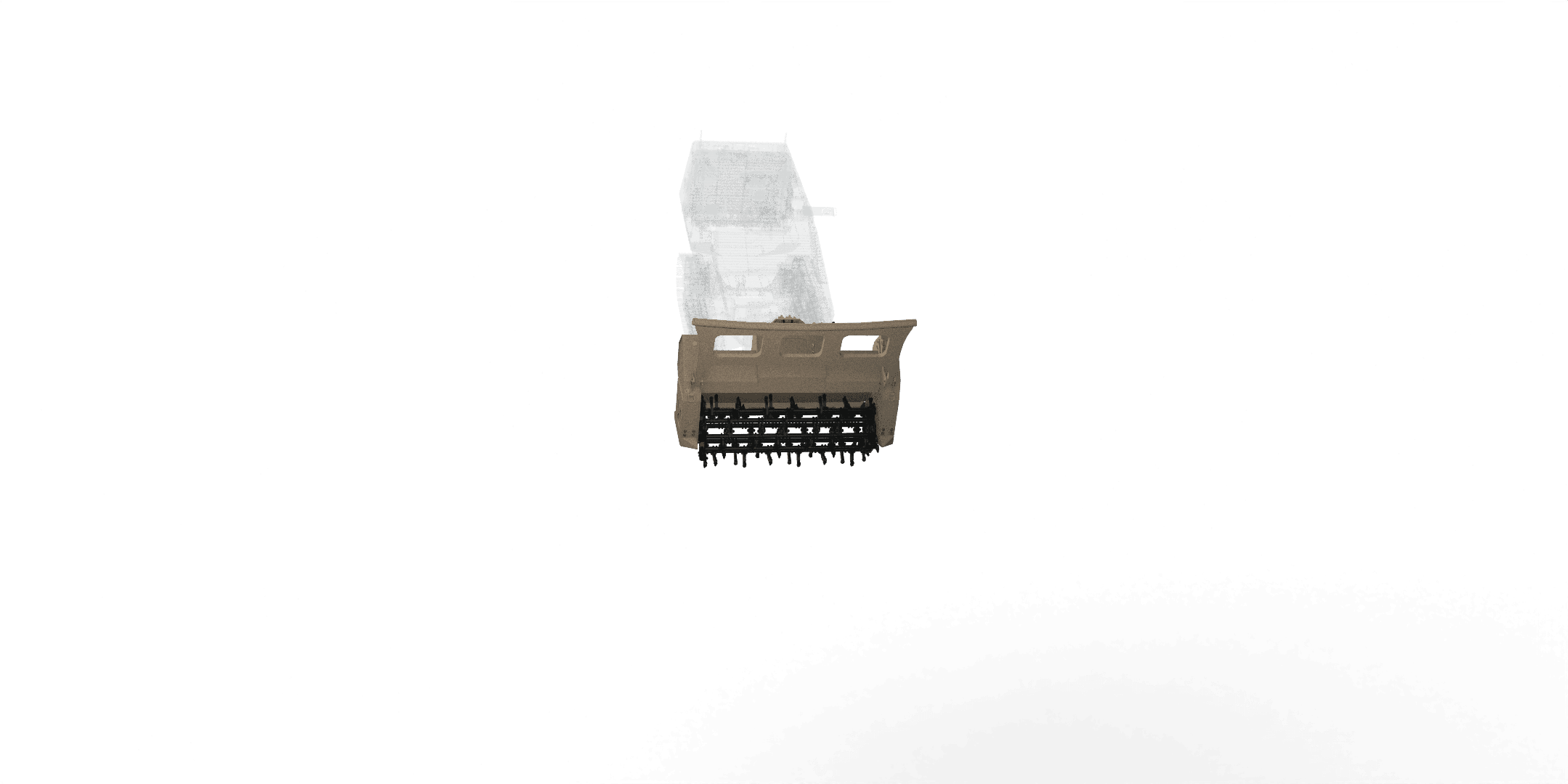

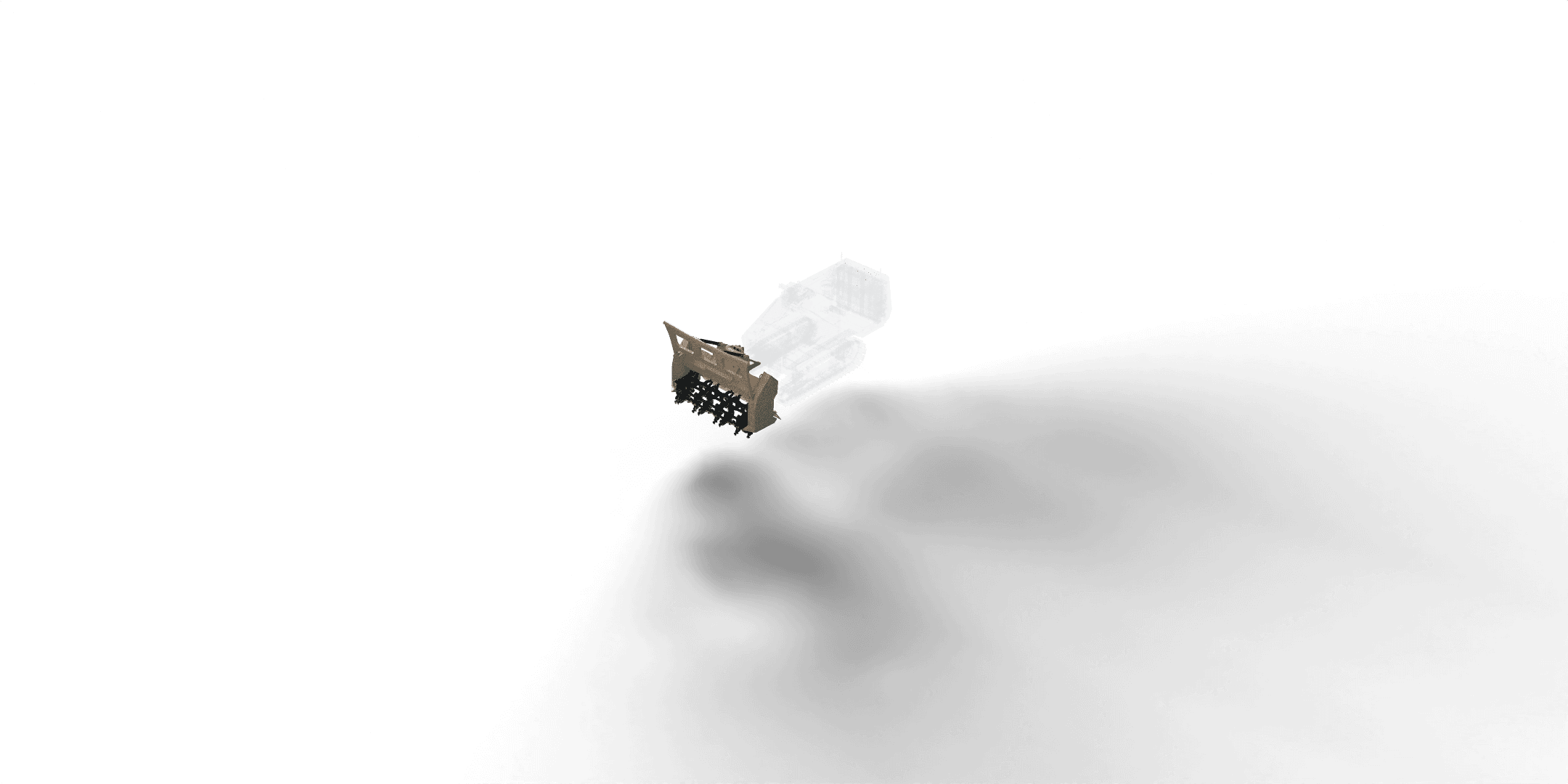

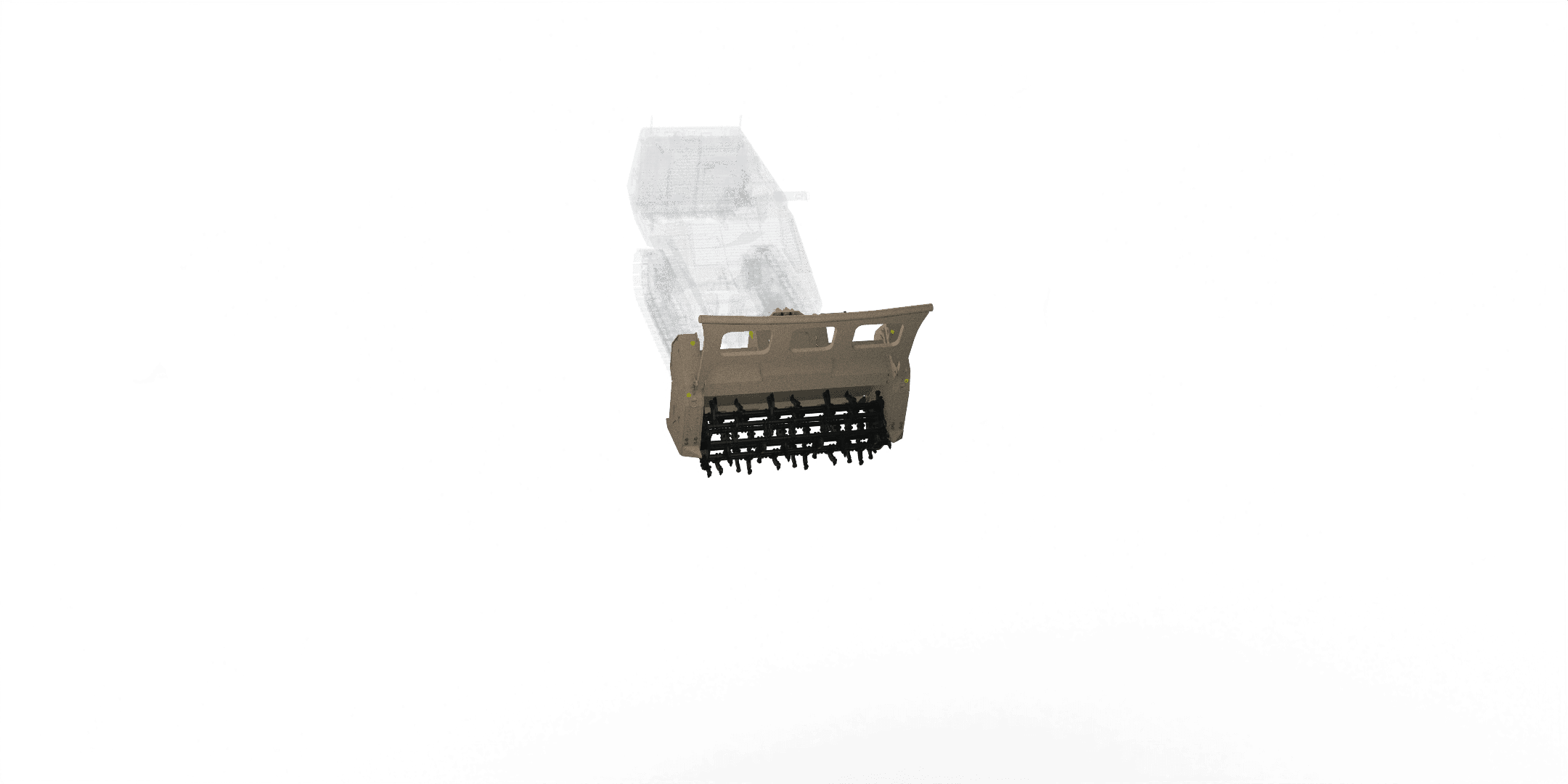

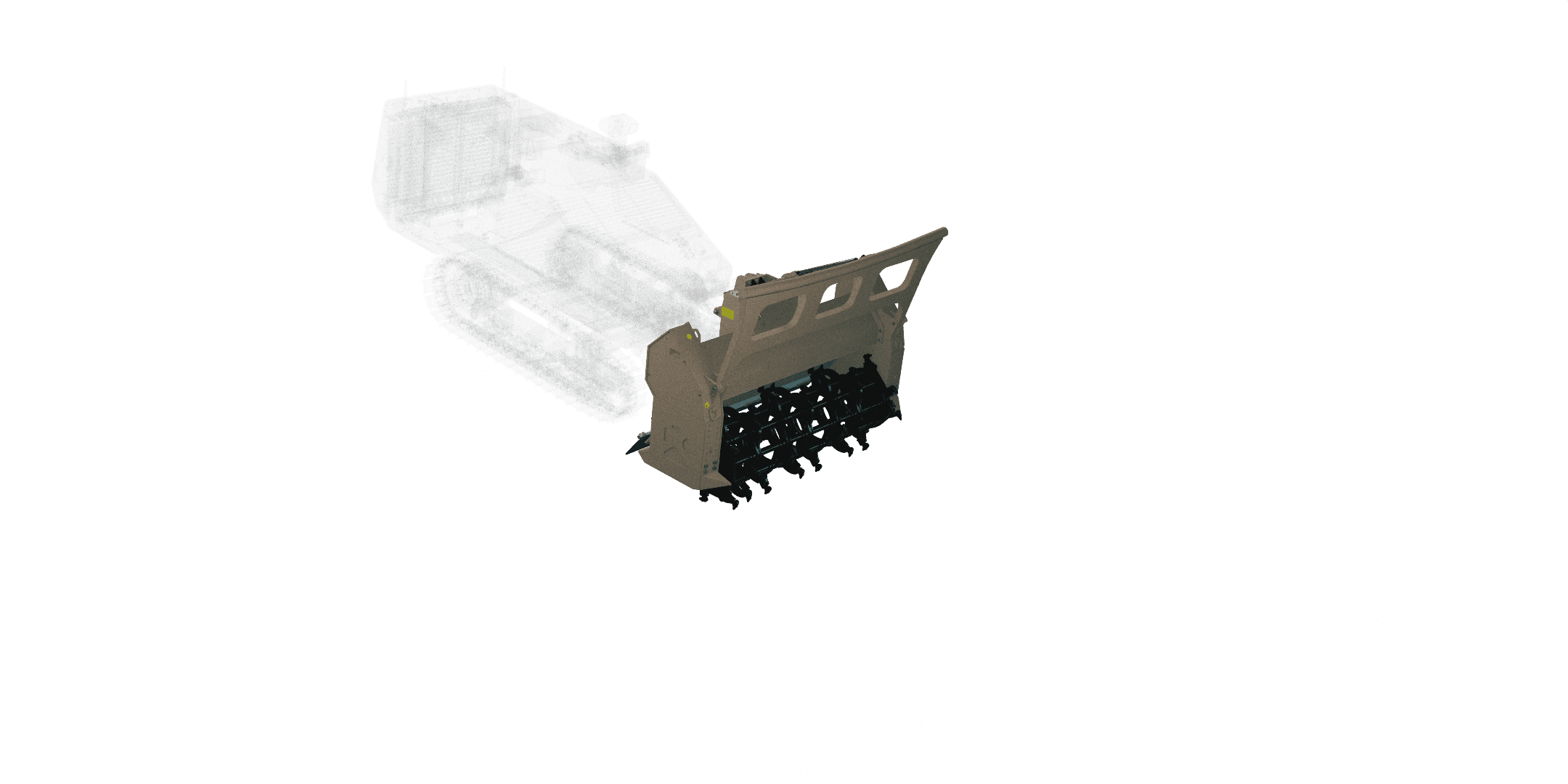

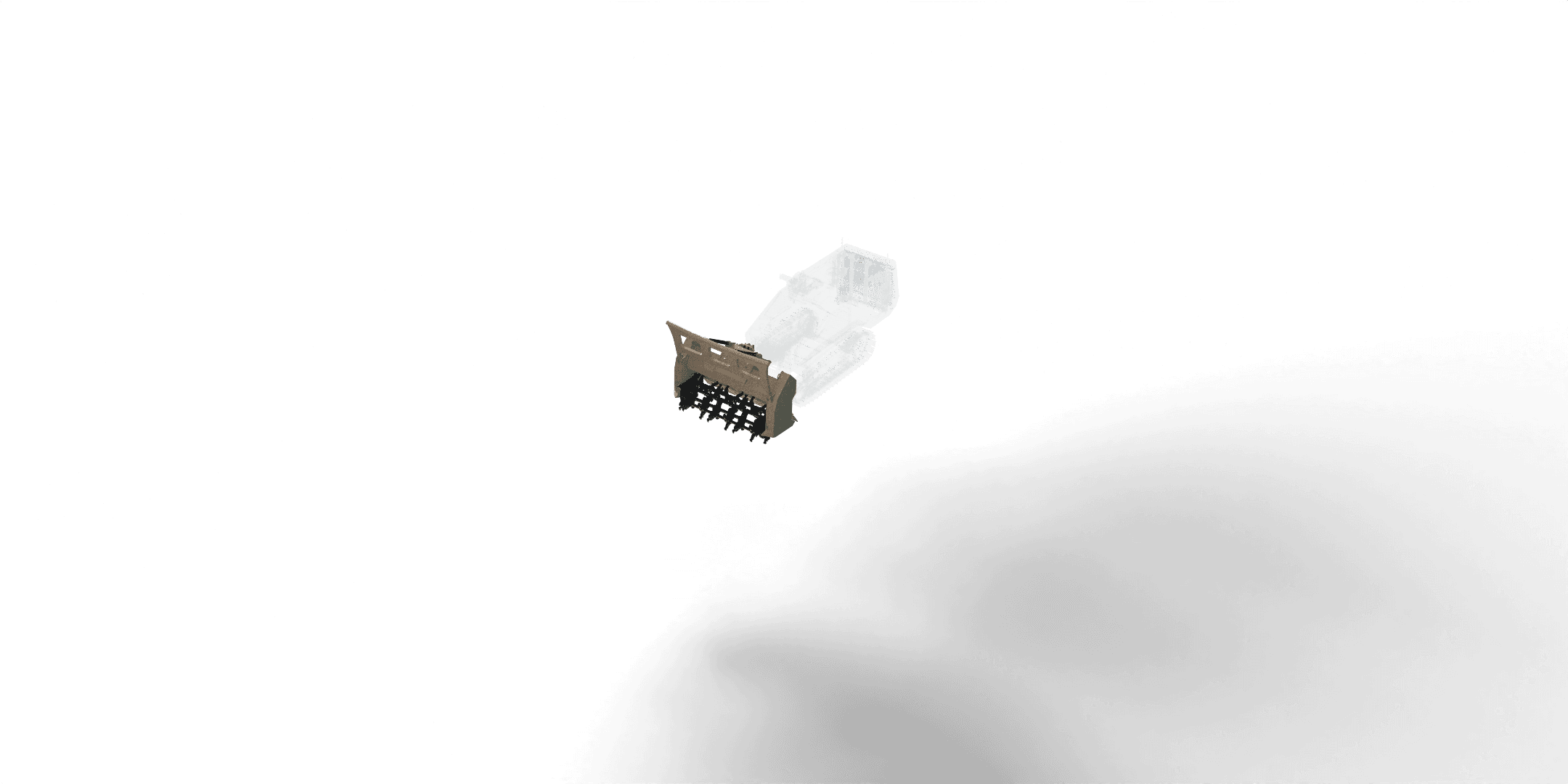

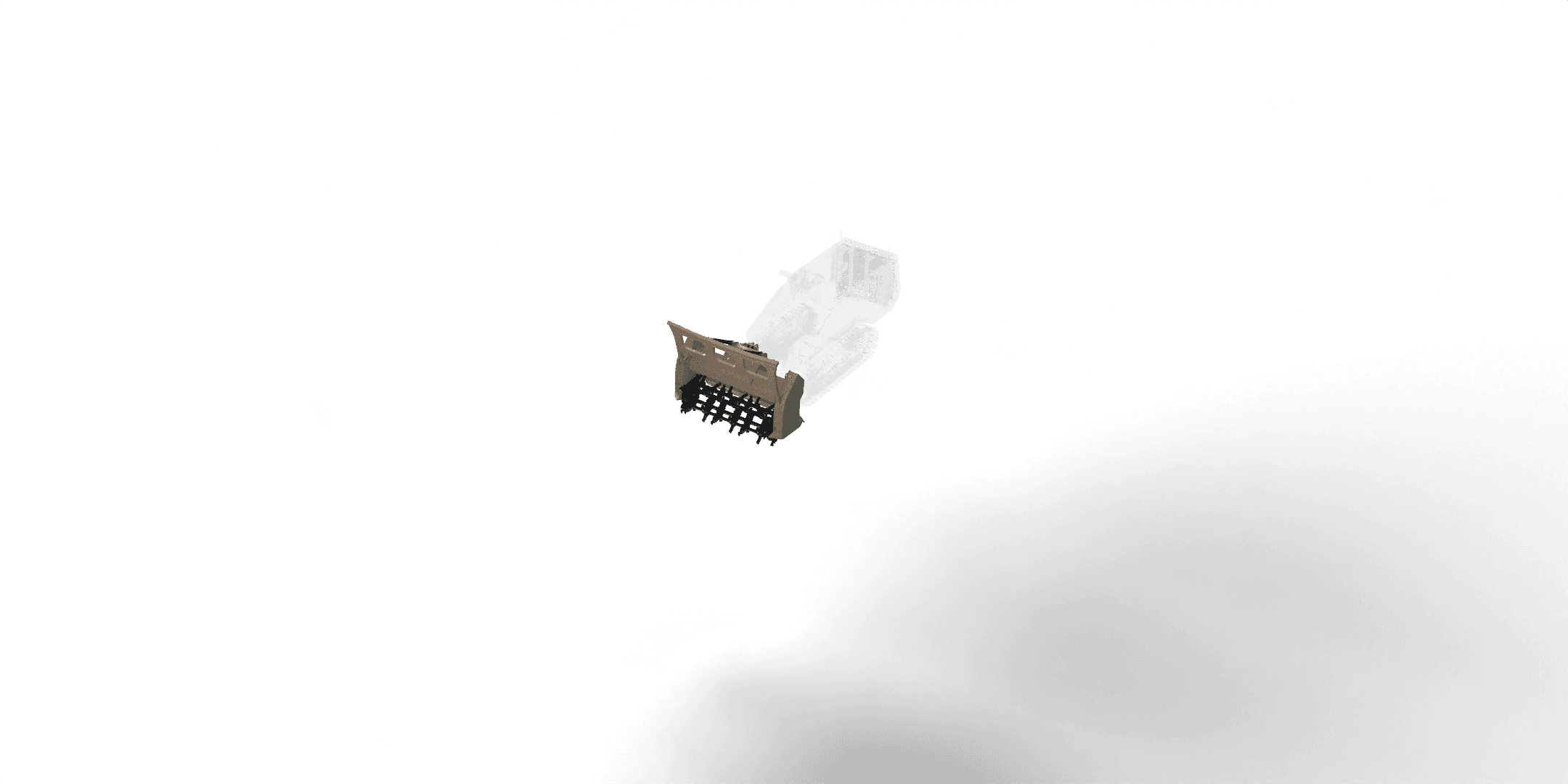

Tiller (T)
Mechanical attachment for controlled mine clearance and ground processing
Clears vegetation, tripwires and rubble to enable safer follow-on work.

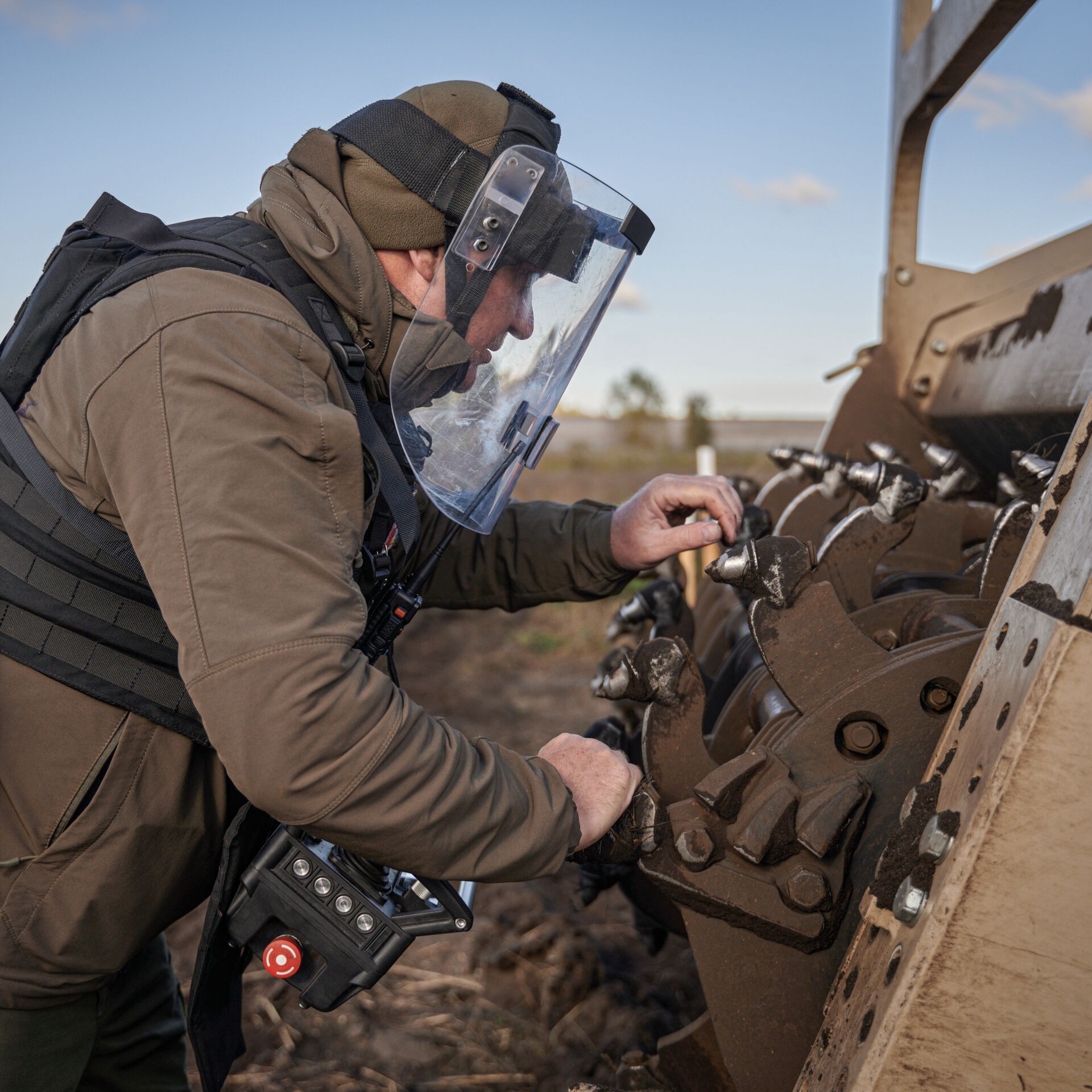

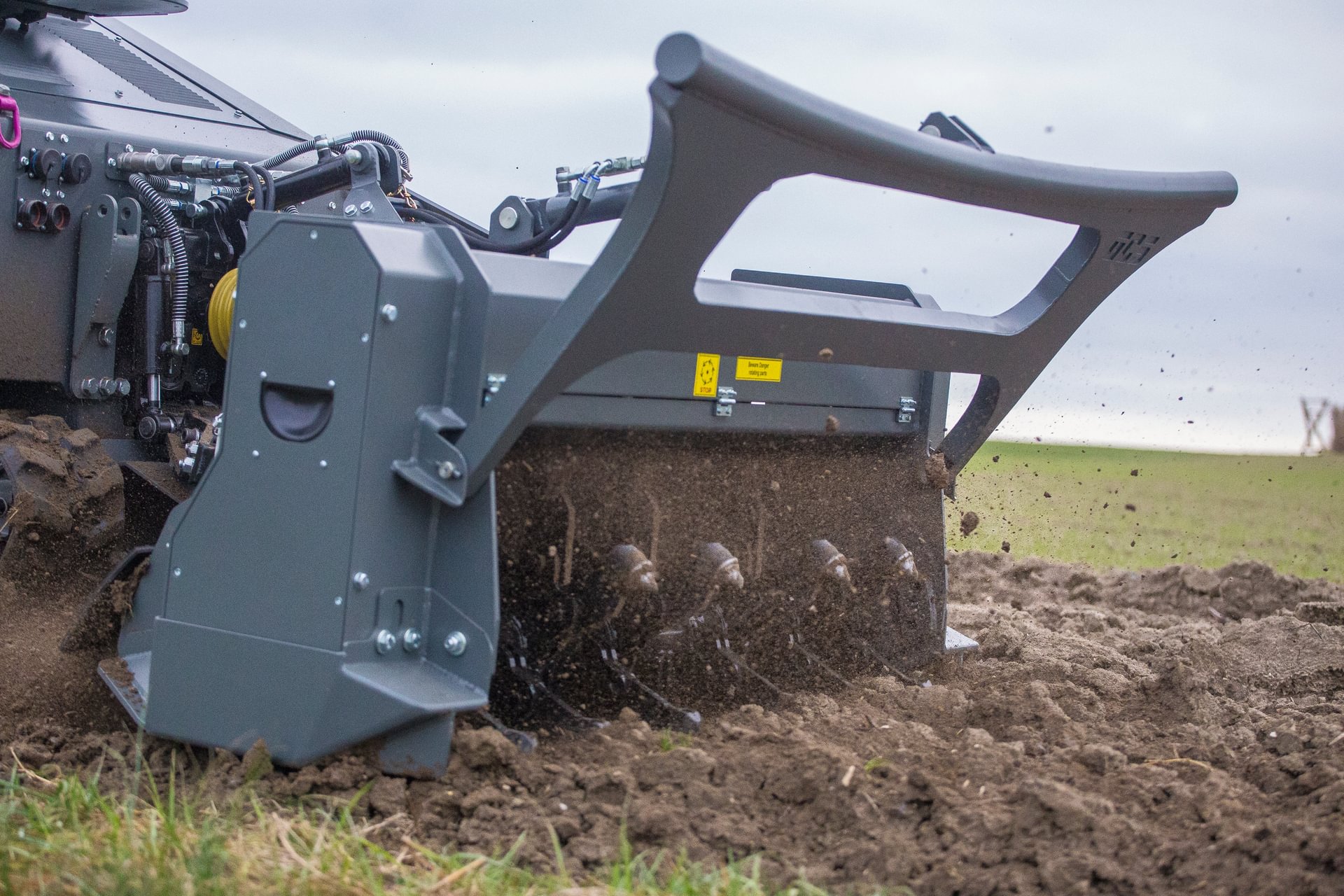

Rotating chains and hammers detonate or destroy buried AP and AT mines.

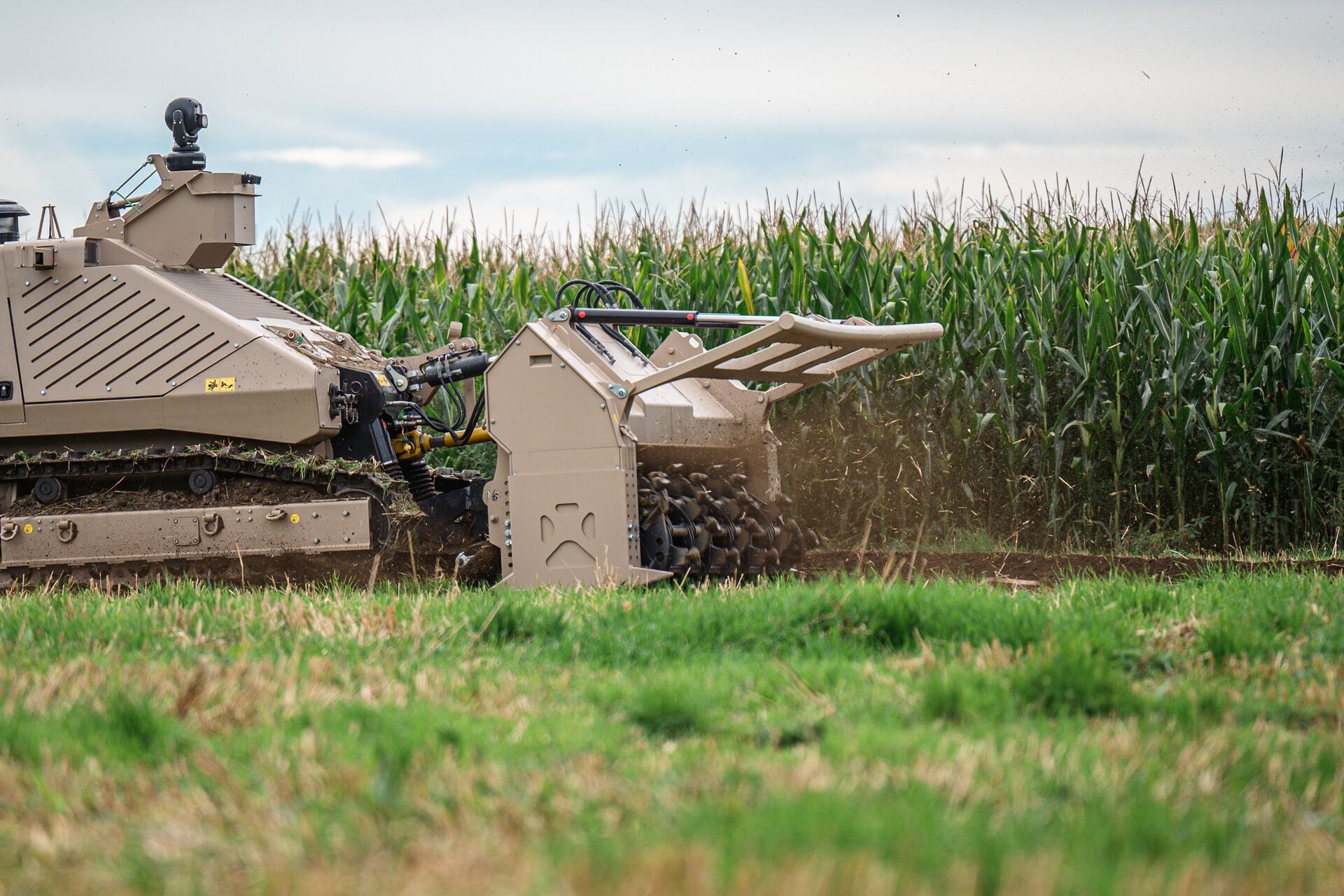

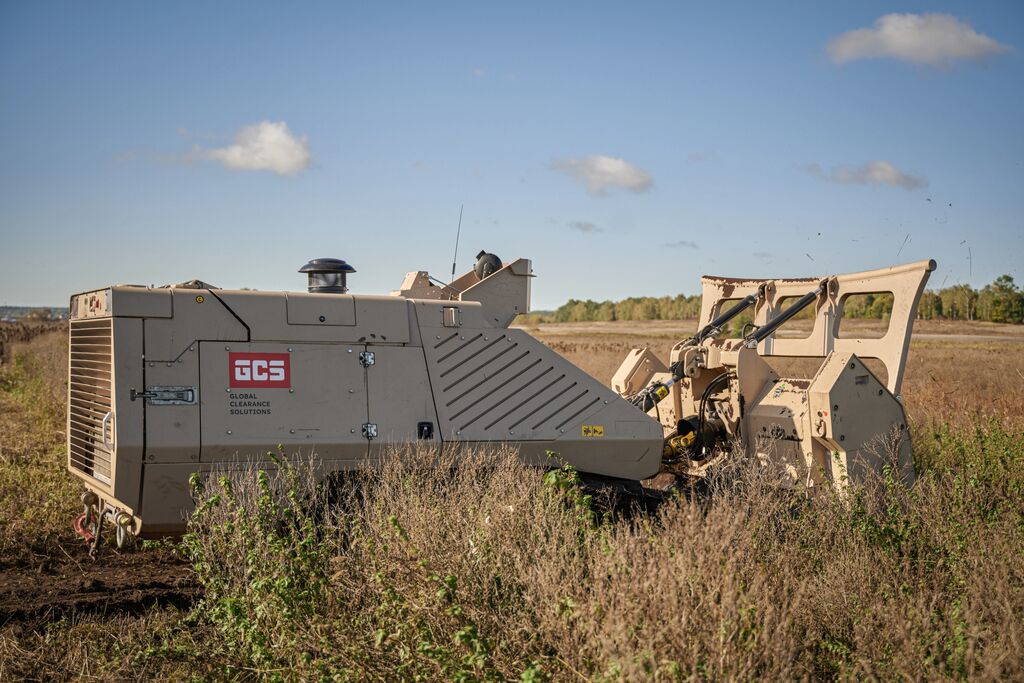

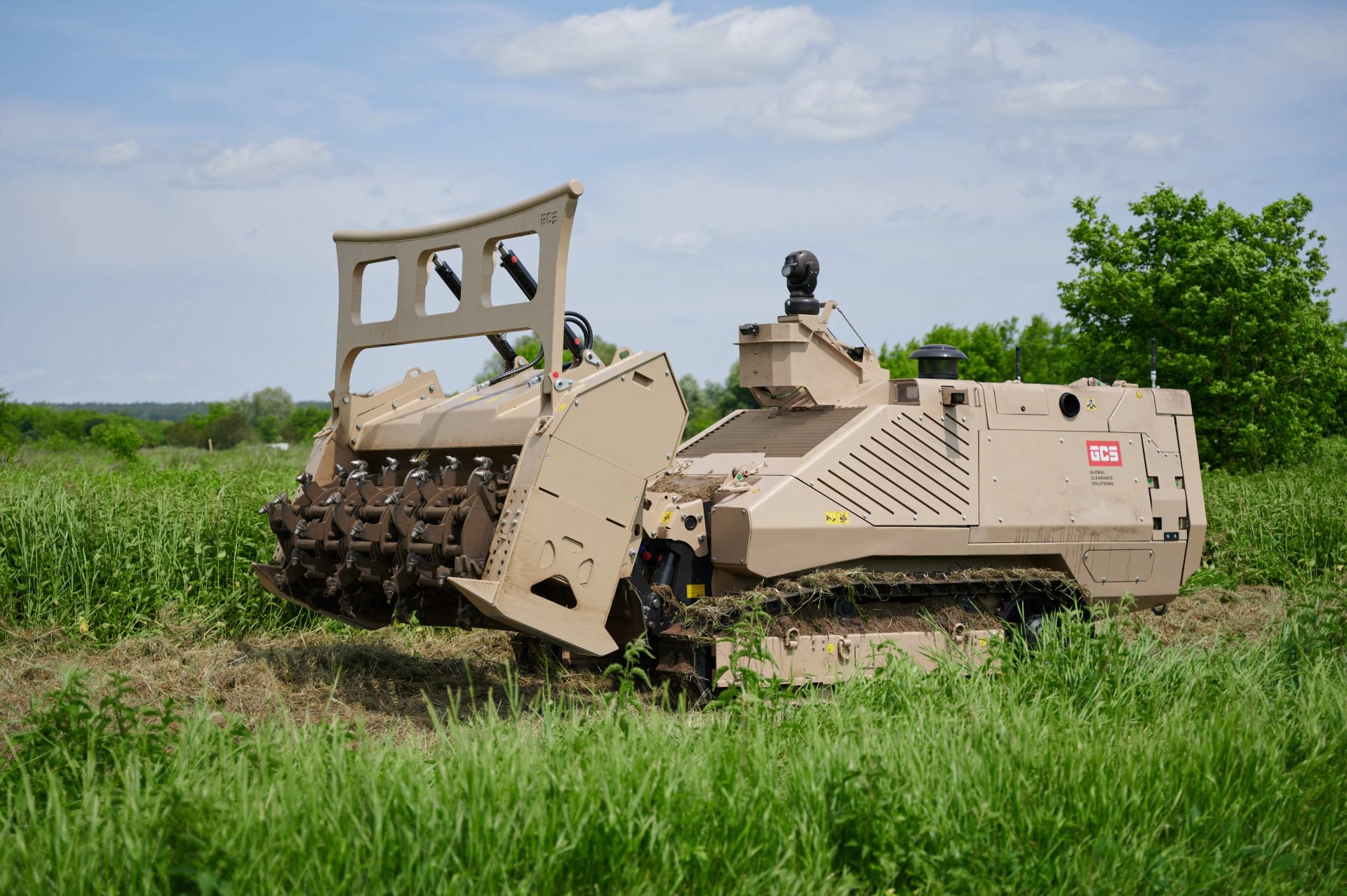

Designed to shred organic material while exposing or destroying buried explosive threats, the GCS Tiller supports mechanical clearance of contaminated terrain.

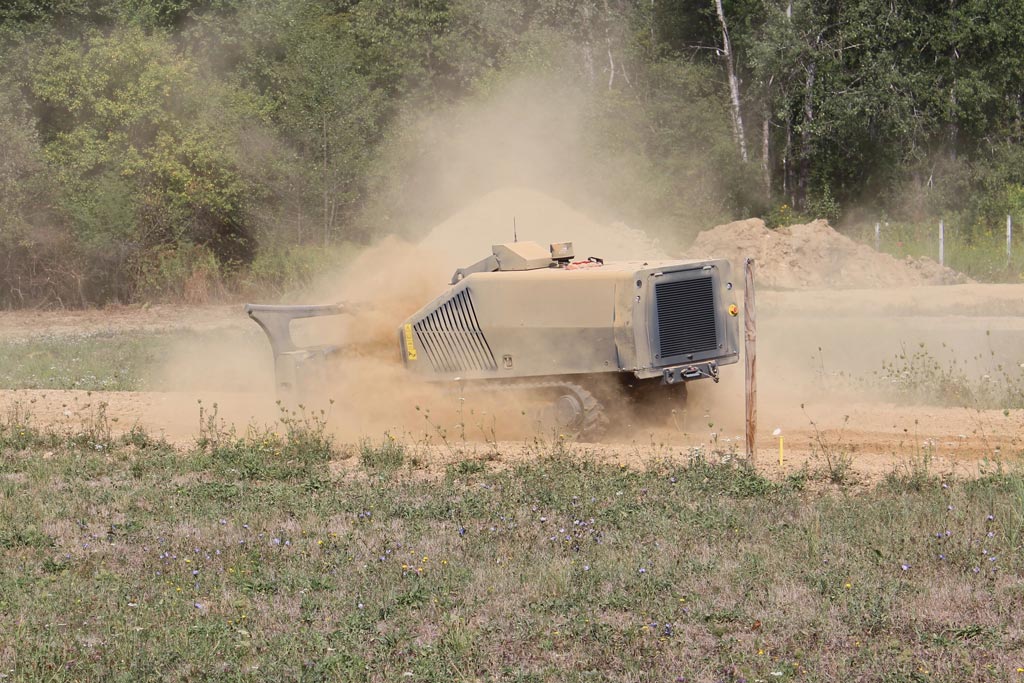

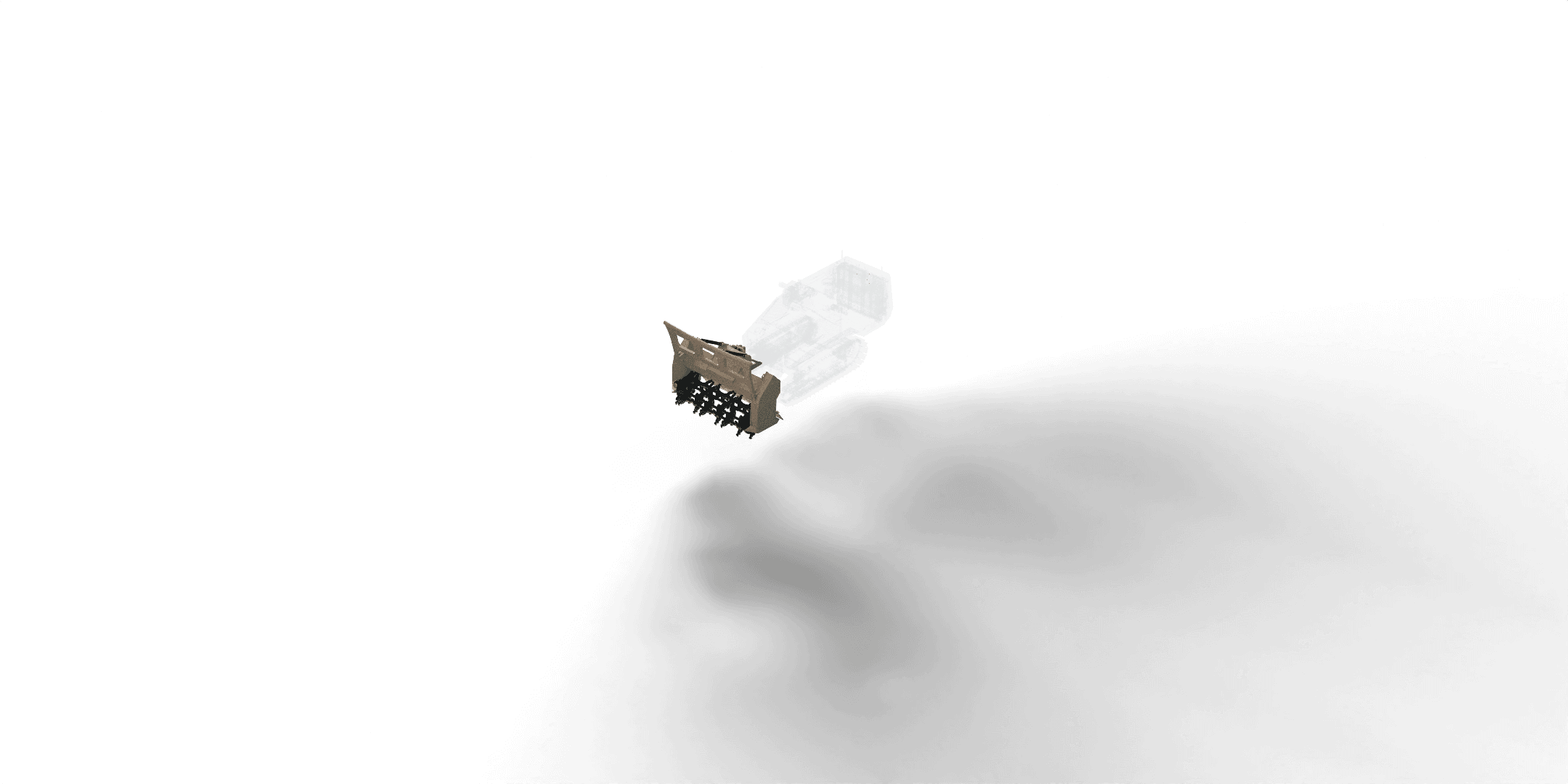

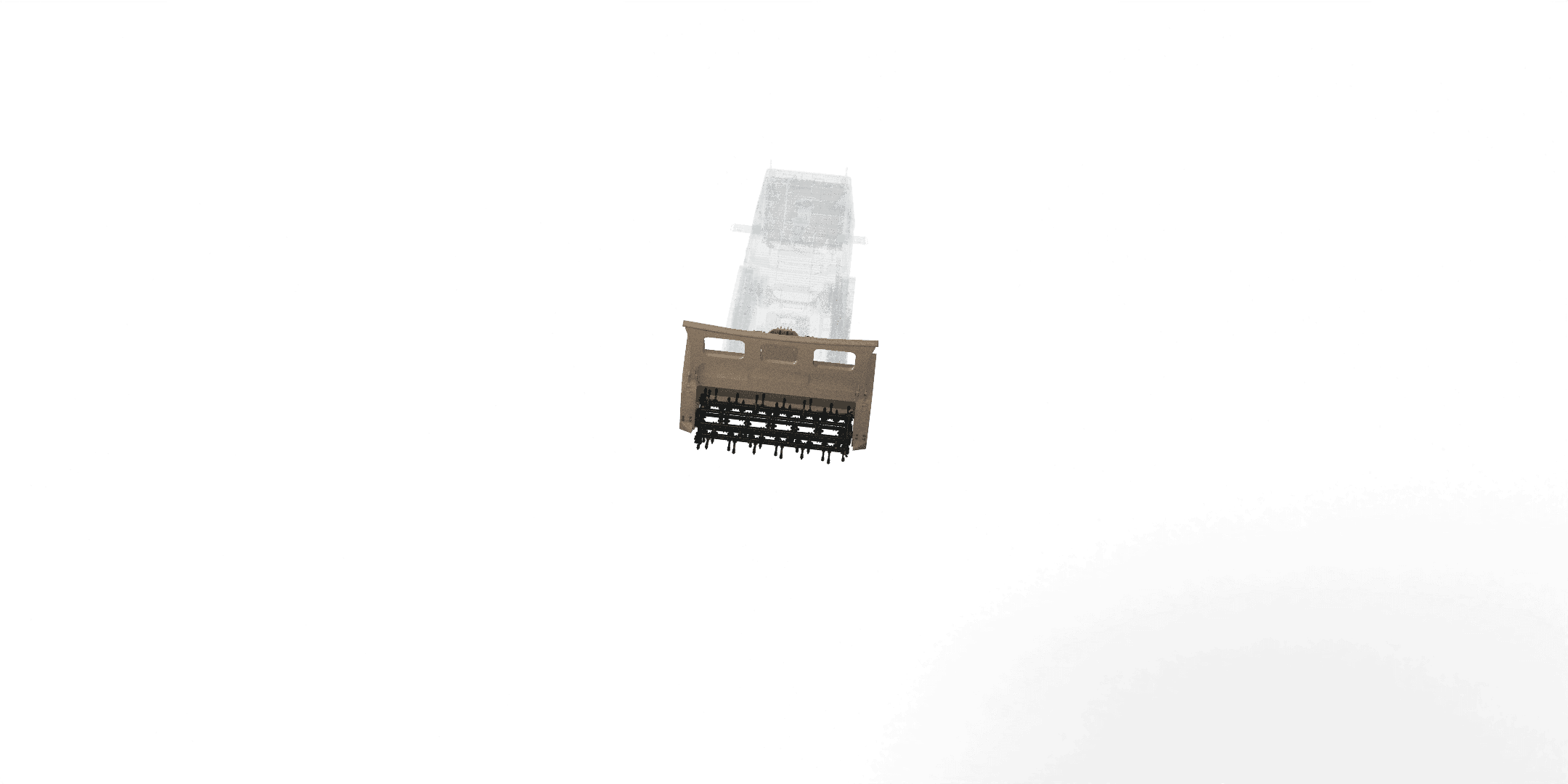

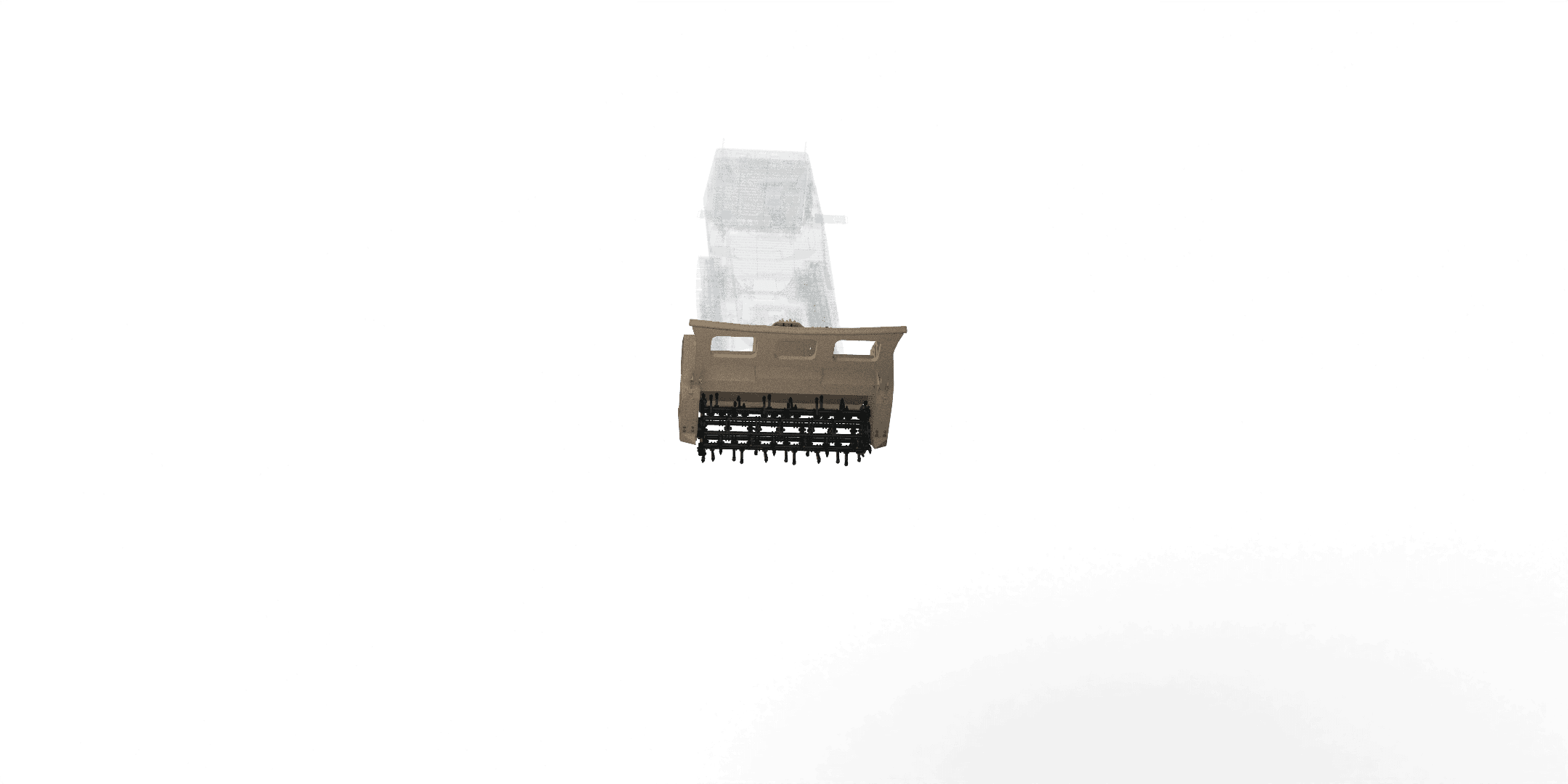

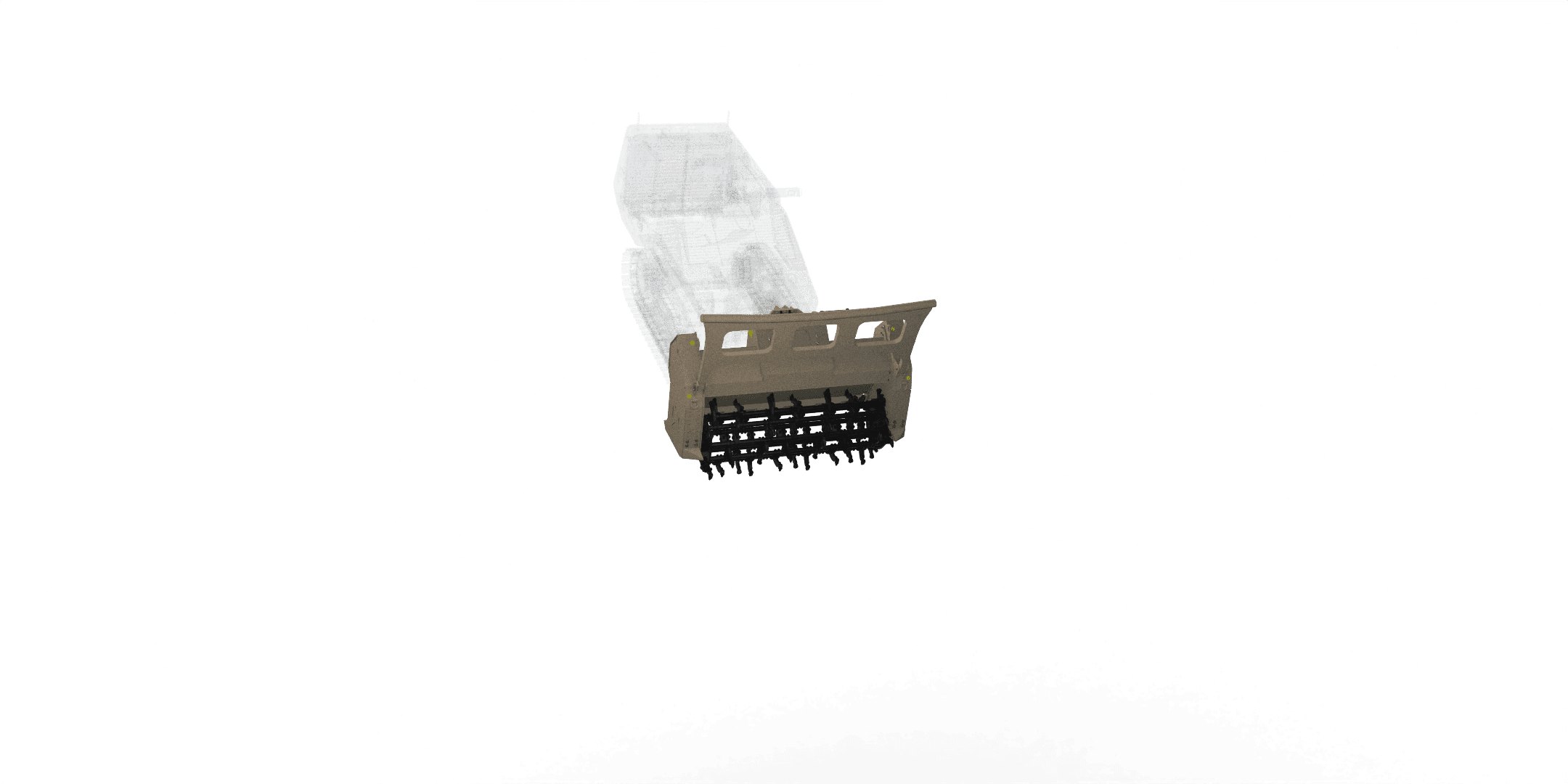

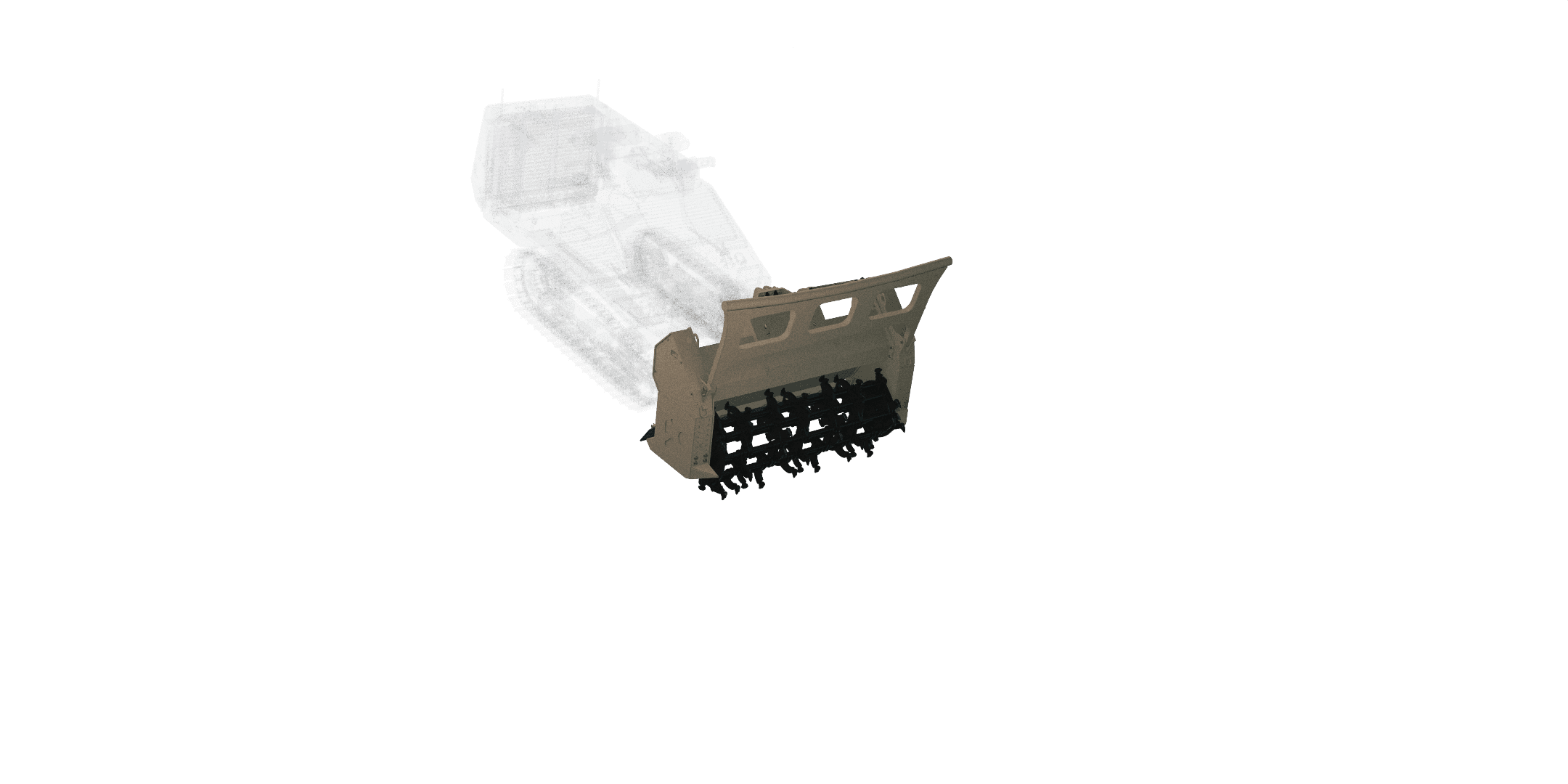

Operated remotely, mounted on unmanned platforms, it processes soil and vegetation in a controlled manner, reducing risk to operators while maintaining consistent working depth and performance.
Designed to shred organic material while exposing or destroying buried explosive threats, the GCS Tiller supports mechanical clearance of contaminated terrain.
Operated remotely, mounted on unmanned platforms, it processes soil and vegetation in a controlled manner, reducing risk to operators while maintaining consistent working depth and performance.
Designed to shred organic material while exposing or destroying buried explosive threats, the GCS Tiller supports mechanical clearance of contaminated terrain.
Operated remotely, mounted on unmanned platforms, it processes soil and vegetation in a controlled manner, reducing risk to operators while maintaining consistent working depth and performance.
Designed to shred organic material while exposing or destroying buried explosive threats, the GCS Tiller supports mechanical clearance of contaminated terrain.
Operated remotely, mounted on unmanned platforms, it processes soil and vegetation in a controlled manner, reducing risk to operators while maintaining consistent working depth and performance.
Explore our range of products

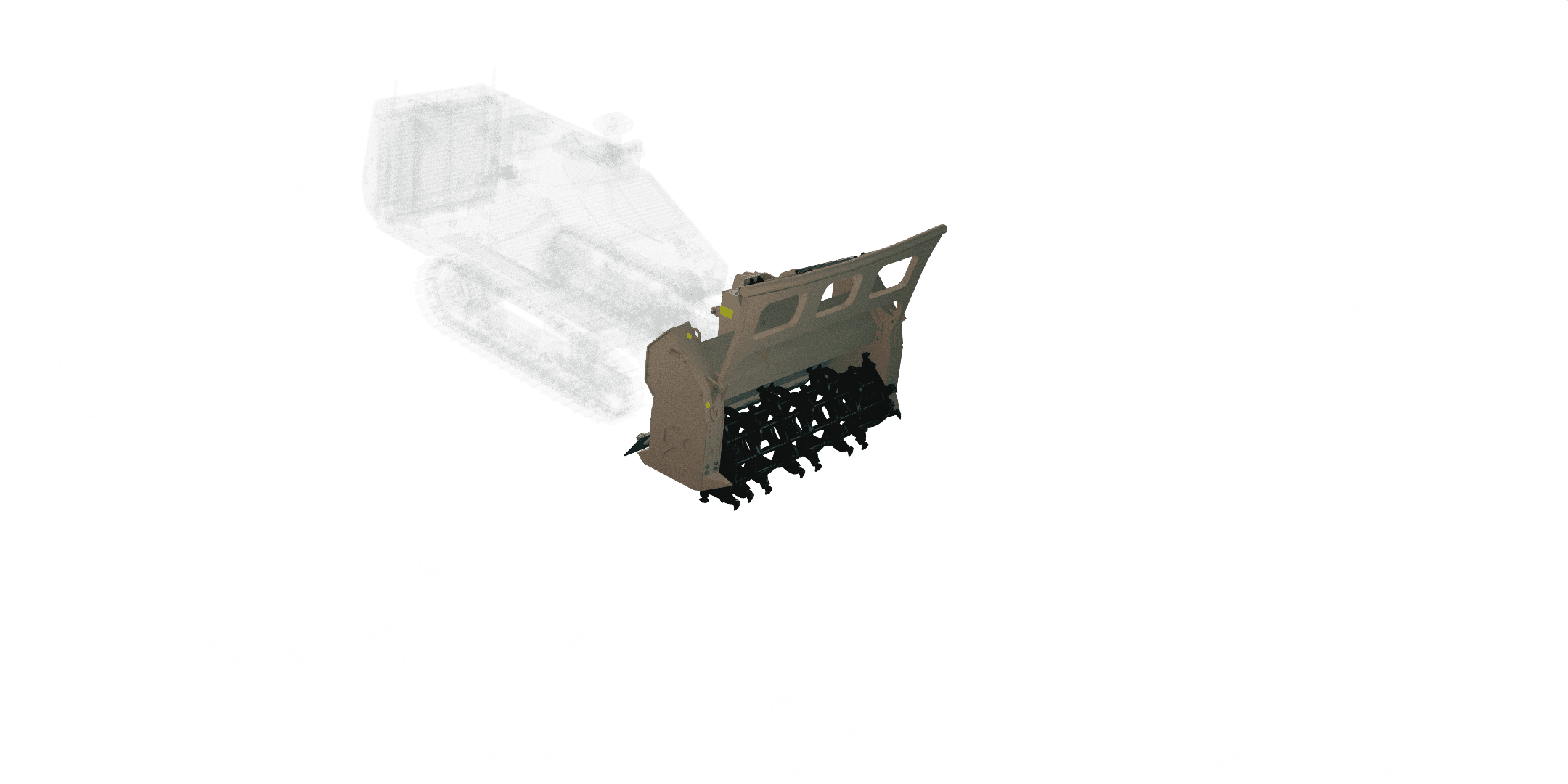

The Tiller comes in two variants, matched to the size, power and operational role of their host platform
T-100

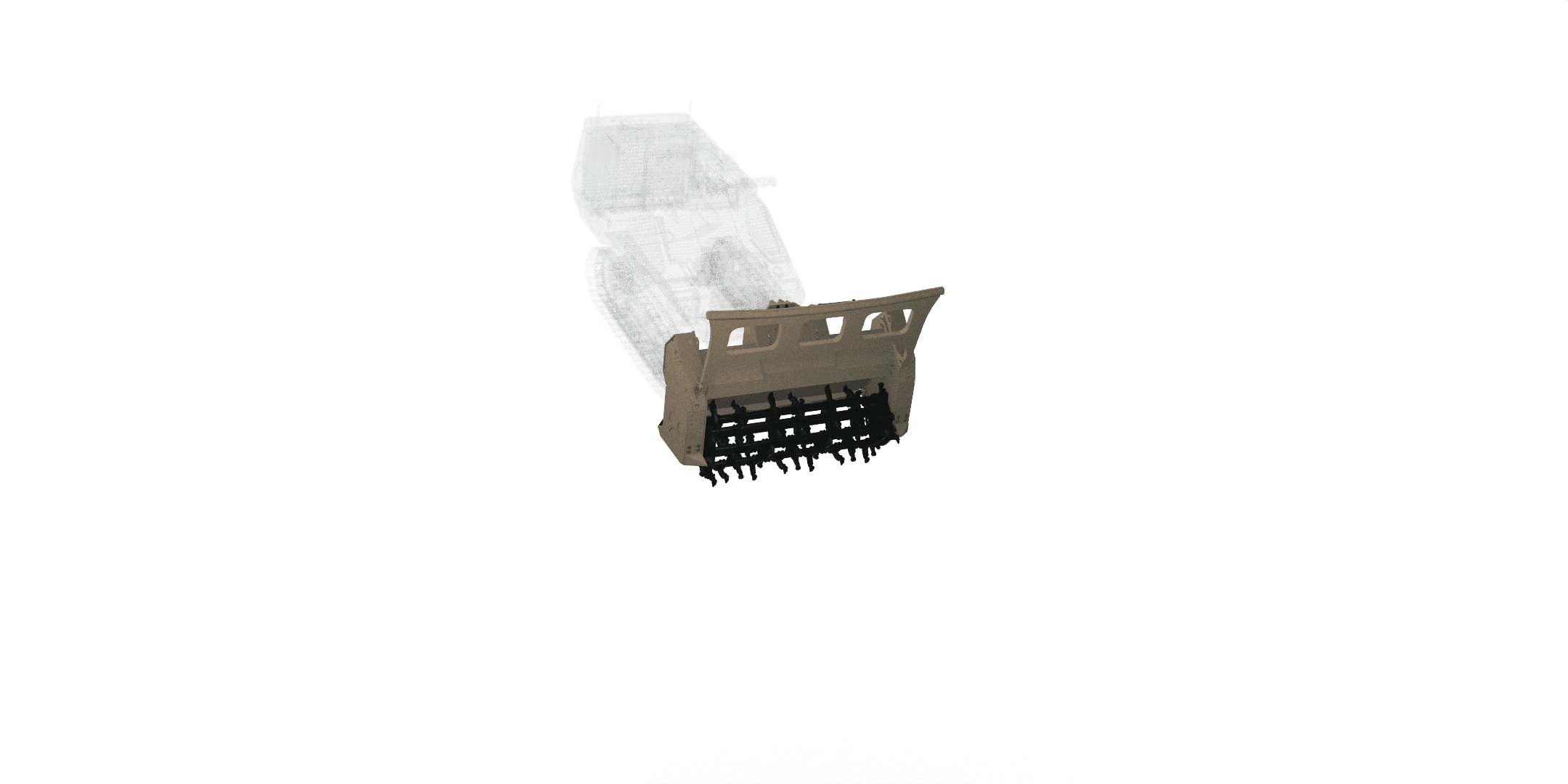

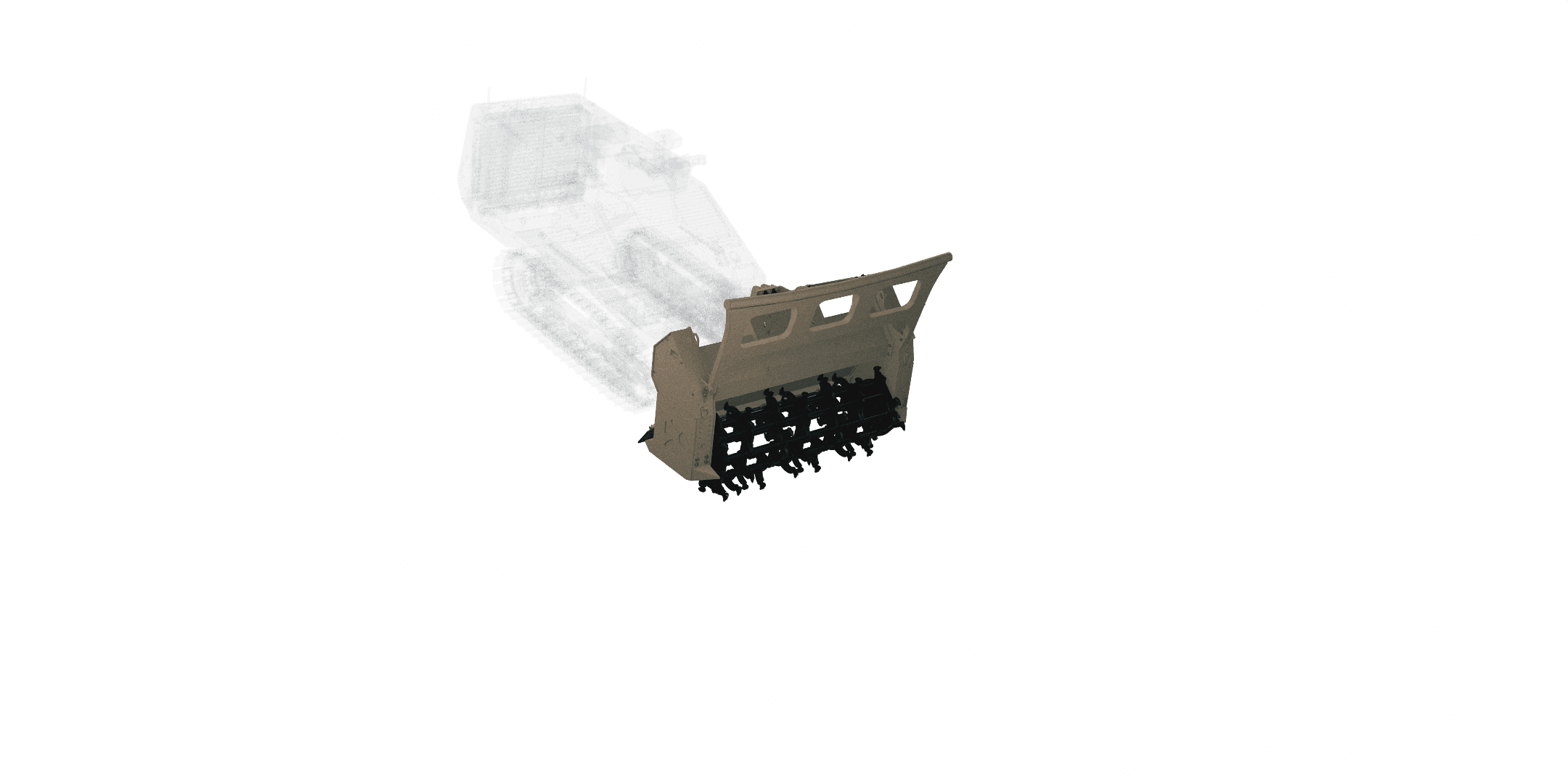

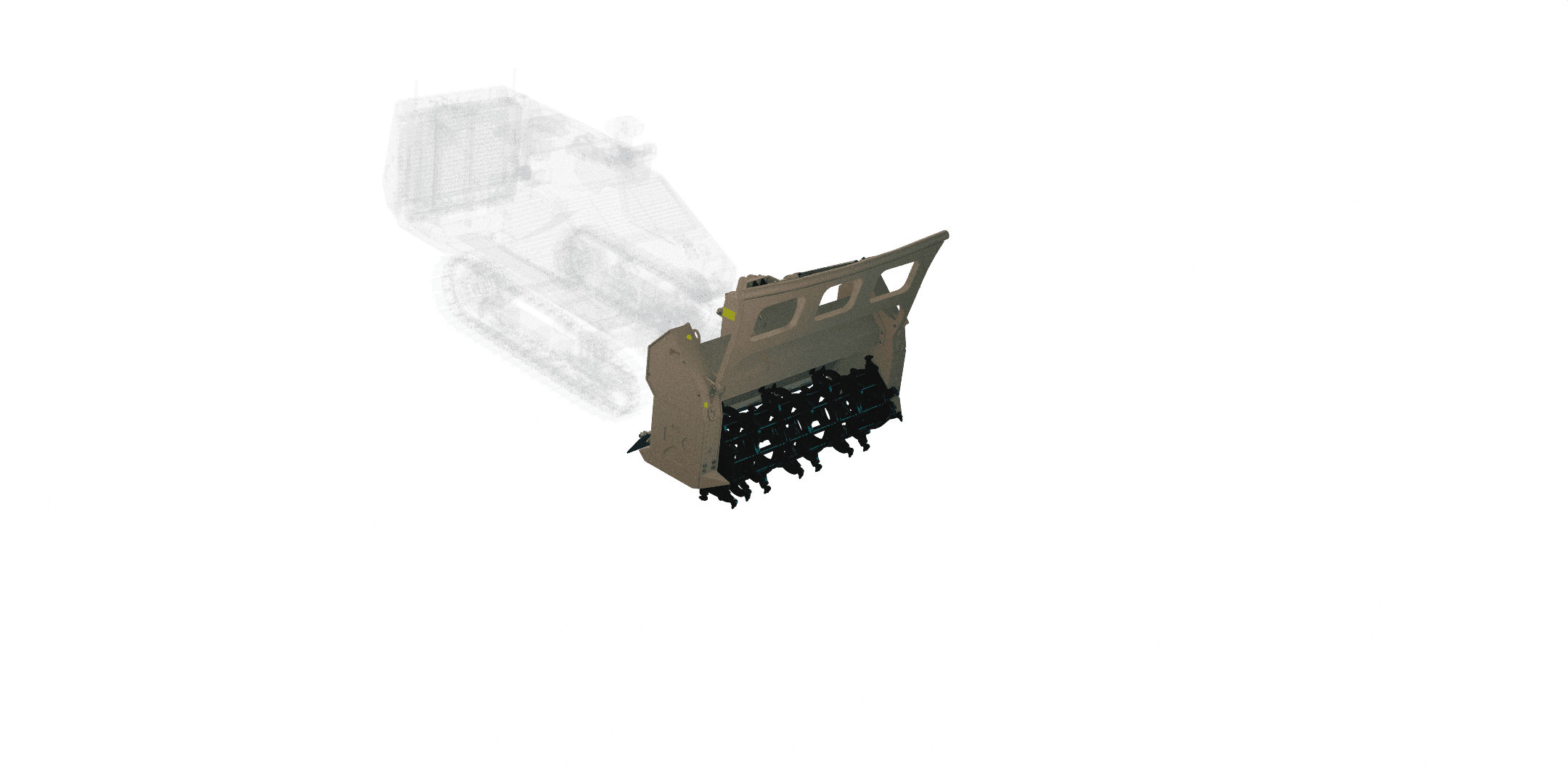

The T‑100 is a compact tiller designed for integration with the GCS‑100 platform. It supports mechanical clearance of AP mine threats and vegetation processing in environments where smaller platform size, reduced ground pressure and high manoeuvrability are required.
T-200

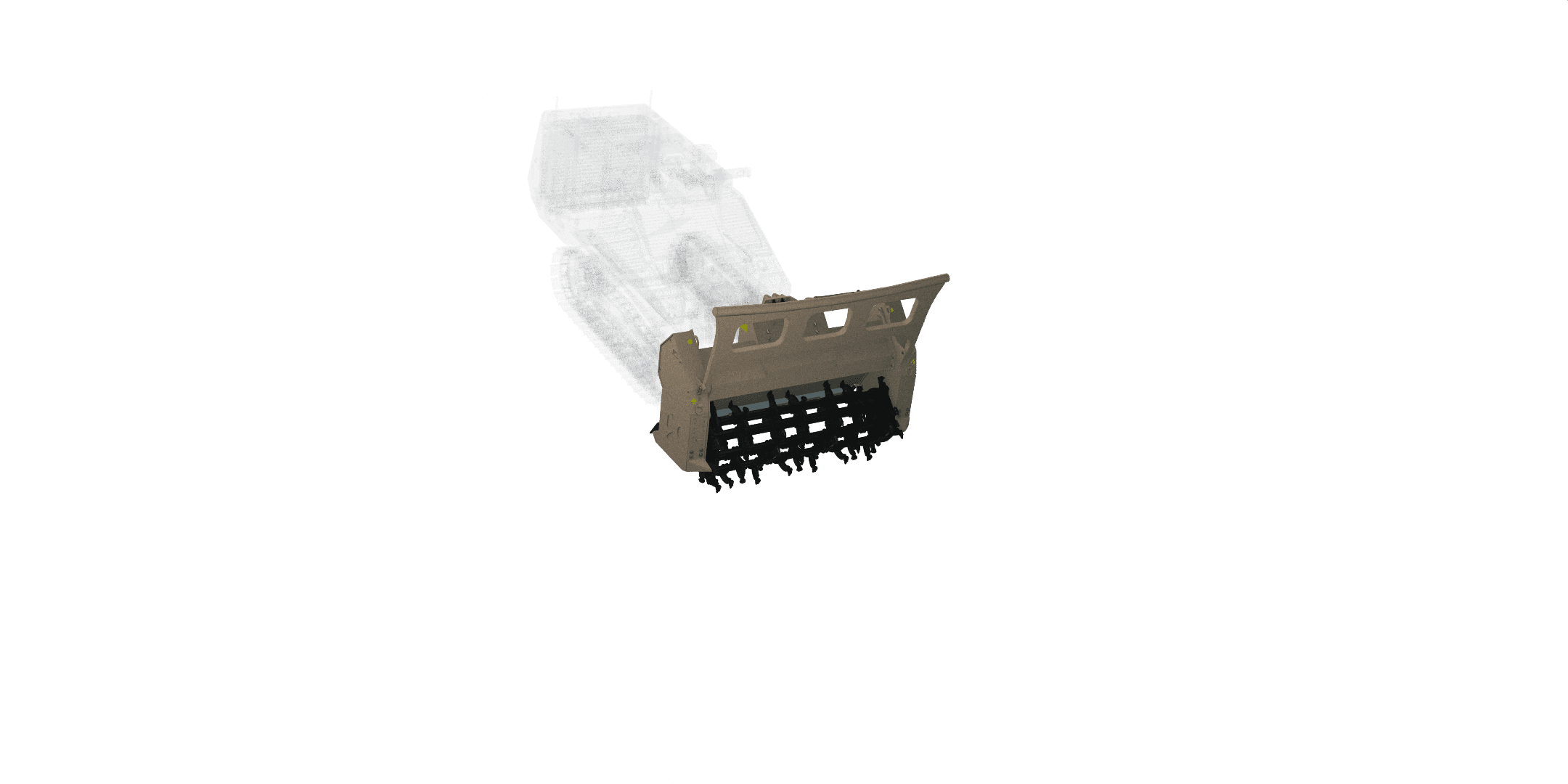

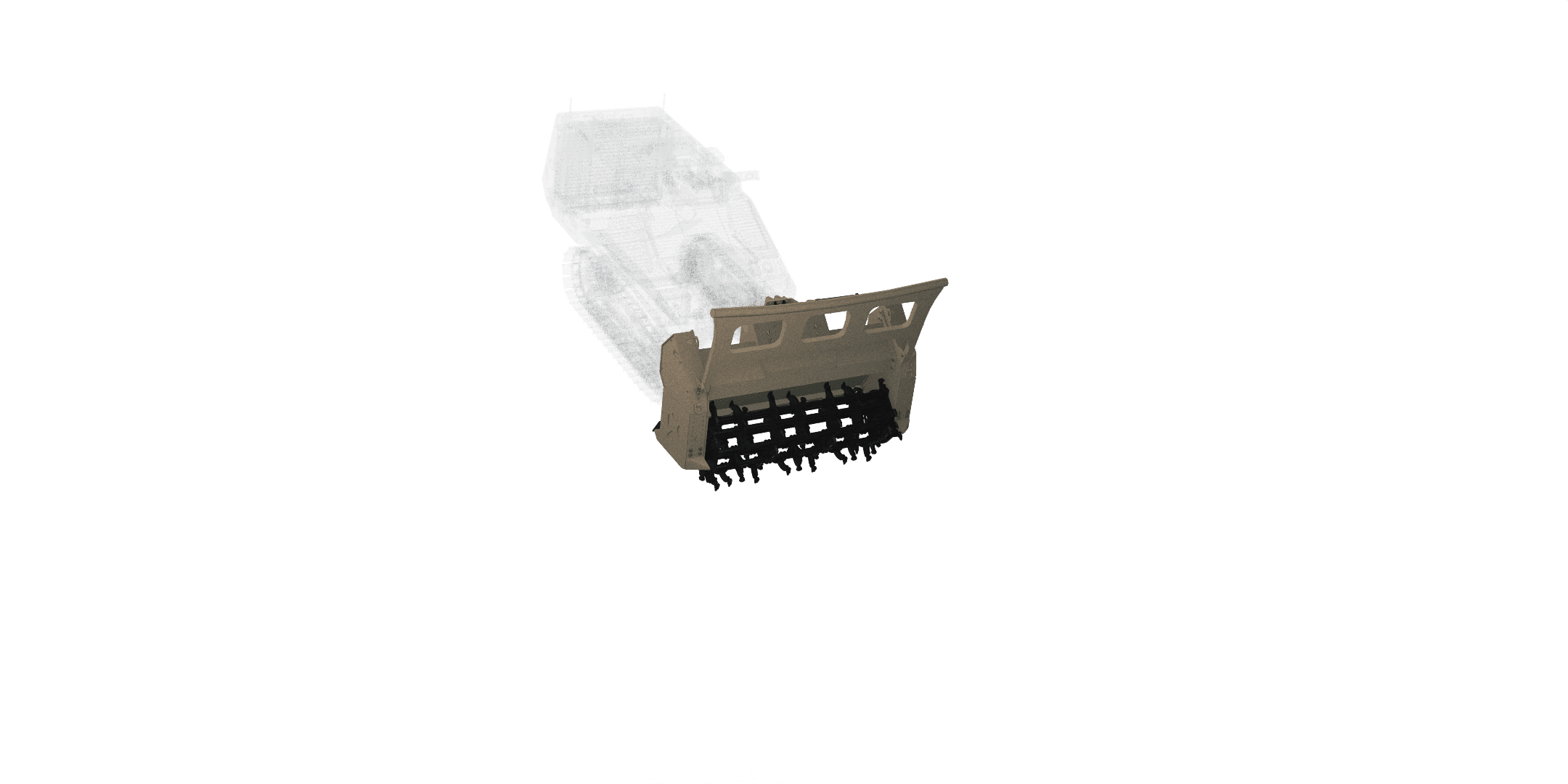

The T‑200 is a heavy mechanical tiller for the GCS‑200 platform. It is designed for demanding clearance tasks involving deeper soil penetration and higher throughput compared to the T-100, and can neutralise both AP and AT mines.
Built for operational deployment
01
Neutralisation of buried threats
Designed to expose, detonate or mechanically destroy buried explosive ordnance through controlled rotor engagement.
02
Vegetation and soil processing in one pass
Shredding of bushes, rootstocks and organic material while working the soil at defined depth. Adjustable working depth
03
Adjustable working depth
Mechanically defined depth settings allow adaptation to terrain, soil class and clearance task.
04
Blast‑tolerant design philosophy
Open construction supports blast venting and reduces structural stress on the attachment and platform.
05
Remote‑controlled operation
All clearance tasks are performed remotely using an integrated, protected camera system, enabling safe and precise operation while minimising operator exposure in high‑risk environments. The platform supports extended line‑of‑sight control ranges.
06
Certified effective clearance
The tiller configurations have been tested and certified as part of GCS-100 and GCS-200 platform systems by CTRO for mechanical demining performance under applicable IMAS-aligned test conditions
Built for operational deployment
01
Neutralisation of buried threats
Designed to expose, detonate or mechanically destroy buried explosive ordnance through controlled rotor engagement.
02
Vegetation and soil processing in one pass
Shredding of bushes, rootstocks and organic material while working the soil at defined depth. Adjustable working depth
03
Adjustable working depth
Mechanically defined depth settings allow adaptation to terrain, soil class and clearance task.
04
Blast‑tolerant design philosophy
Open construction supports blast venting and reduces structural stress on the attachment and platform.
05
Remote‑controlled operation
All clearance tasks are performed remotely using an integrated, protected camera system, enabling safe and precise operation while minimising operator exposure in high‑risk environments. The platform supports extended line‑of‑sight control ranges.
06
Certified effective clearance
The tiller configurations have been tested and certified as part of GCS-100 and GCS-200 platform systems by CTRO for mechanical demining performance under applicable IMAS-aligned test conditions
Built for operational deployment
01
Neutralisation of buried threats
Designed to expose, detonate or mechanically destroy buried explosive ordnance through controlled rotor engagement.
02
Vegetation and soil processing in one pass
Shredding of bushes, rootstocks and organic material while working the soil at defined depth. Adjustable working depth
03
Adjustable working depth
Mechanically defined depth settings allow adaptation to terrain, soil class and clearance task.
04
Blast‑tolerant design philosophy
Open construction supports blast venting and reduces structural stress on the attachment and platform.
05
Remote‑controlled operation
All clearance tasks are performed remotely using an integrated, protected camera system, enabling safe and precise operation while minimising operator exposure in high‑risk environments. The platform supports extended line‑of‑sight control ranges.
06
Certified effective clearance
The tiller configurations have been tested and certified as part of GCS-100 and GCS-200 platform systems by CTRO for mechanical demining performance under applicable IMAS-aligned test conditions
Built for operational deployment
01
Neutralisation of buried threats
Designed to expose, detonate or mechanically destroy buried explosive ordnance through controlled rotor engagement.
02
Vegetation and soil processing in one pass
Shredding of bushes, rootstocks and organic material while working the soil at defined depth. Adjustable working depth
03
Adjustable working depth
Mechanically defined depth settings allow adaptation to terrain, soil class and clearance task.
04
Blast‑tolerant design philosophy
Open construction supports blast venting and reduces structural stress on the attachment and platform.
05
Remote‑controlled operation
All clearance tasks are performed remotely using an integrated, protected camera system, enabling safe and precise operation while minimising operator exposure in high‑risk environments. The platform supports extended line‑of‑sight control ranges.
06
Certified effective clearance
The tiller configurations have been tested and certified as part of GCS-100 and GCS-200 platform systems by CTRO for mechanical demining performance under applicable IMAS-aligned test conditions
Operational specifications
T-100
1,200 mm
clearance width
Up to
180 mm
adjustable clearance depth
Up to
1,000 m²/h
indicative clearance performance
Up to
150 mm
vegetation capacity (trunk/root diameter)
AP mine
clearance capability
Remote‑controlled
operation via GCS-100 platform integration
T-200
2,000 mm
clearance width for effective surface coverage
Up to
300 mm
adjustable clearance depth
Up to
1,500 m²/h
clearance performance
Up to
150 mm
vegetation capacity (trunk/root diameter)
AP and AT mines
clearance capability
Remote‑controlled
operation via GCS-200 platforms integration
