Flail (F)
Used for mechanical mine clearance and surface threat reduction in contaminated areas.
Designed to operate reliably in rocky and irregular ground conditions where other mechanical tools may be limited.
Effective vegetation & obstacle reduction by cutting and crushing branches, bushes and roots while removing tripwires, wire obstacles and rubble.
Designed for the mechanical neutralisation of buried and surface explosive threats, the GCS Flail supports route and area clearance operations where vegetation, rubble and uneven ground limit manual access.

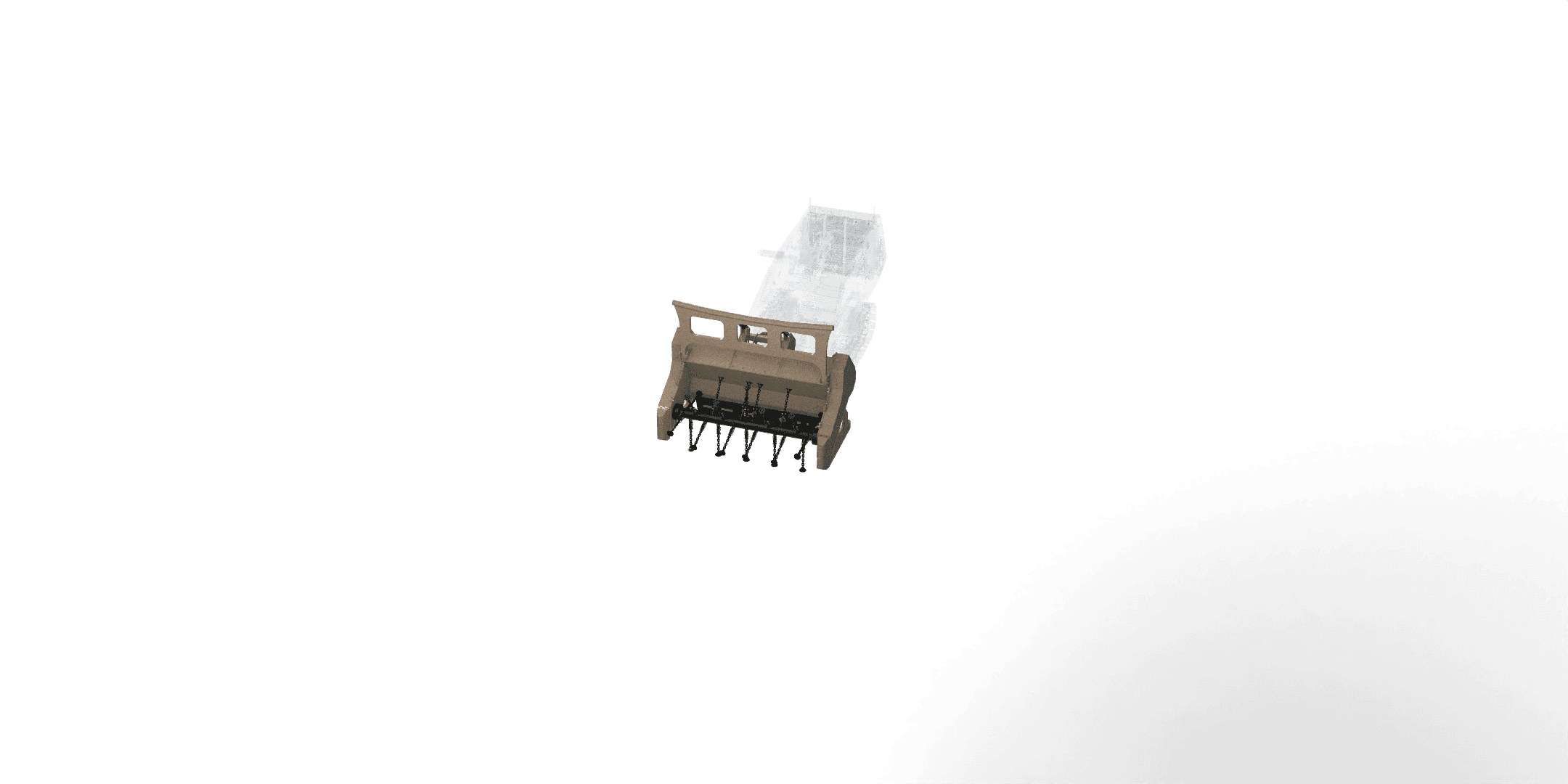

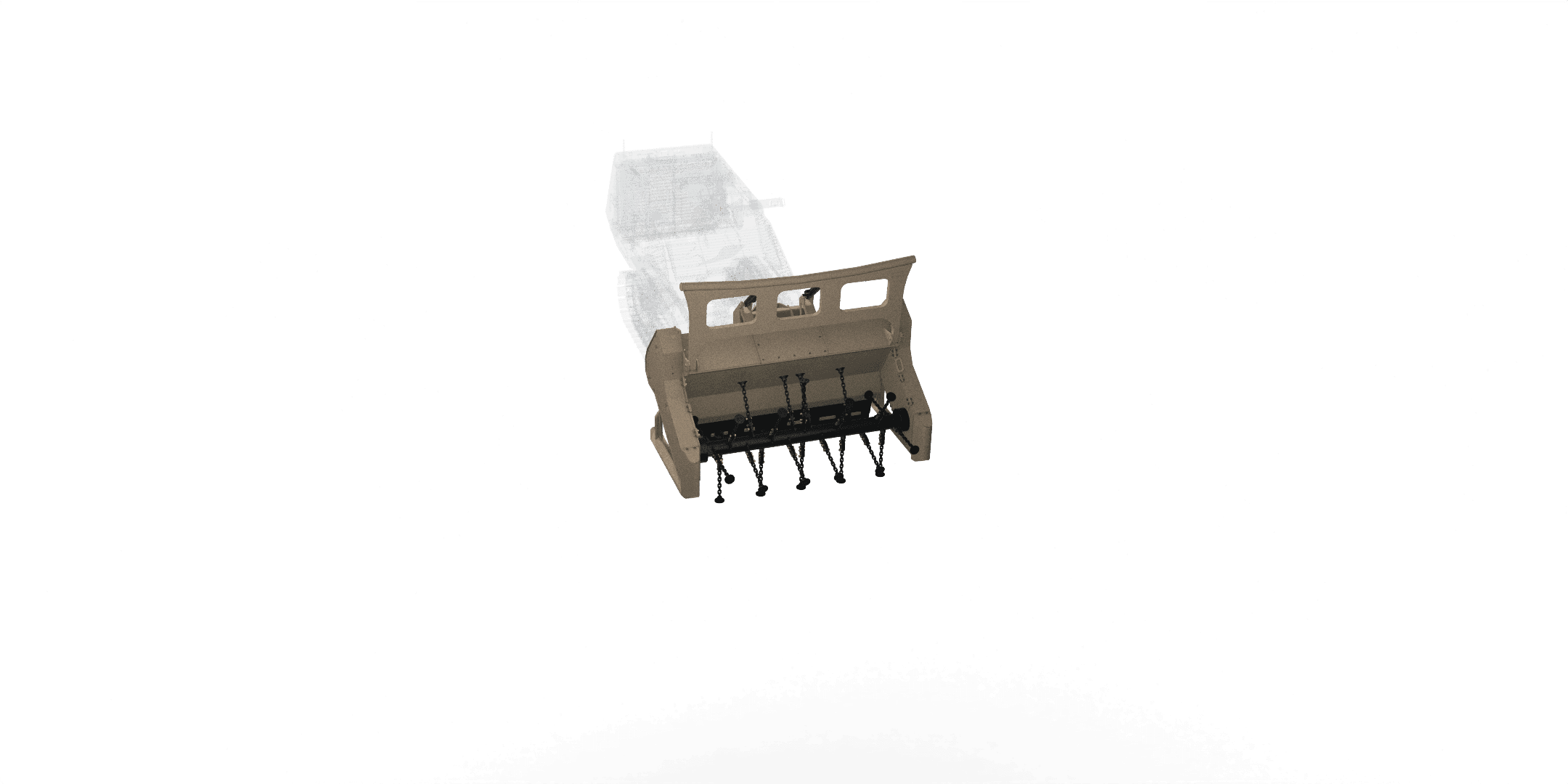

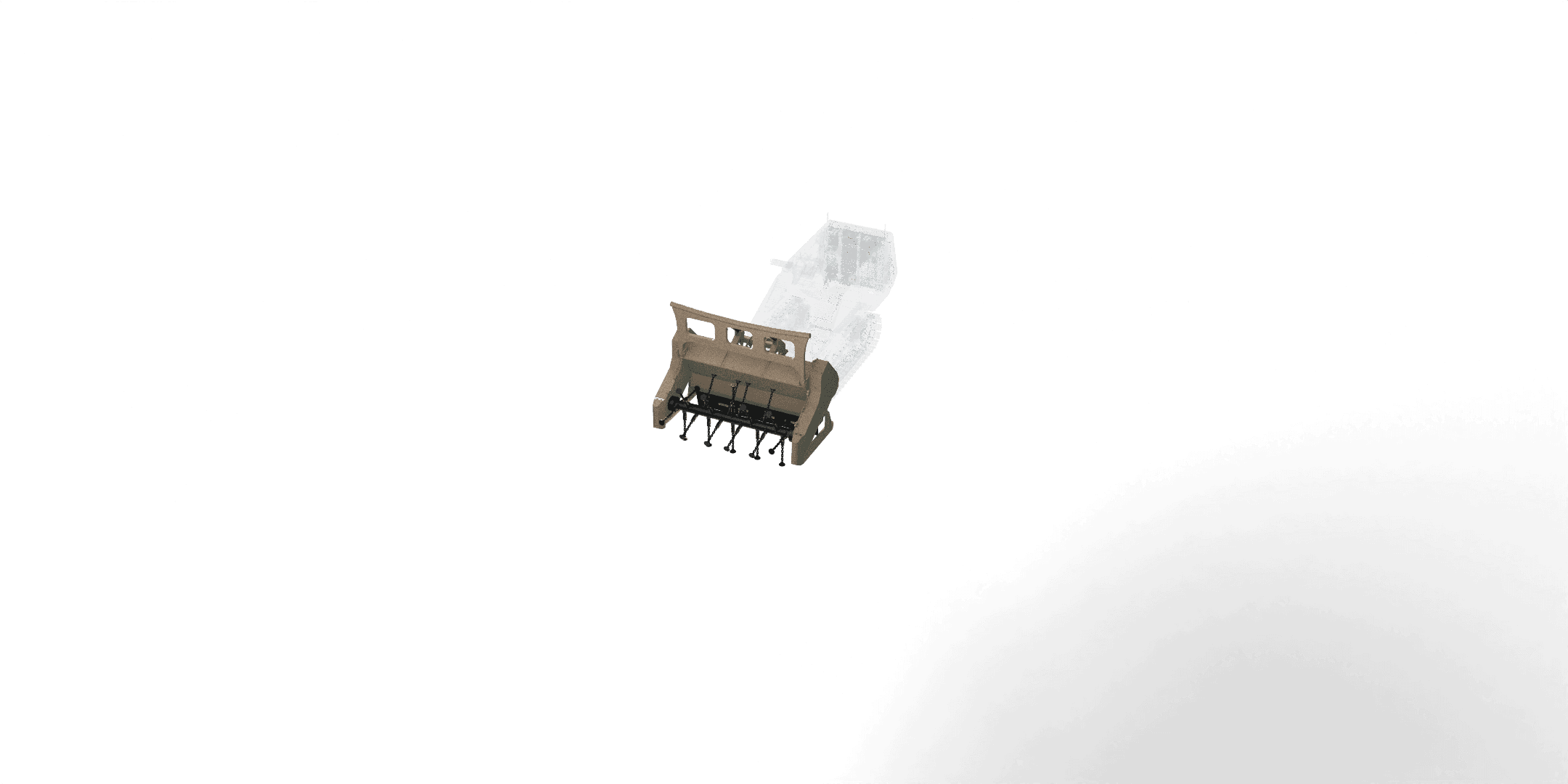

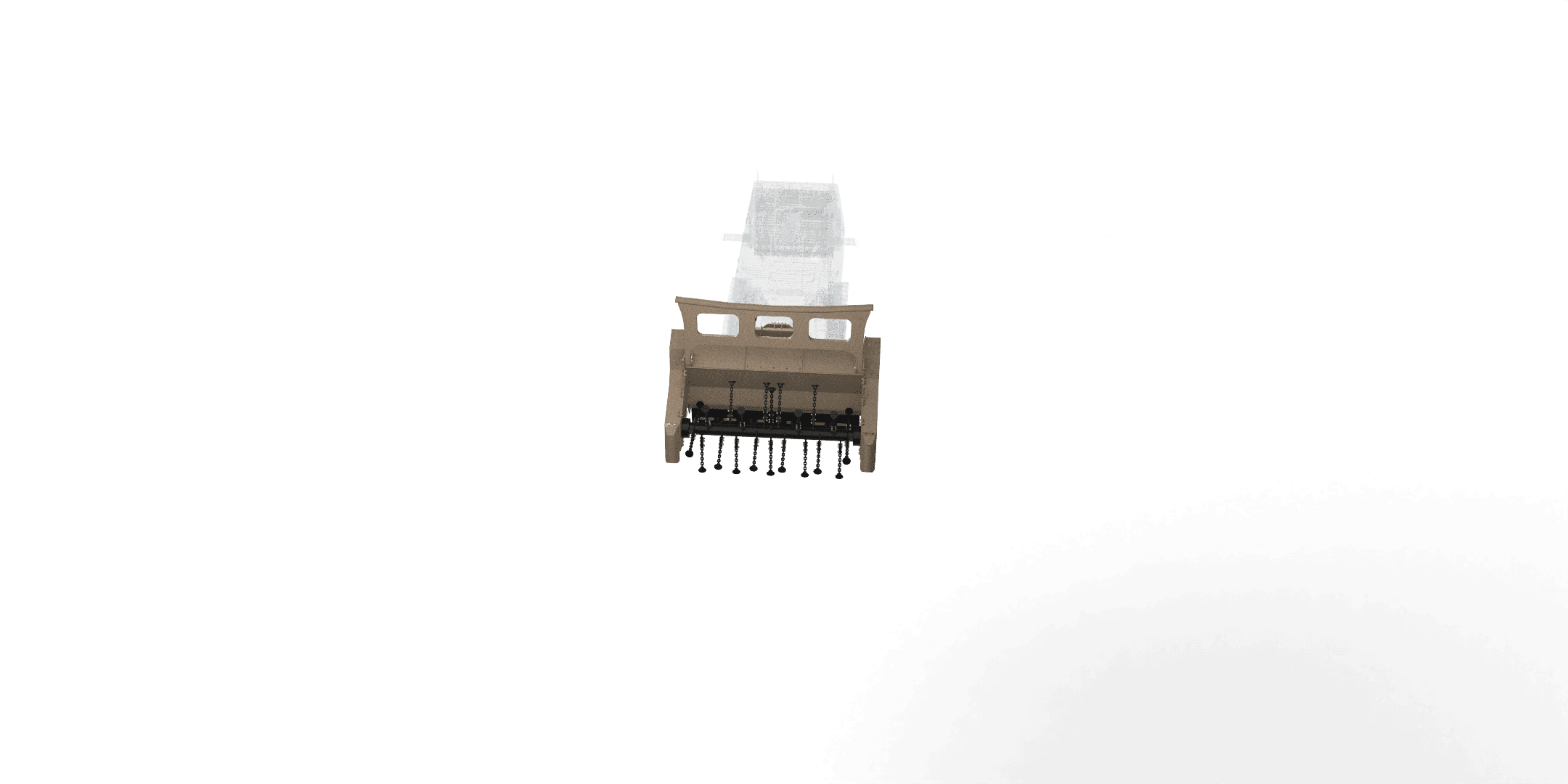

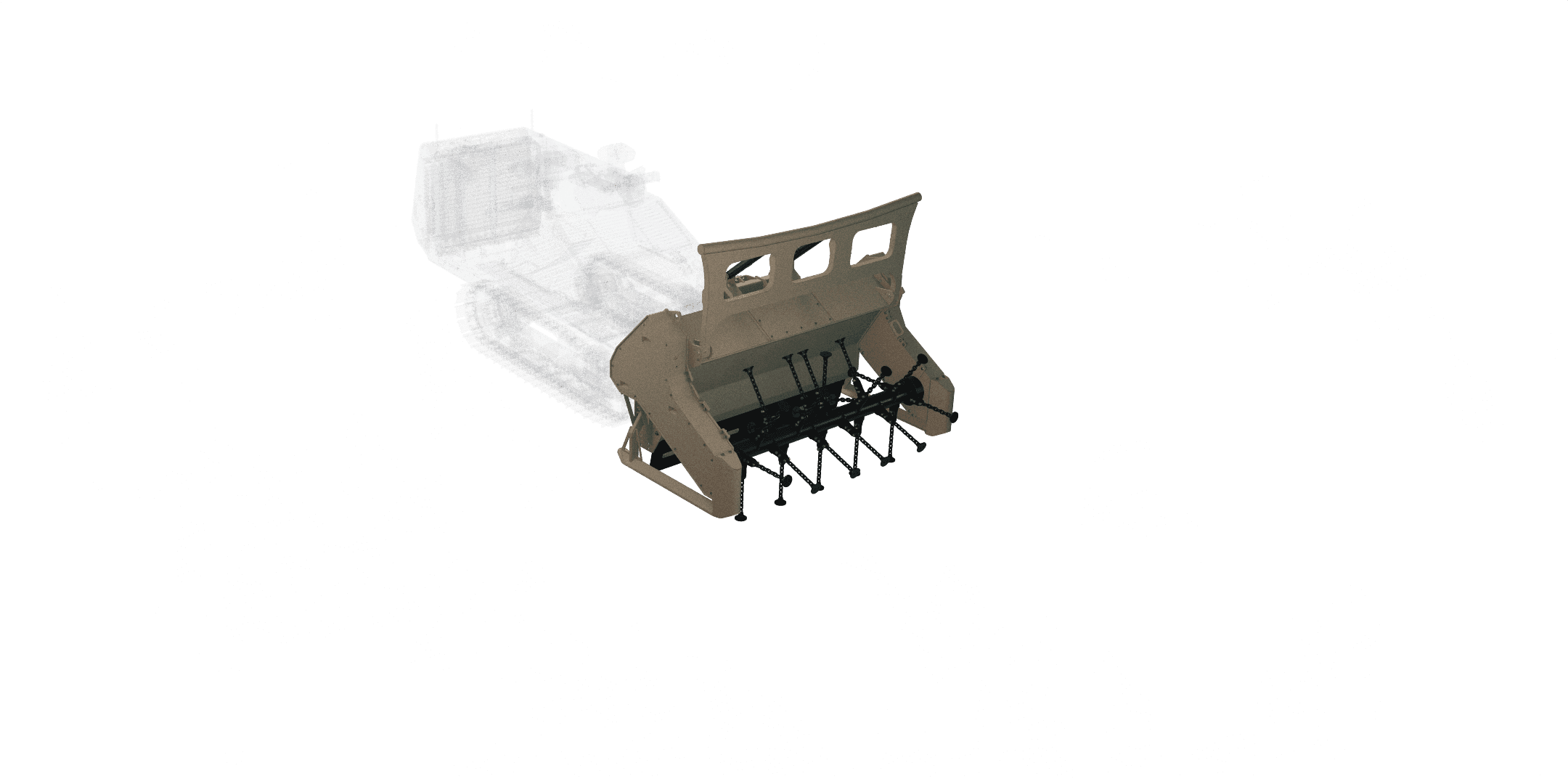

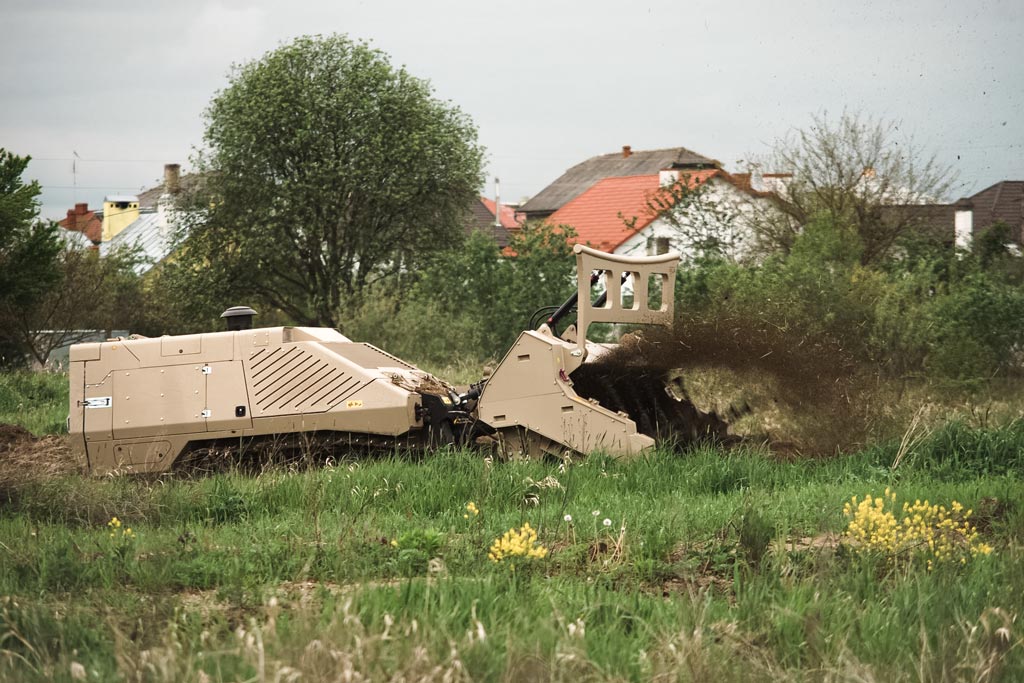

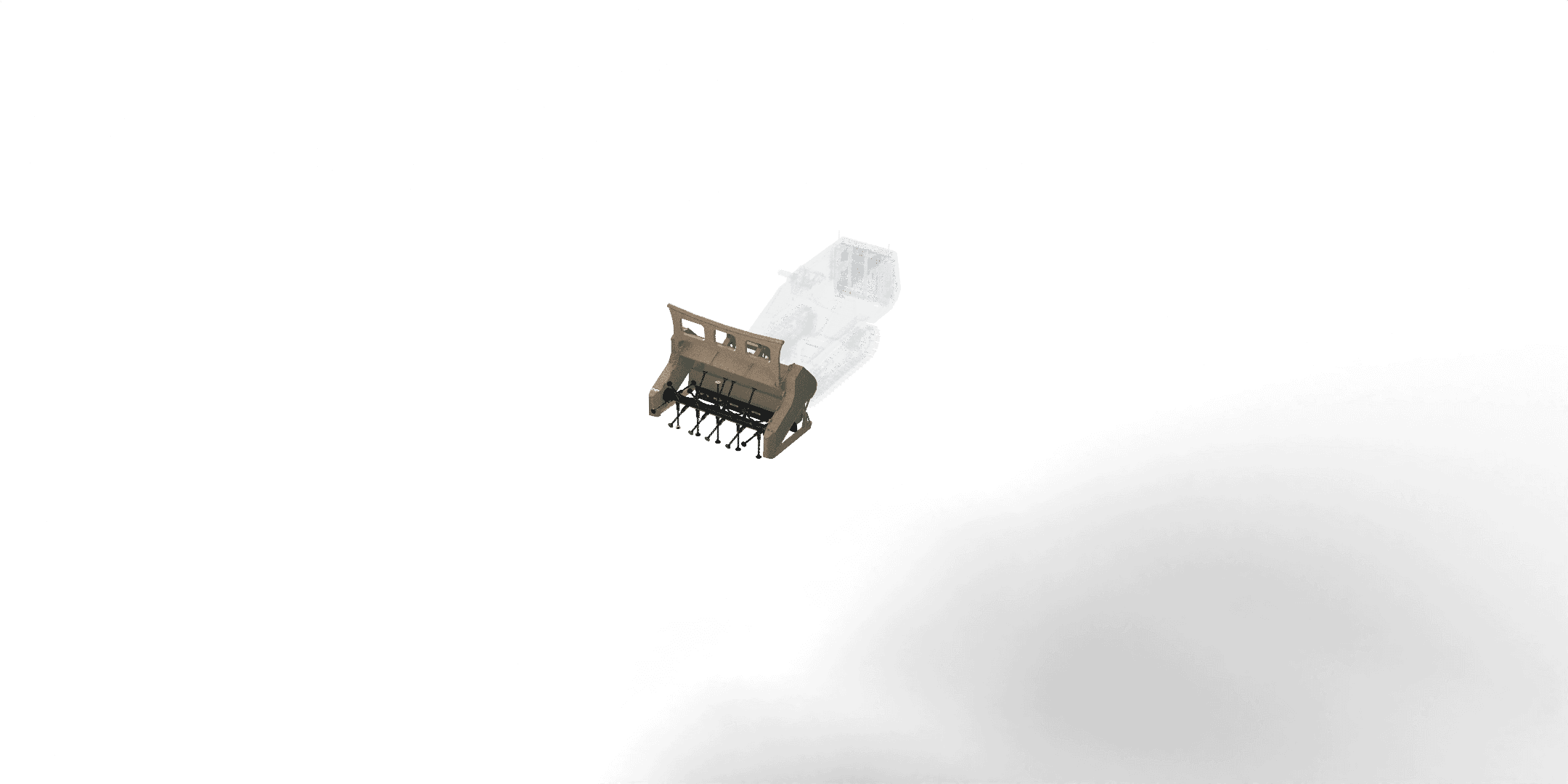

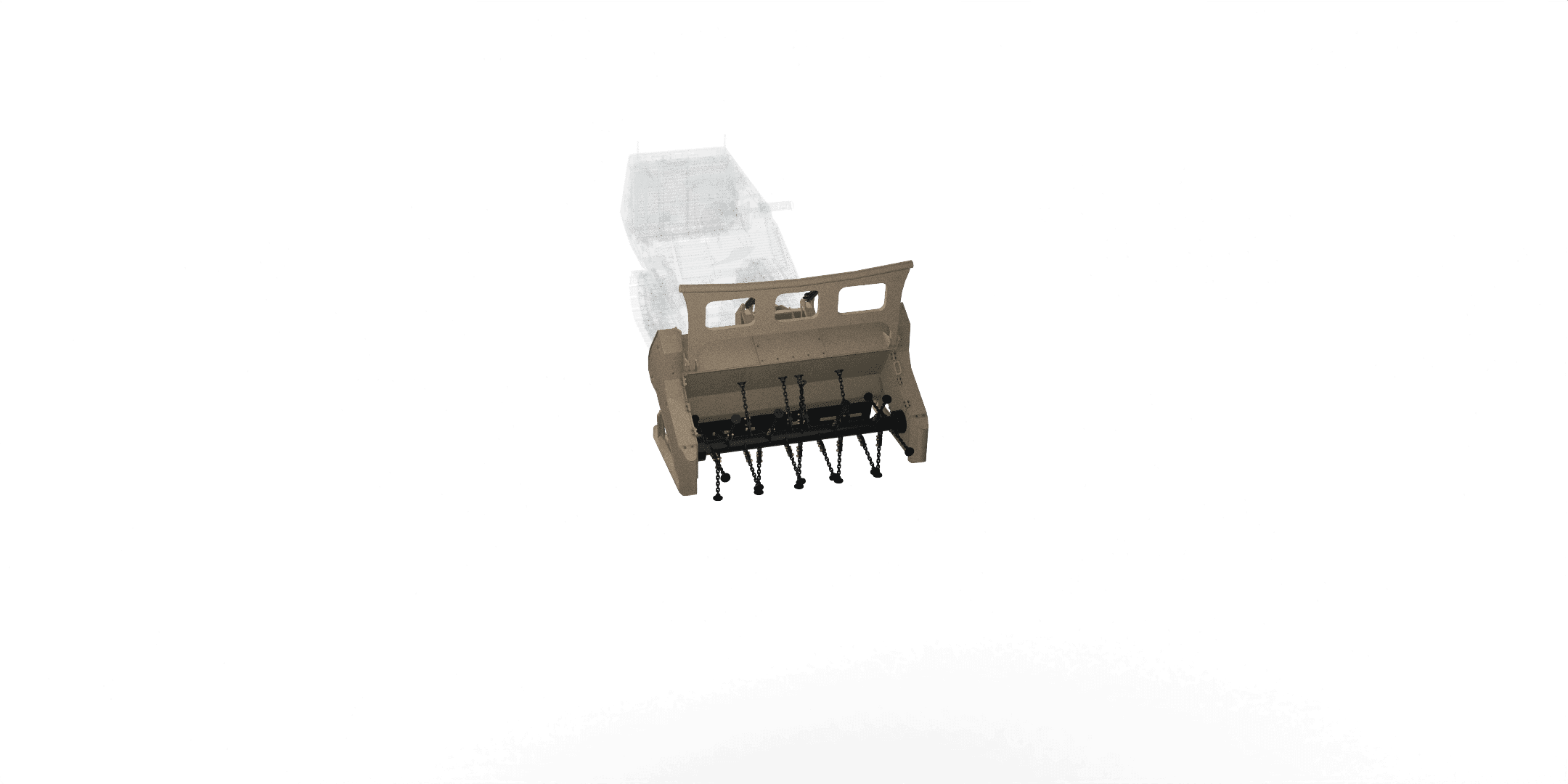

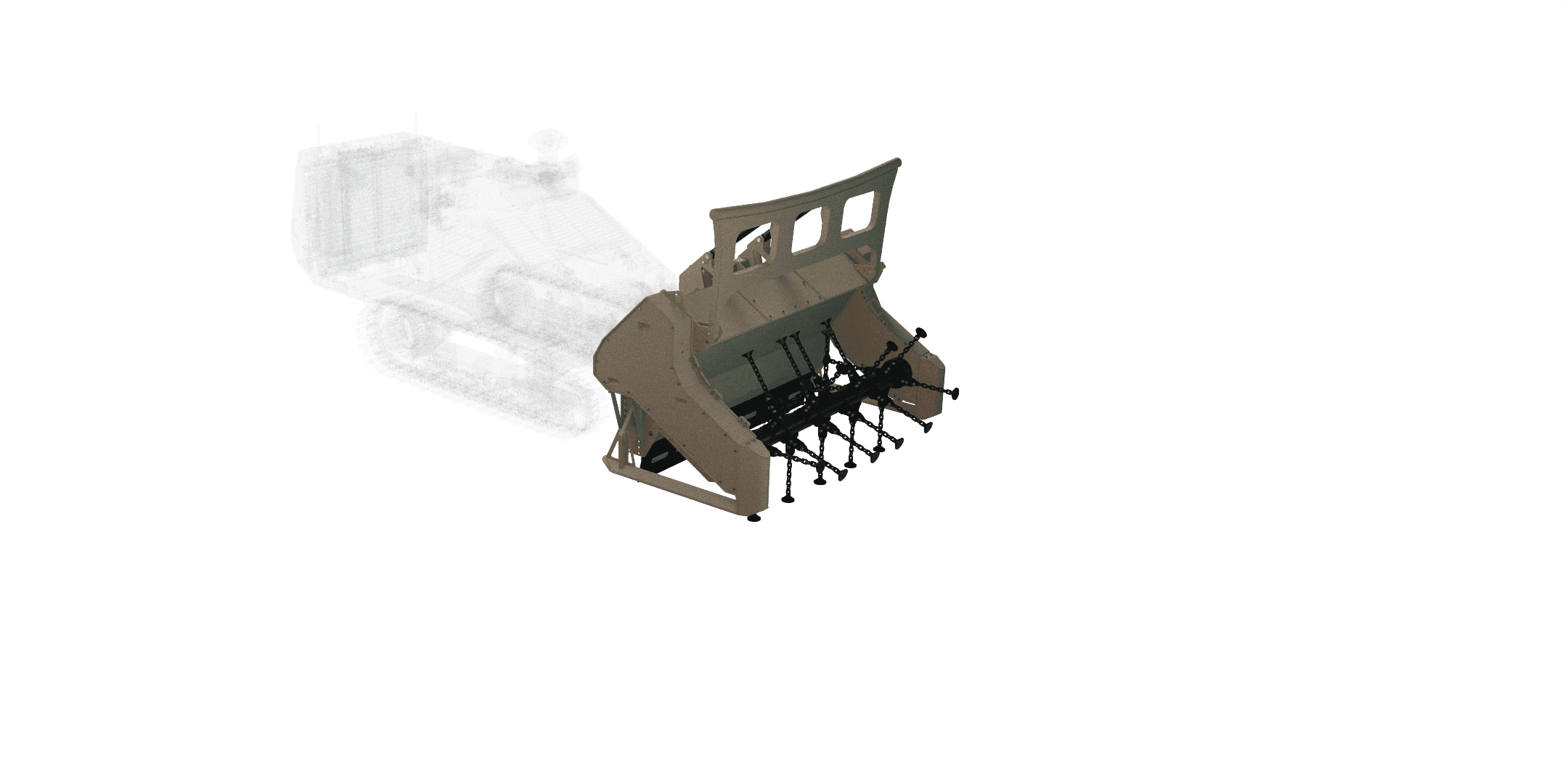

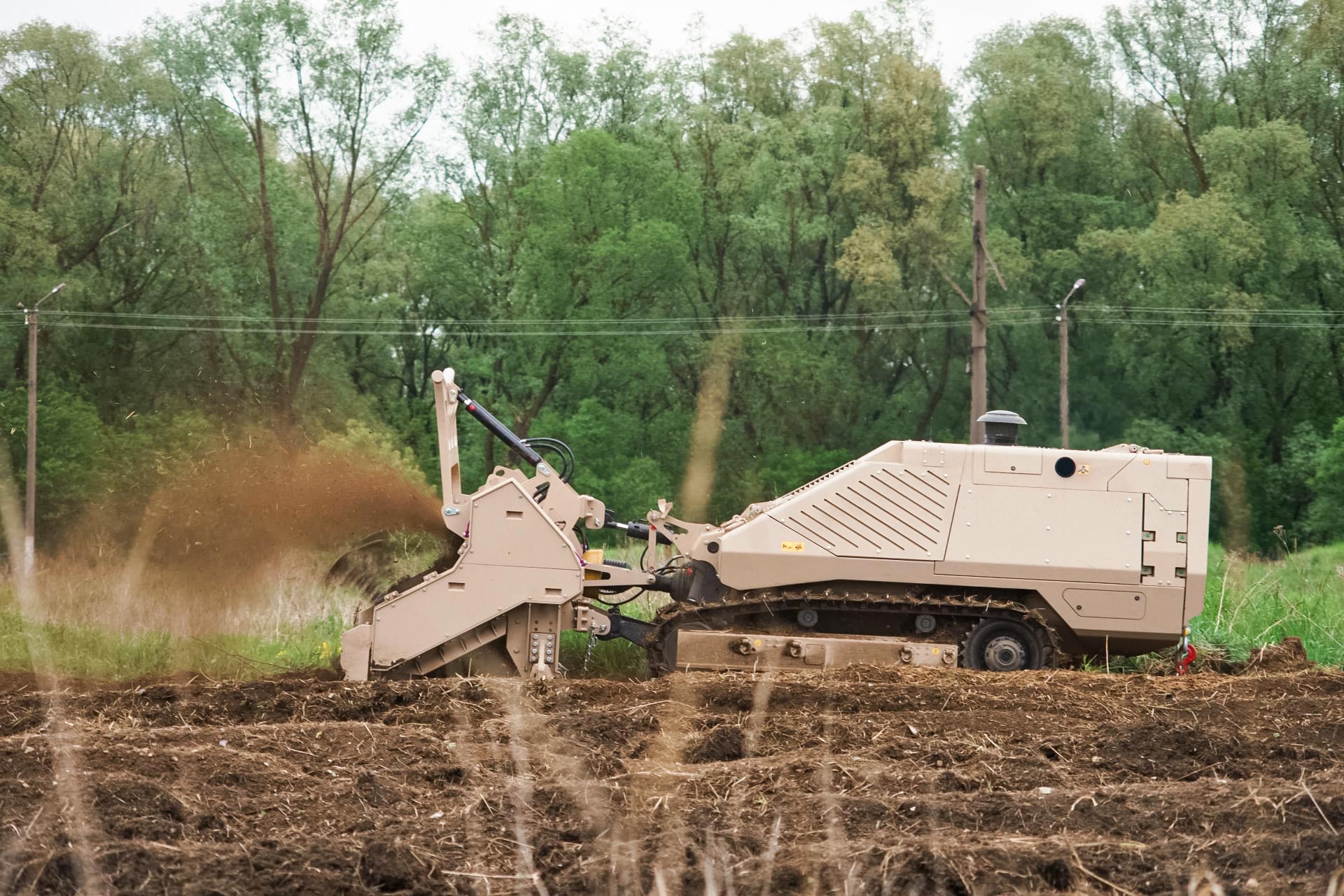

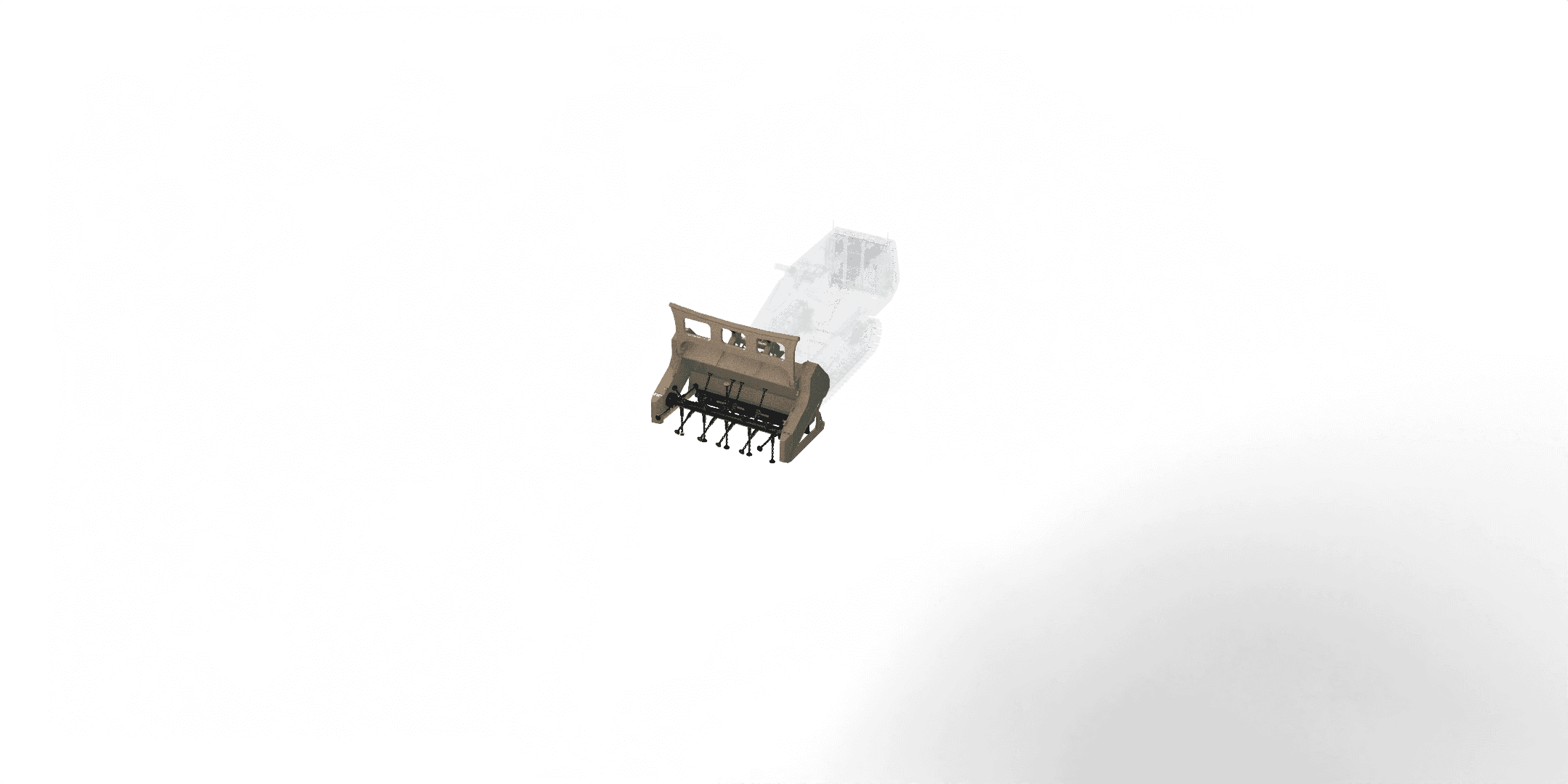

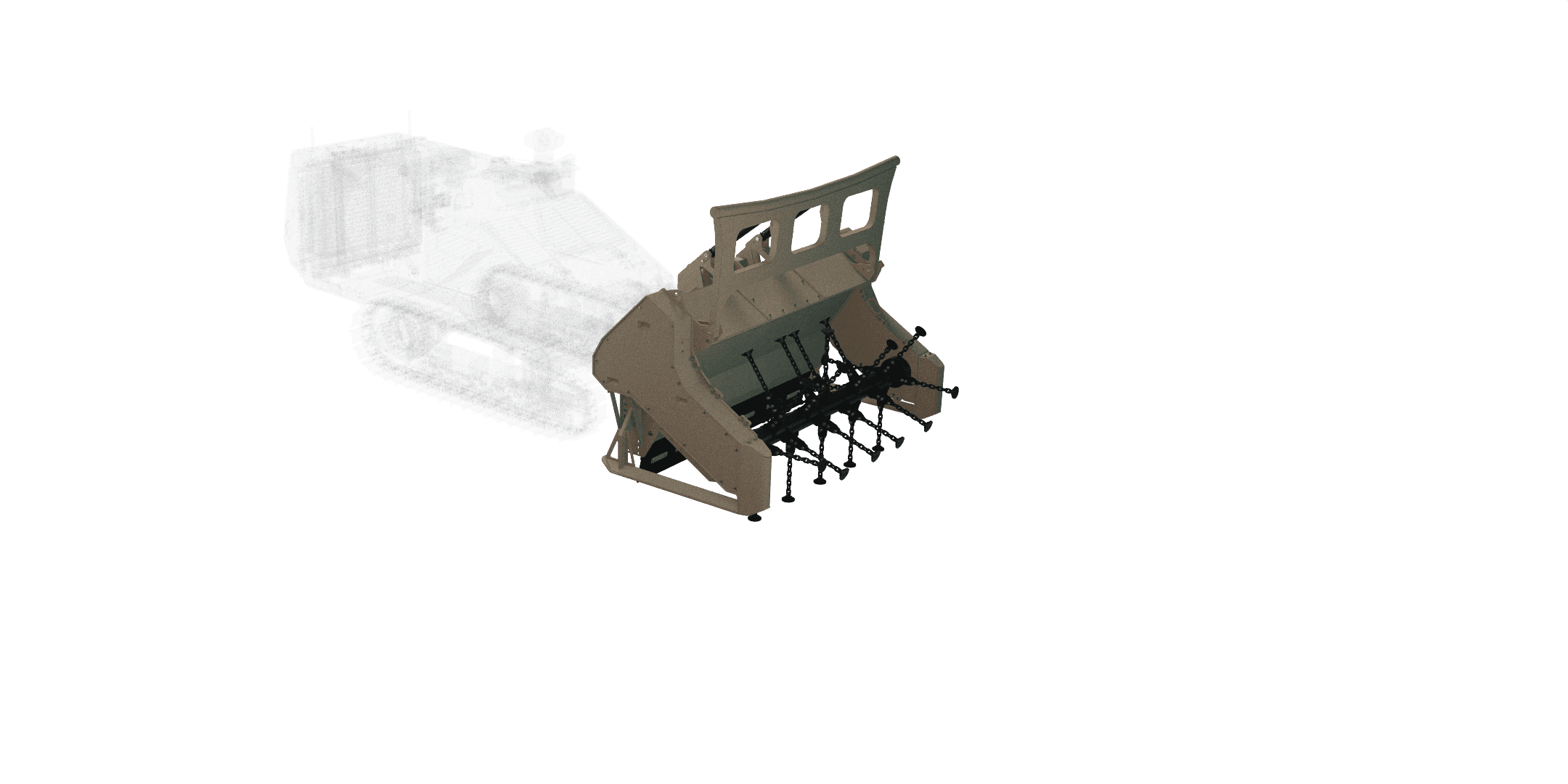

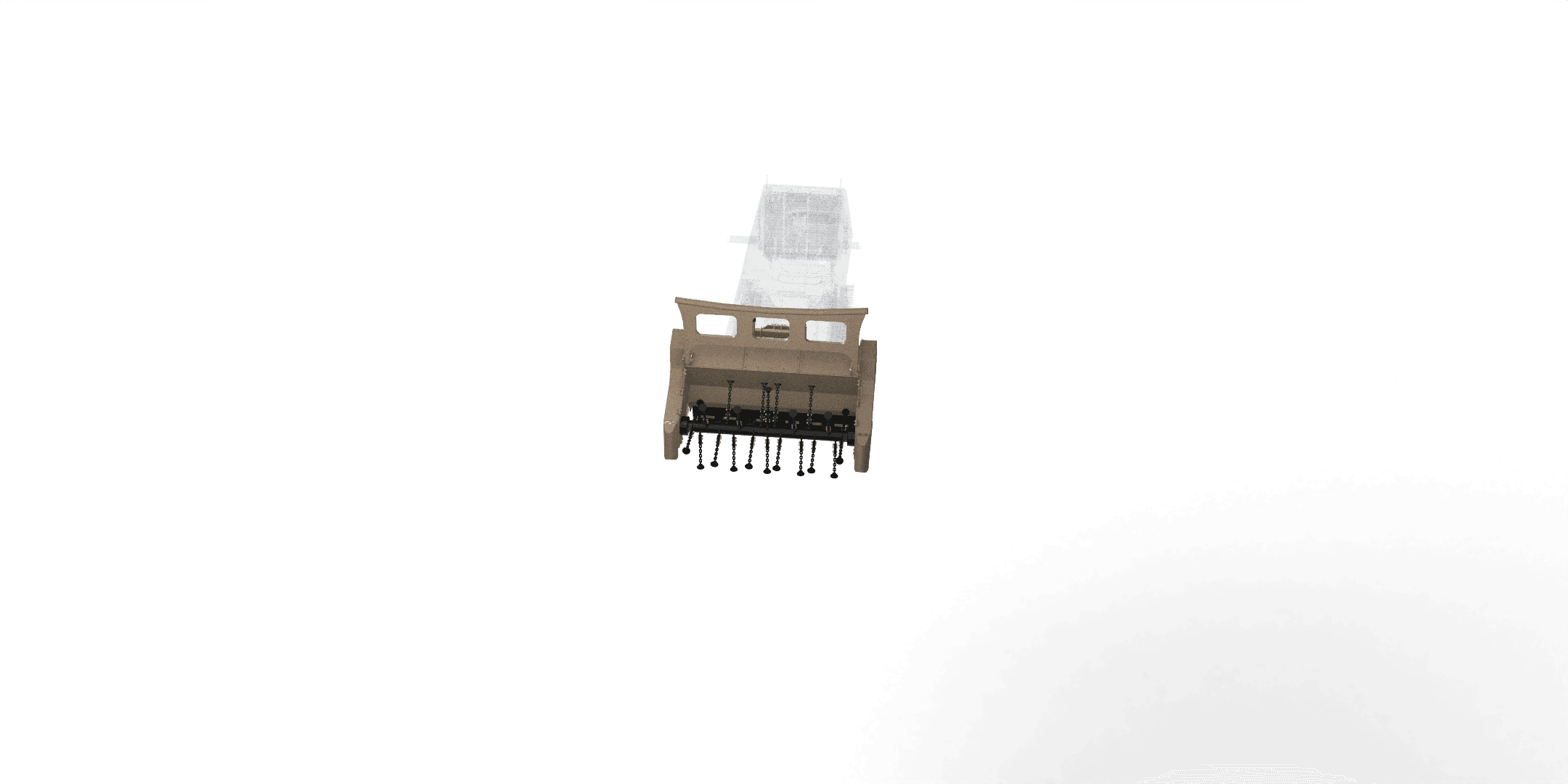

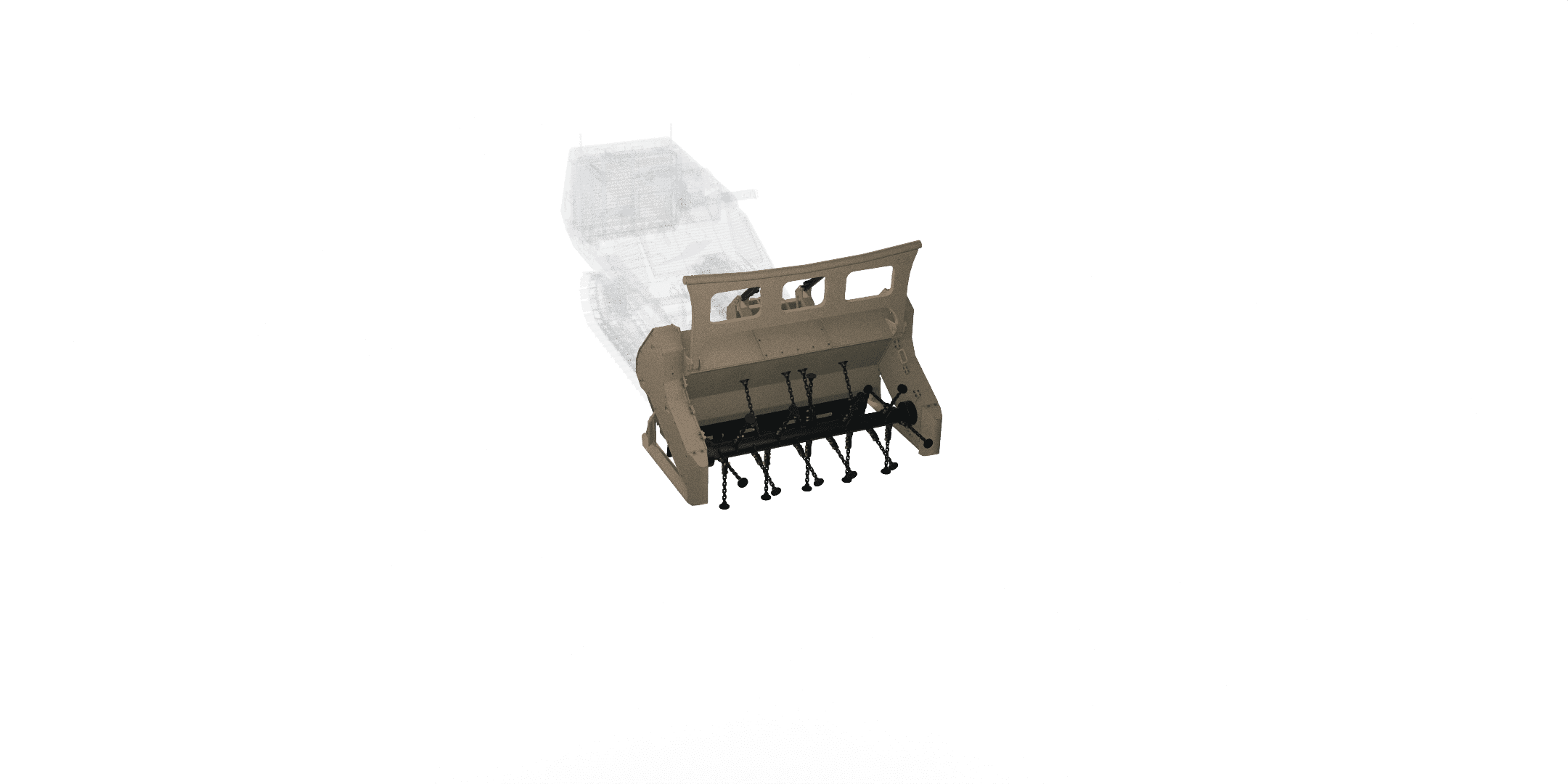

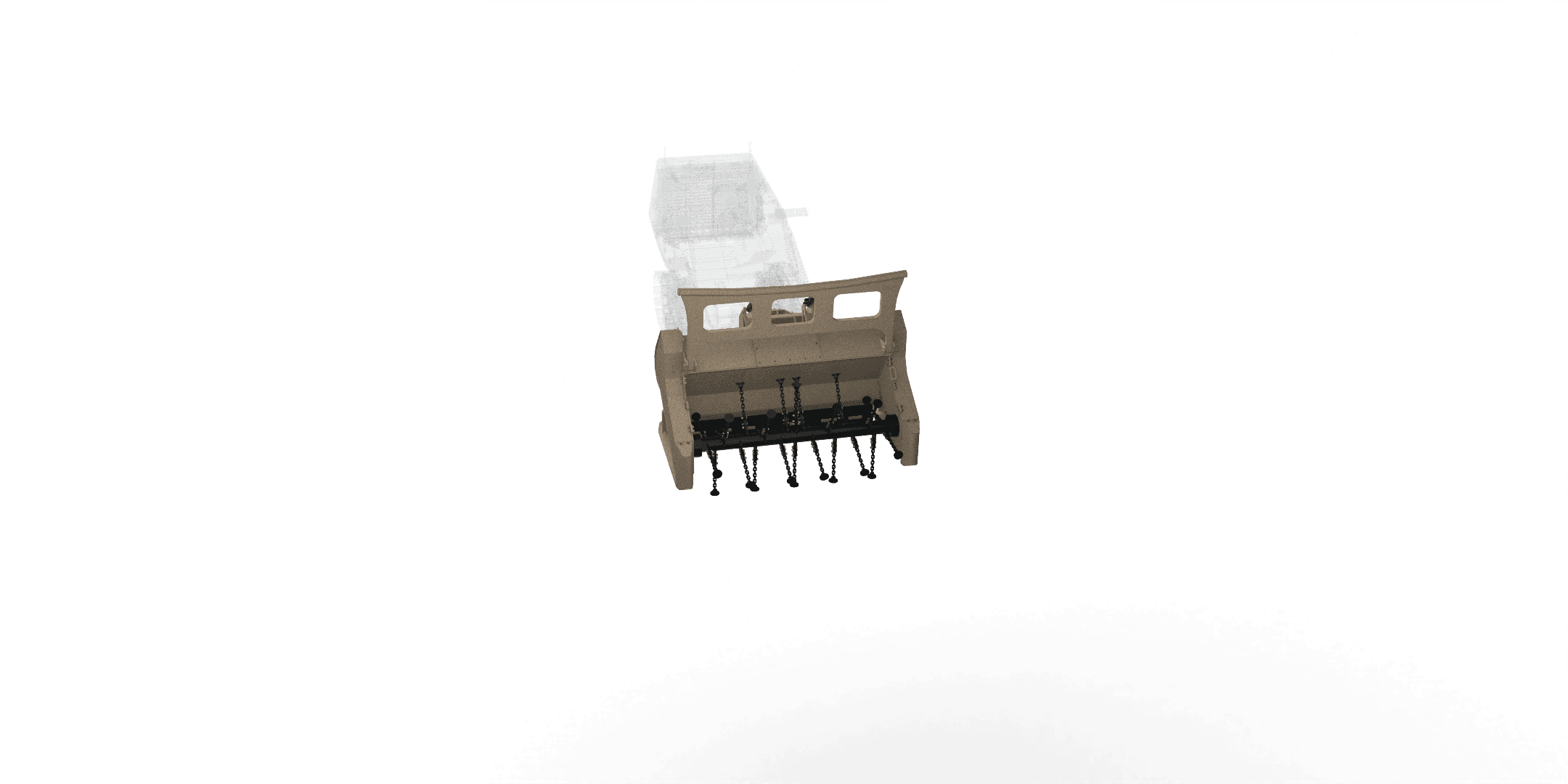

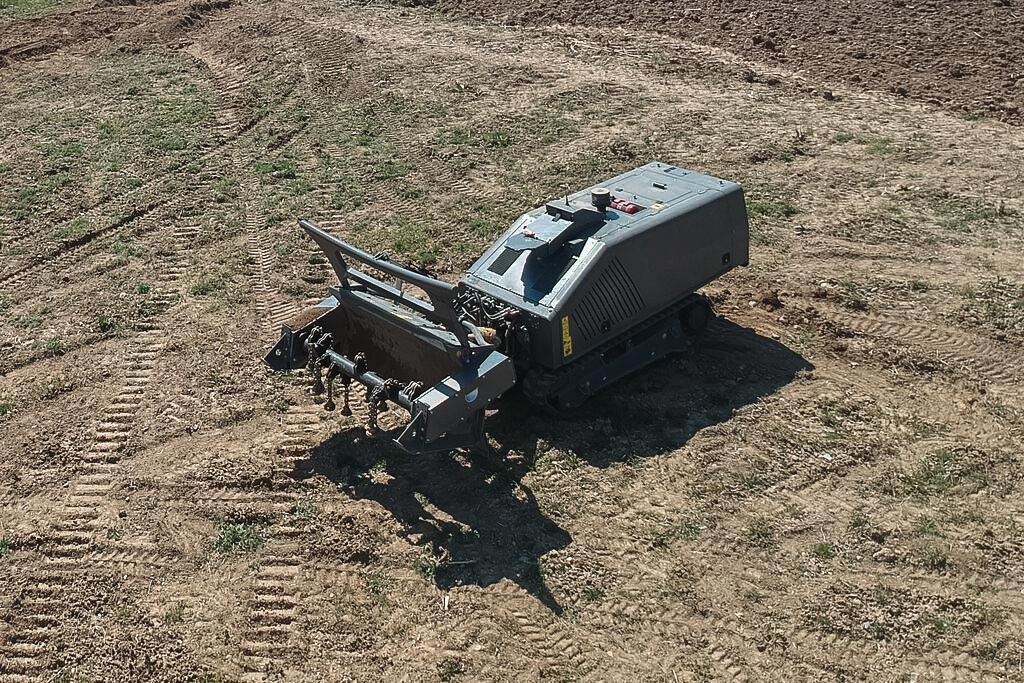

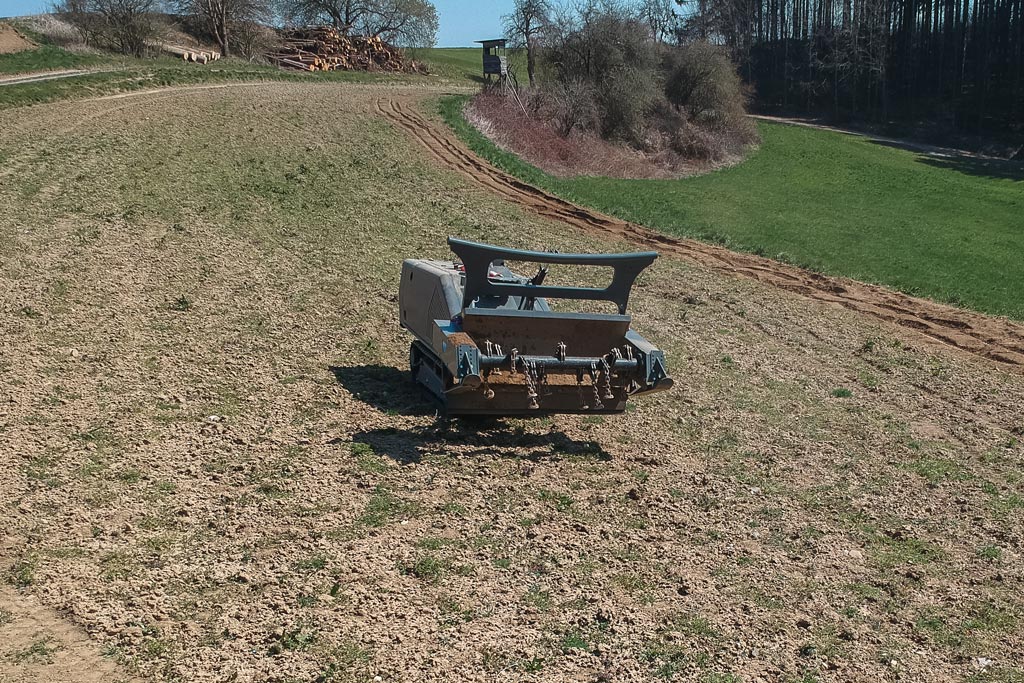

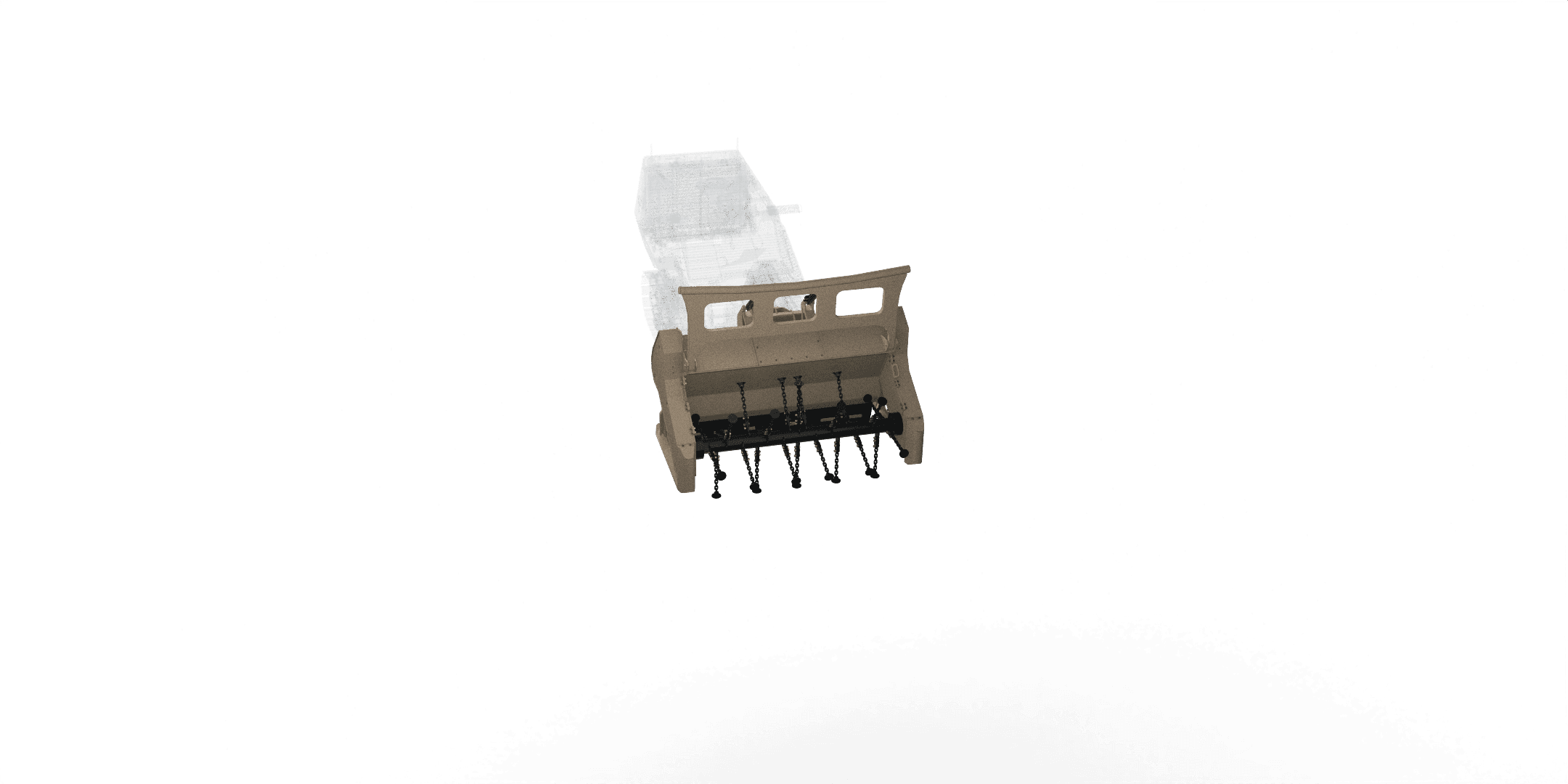

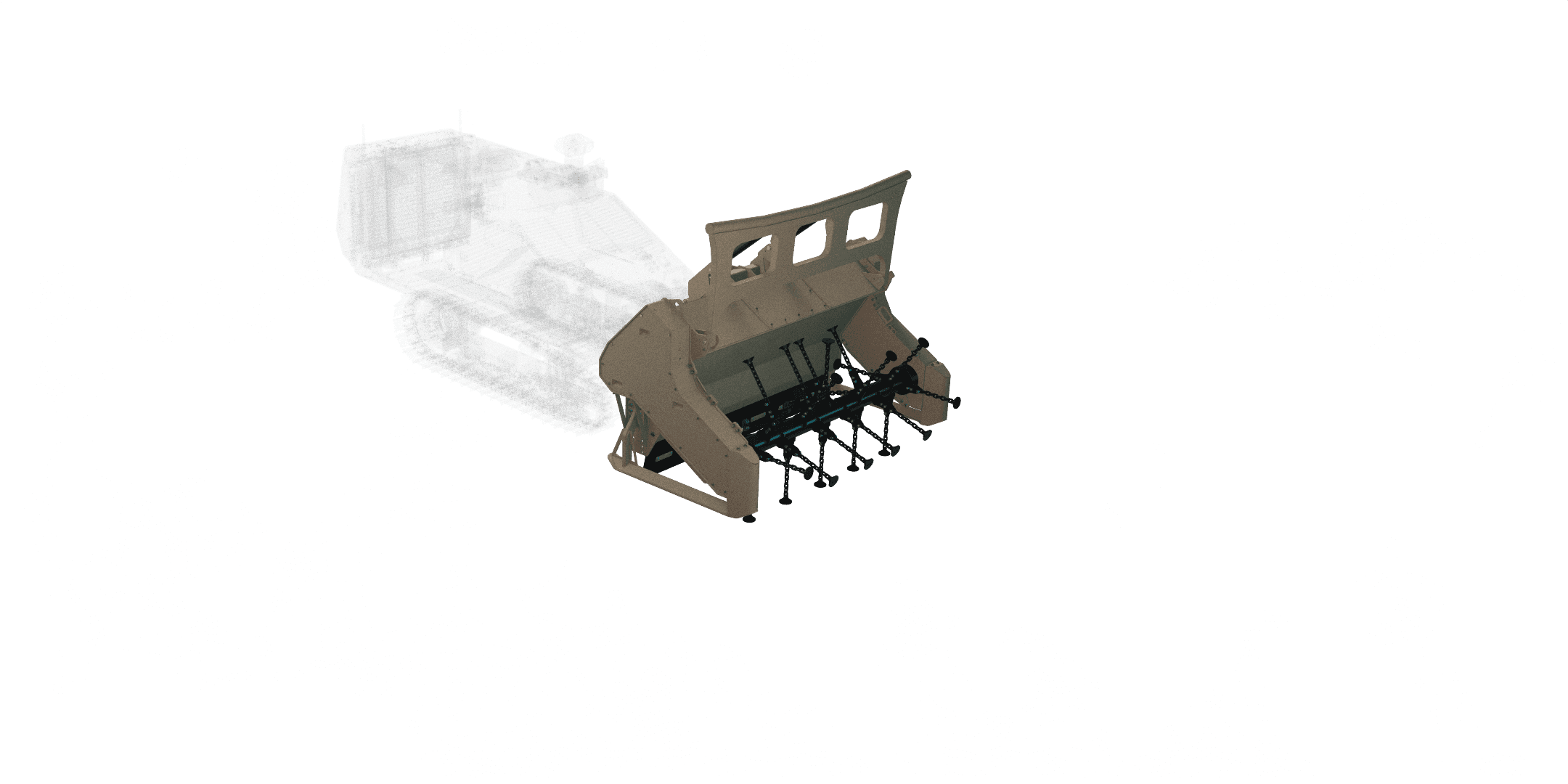

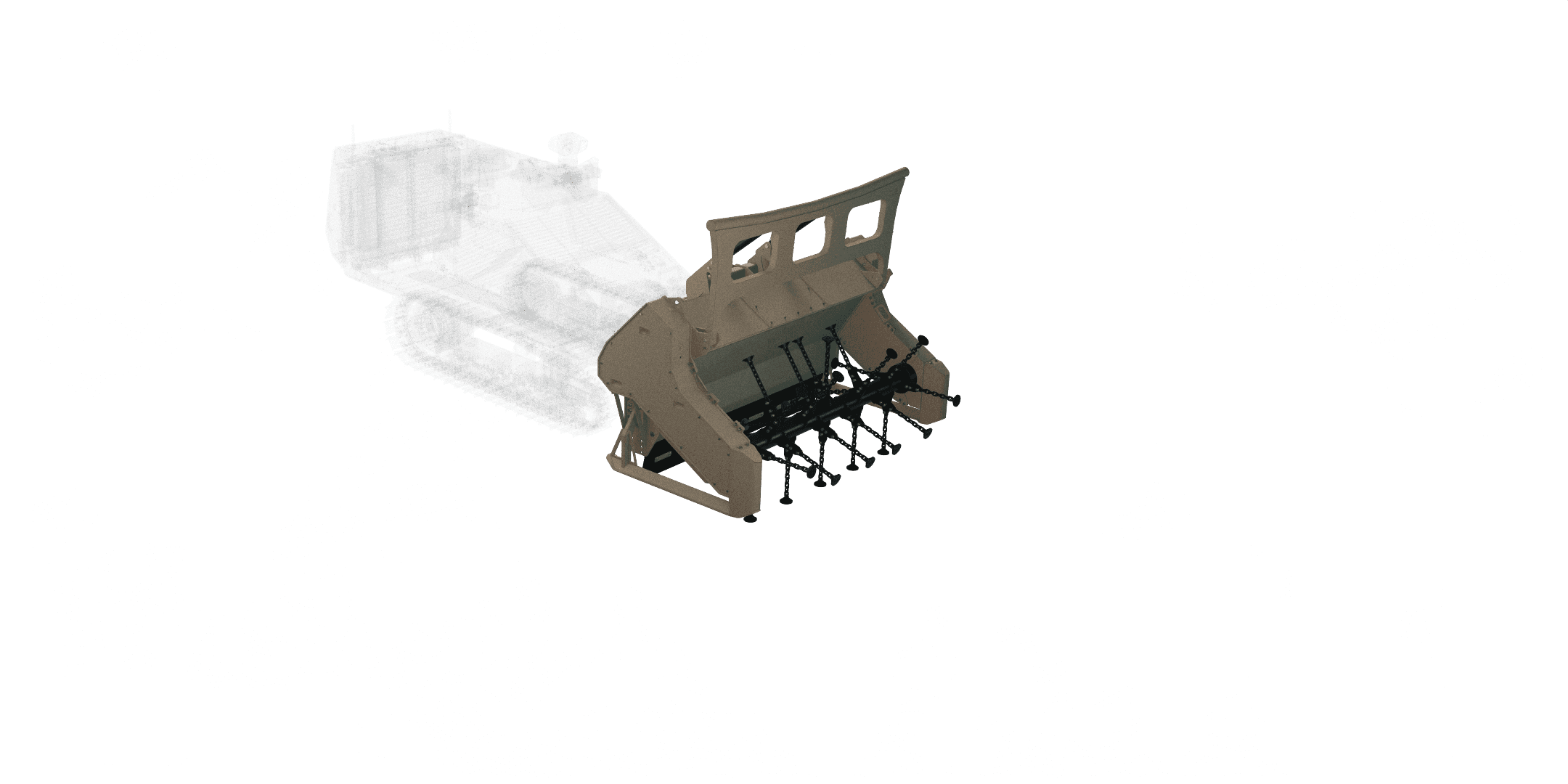

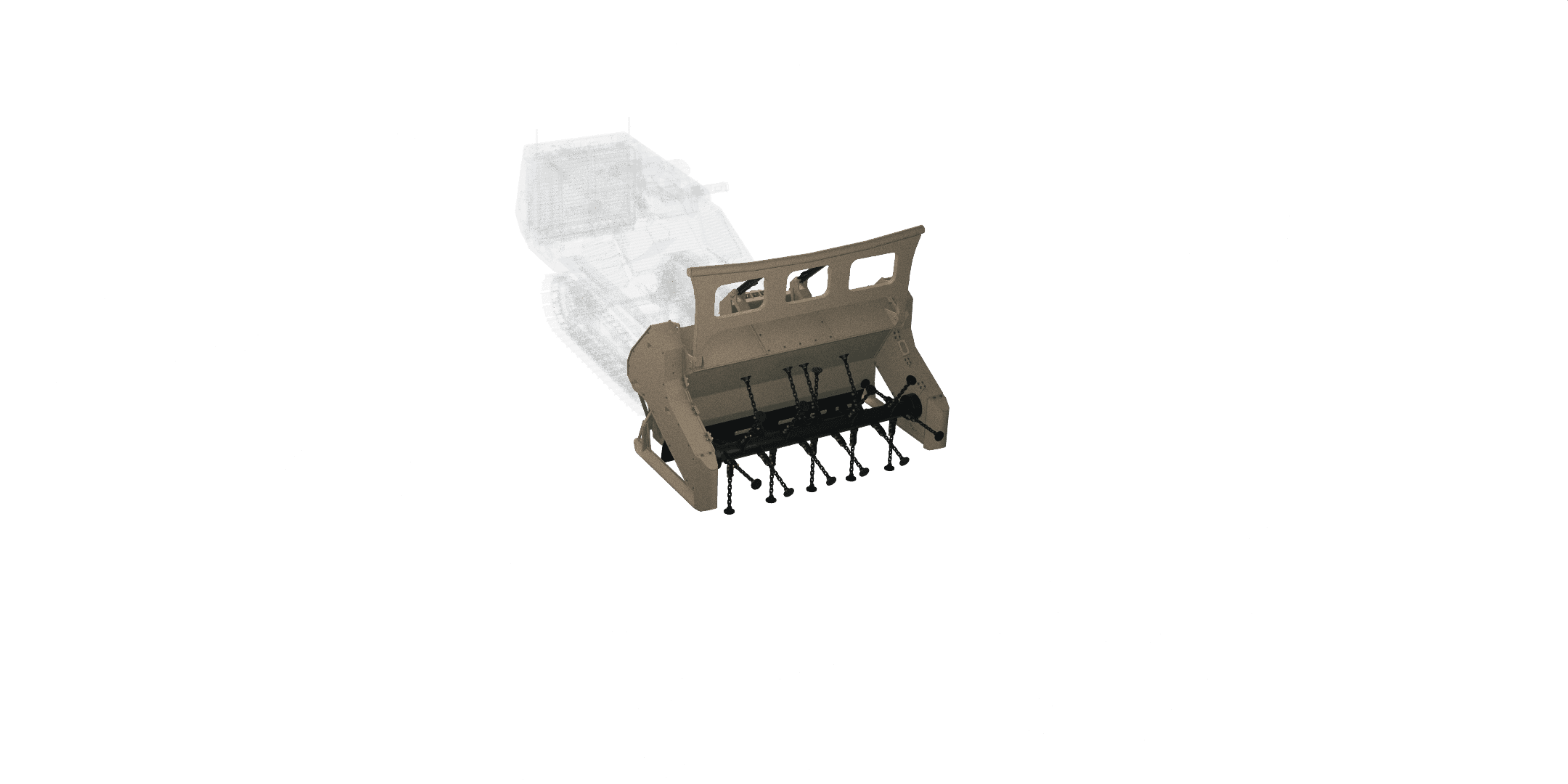

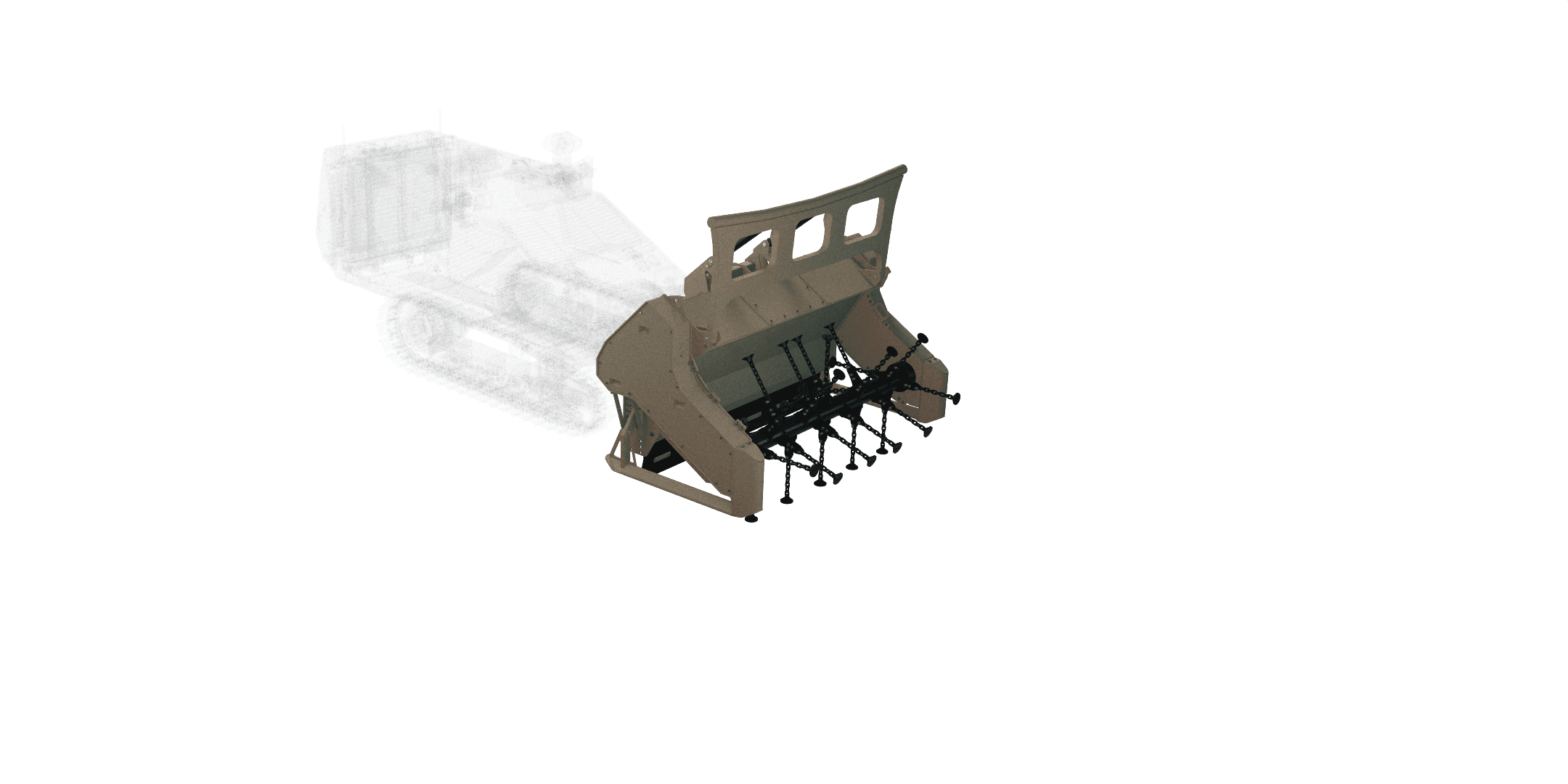

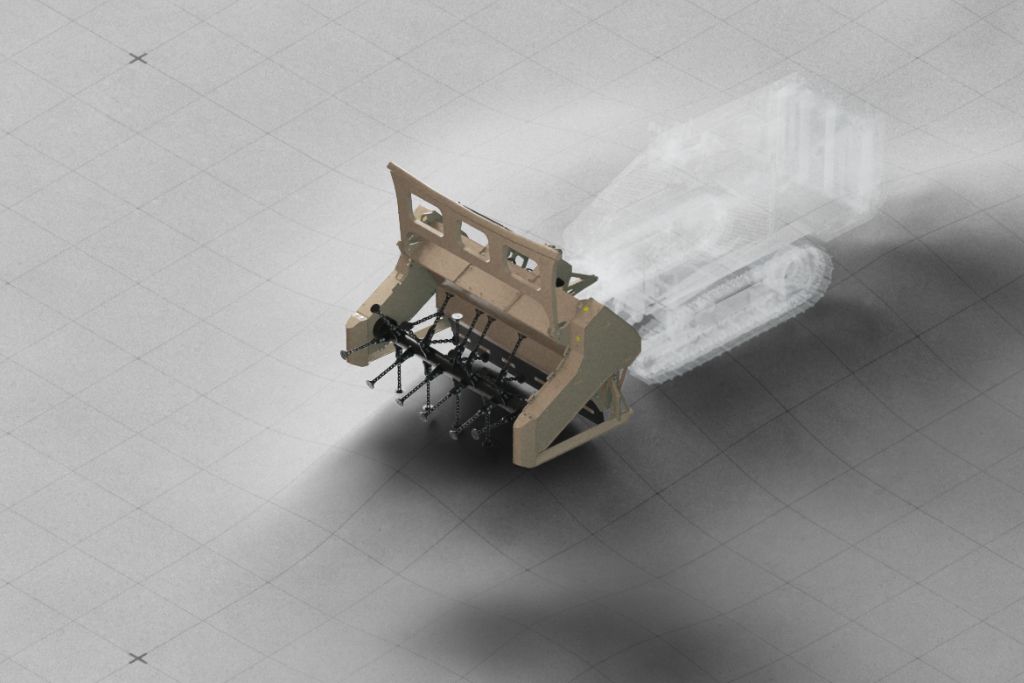

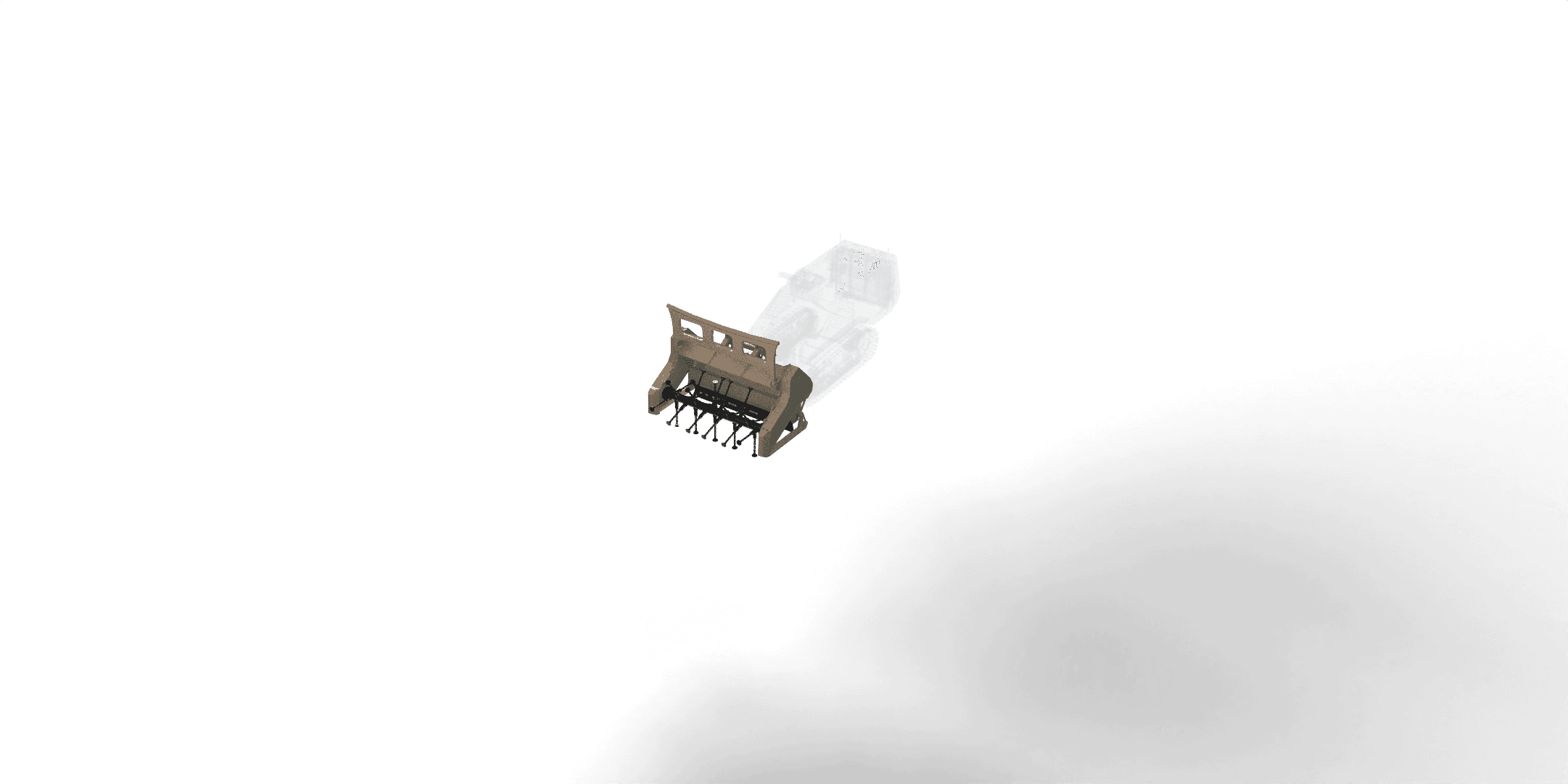

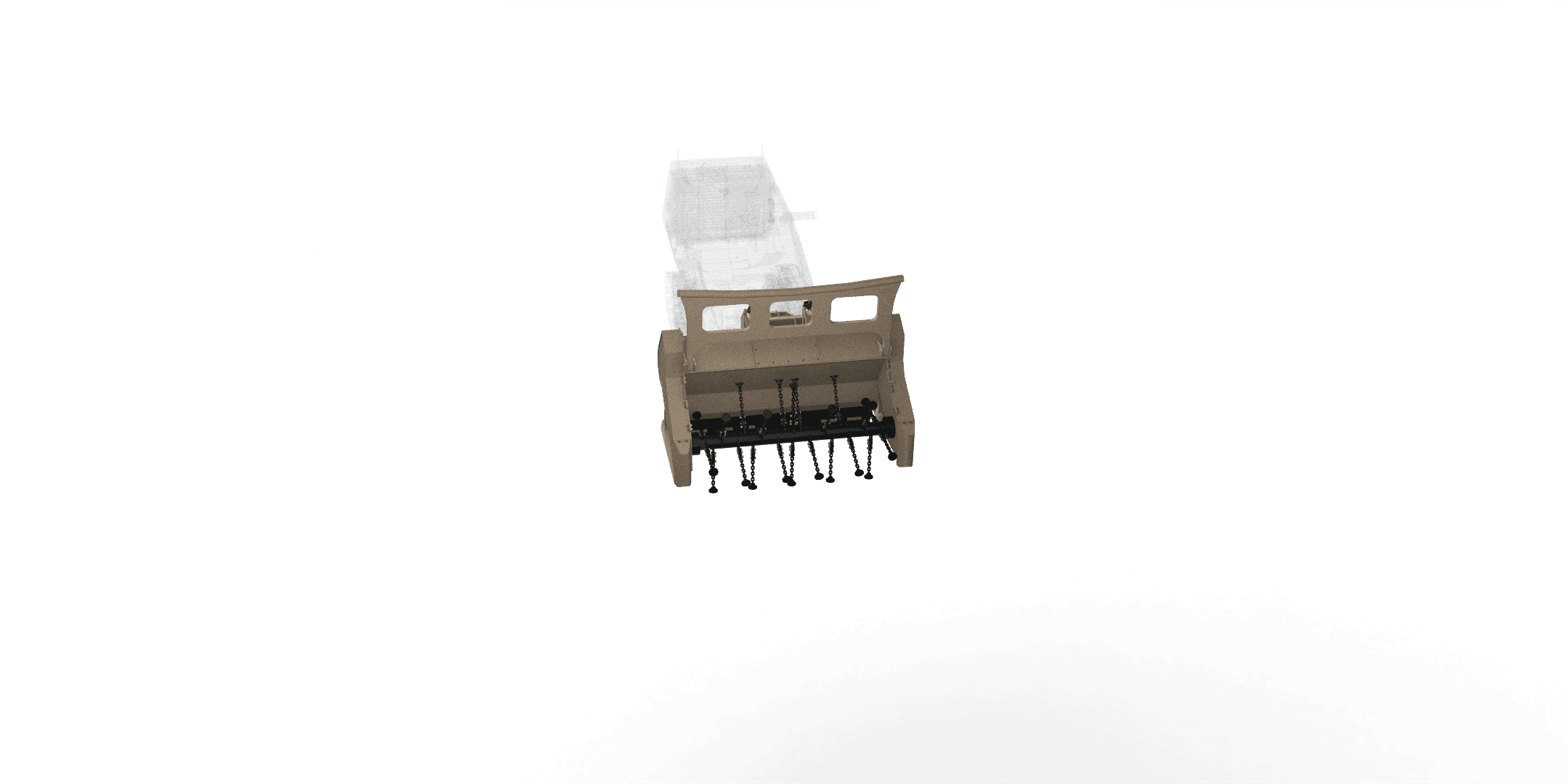

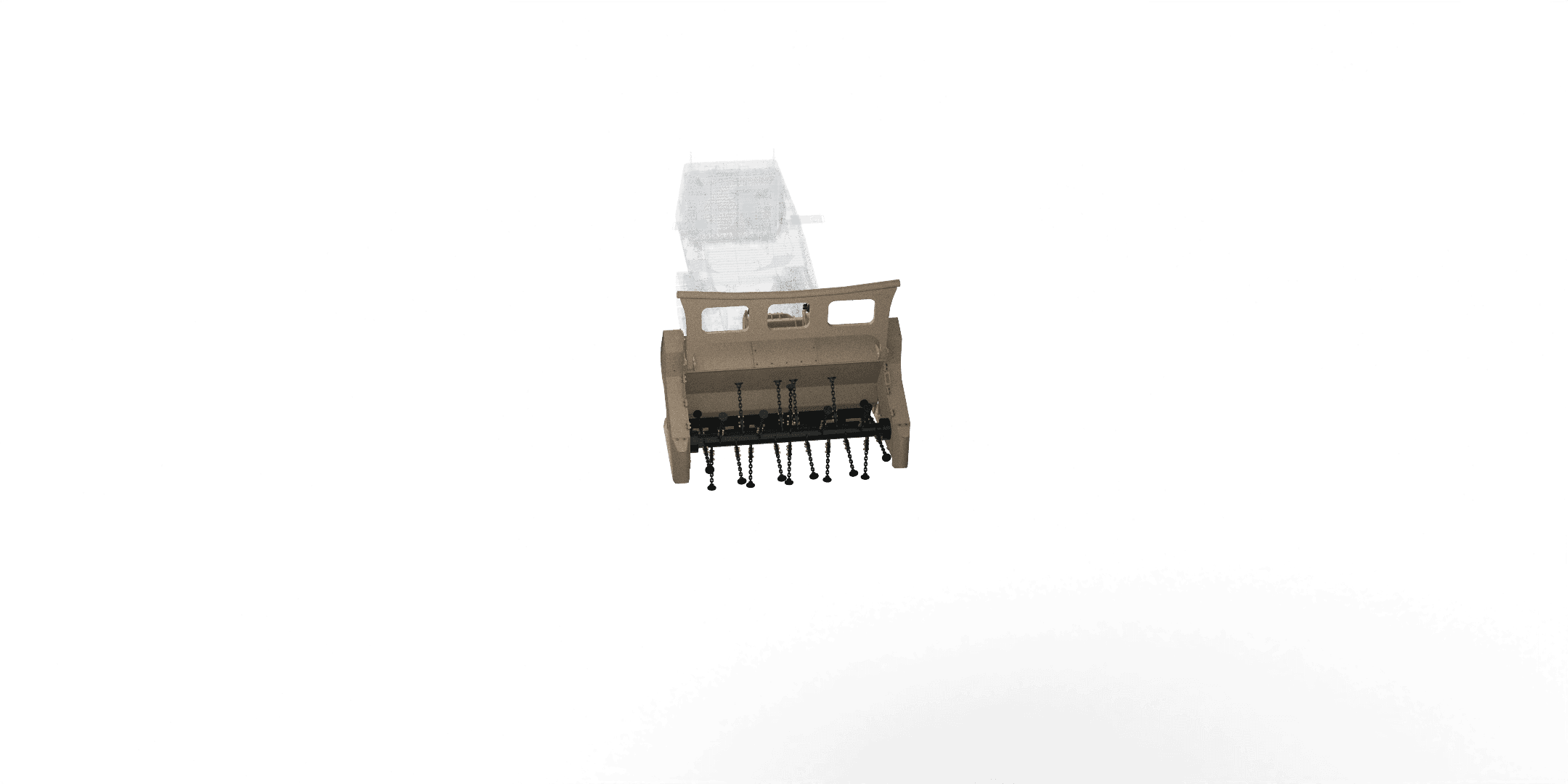

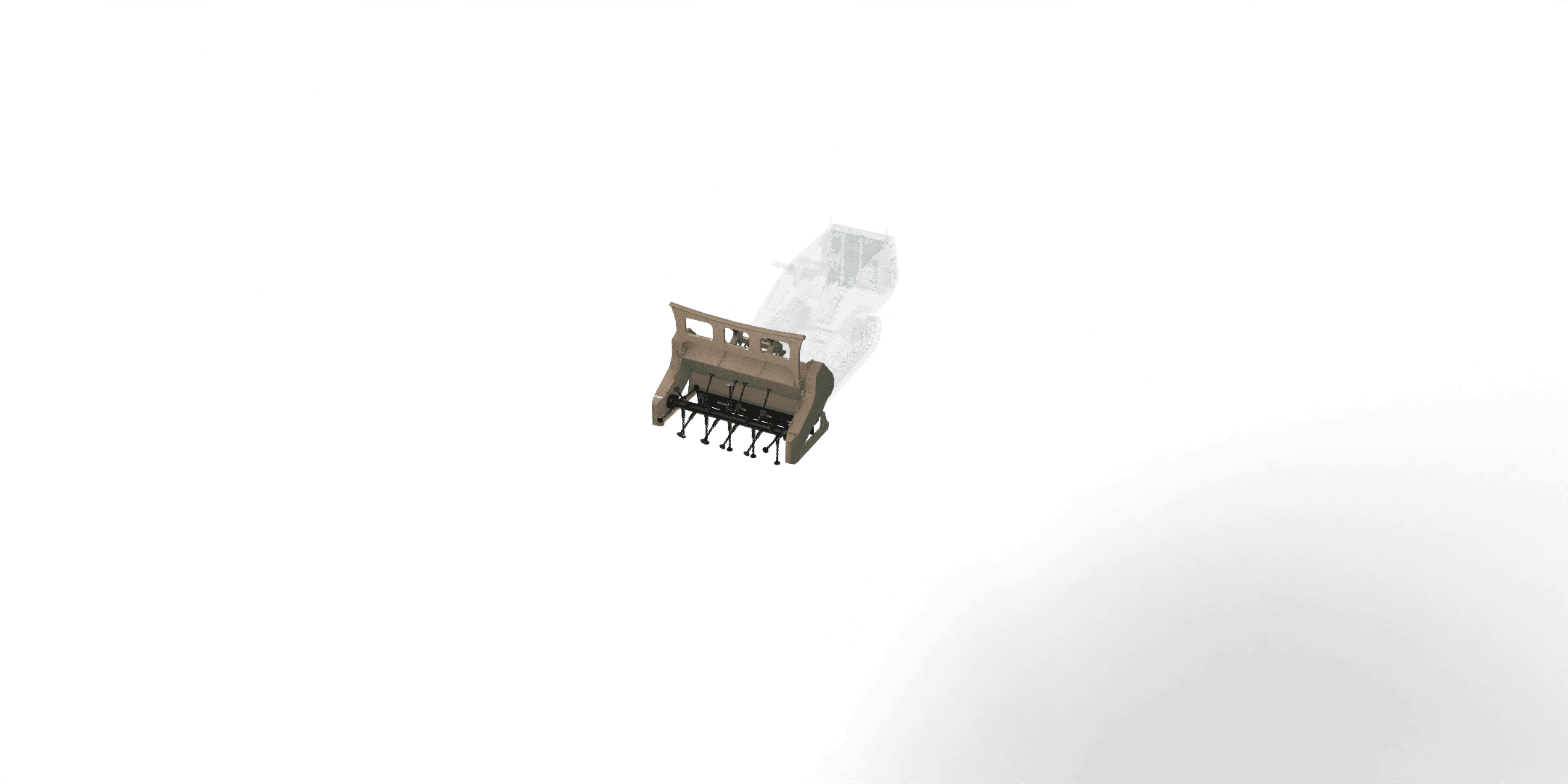

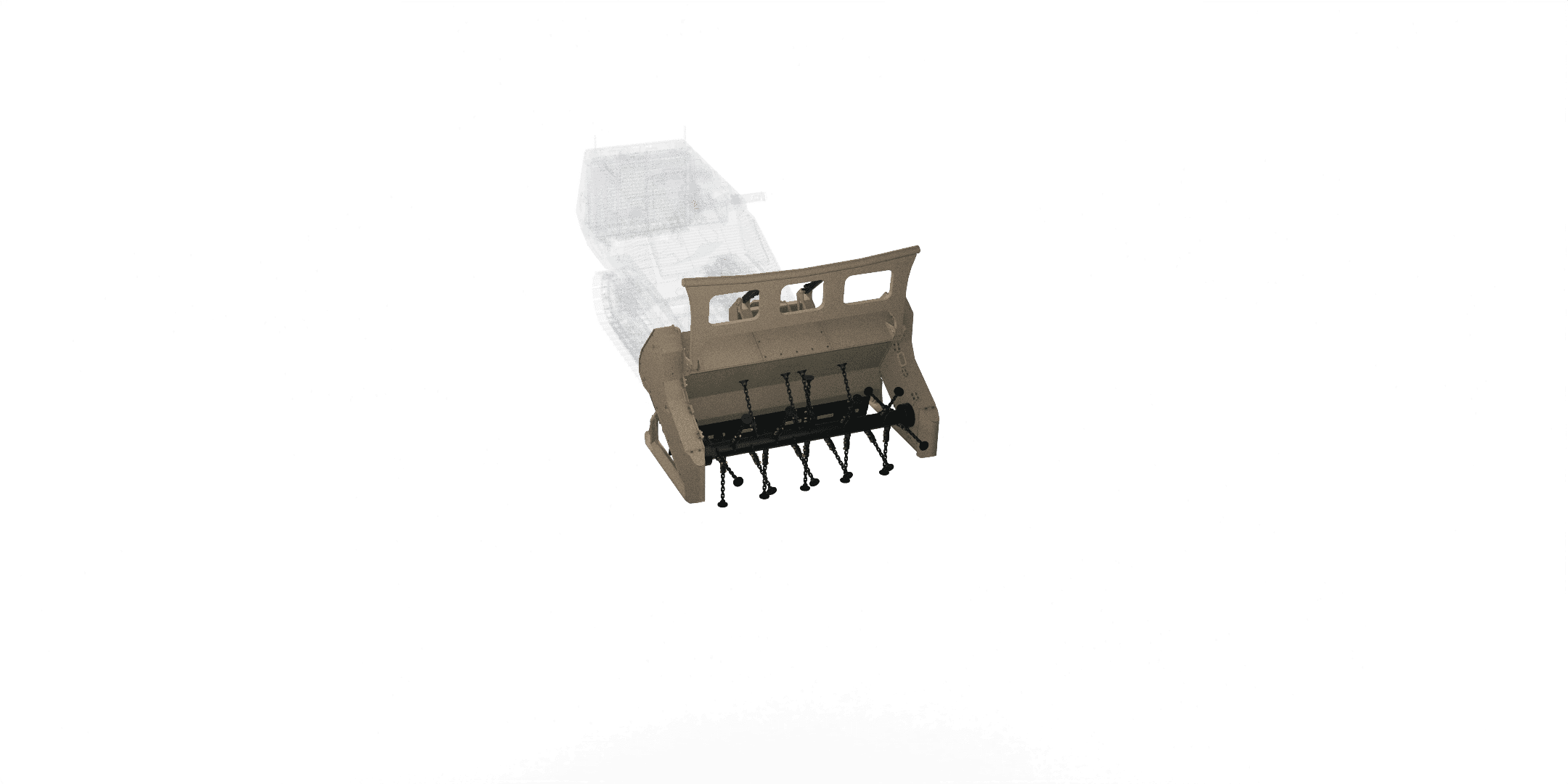

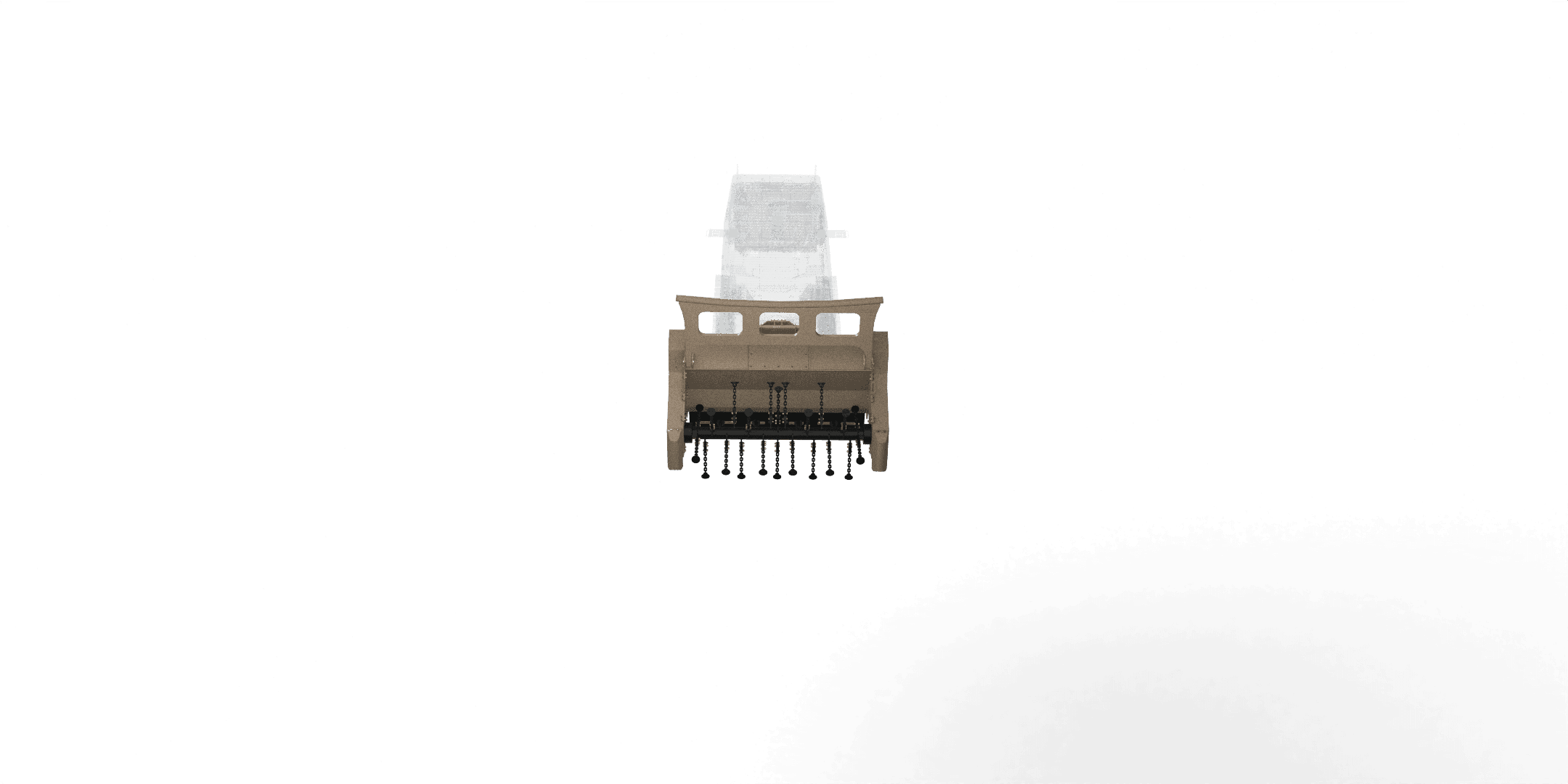

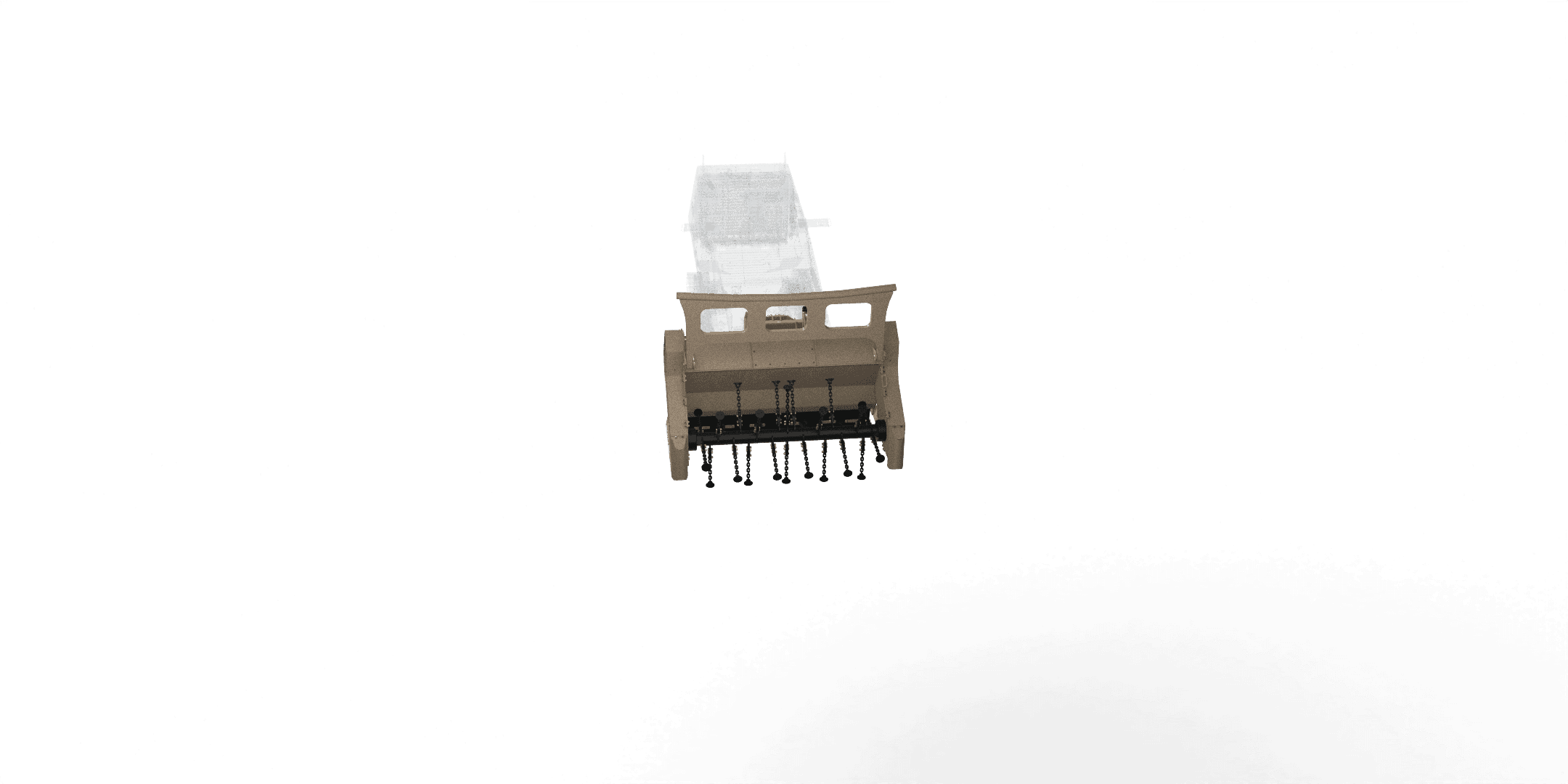

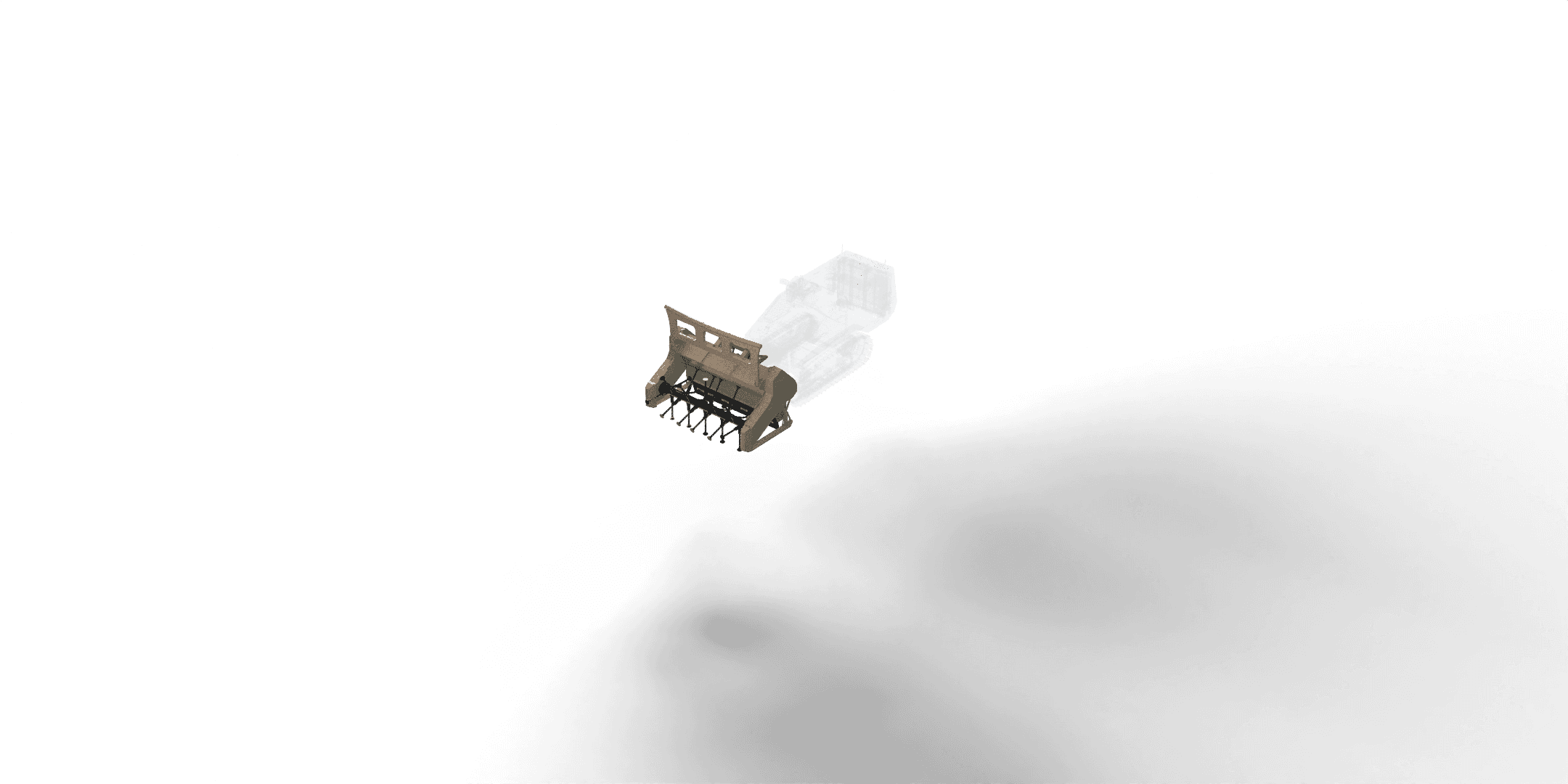

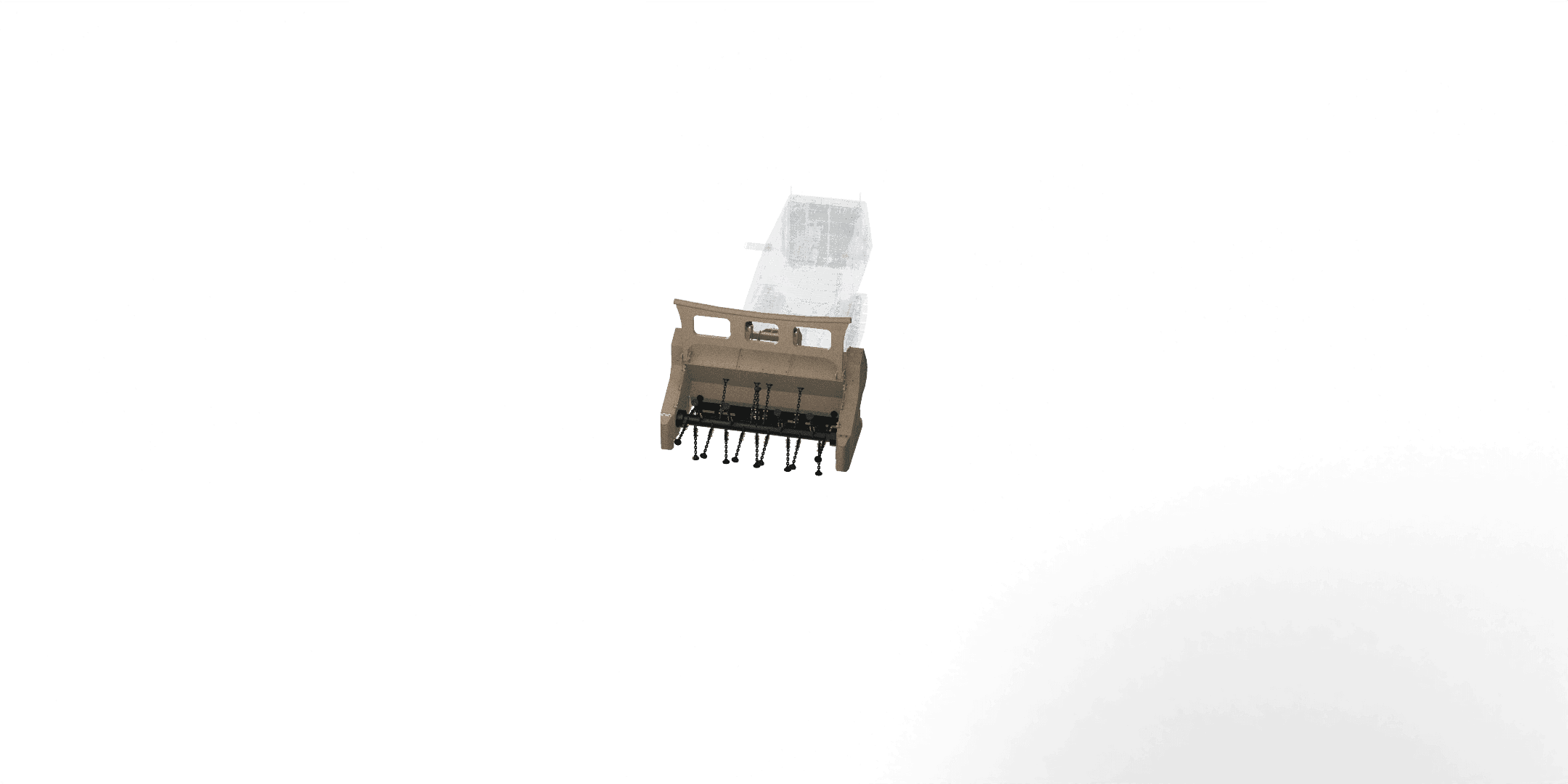

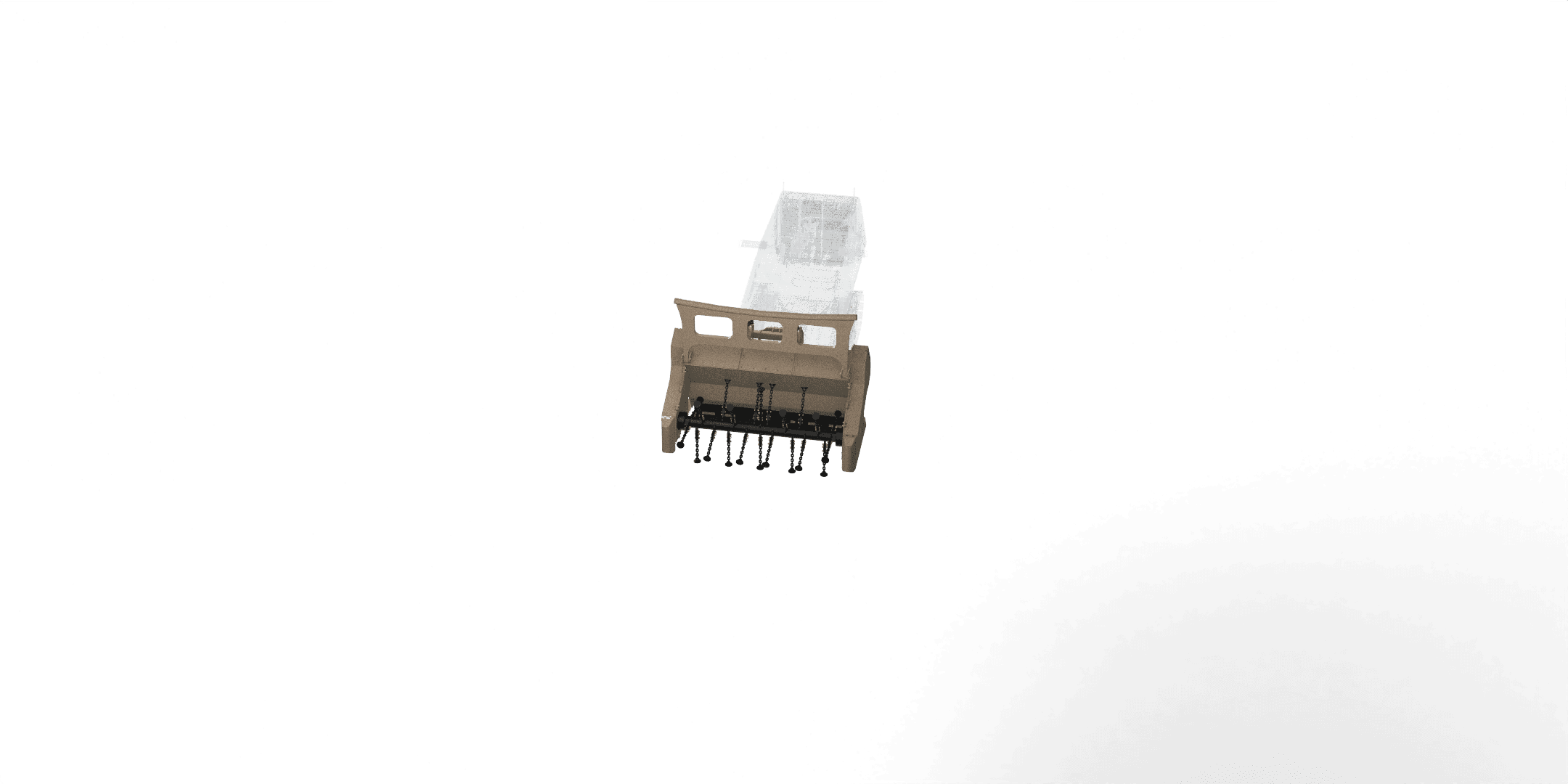

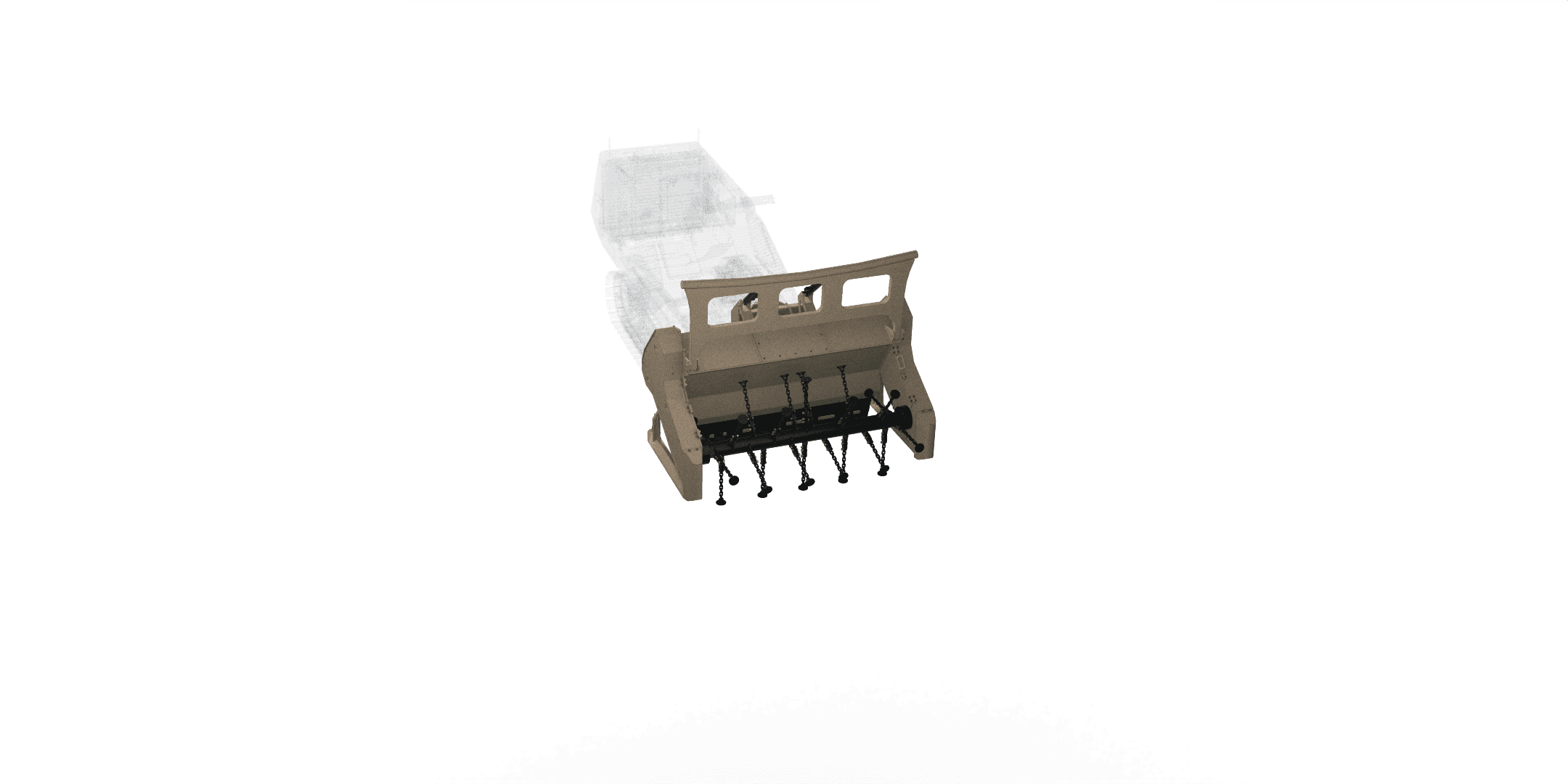

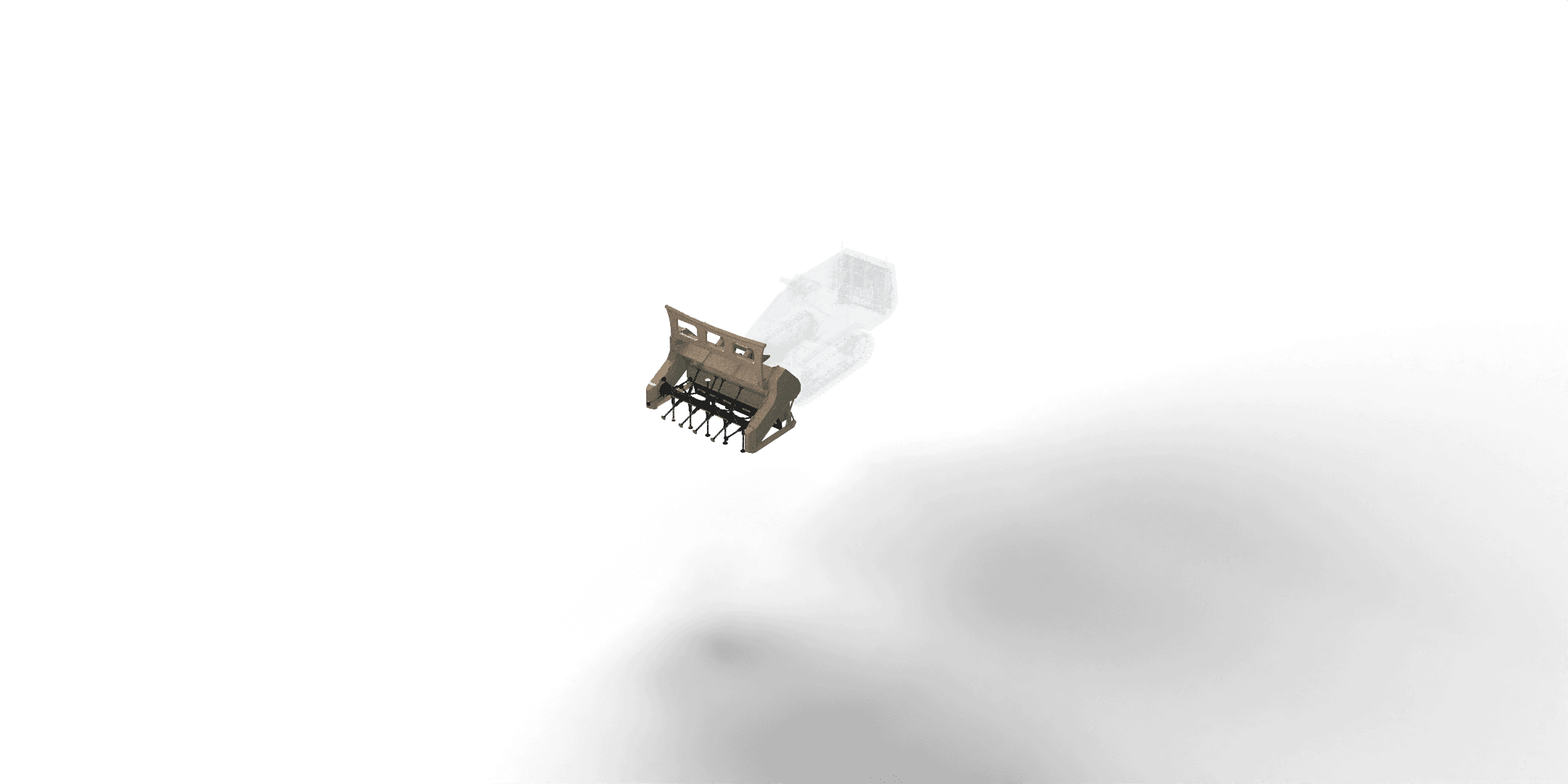

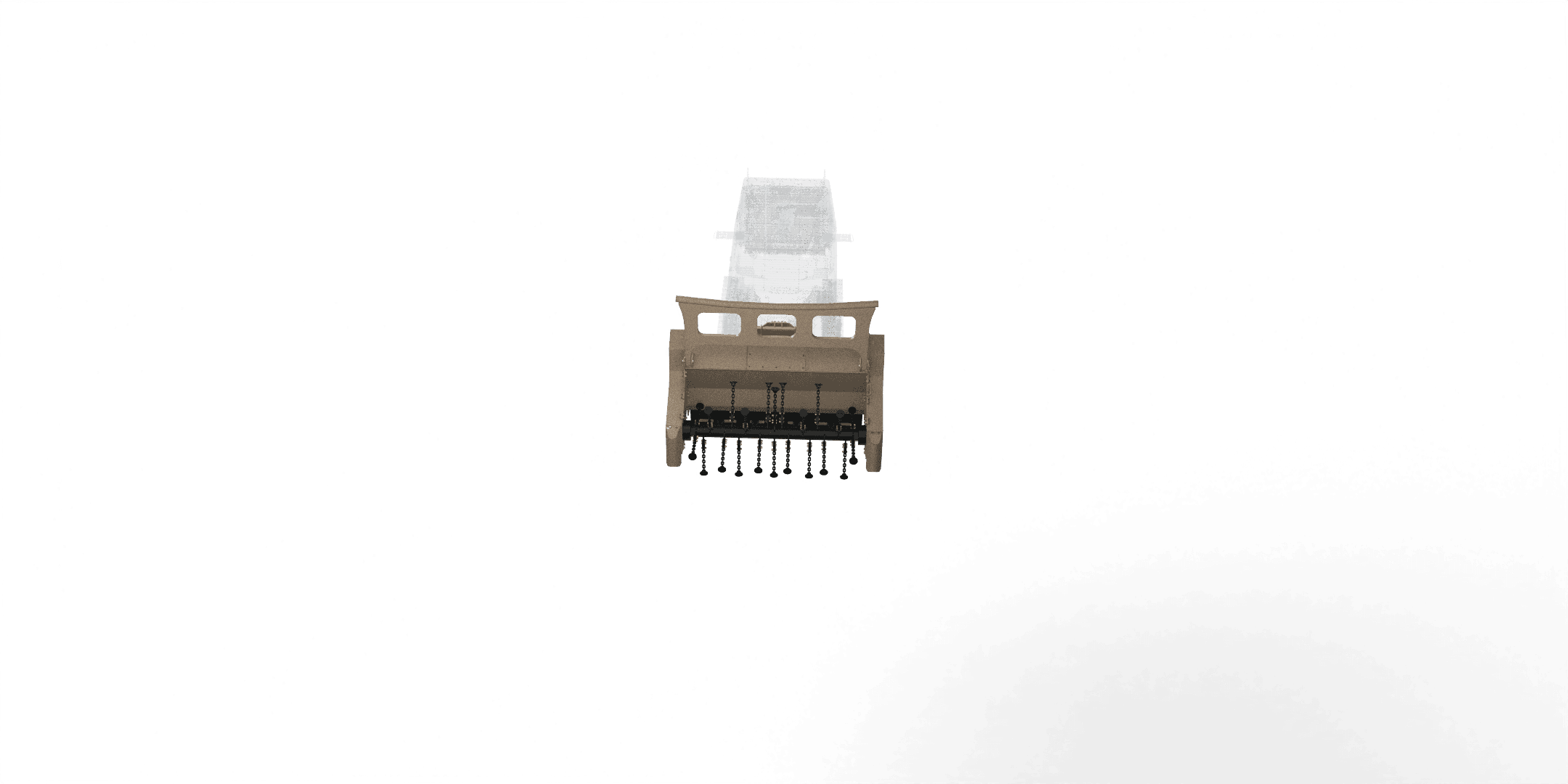

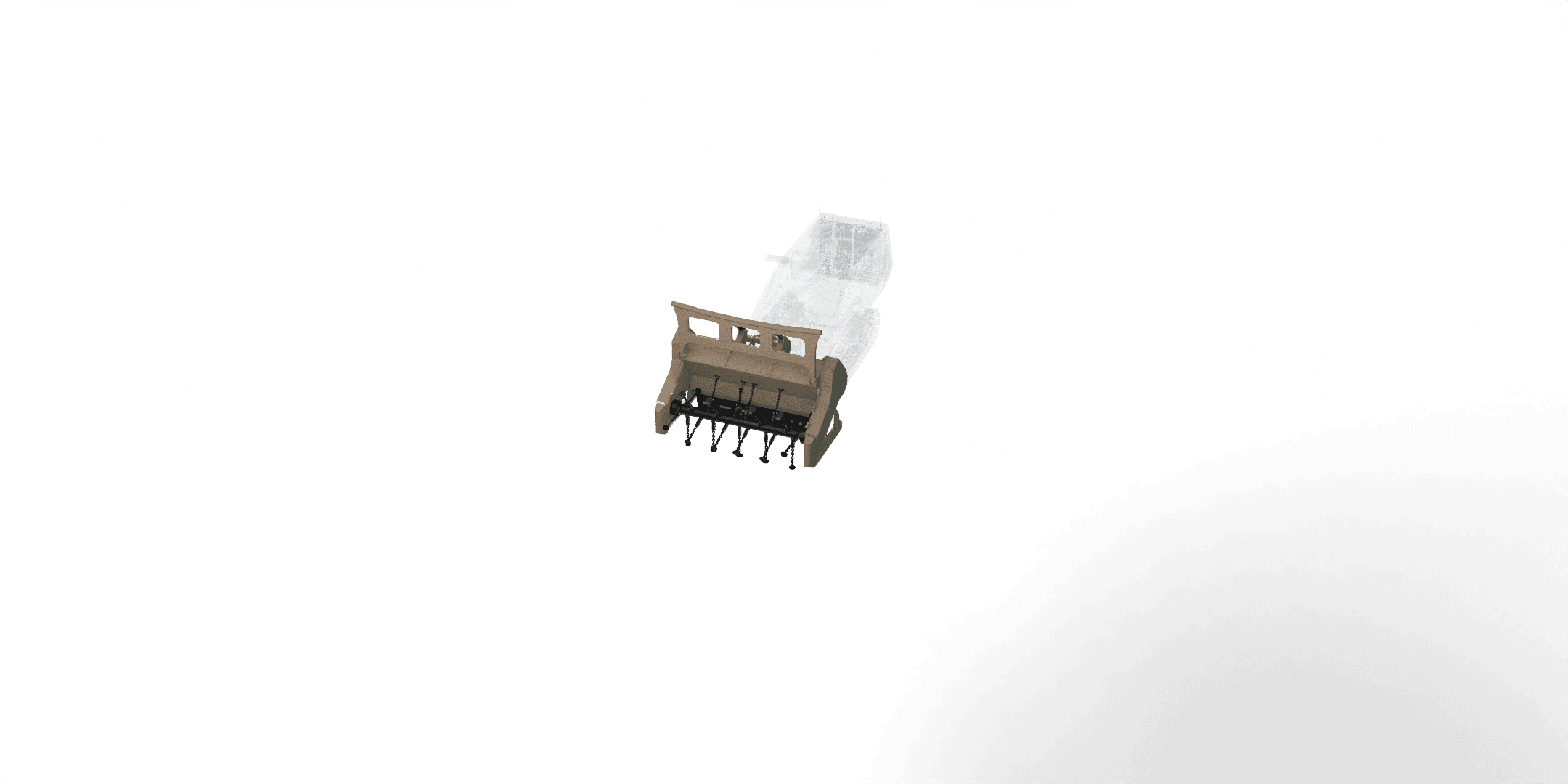

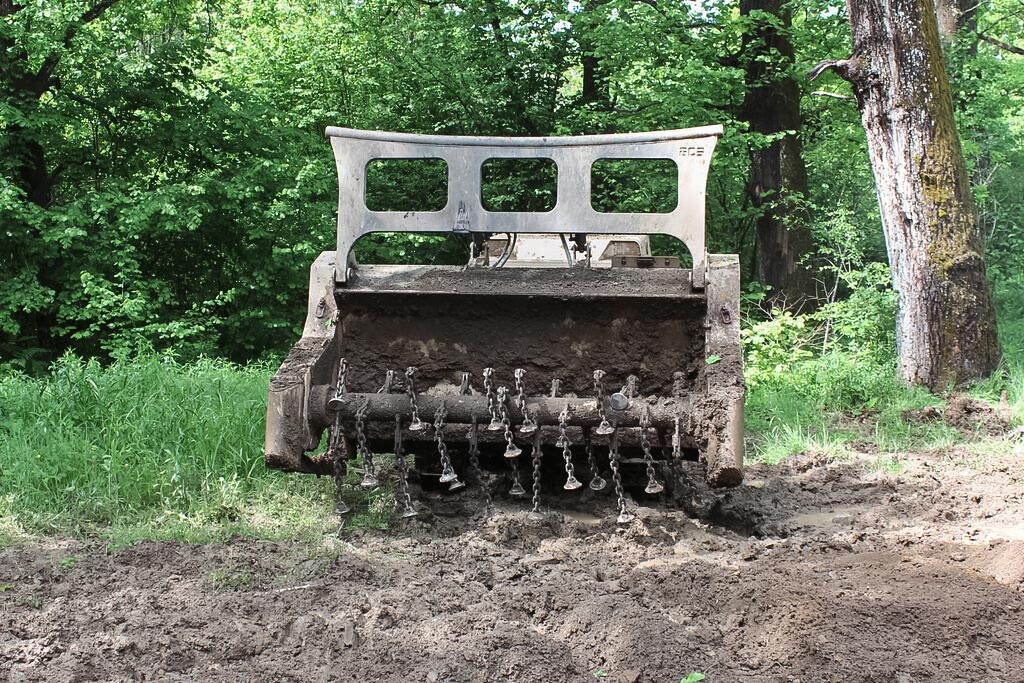

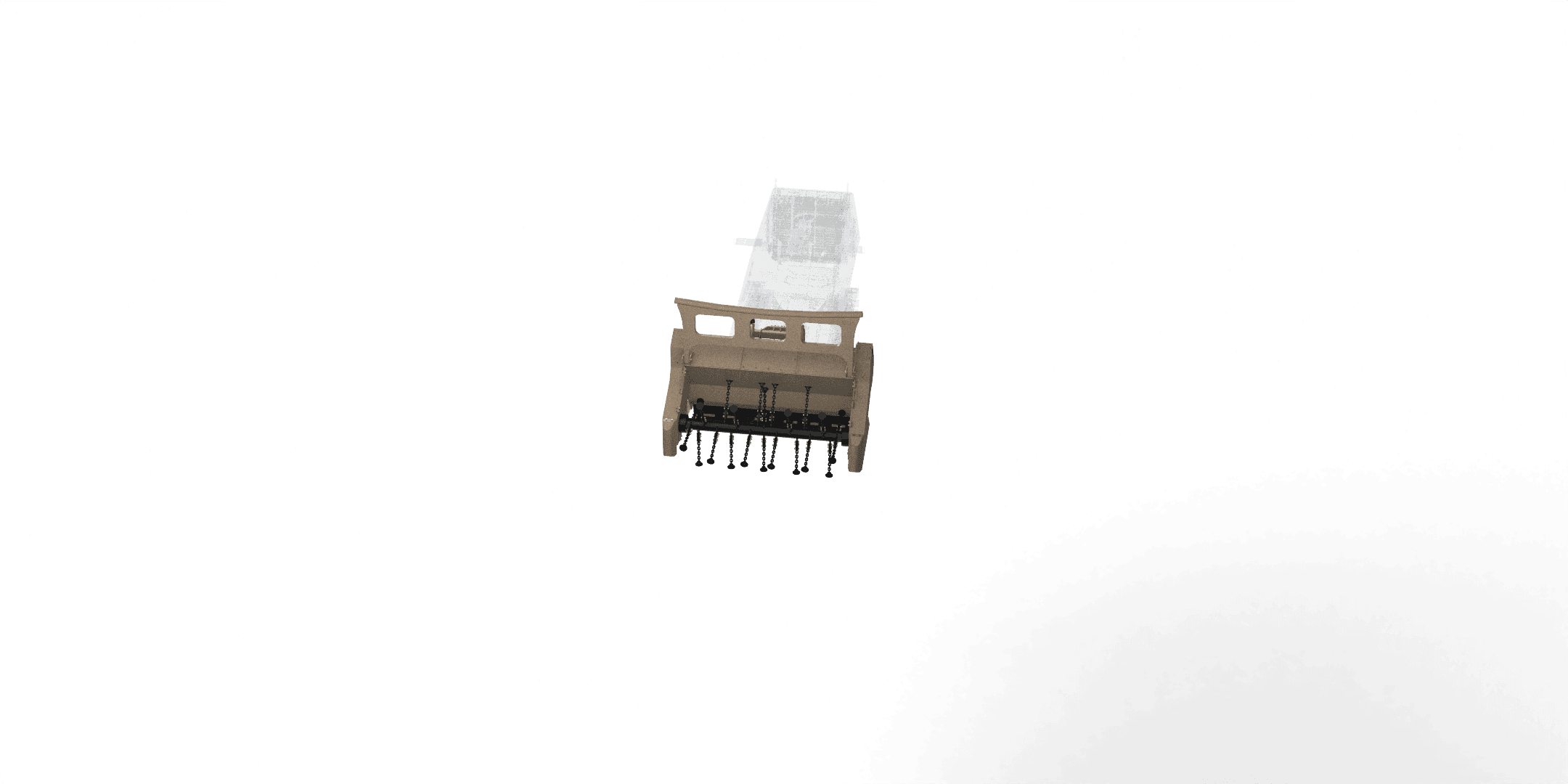

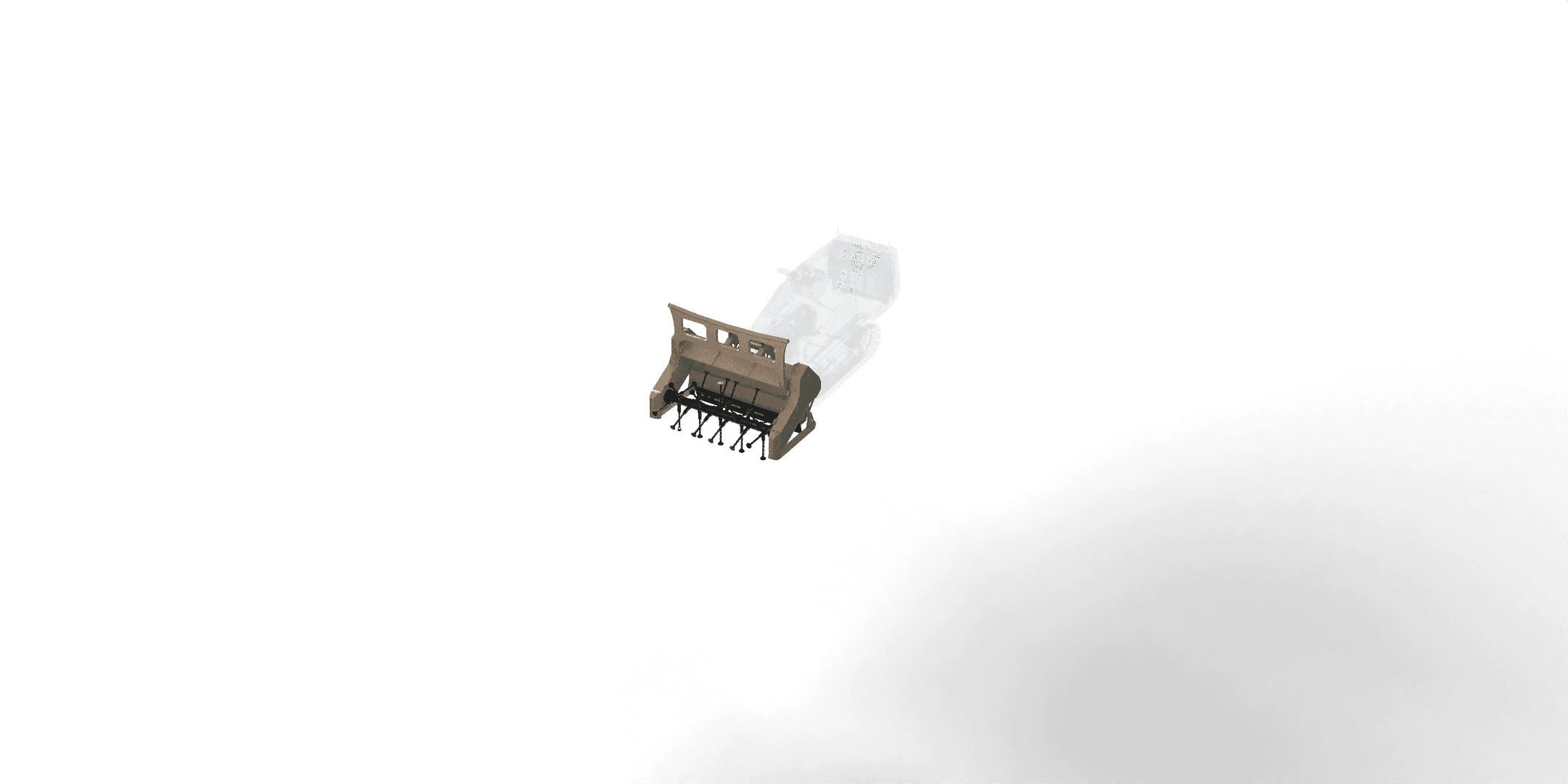

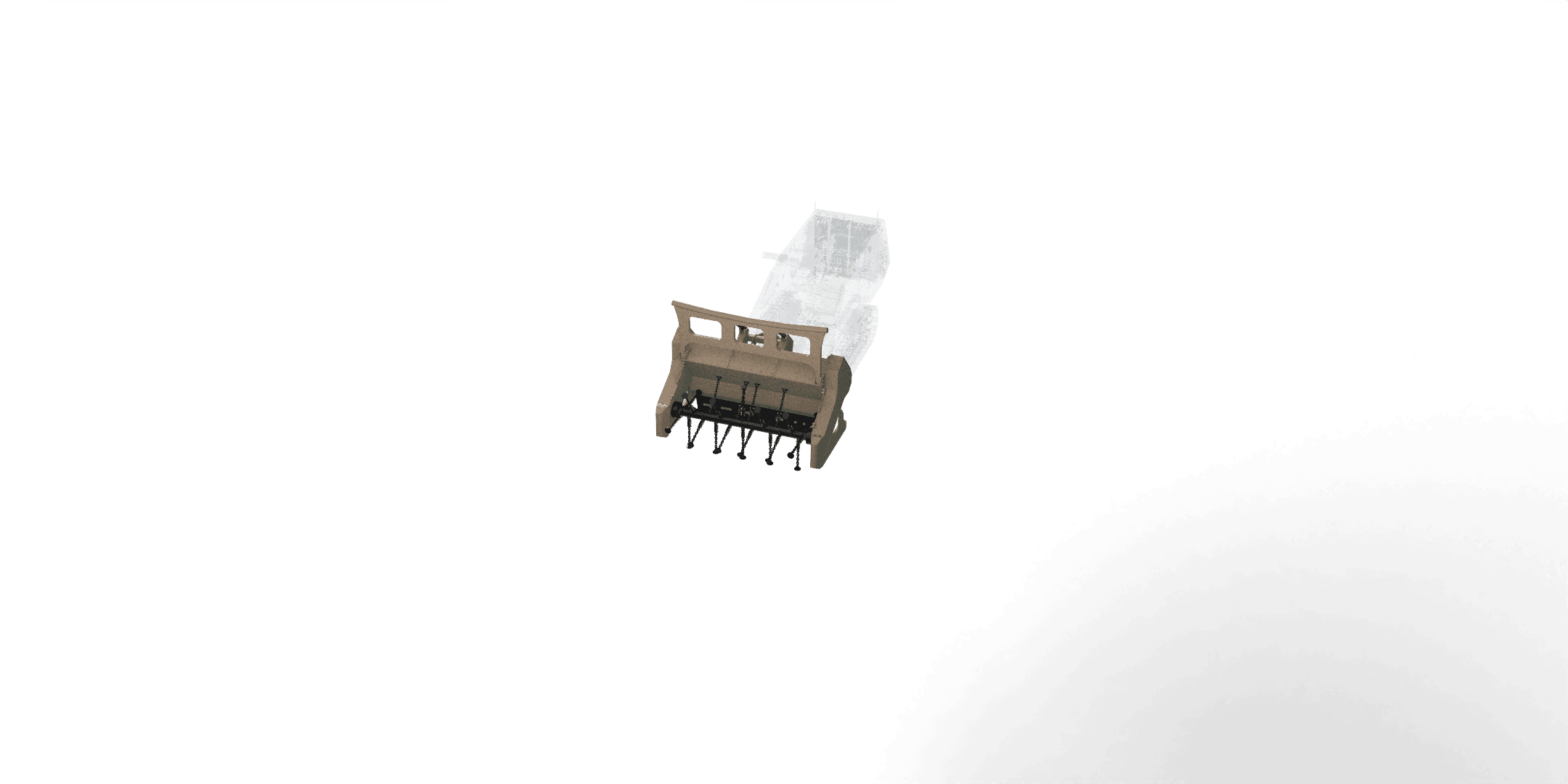

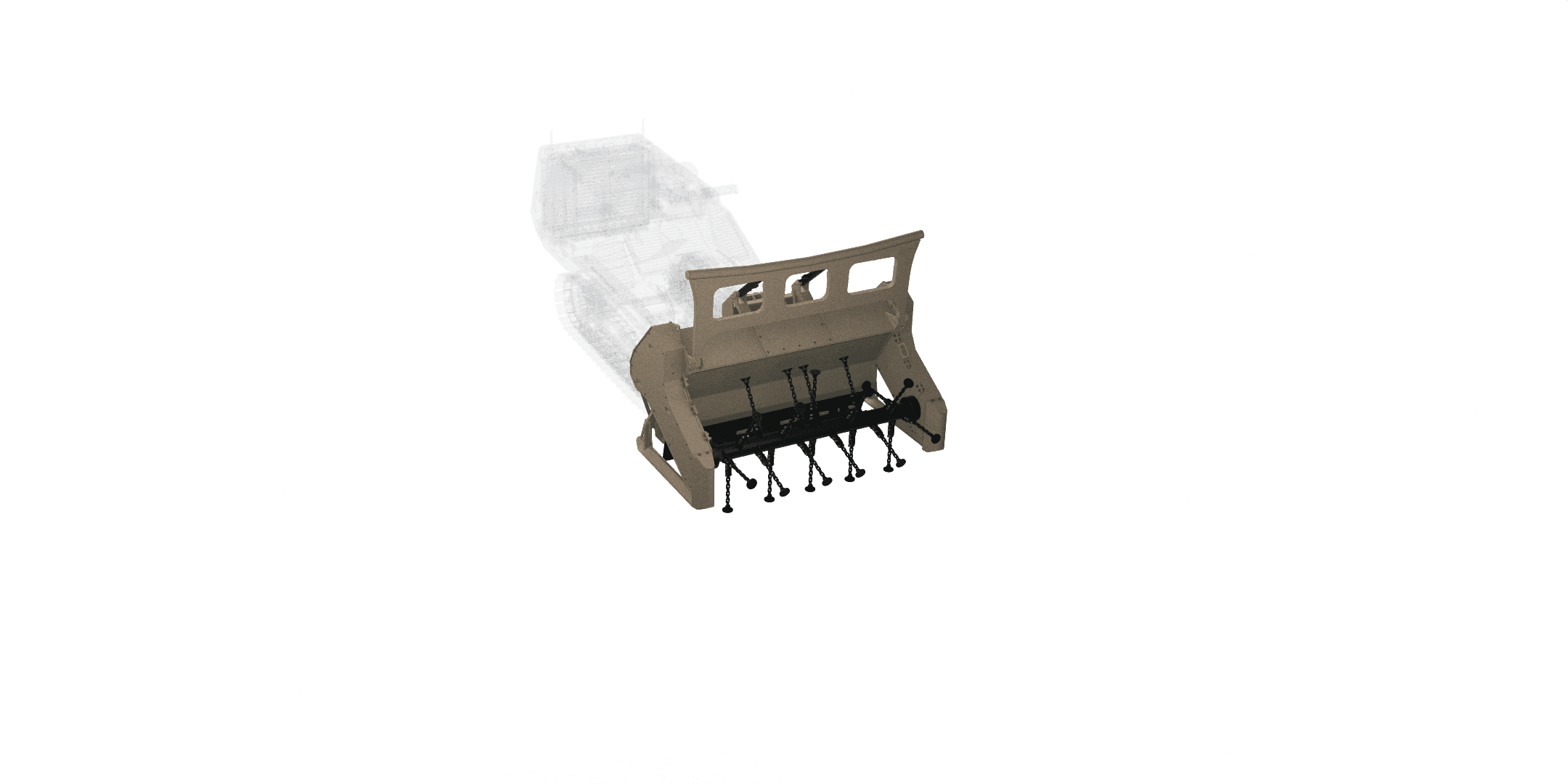

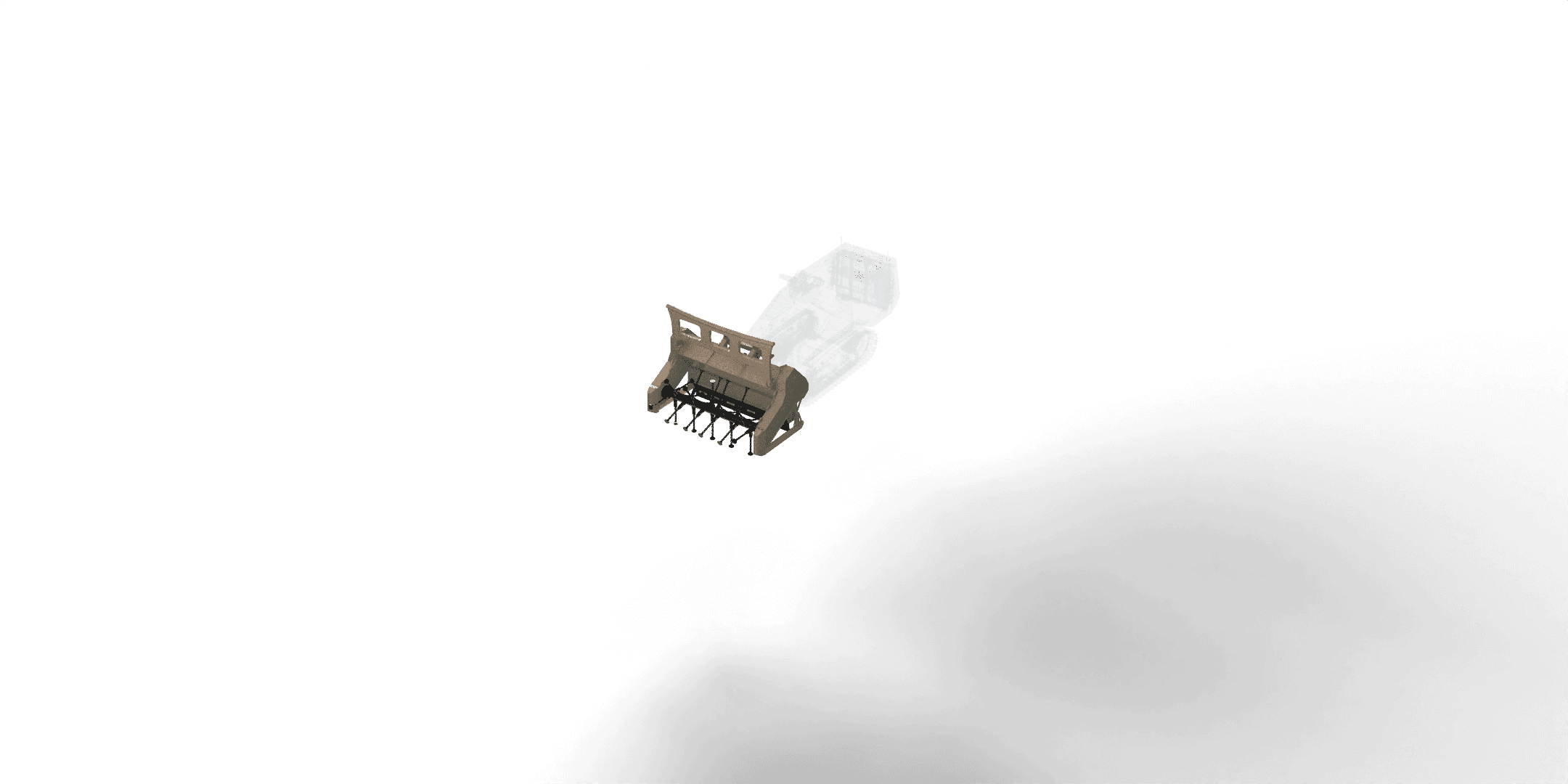

Mounted on unmanned GCS platforms and operated remotely, the flail uses rotating chains and hammers to deliver controlled impact, exposing, detonating or mechanically destroying explosive hazards while keeping operators at a safe distance. The flail is typically used in early clearance phases to reduce risk, prepare ground for follow‑on tasks and restore controlled access across contaminated areas.
Designed for the mechanical neutralisation of buried and surface explosive threats, the GCS Flail supports route and area clearance operations where vegetation, rubble and uneven ground limit manual access.
Mounted on unmanned GCS platforms and operated remotely, the flail uses rotating chains and hammers to deliver controlled impact, exposing, detonating or mechanically destroying explosive hazards while keeping operators at a safe distance. The flail is typically used in early clearance phases to reduce risk, prepare ground for follow‑on tasks and restore controlled access across contaminated areas.
Designed for the mechanical neutralisation of buried and surface explosive threats, the GCS Flail supports route and area clearance operations where vegetation, rubble and uneven ground limit manual access.
Mounted on unmanned GCS platforms and operated remotely, the flail uses rotating chains and hammers to deliver controlled impact, exposing, detonating or mechanically destroying explosive hazards while keeping operators at a safe distance. The flail is typically used in early clearance phases to reduce risk, prepare ground for follow‑on tasks and restore controlled access across contaminated areas.
Designed for the mechanical neutralisation of buried and surface explosive threats, the GCS Flail supports route and area clearance operations where vegetation, rubble and uneven ground limit manual access.
Mounted on unmanned GCS platforms and operated remotely, the flail uses rotating chains and hammers to deliver controlled impact, exposing, detonating or mechanically destroying explosive hazards while keeping operators at a safe distance. The flail is typically used in early clearance phases to reduce risk, prepare ground for follow‑on tasks and restore controlled access across contaminated areas.
Explore our range of products

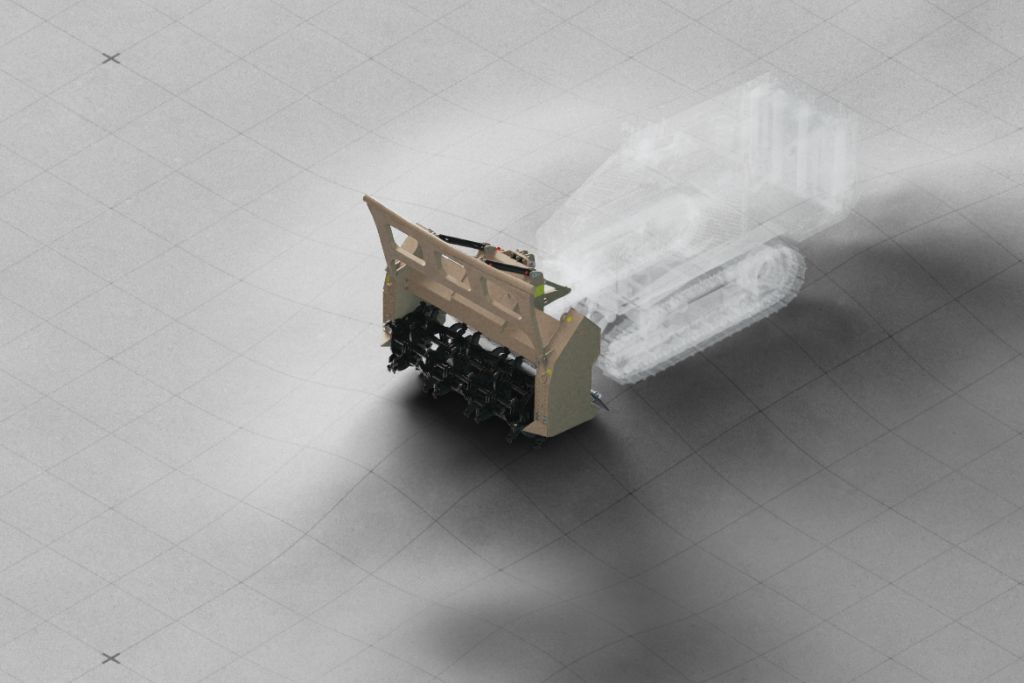

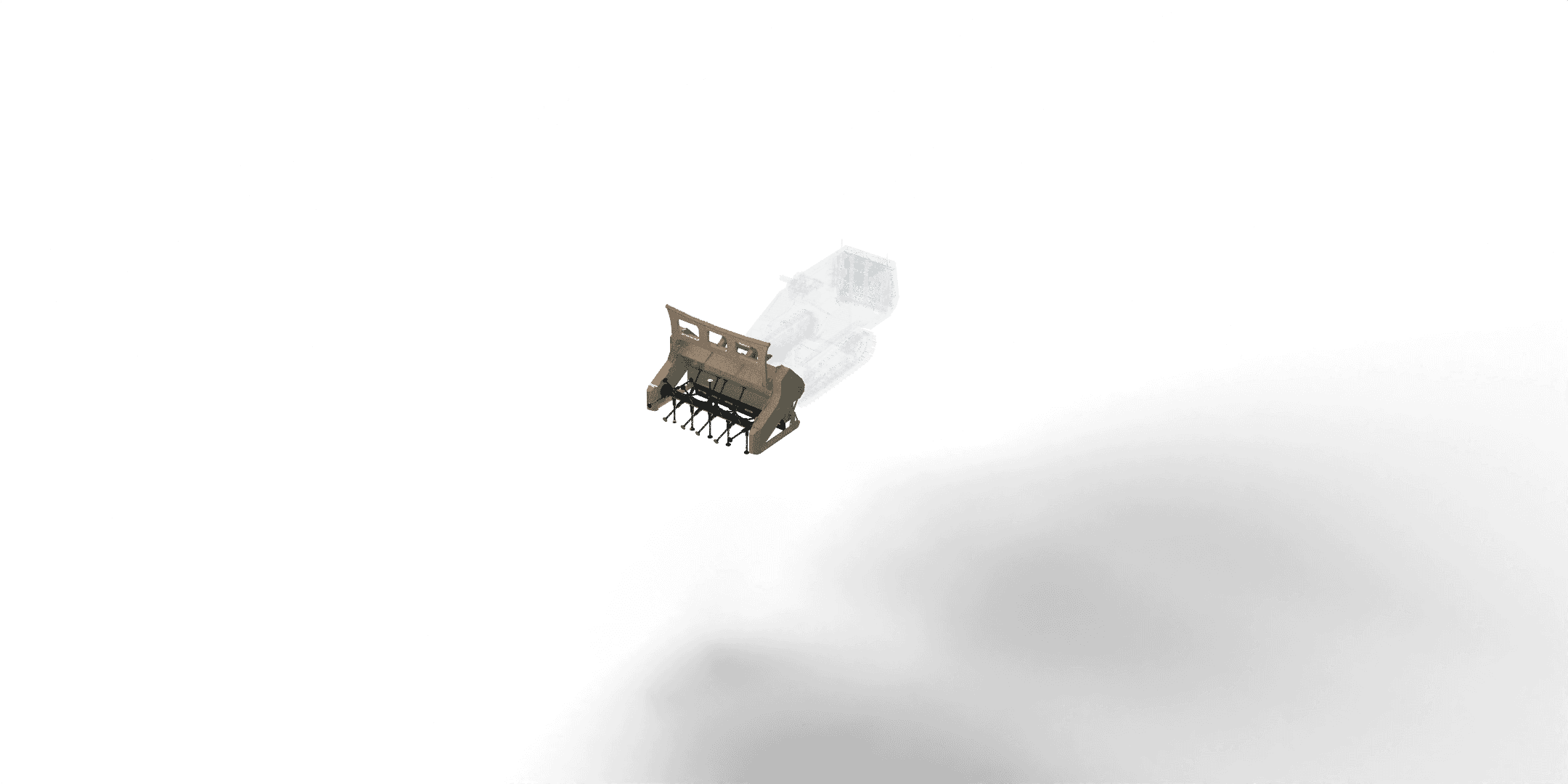

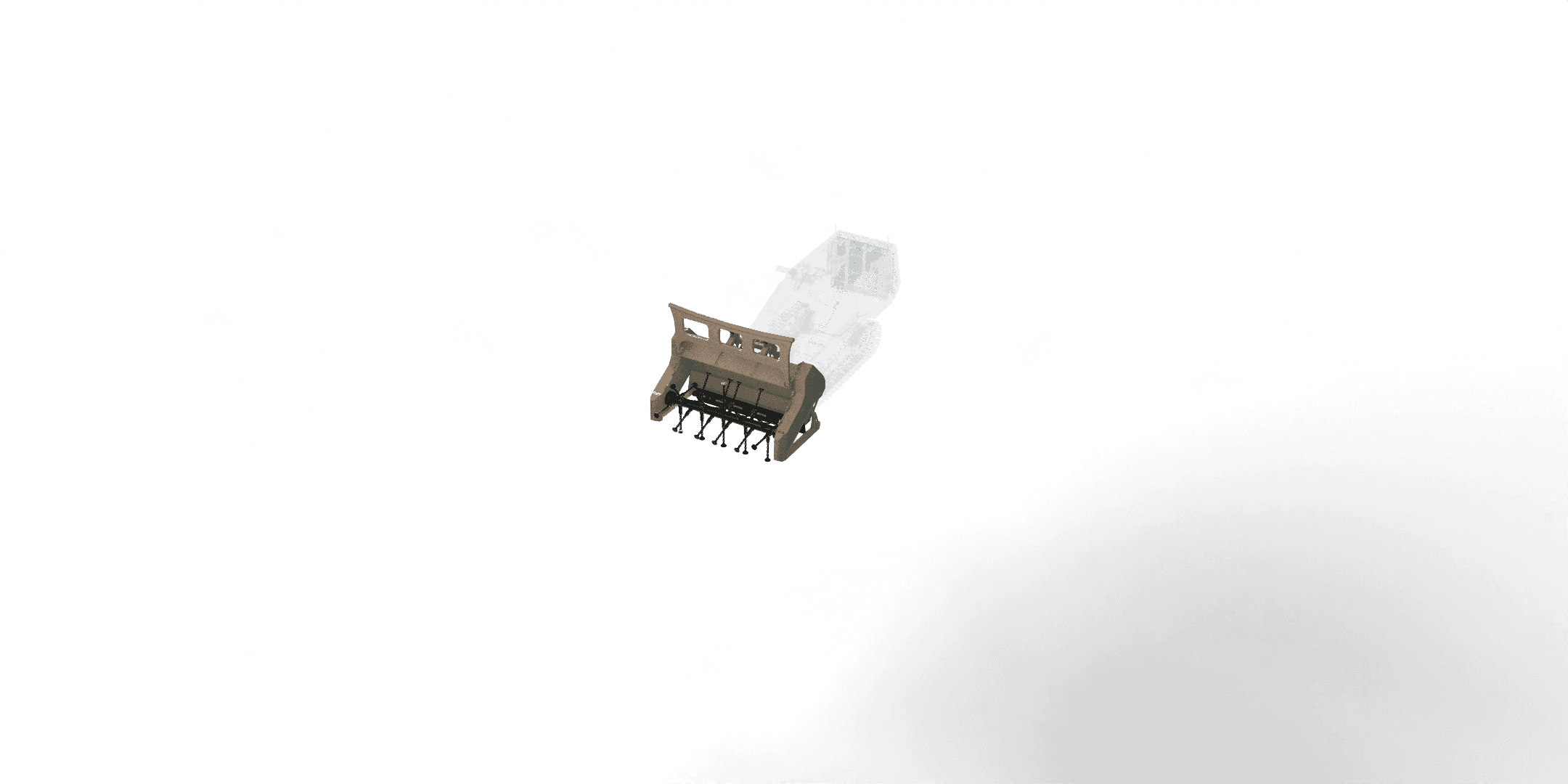

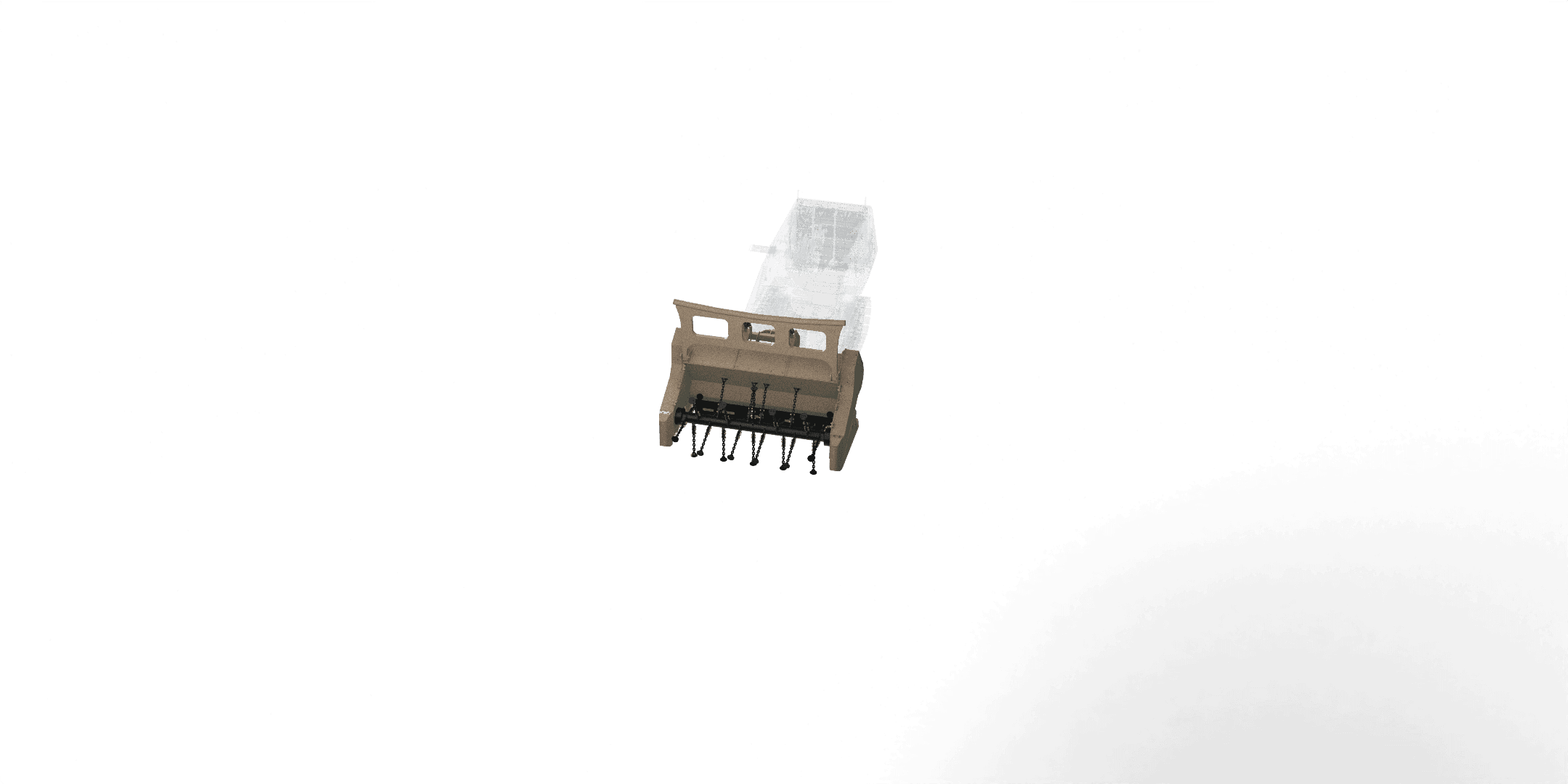

The Flail comes in two variants, matched to the size, power and operational role of their host platforms.
F‑100

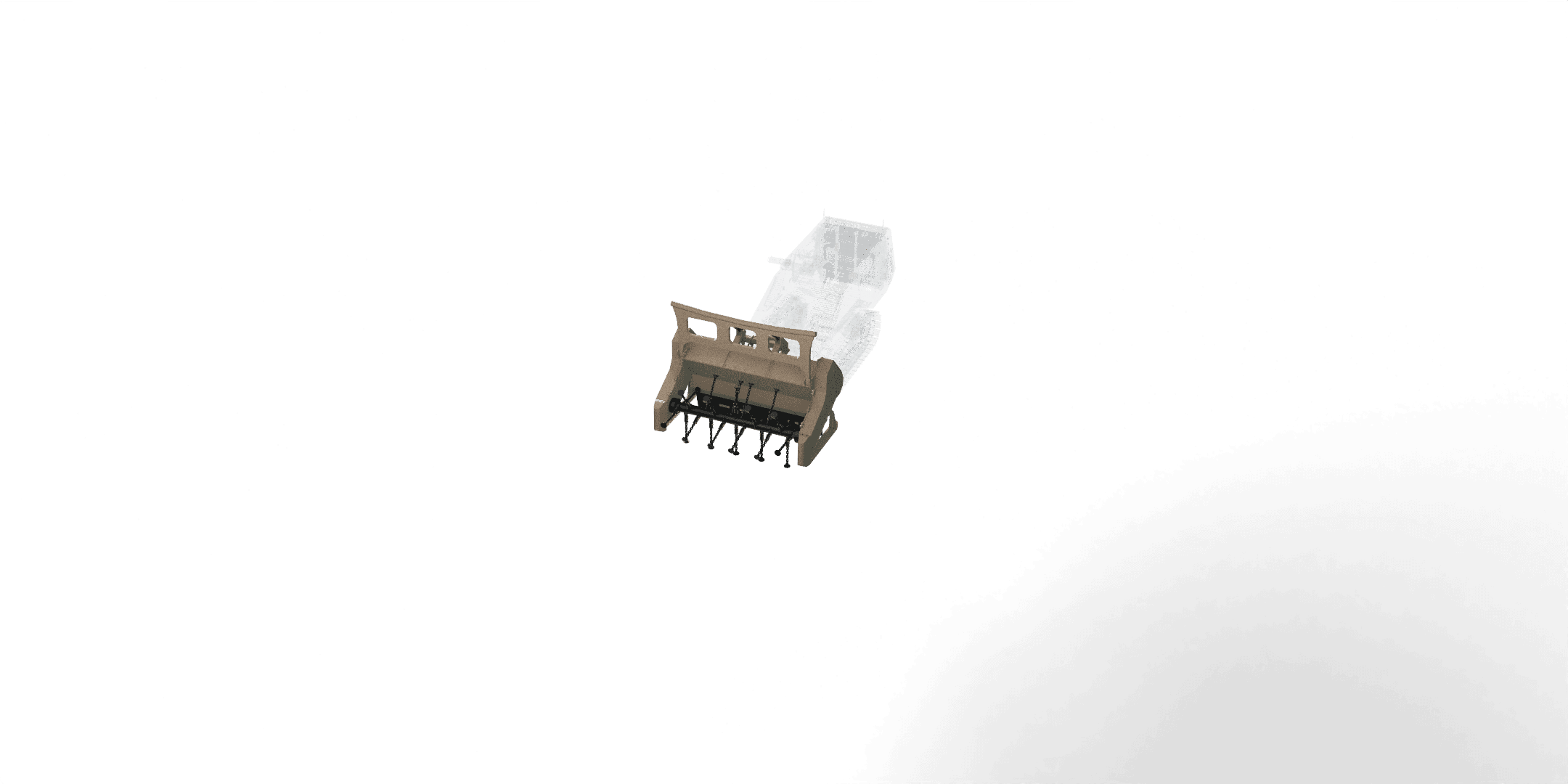

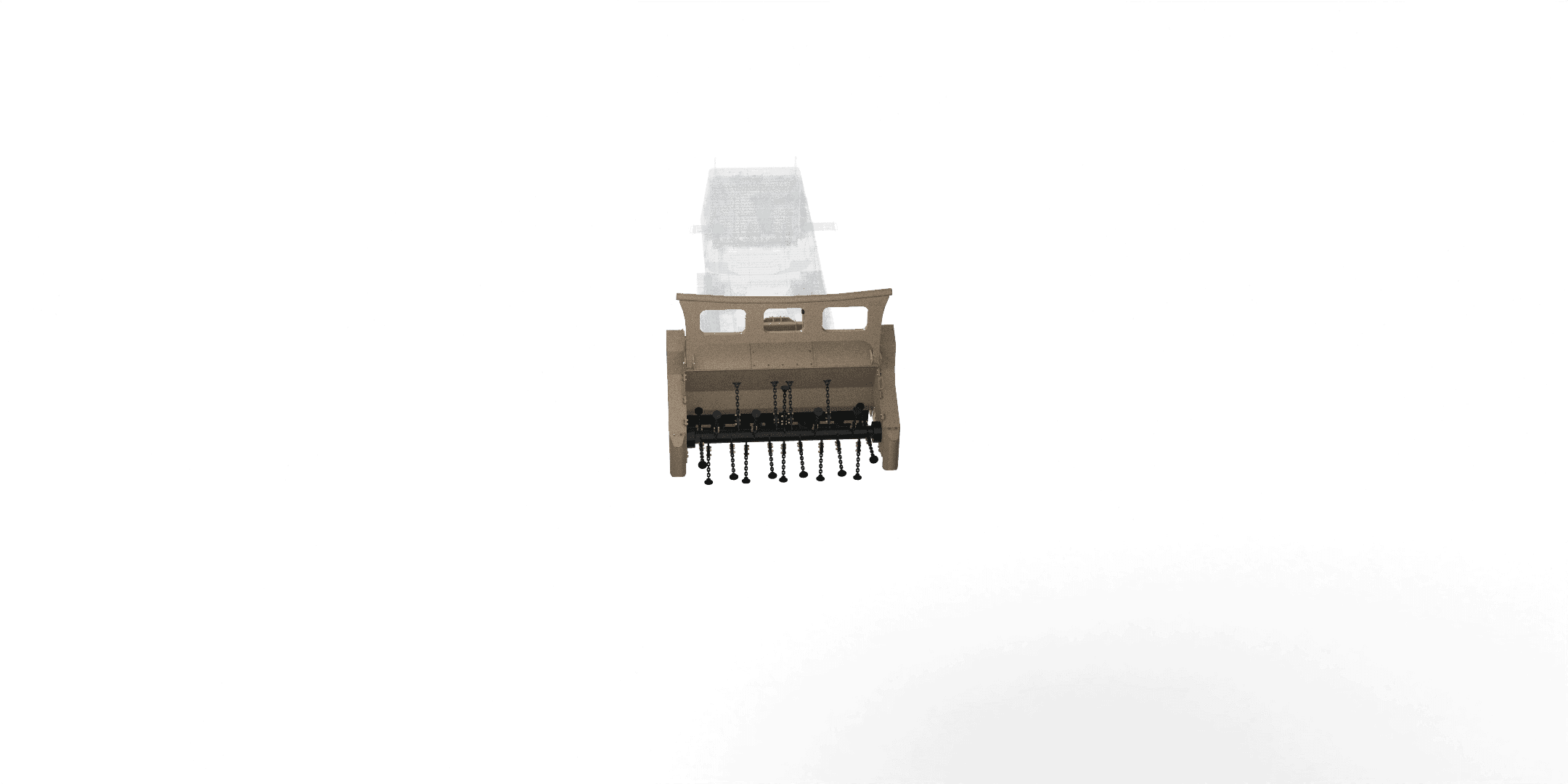

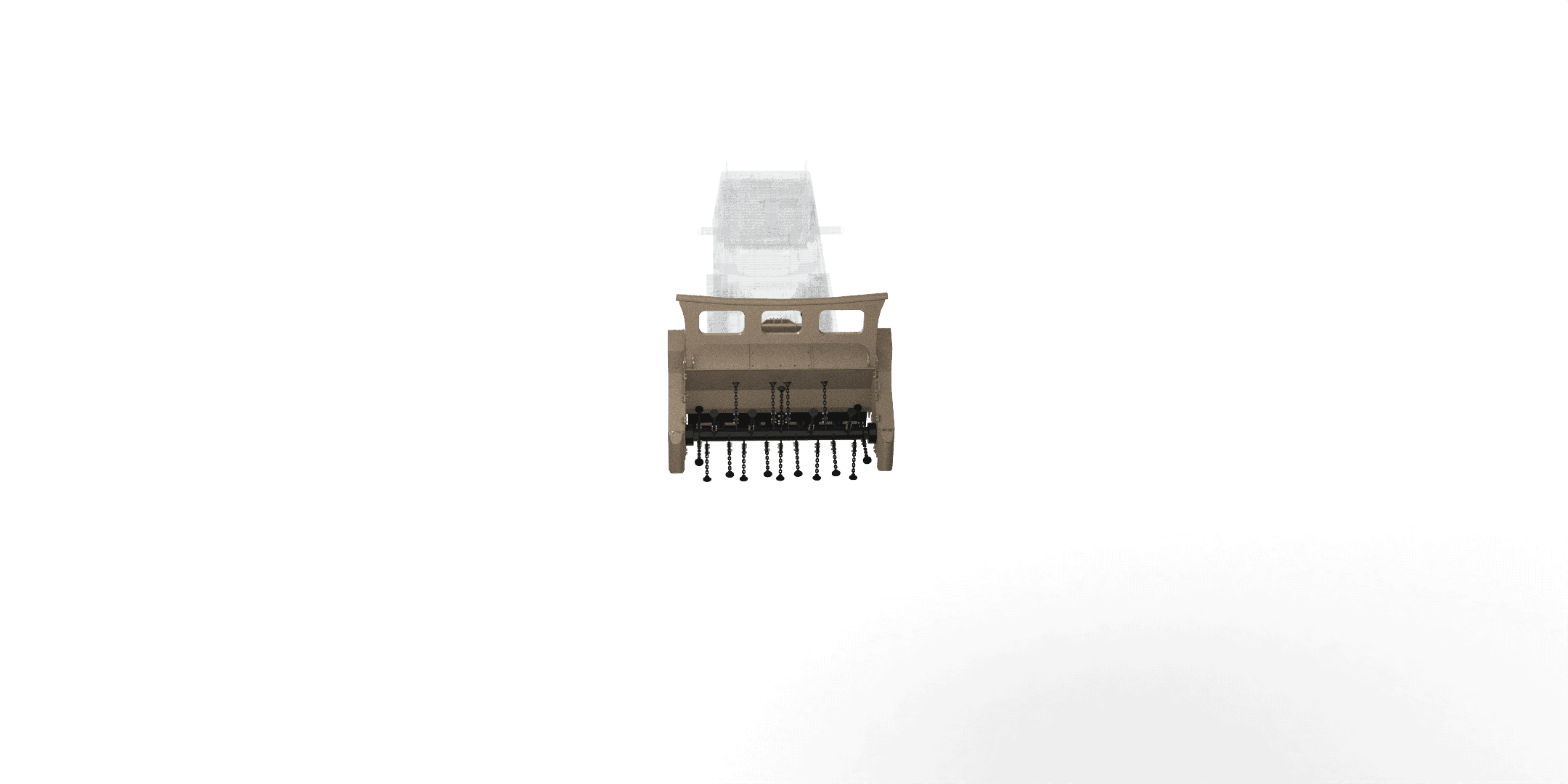

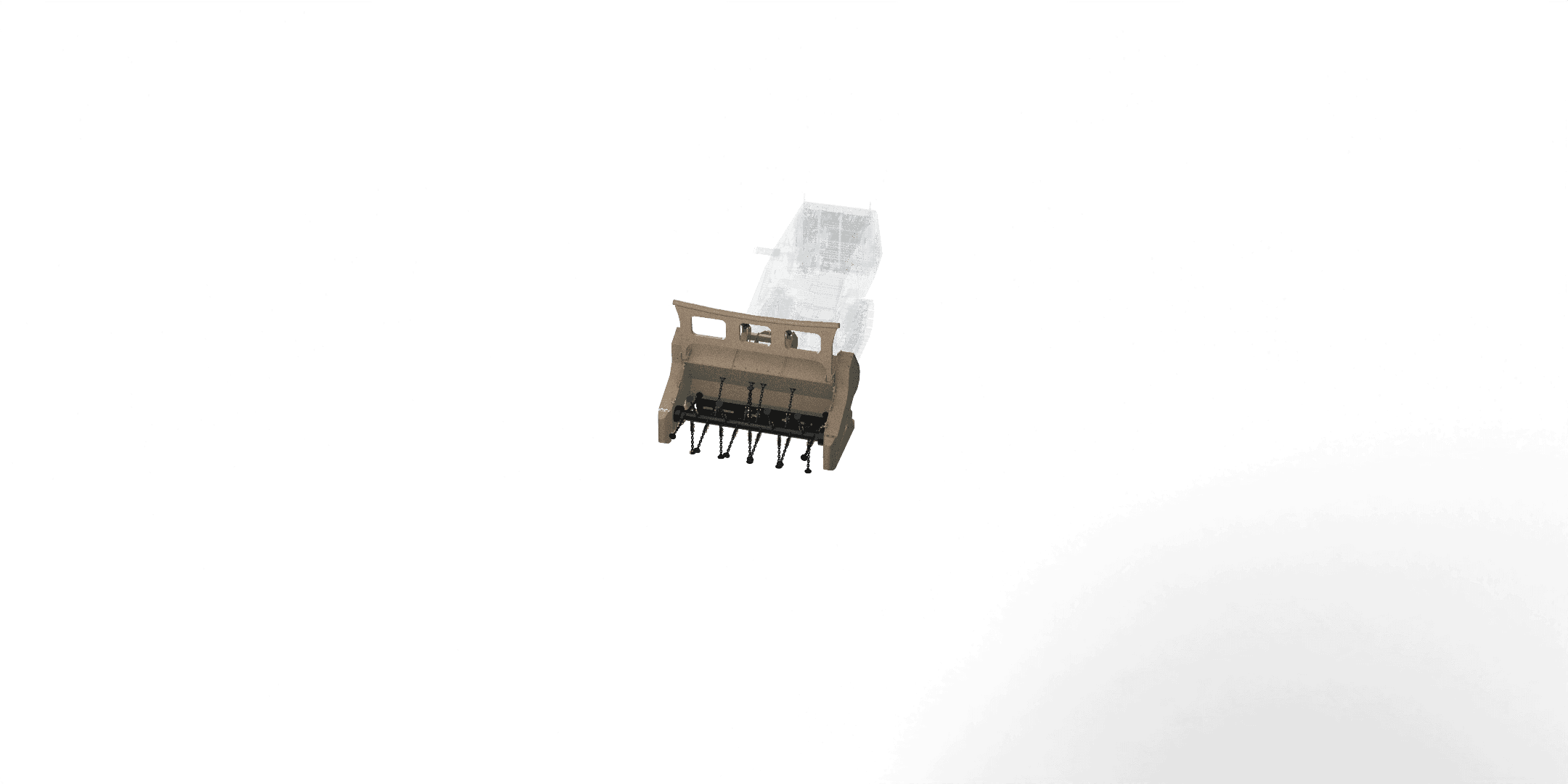

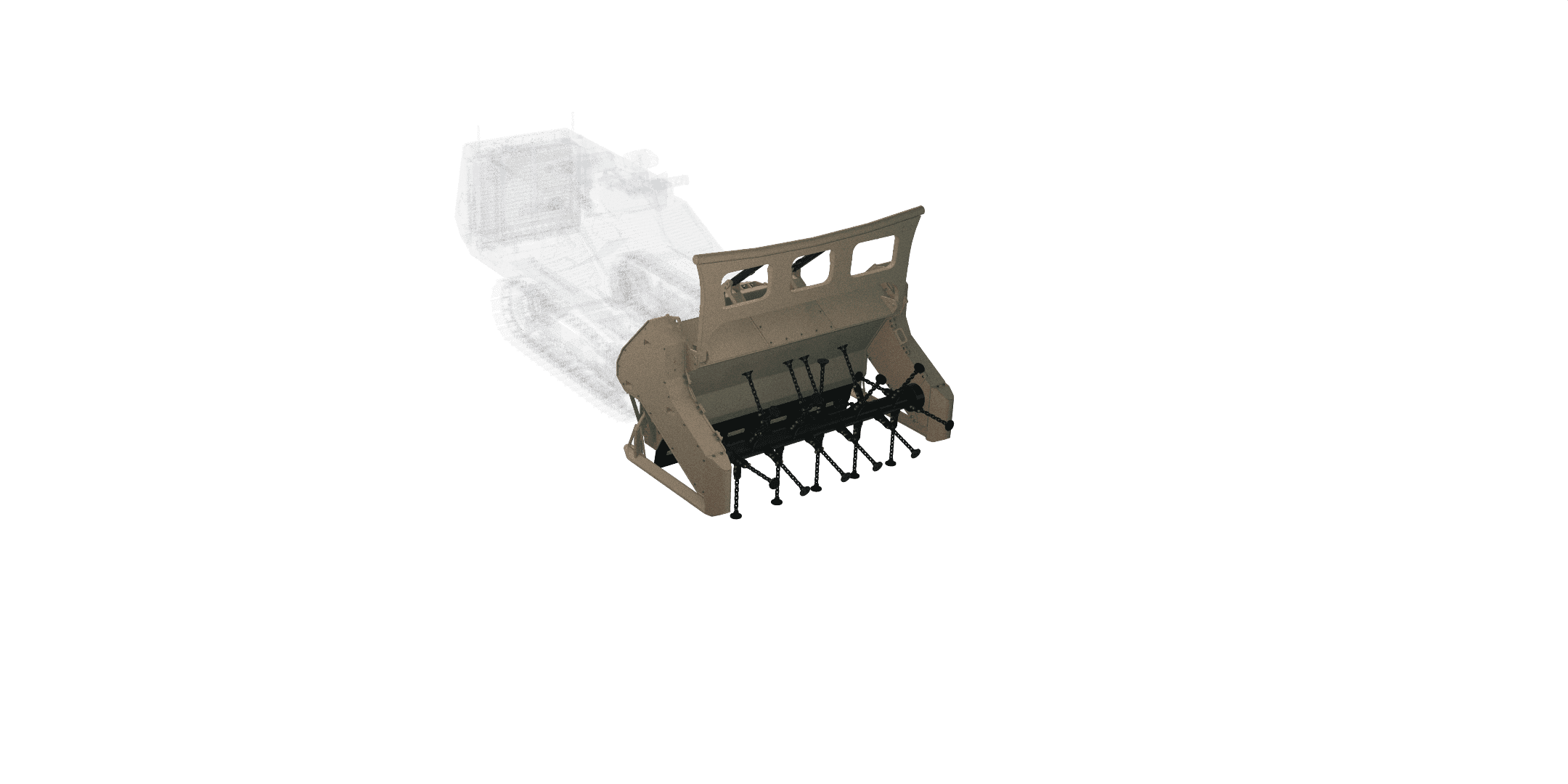

The F‑100 is a compact flail designed for integration with the GCS‑100 platform. It is used for the mechanical clearance of AP mines and the reduction of vegetation and surface obstacles, particularly where low system weight, high manoeuvrability and access to confined or sensitive terrain are required.
F‑200

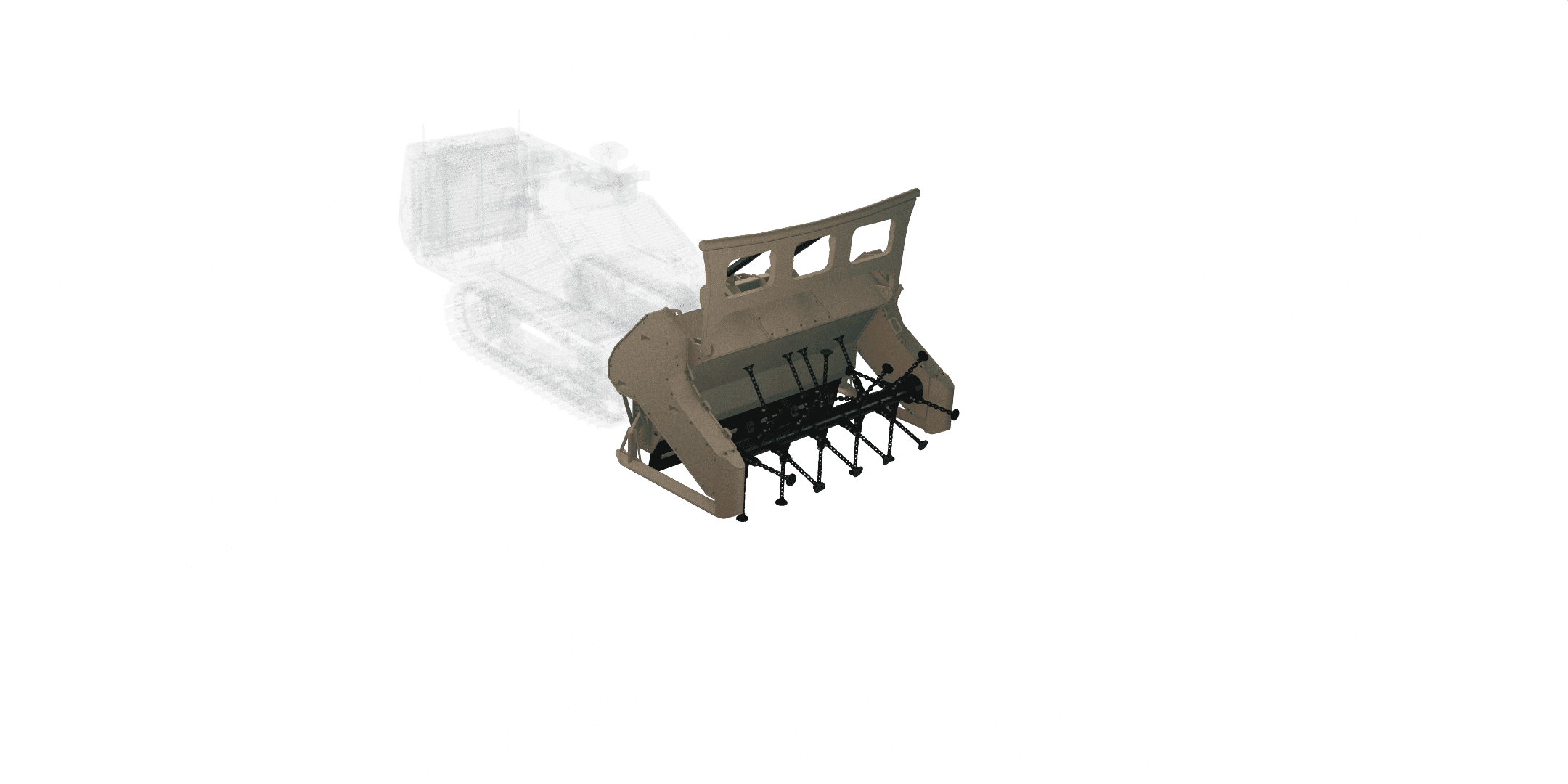

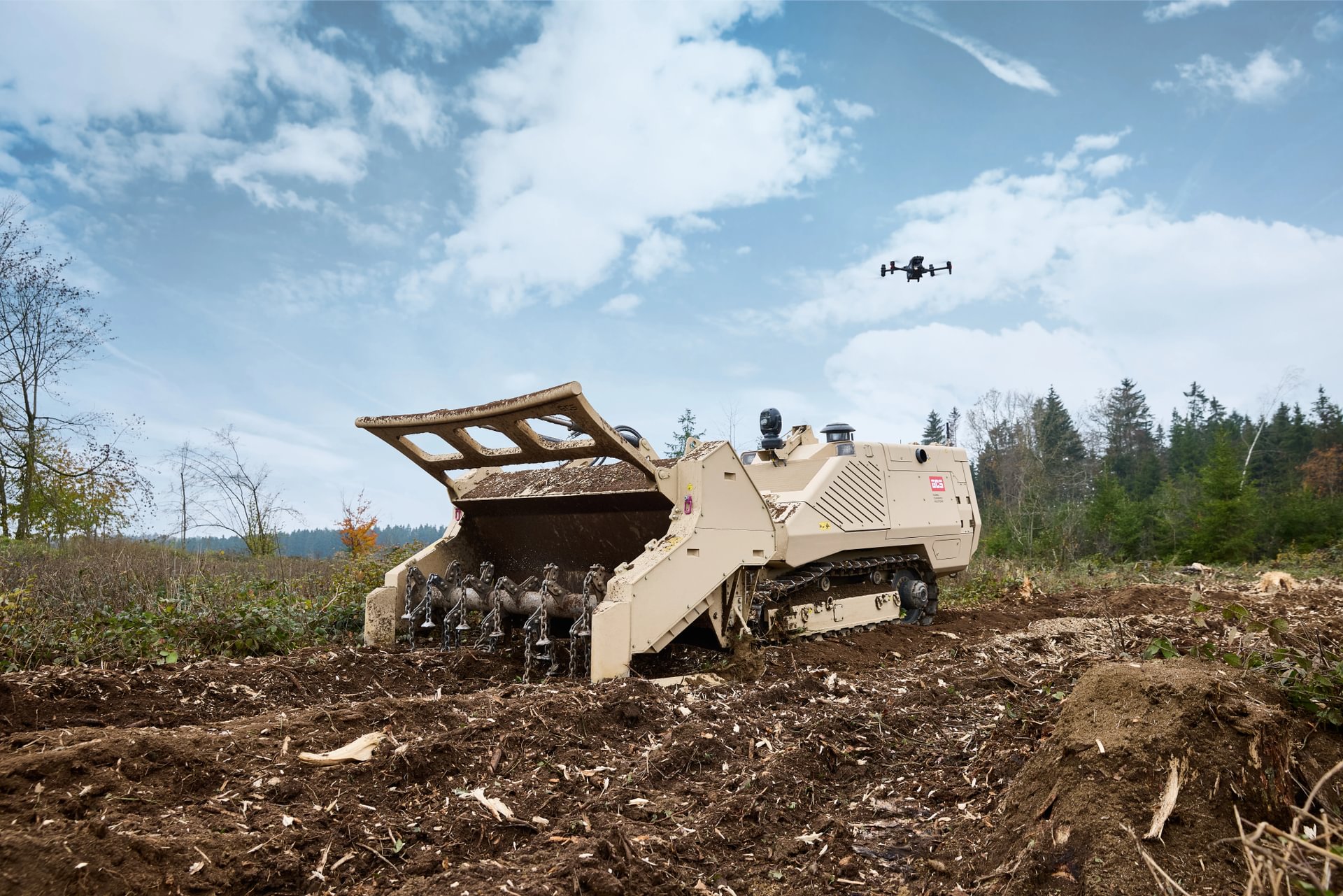

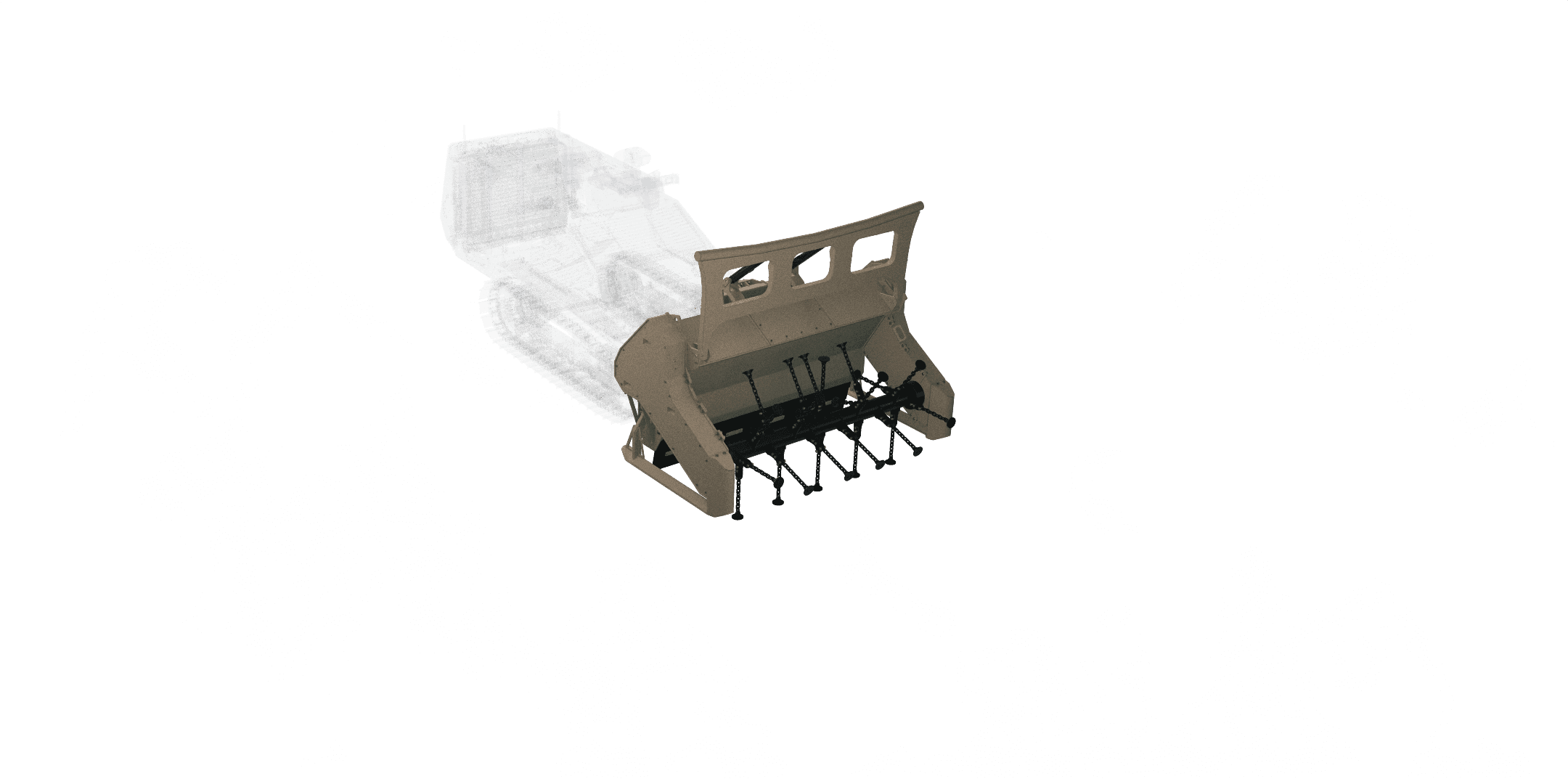

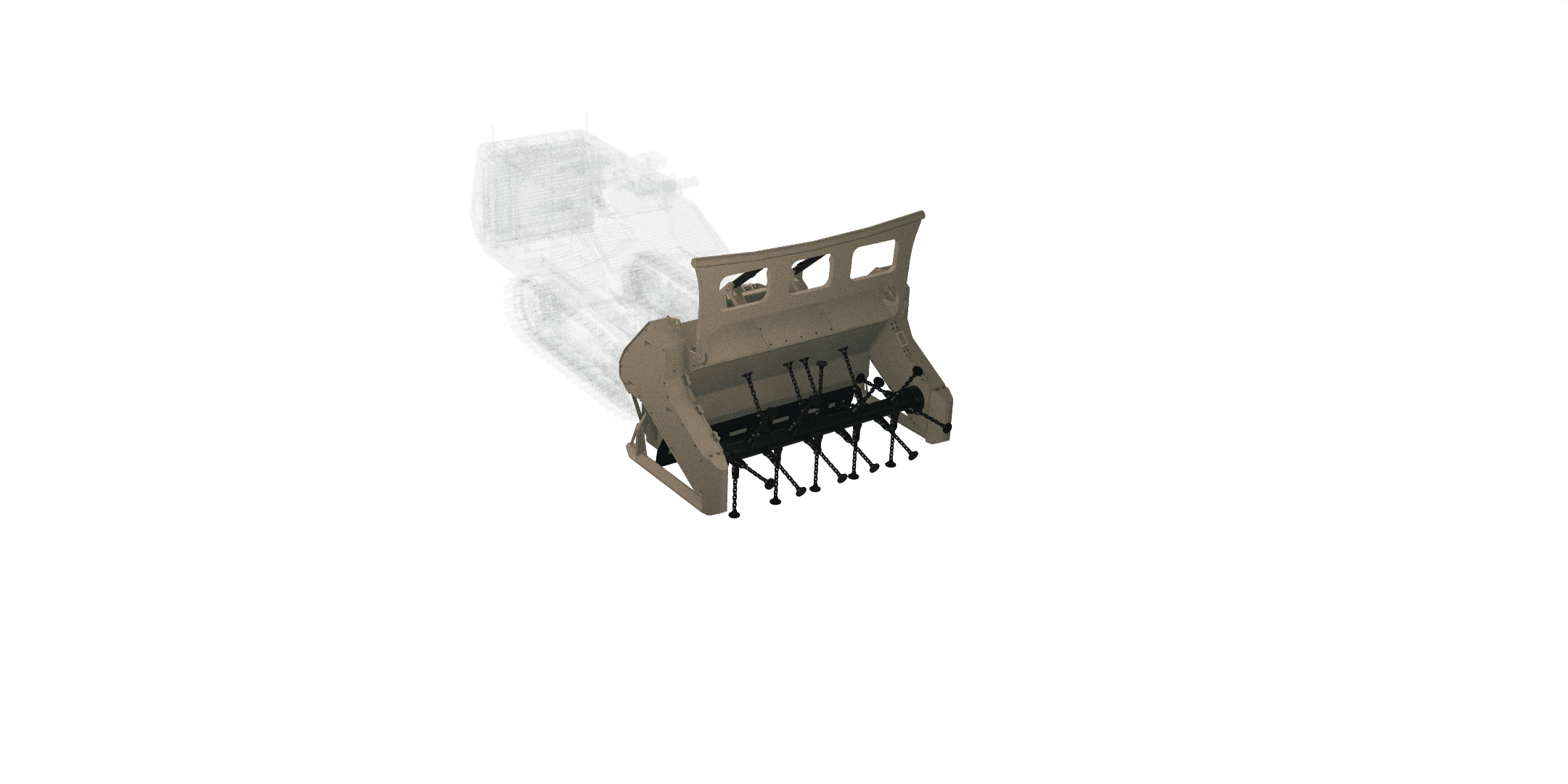

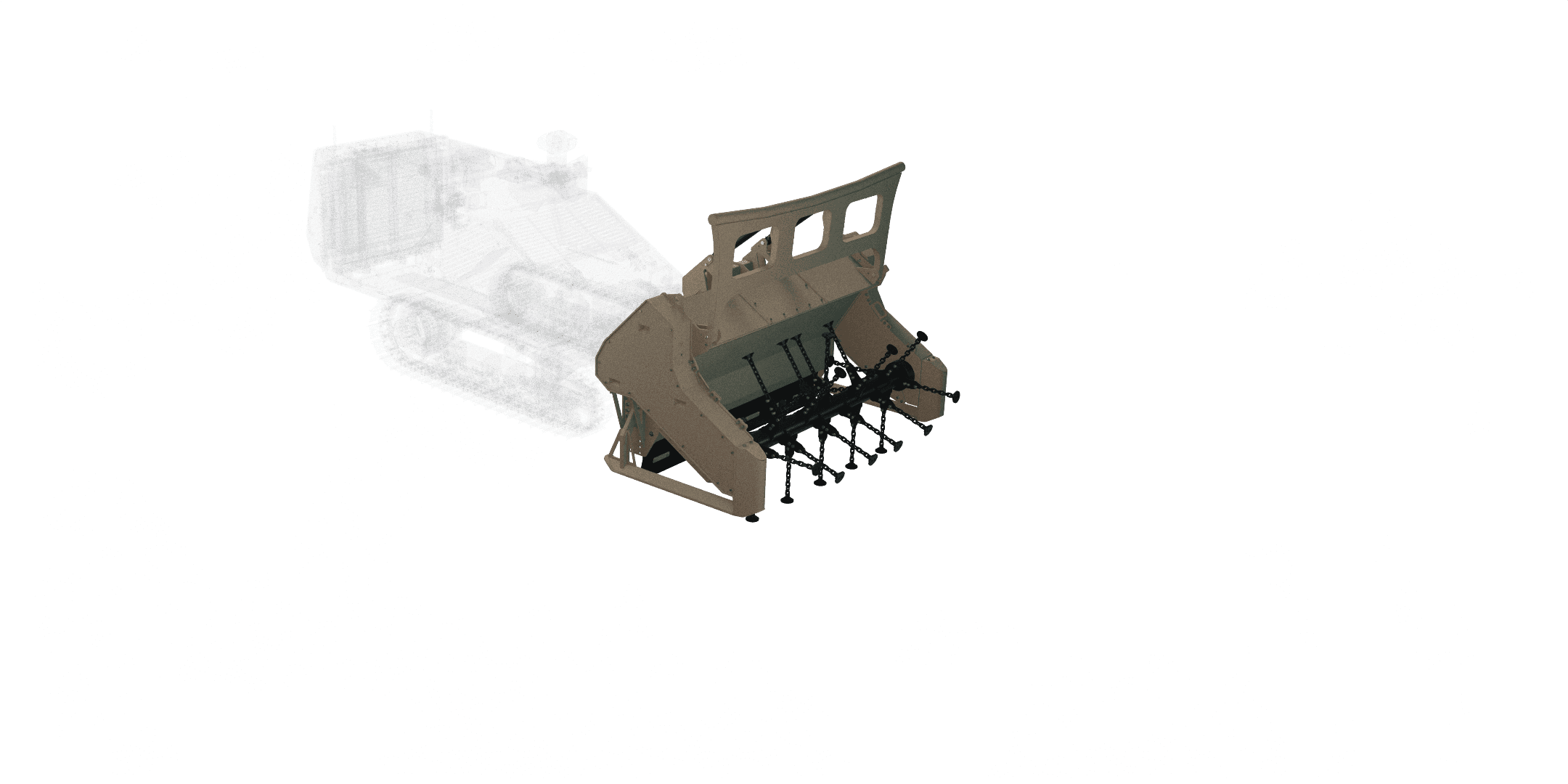

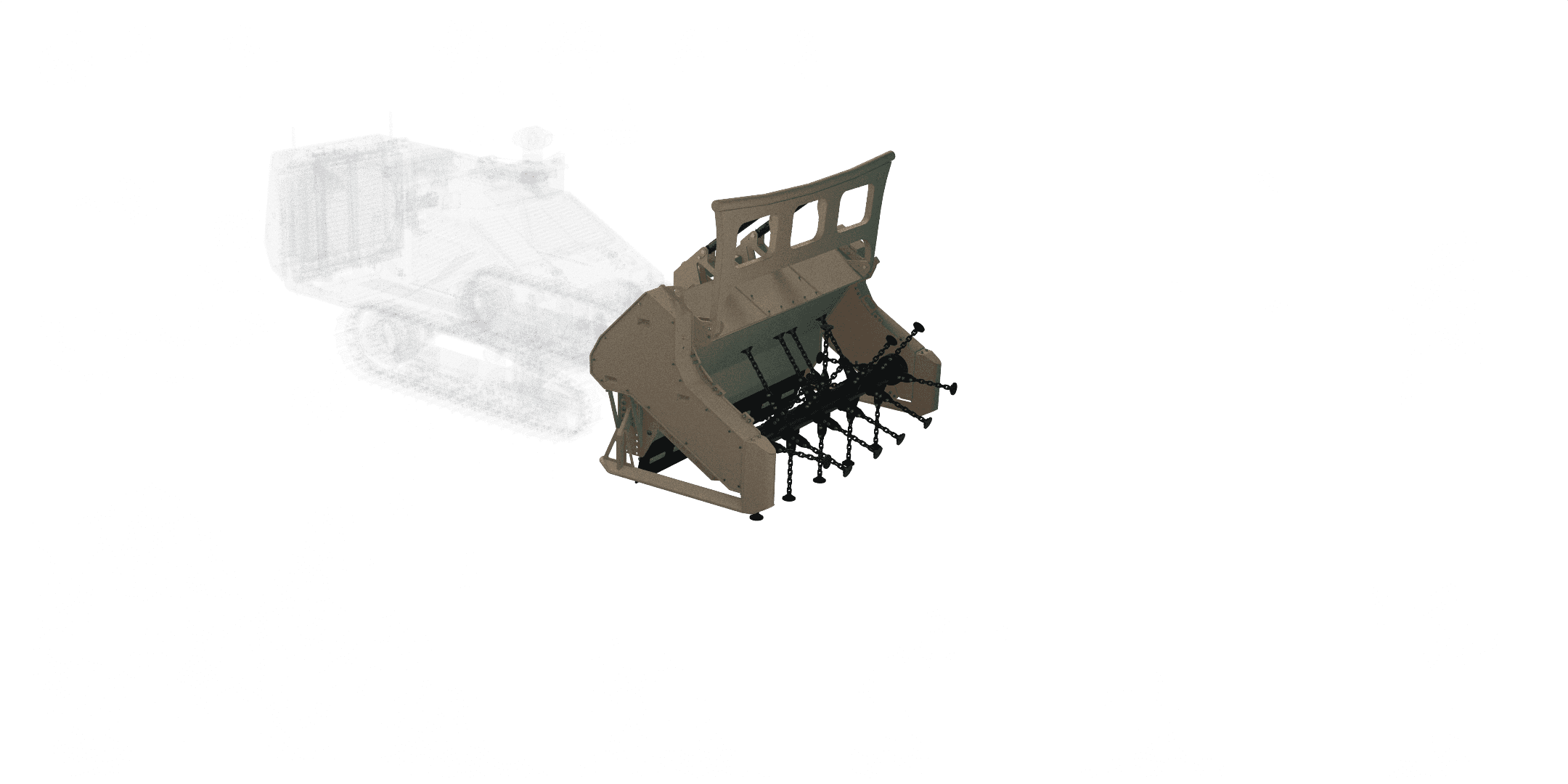

The F‑200 is a heavy flail attachment for the GCS‑200 platform. It is designed for demanding mechanical clearance-support tasks involving AP and AT mine threats, vegetation and surface clutter, particularly in rocky, uneven or vegetation-heavy environments.
Built for operational deployment
01
Effective vegetation & obstacle reduction
Capable of cutting and crushing branches, bushes and roots while removing tripwires, wire obstacles and rubble, supporting safer follow‑on clearance activities.
02
Performance in hard & uneven terrain
Designed to operate reliably in rocky and irregular ground conditions where other mechanical tools may be limited.
03
Neutralisation of explosive threats

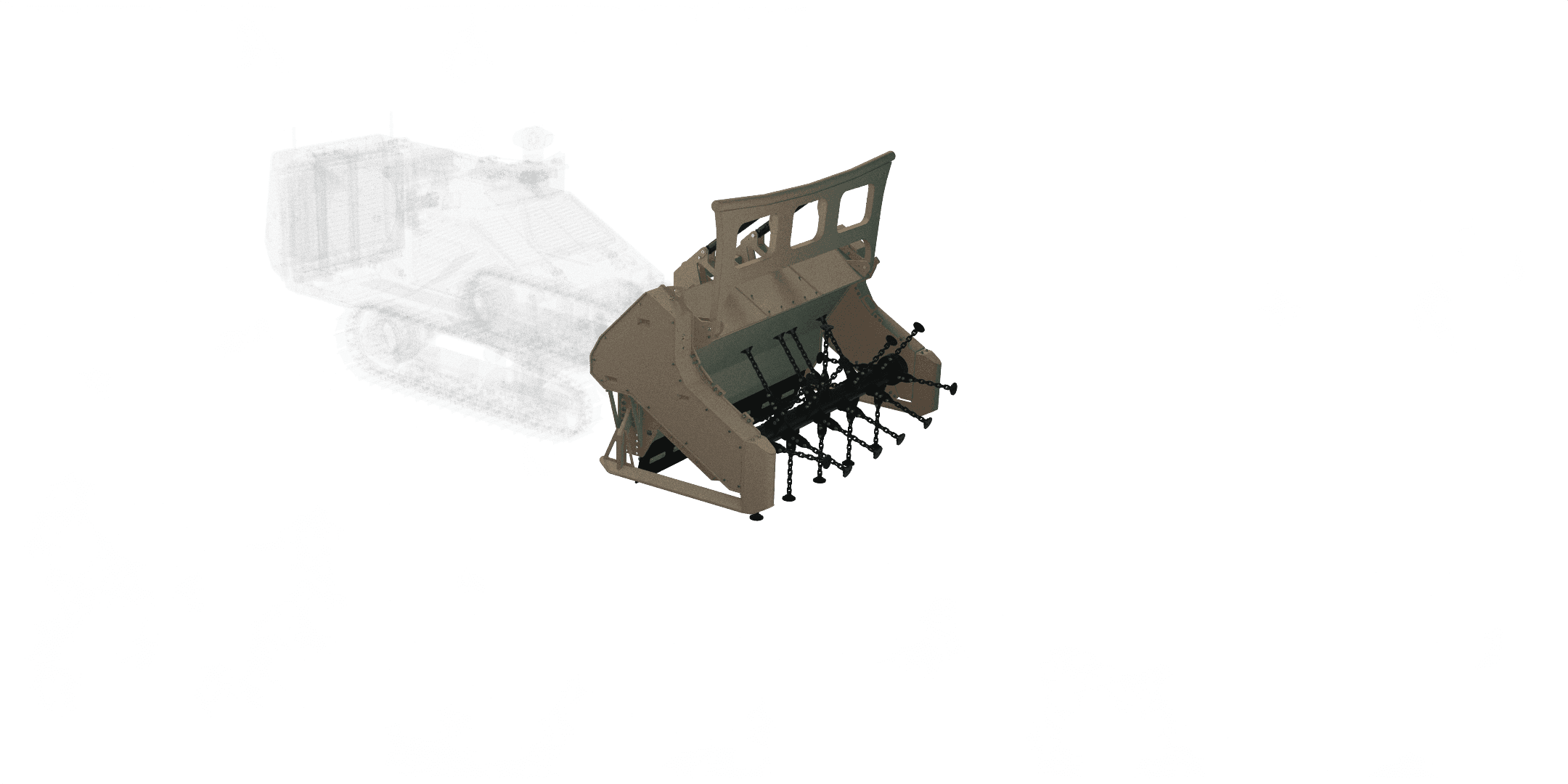

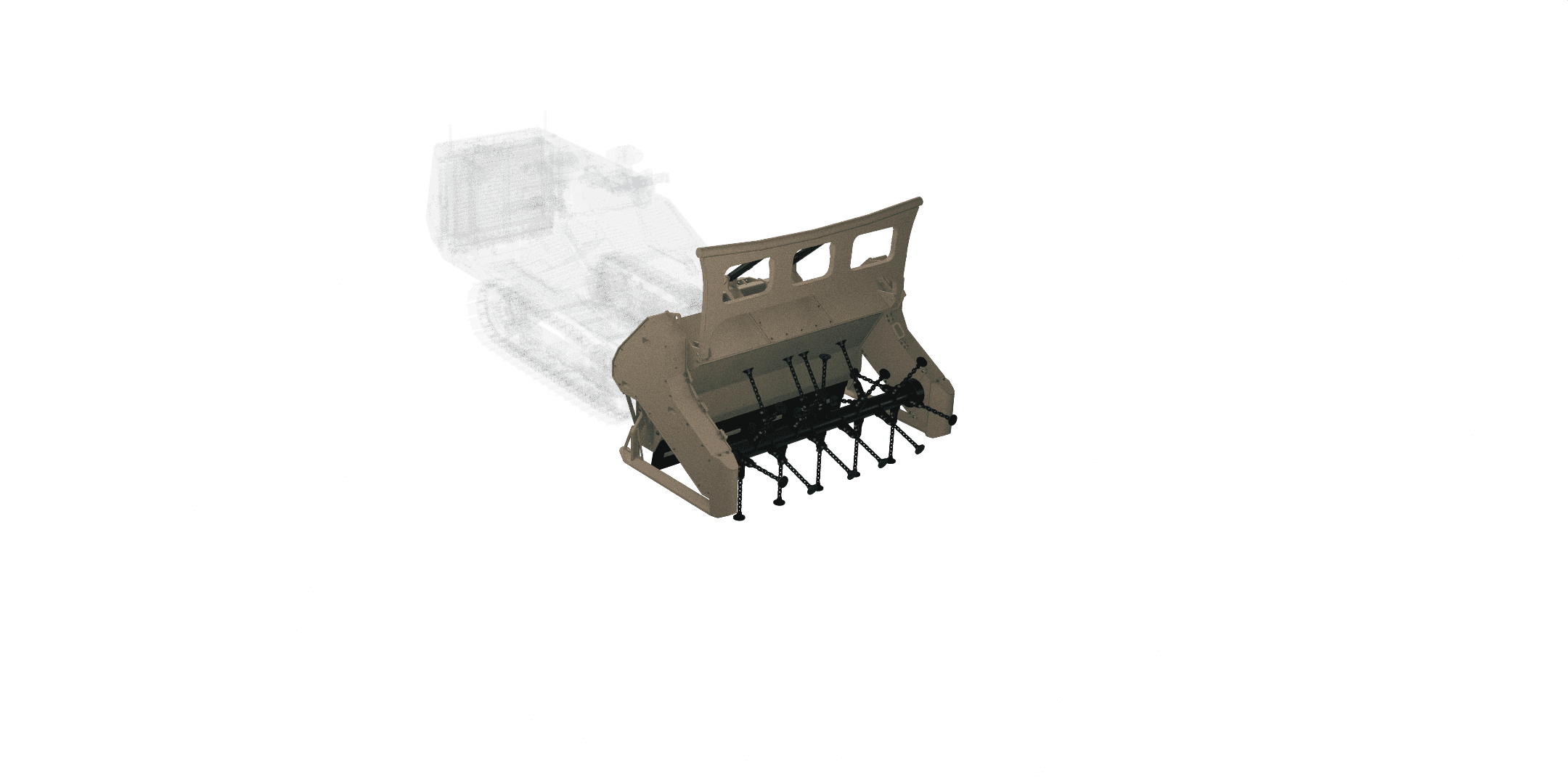

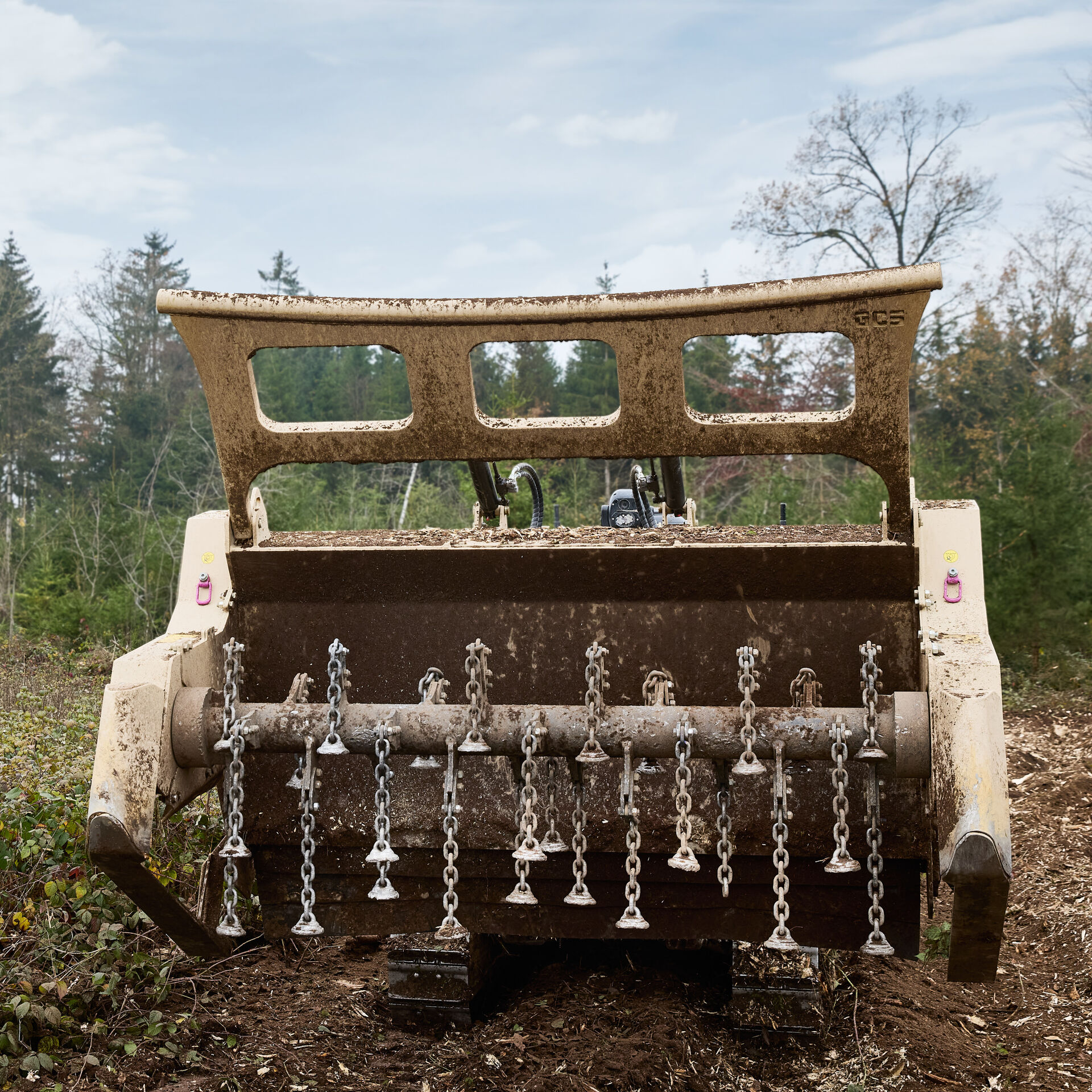

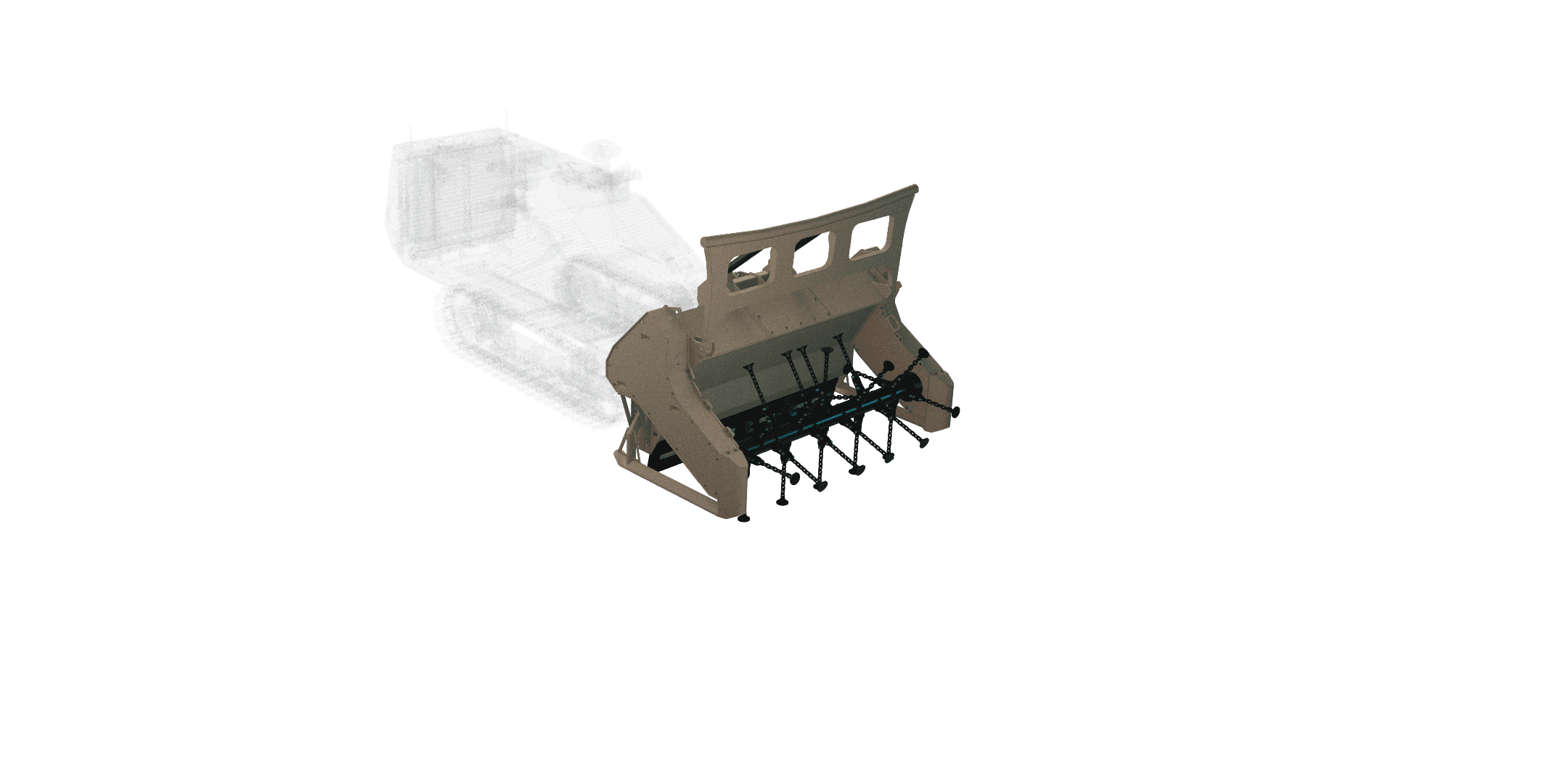

Chains and hammers mounted on a rotating rotor deliver repeated impact to expose, detonate or mechanically destroy buried explosive devices, including AP and AT mines.
04
Certified effective clearance
The flail configurations have been tested and certified as part of GCS-100 and GCS-200 platform systems by CTRO for mechanical demining performance under applicable IMAS-aligned test conditions.
05
Blast‑tolerant, open construction
Open design supports blast venting, reducing structural stress on the attachment and the carrier platform during detonation events.
06
Remote‑controlled operation
Fully integrated into the GCS unmanned platform architecture, keeping operators at a safe distance.
Built for operational deployment
01
Effective vegetation & obstacle reduction
Capable of cutting and crushing branches, bushes and roots while removing tripwires, wire obstacles and rubble, supporting safer follow‑on clearance activities.
02
Performance in hard & uneven terrain
Designed to operate reliably in rocky and irregular ground conditions where other mechanical tools may be limited.
03
Neutralisation of explosive threats
Chains and hammers mounted on a rotating rotor deliver repeated impact to expose, detonate or mechanically destroy buried explosive devices, including AP and AT mines.
04
Certified effective clearance
The flail configurations have been tested and certified as part of GCS-100 and GCS-200 platform systems by CTRO for mechanical demining performance under applicable IMAS-aligned test conditions.
05
Blast‑tolerant, open construction
Open design supports blast venting, reducing structural stress on the attachment and the carrier platform during detonation events.
06
Remote‑controlled operation
Fully integrated into the GCS unmanned platform architecture, keeping operators at a safe distance.
Built for operational deployment
01
Effective vegetation & obstacle reduction
Capable of cutting and crushing branches, bushes and roots while removing tripwires, wire obstacles and rubble, supporting safer follow‑on clearance activities.
02
Performance in hard & uneven terrain
Designed to operate reliably in rocky and irregular ground conditions where other mechanical tools may be limited.
03
Neutralisation of explosive threats
Chains and hammers mounted on a rotating rotor deliver repeated impact to expose, detonate or mechanically destroy buried explosive devices, including AP and AT mines.
04
Certified effective clearance
The flail configurations have been tested and certified as part of GCS-100 and GCS-200 platform systems by CTRO for mechanical demining performance under applicable IMAS-aligned test conditions.
05
Blast‑tolerant, open construction
Open design supports blast venting, reducing structural stress on the attachment and the carrier platform during detonation events.
06
Remote‑controlled operation
Fully integrated into the GCS unmanned platform architecture, keeping operators at a safe distance.
Built for operational deployment
01
Effective vegetation & obstacle reduction
Capable of cutting and crushing branches, bushes and roots while removing tripwires, wire obstacles and rubble, supporting safer follow‑on clearance activities.
02
Performance in hard & uneven terrain
Designed to operate reliably in rocky and irregular ground conditions where other mechanical tools may be limited.
03
Neutralisation of explosive threats
Chains and hammers mounted on a rotating rotor deliver repeated impact to expose, detonate or mechanically destroy buried explosive devices, including AP and AT mines.
04
Certified effective clearance
The flail configurations have been tested and certified as part of GCS-100 and GCS-200 platform systems by CTRO for mechanical demining performance under applicable IMAS-aligned test conditions.
05
Blast‑tolerant, open construction
Open design supports blast venting, reducing structural stress on the attachment and the carrier platform during detonation events.
06
Remote‑controlled operation
Fully integrated into the GCS unmanned platform architecture, keeping operators at a safe distance.
Operational specifications
F‑100
1,200 mm
working width for controlled surface coverage
Up to
150 mm
adjustable clearance depth
Up to
625 m²/h
clearance performance
Up to
150 mm
vegetation capacity (trunk/root diameter)
AP mine
clearance capability
Remote‑controlled
operation via GCS-100 platform integration
F‑200
2,055 mm
working width for effective surface coverage
Up to
300 mm
clearance depth
Up to
1,500 m²/h
indicative clearance performance
Up to
150 mm
vegetation capacity (trunk/root diameter)
AP and AT mines
clearance capability
Remote‑controlled
operation via GCS-200 platforms integration
Capabilities this platform supports
Capabilities this platform supports
Capabilities this platform supports
Capabilities this platform supports

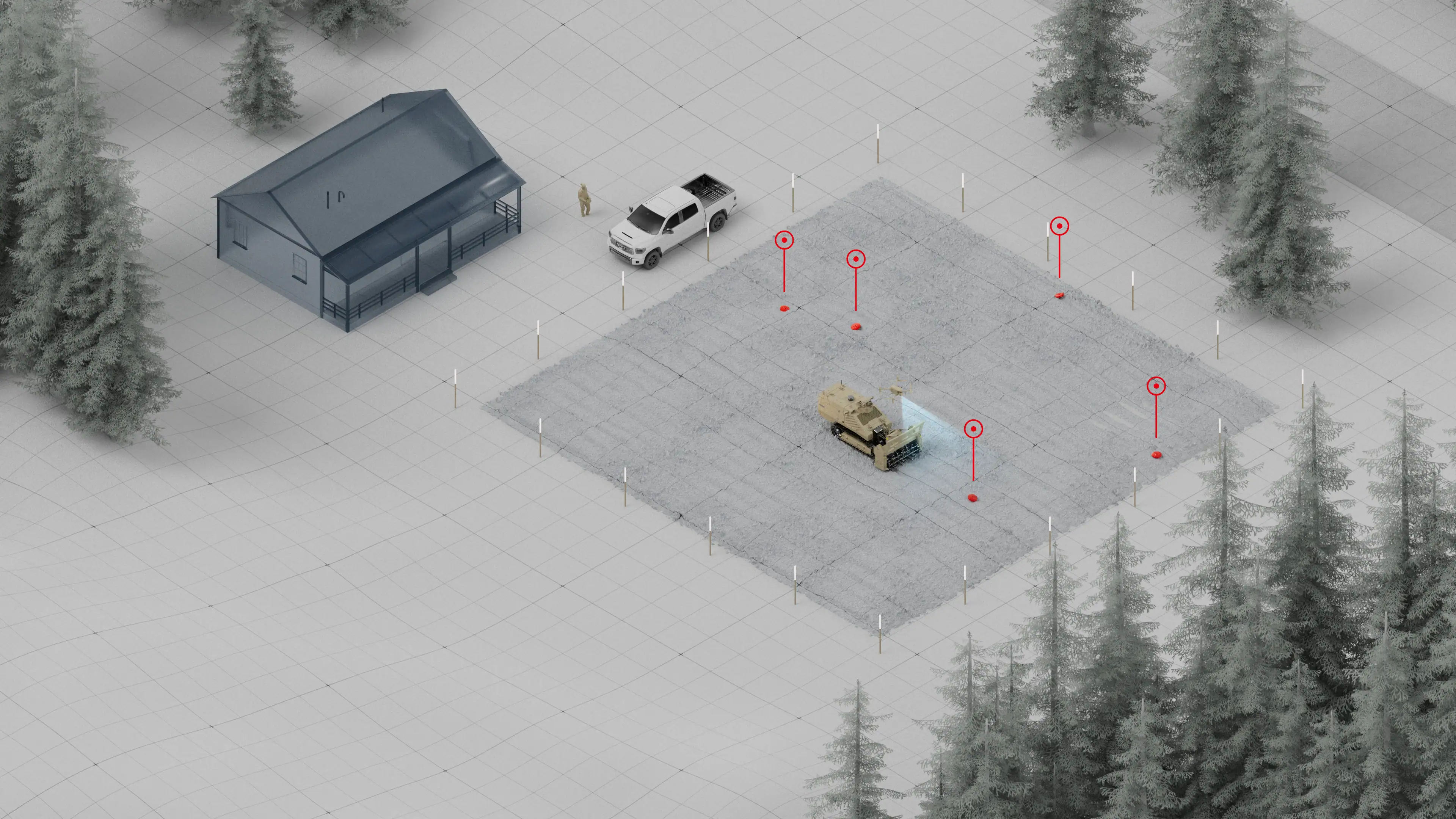

Demining (Humanitarian Mine Action)
