Quick Coupler Adapter (QCA)
Attachment interface for fast and controlled change between mission attachments
Hydraulically actuated locking pins allow coupling and decoupling of attachments within minutes.

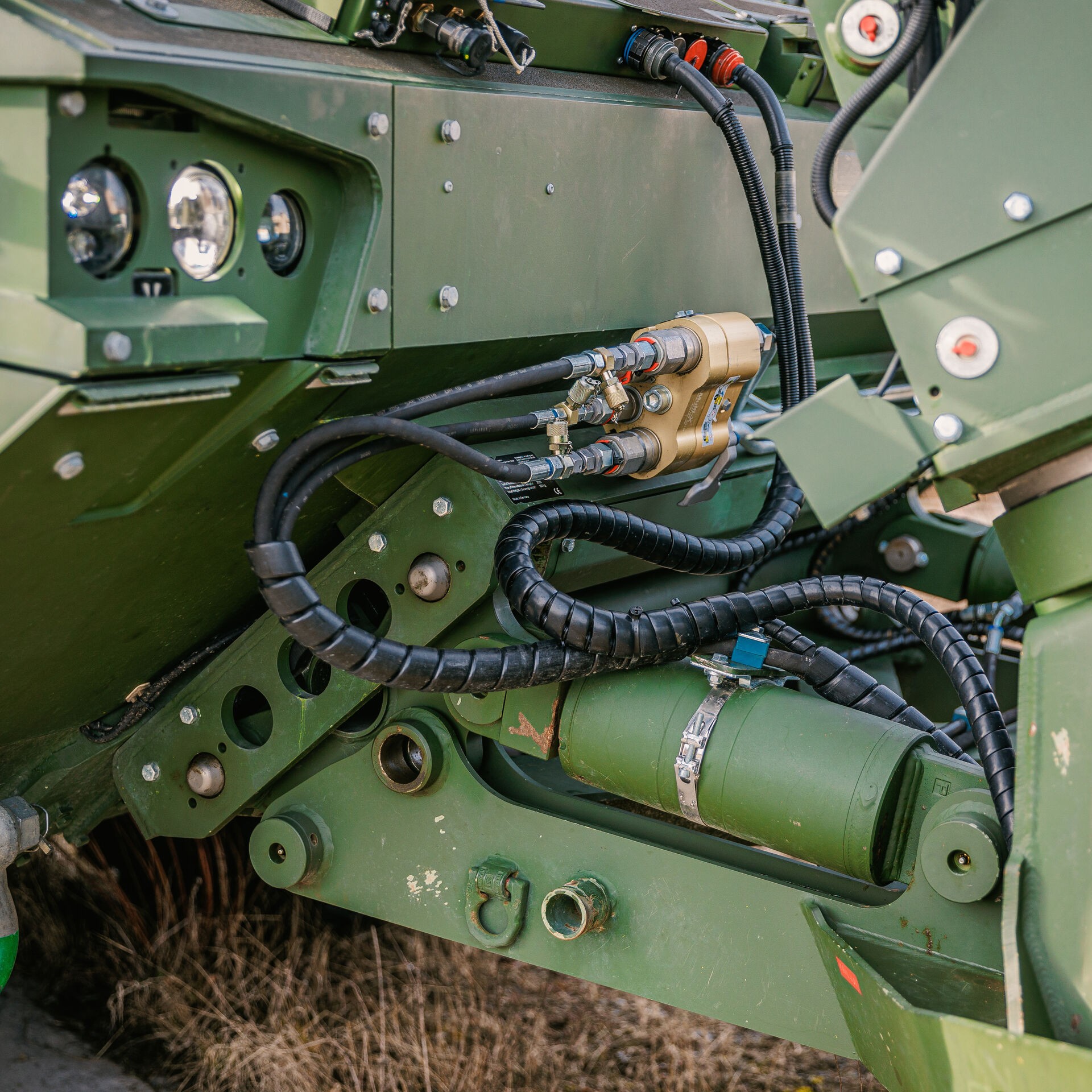

Hydraulic cylinders, lines and sensor components are enclosed by protective covers, supporting reliable operation in demanding field environments.

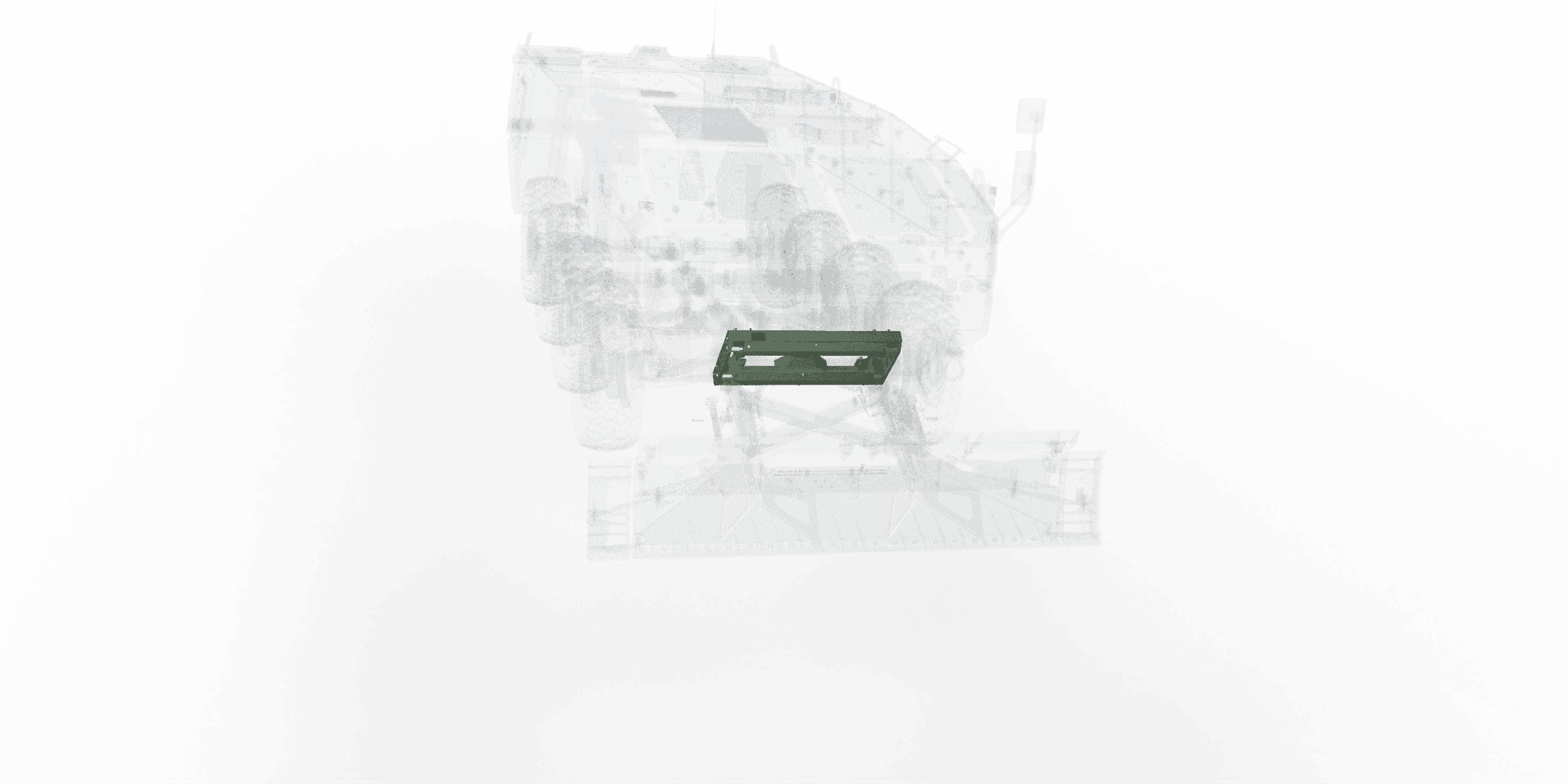

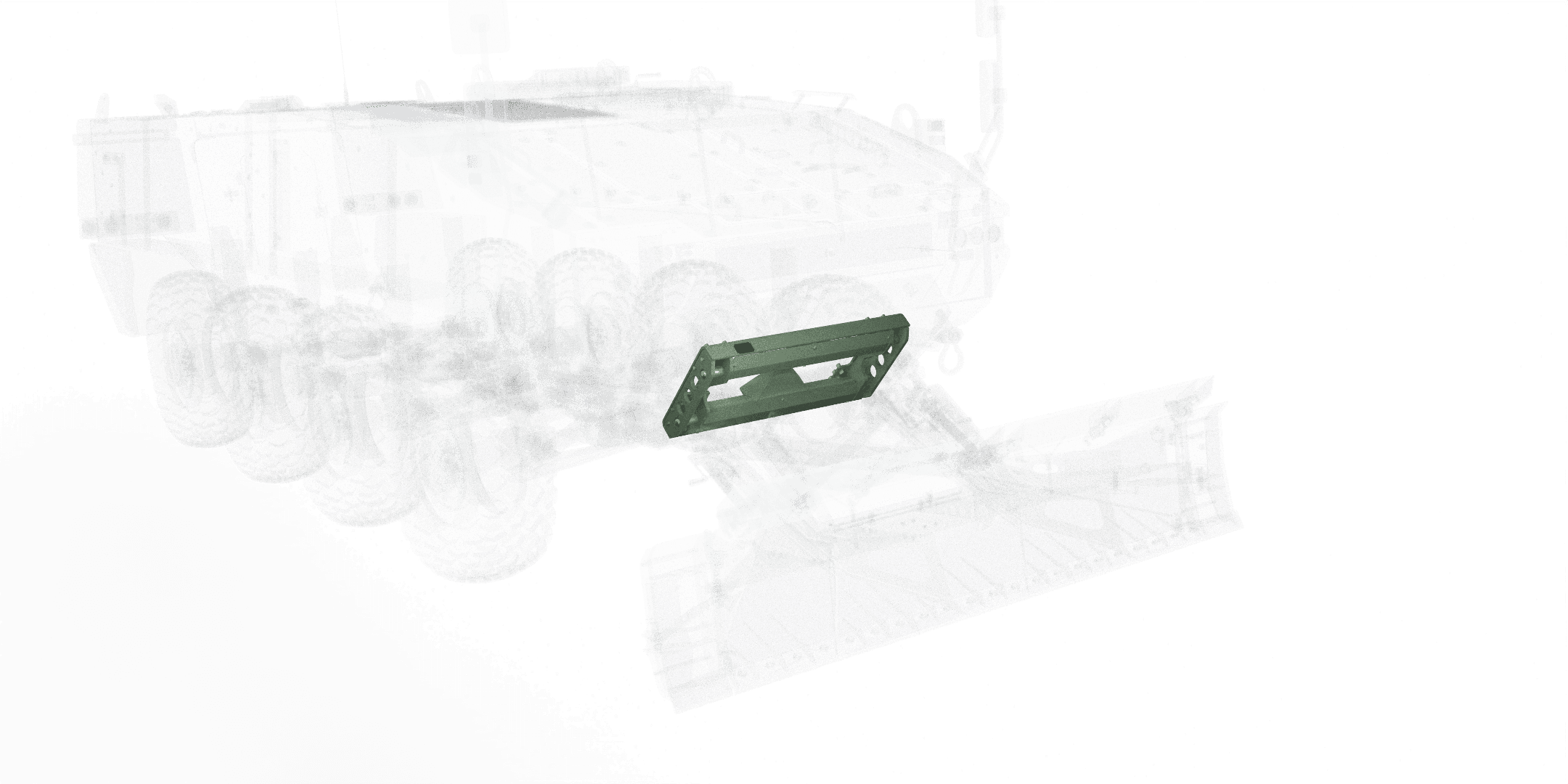

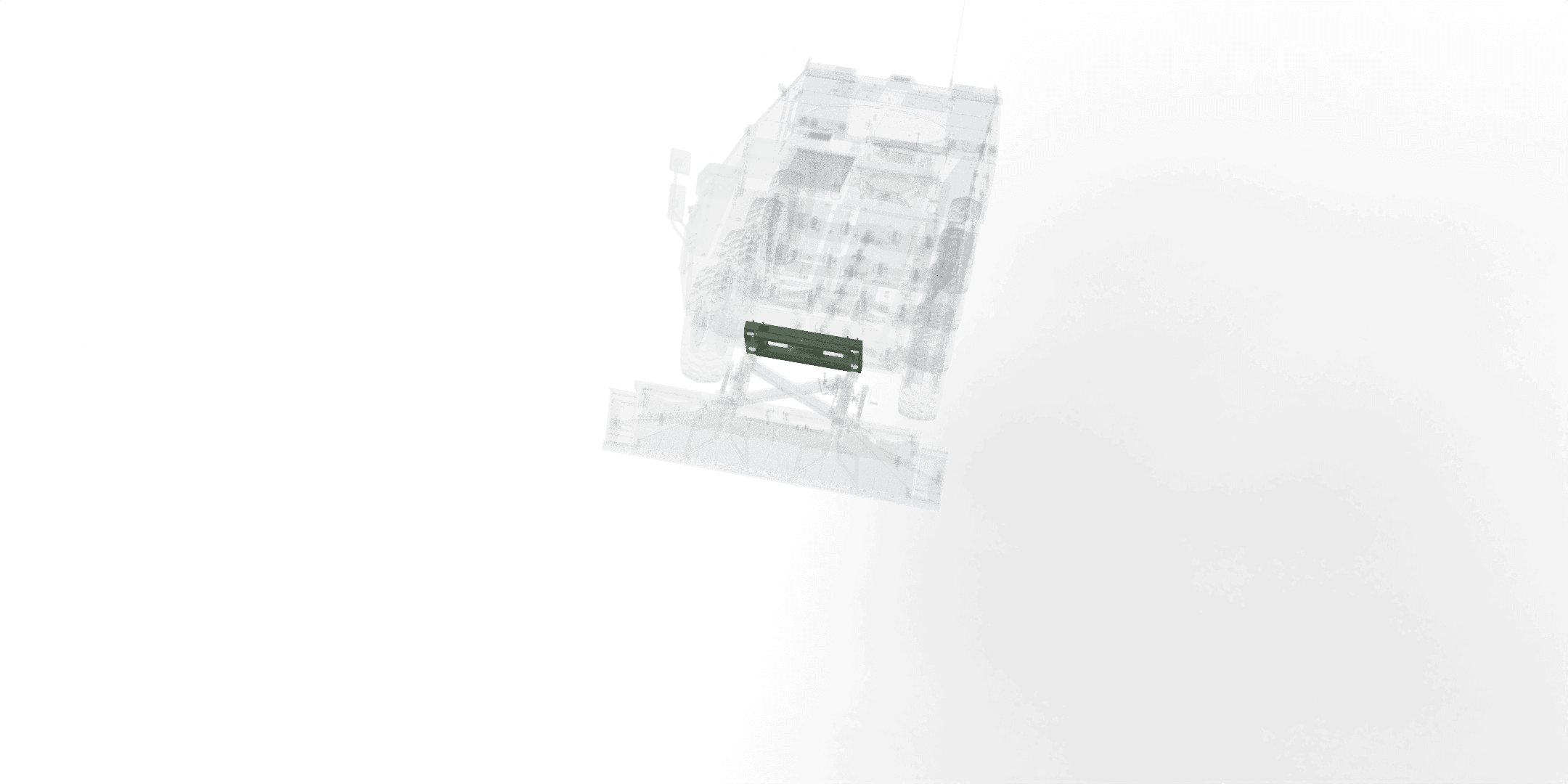

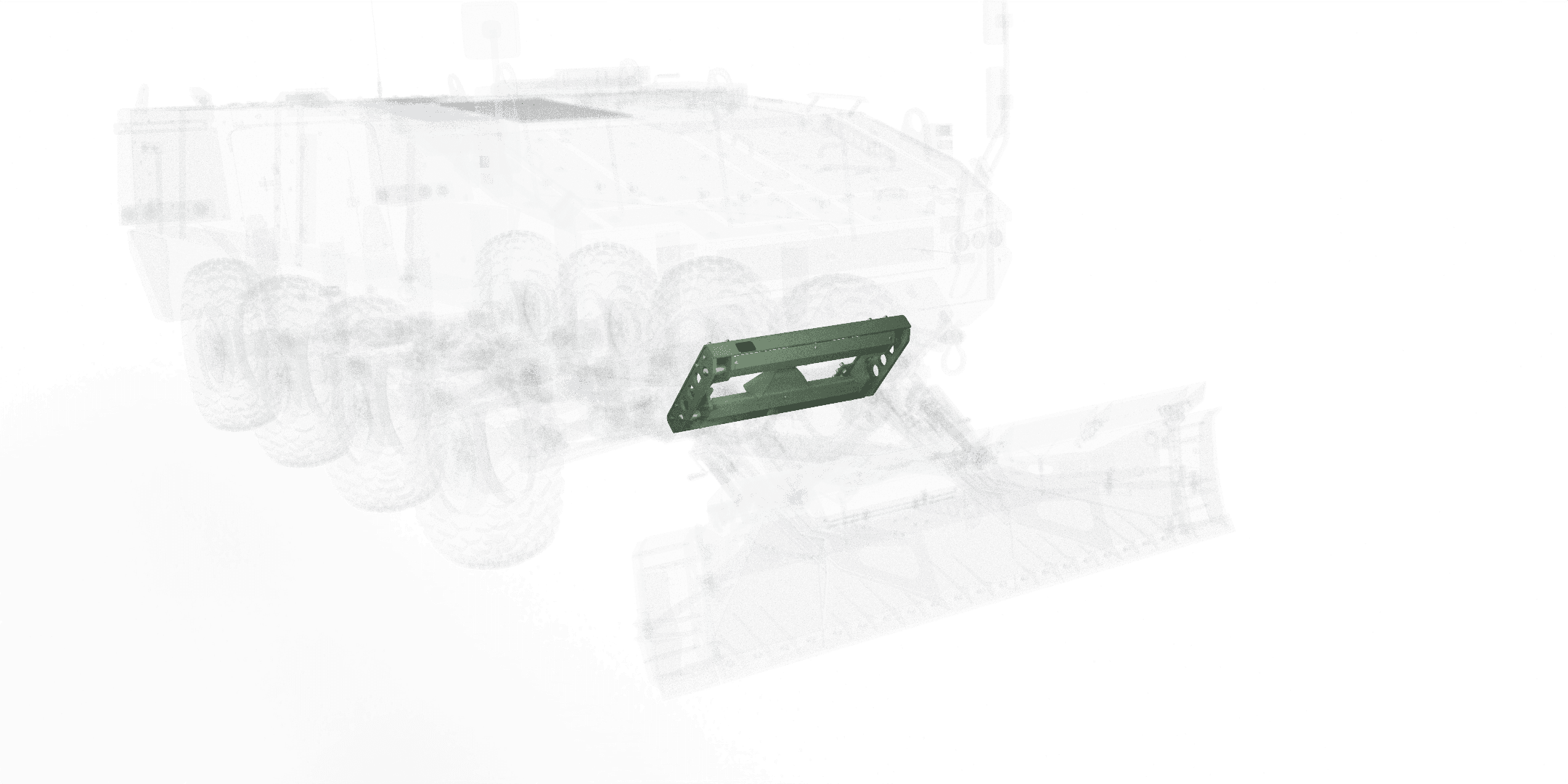

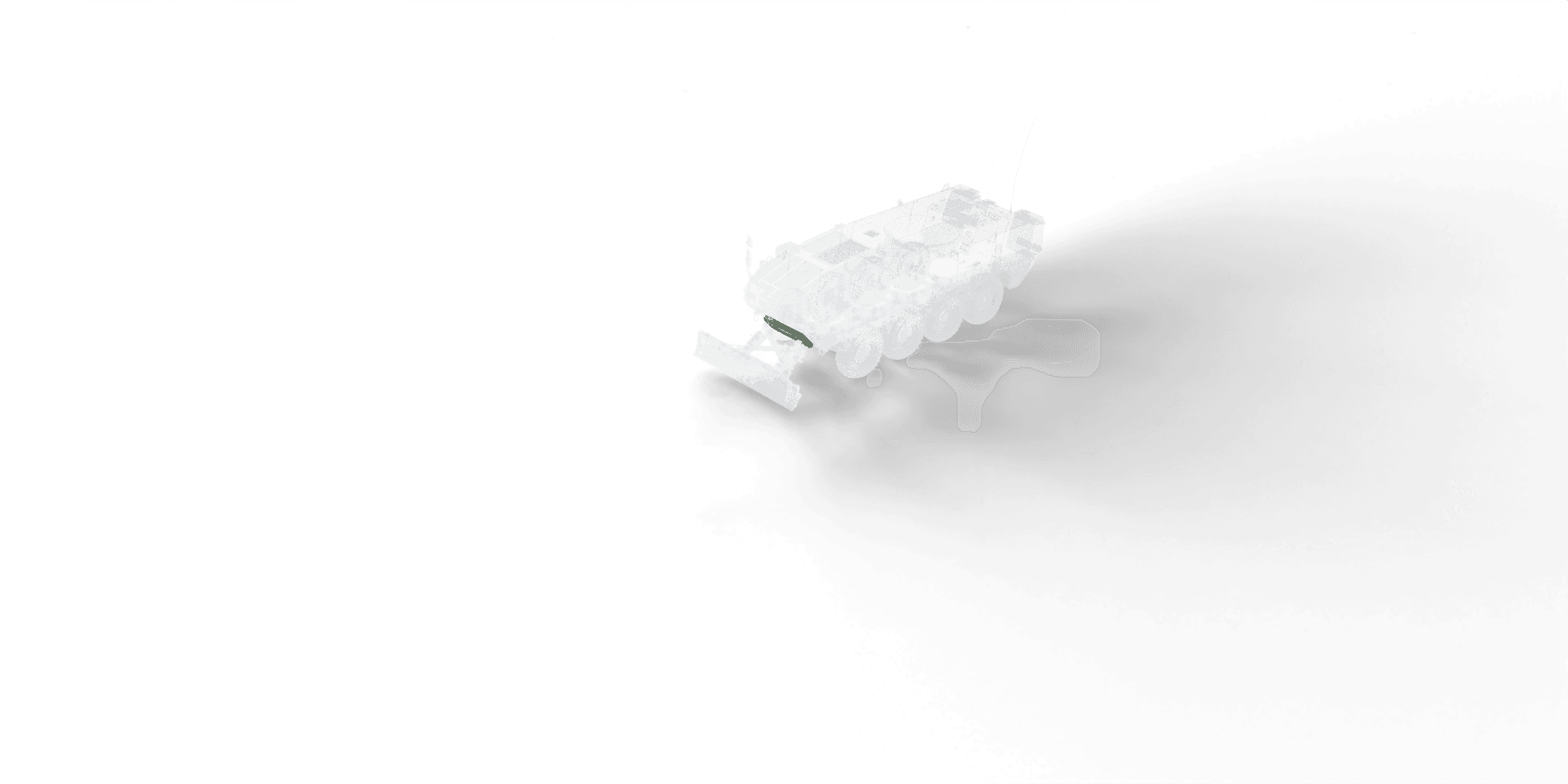

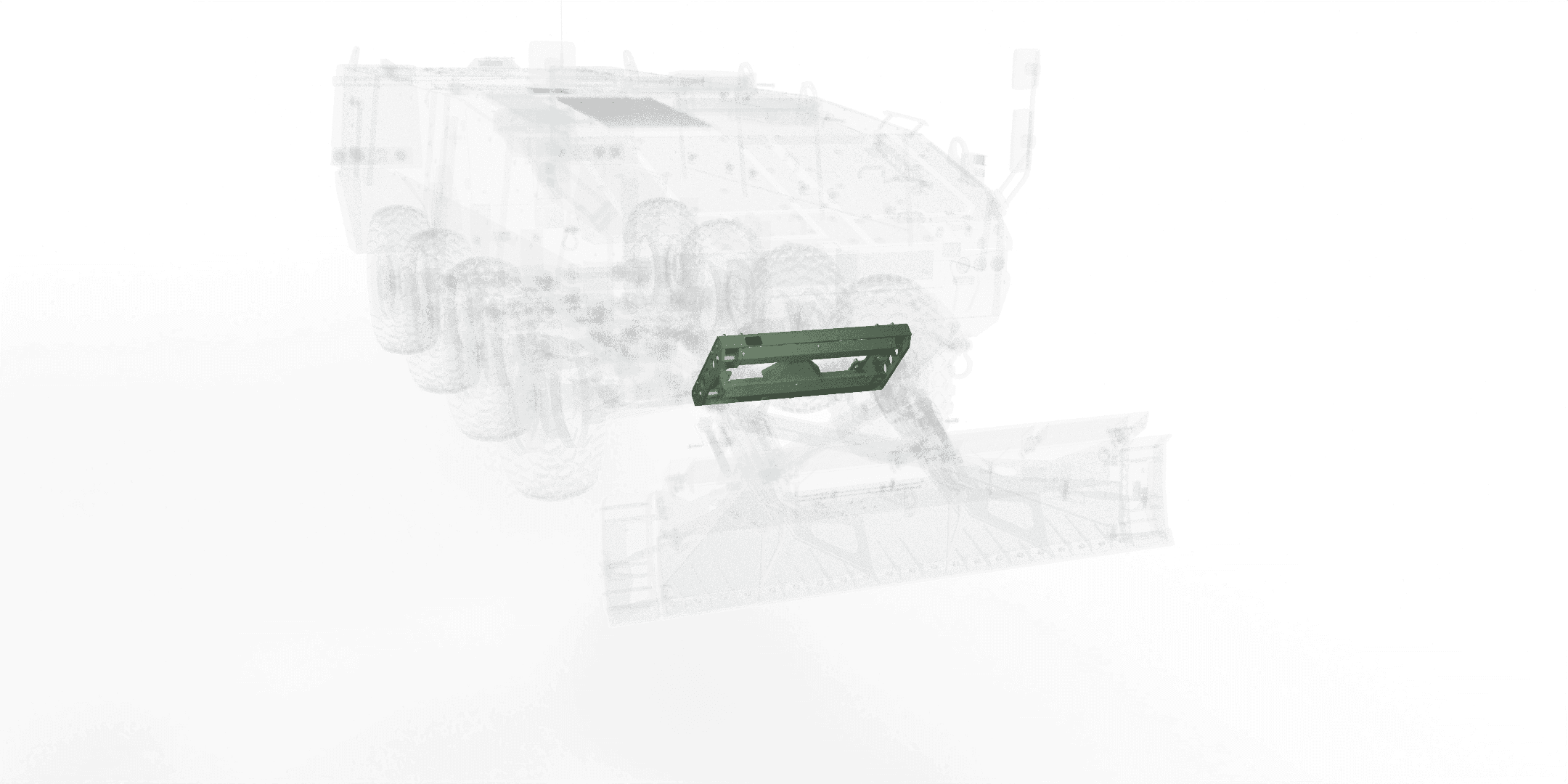

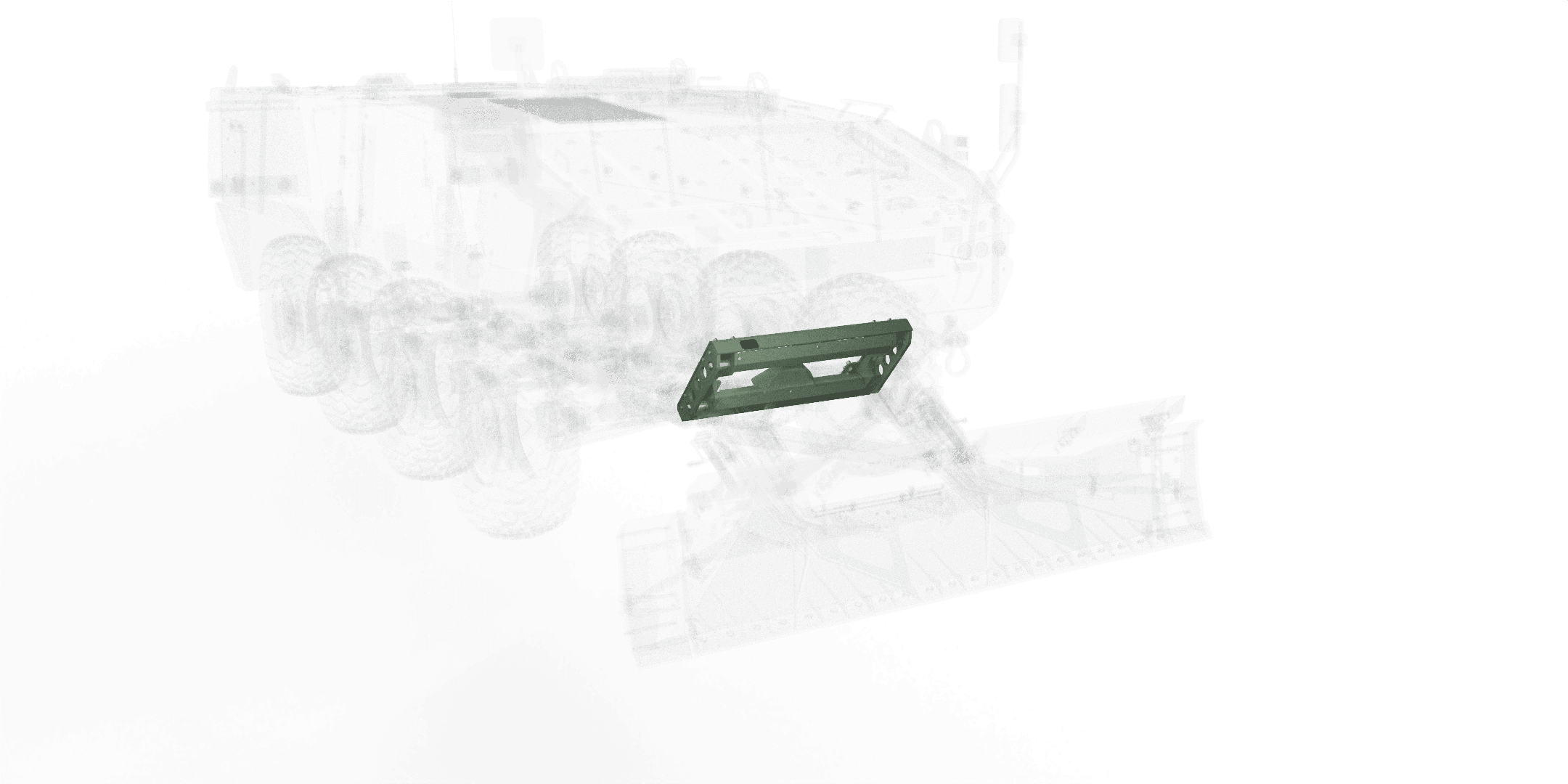

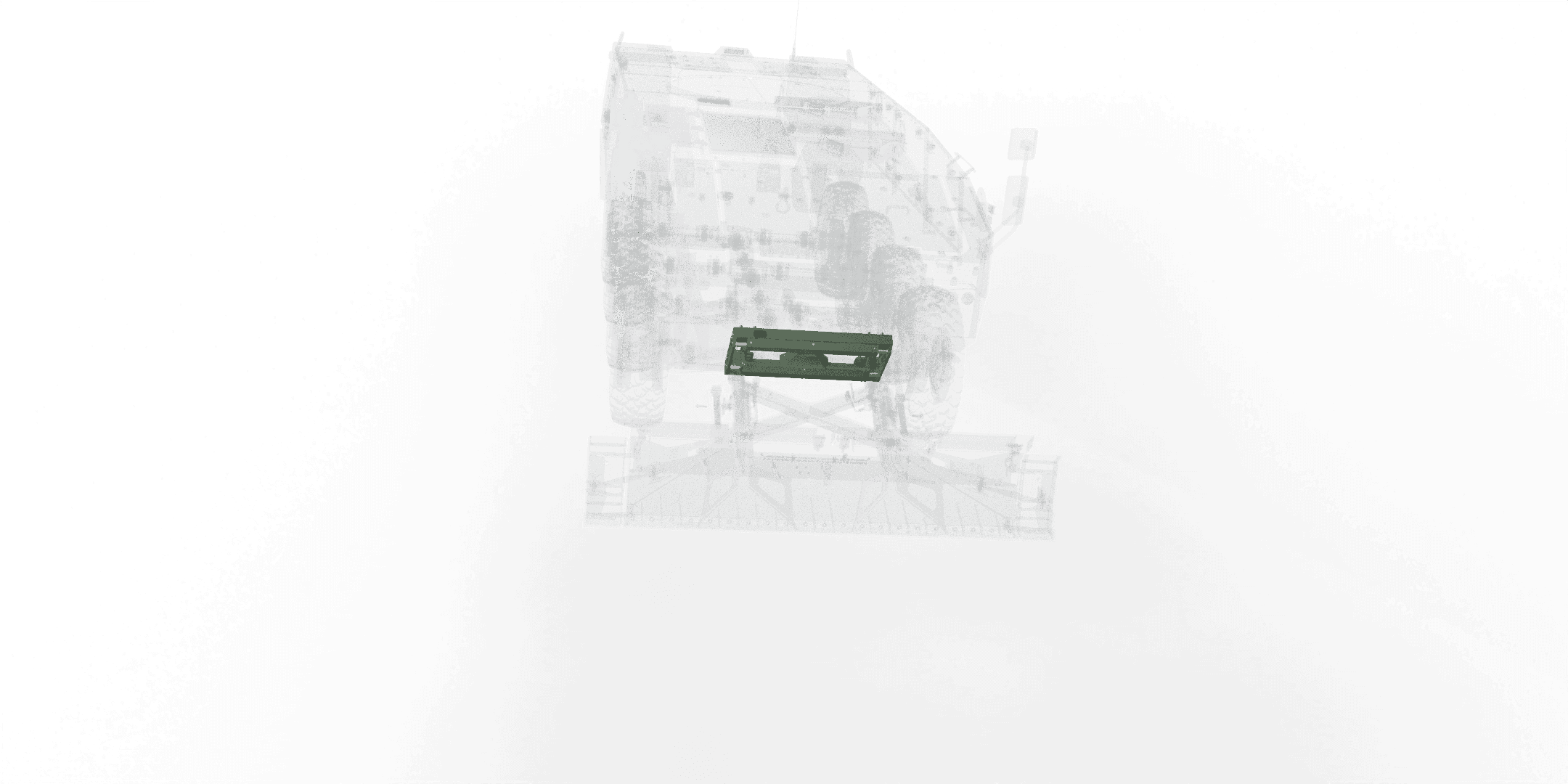

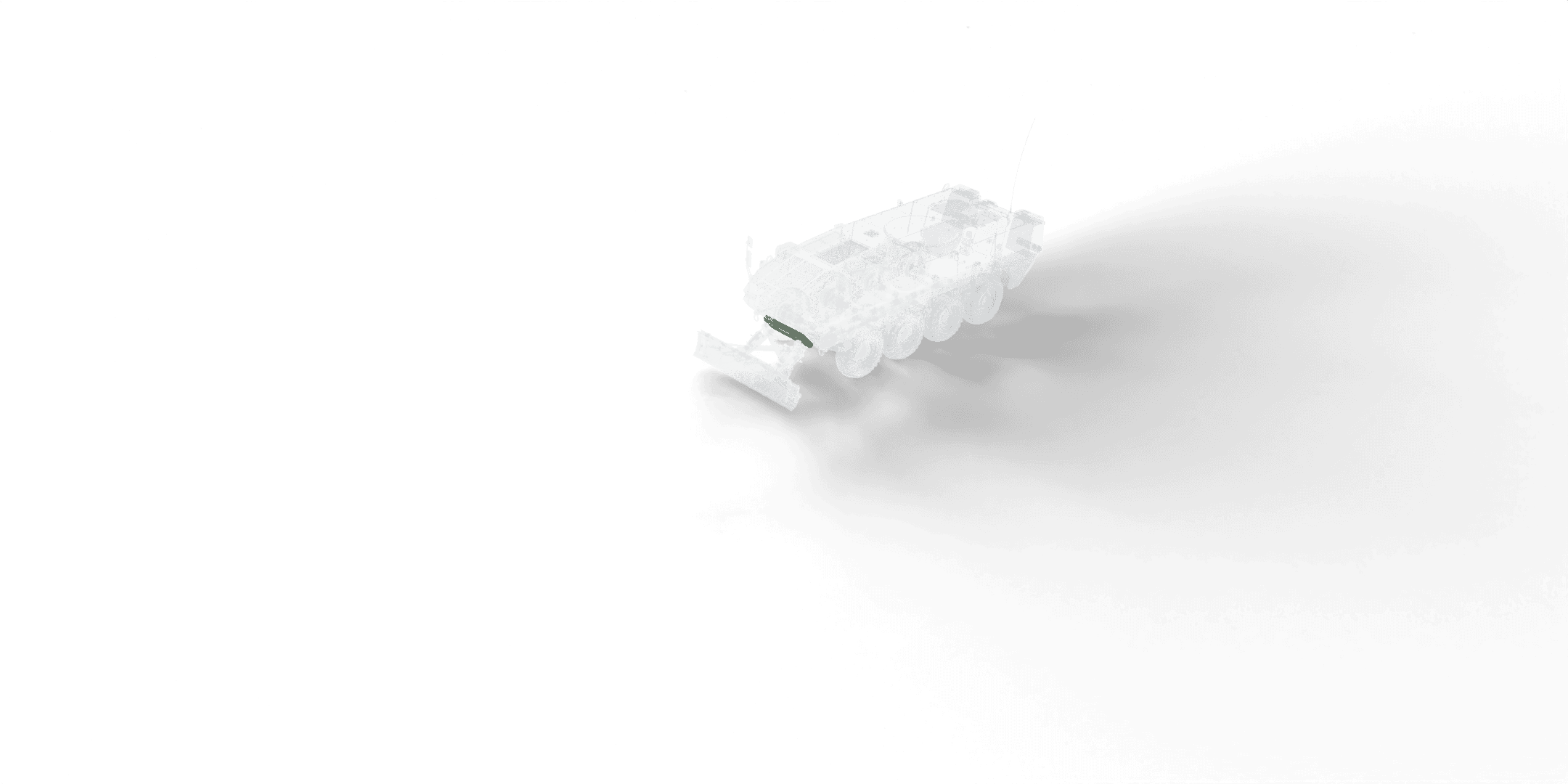

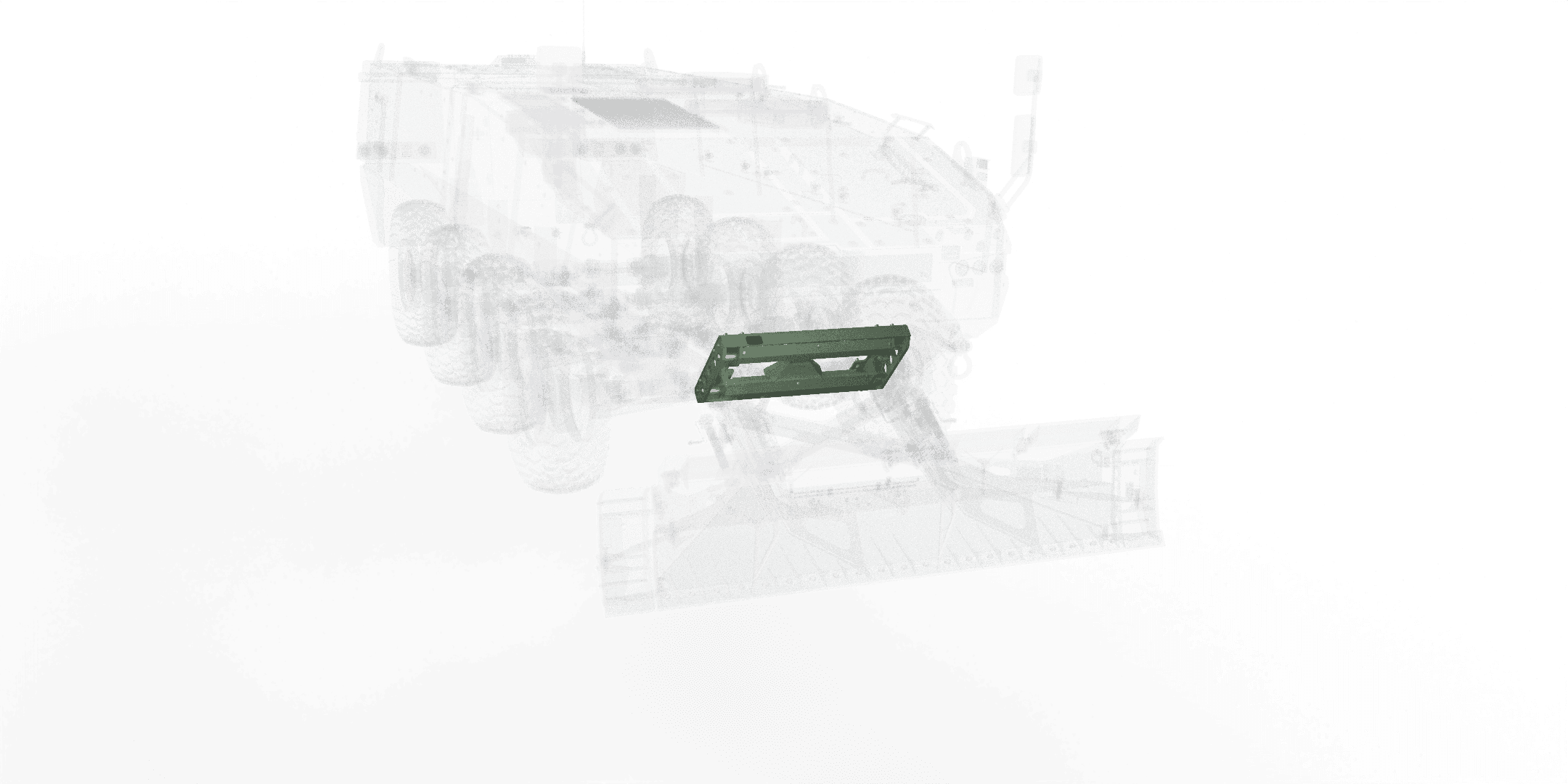

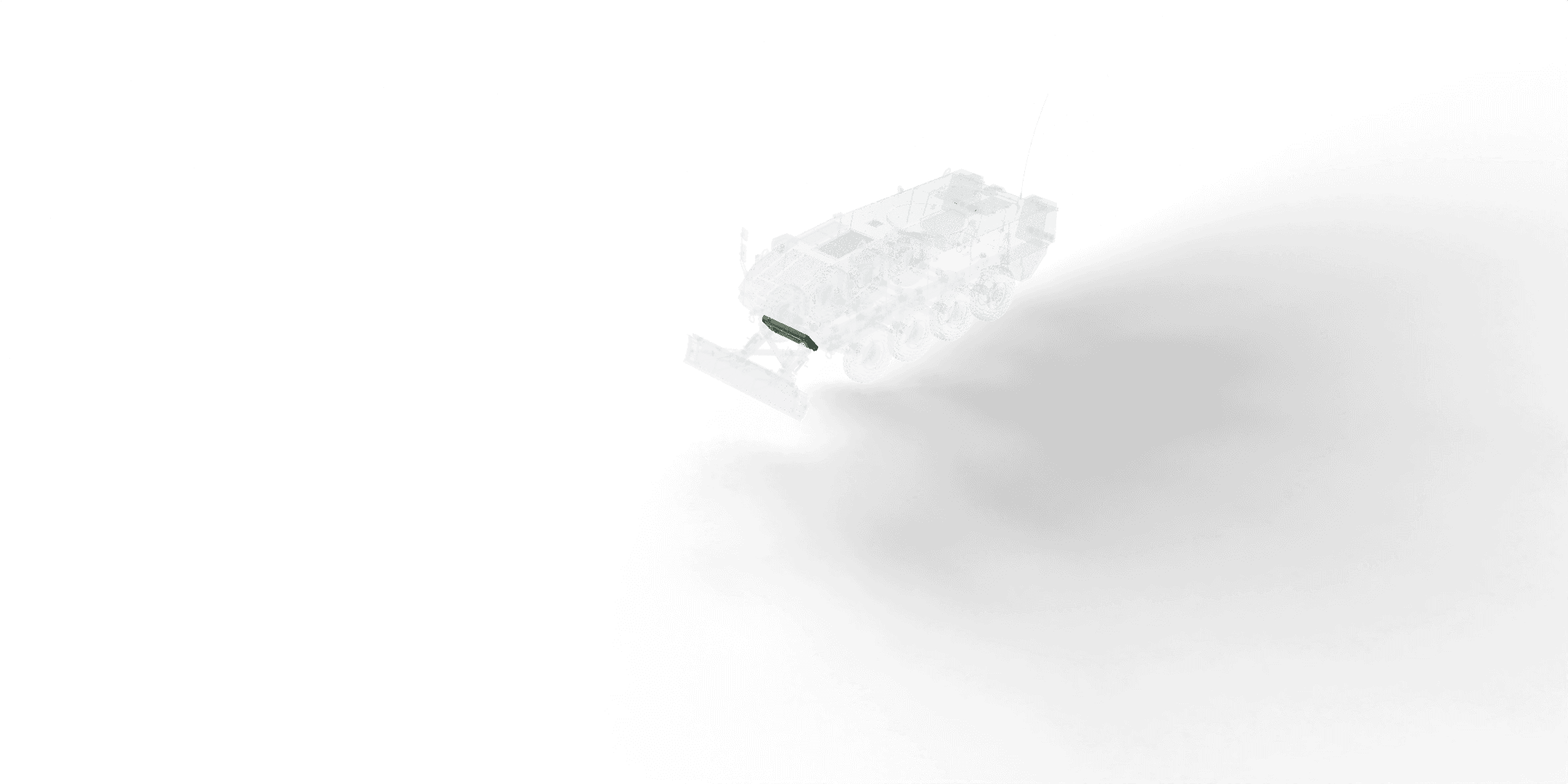

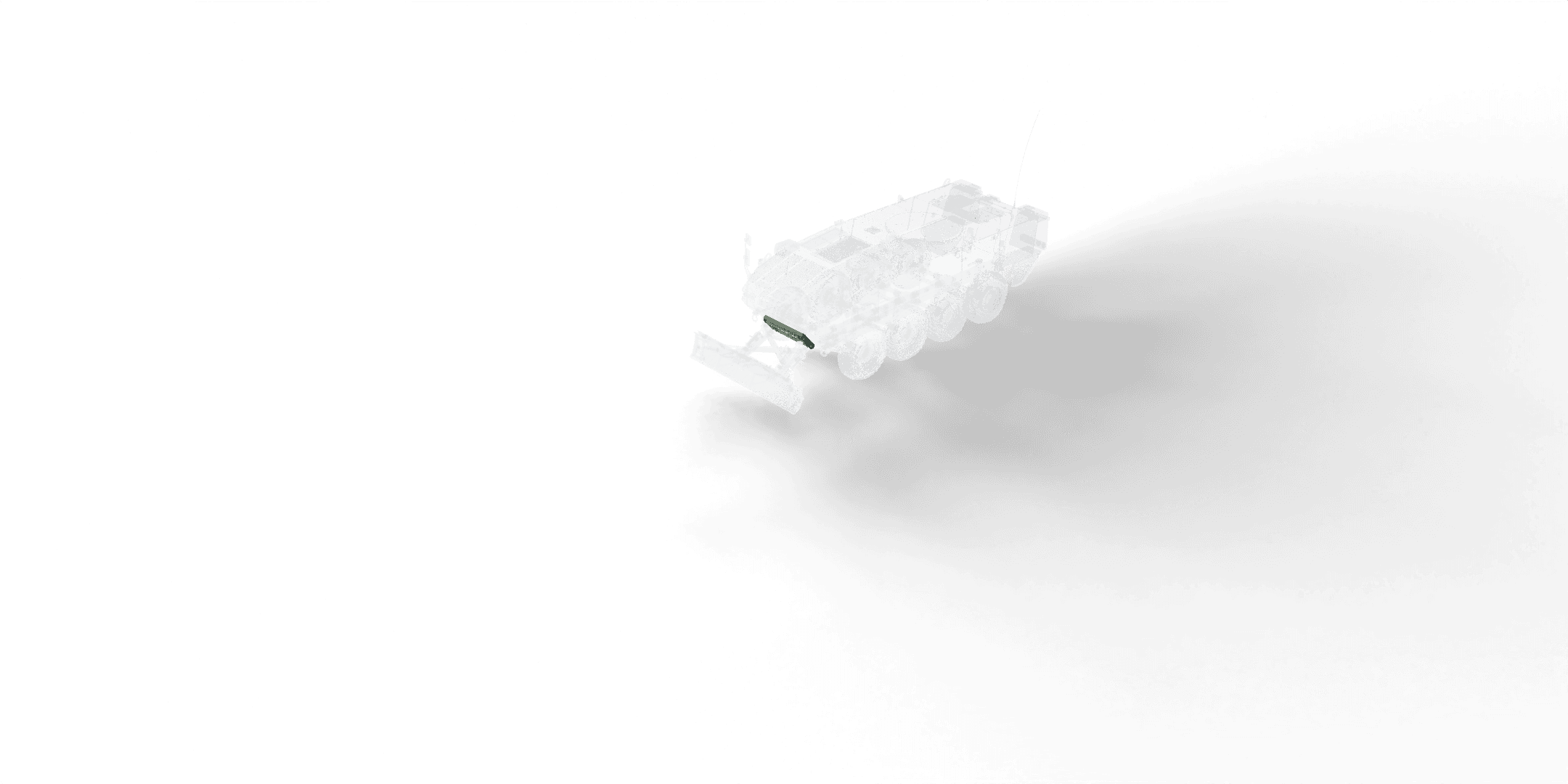

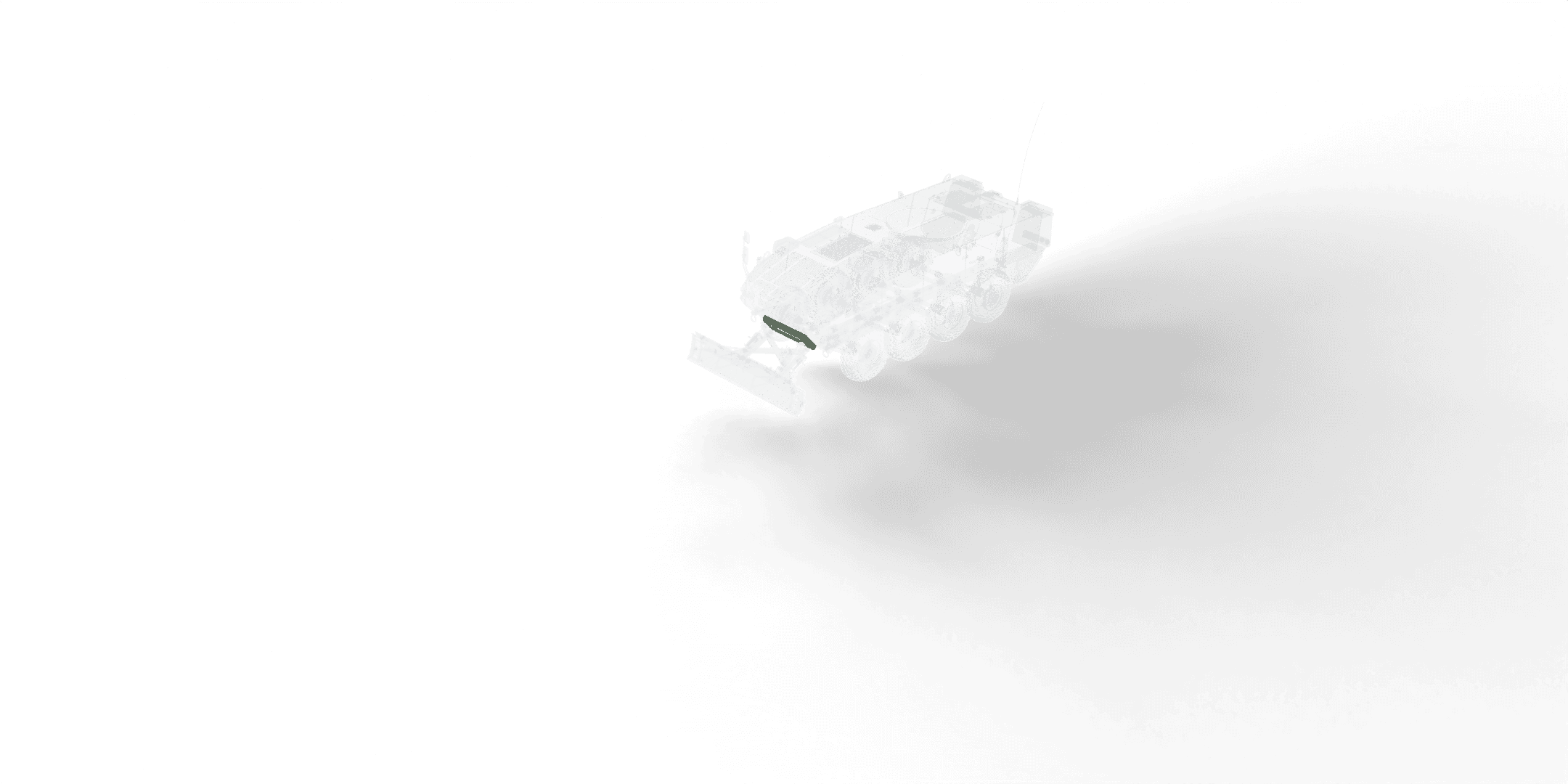

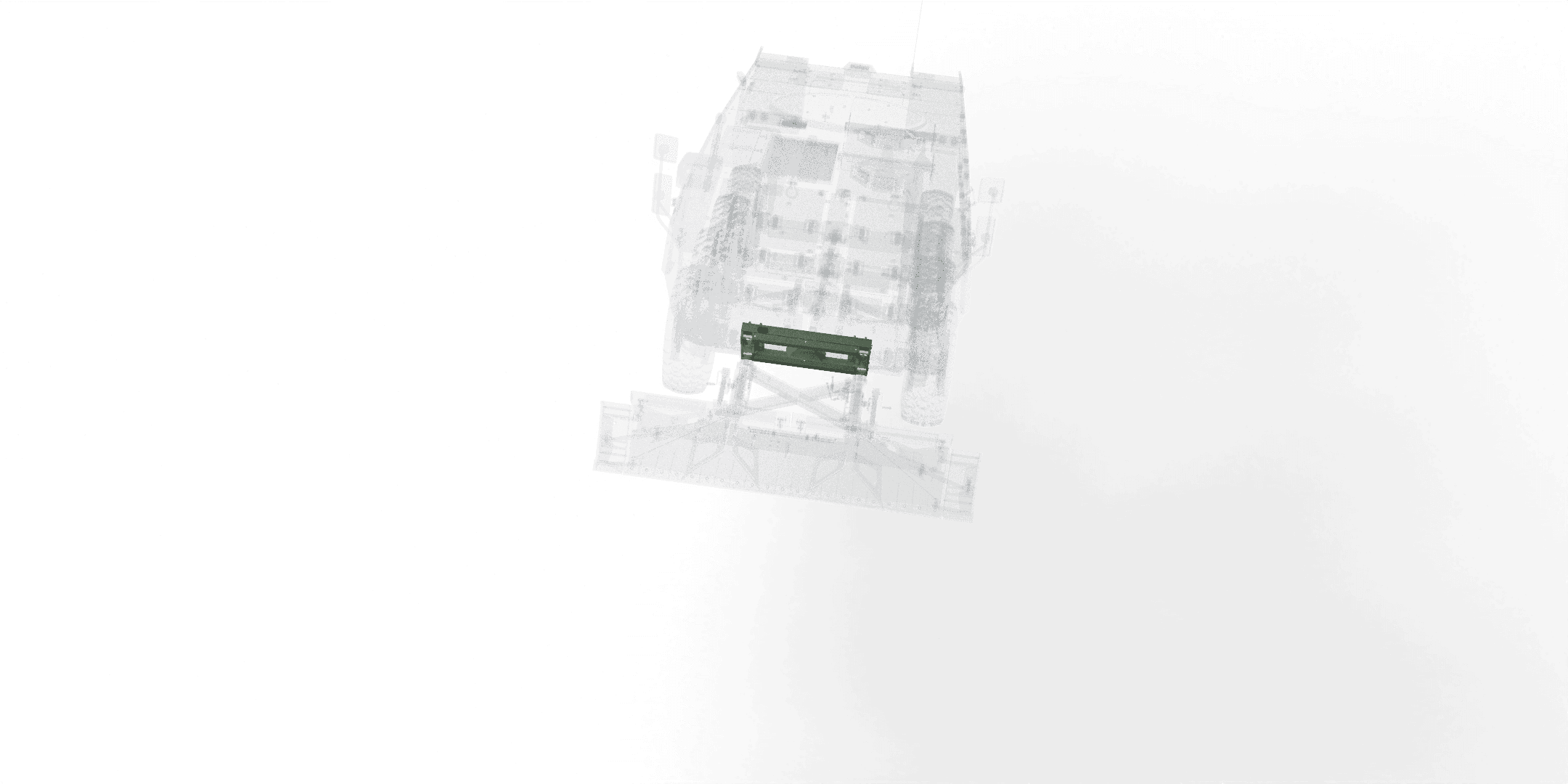

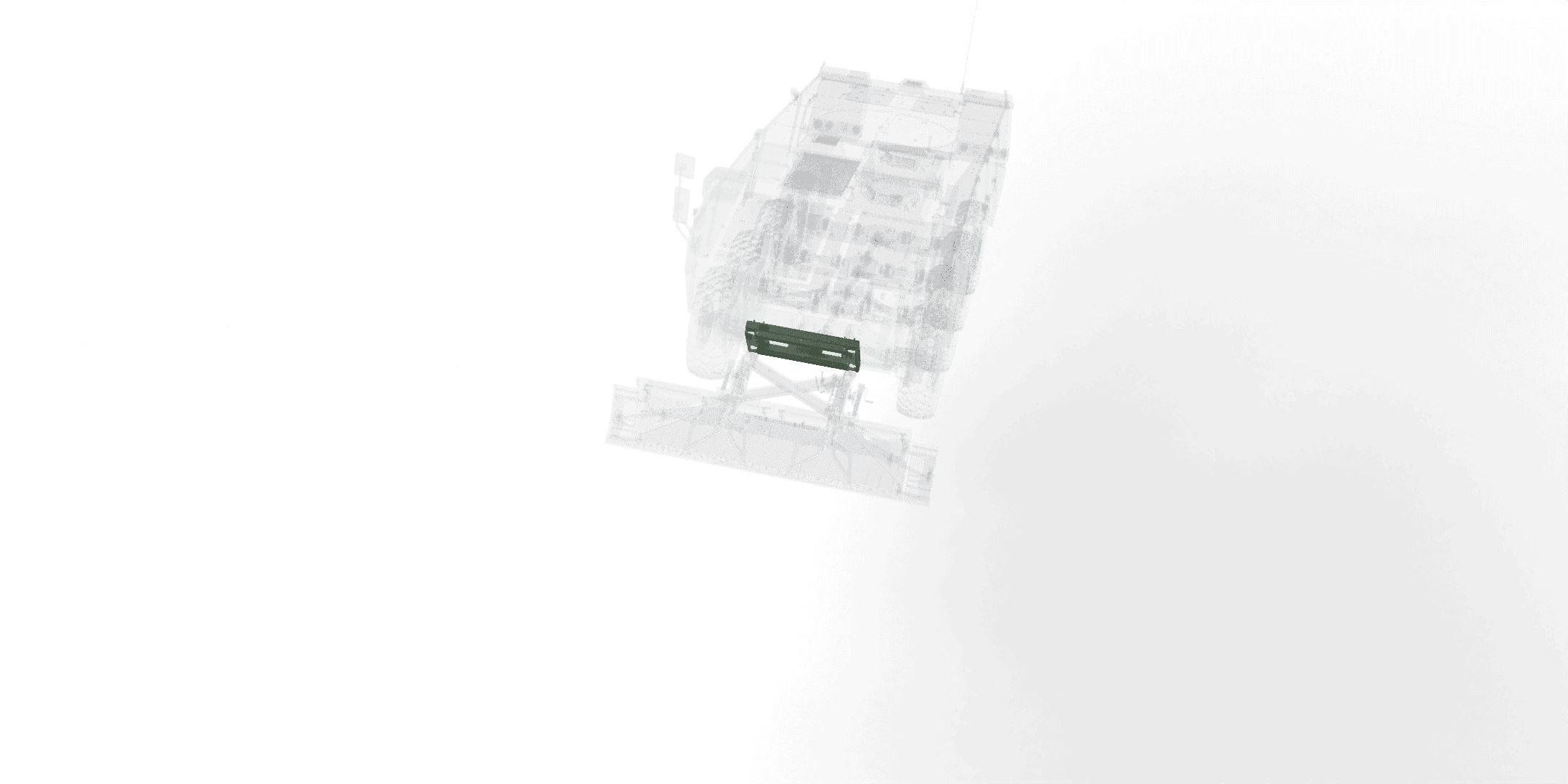

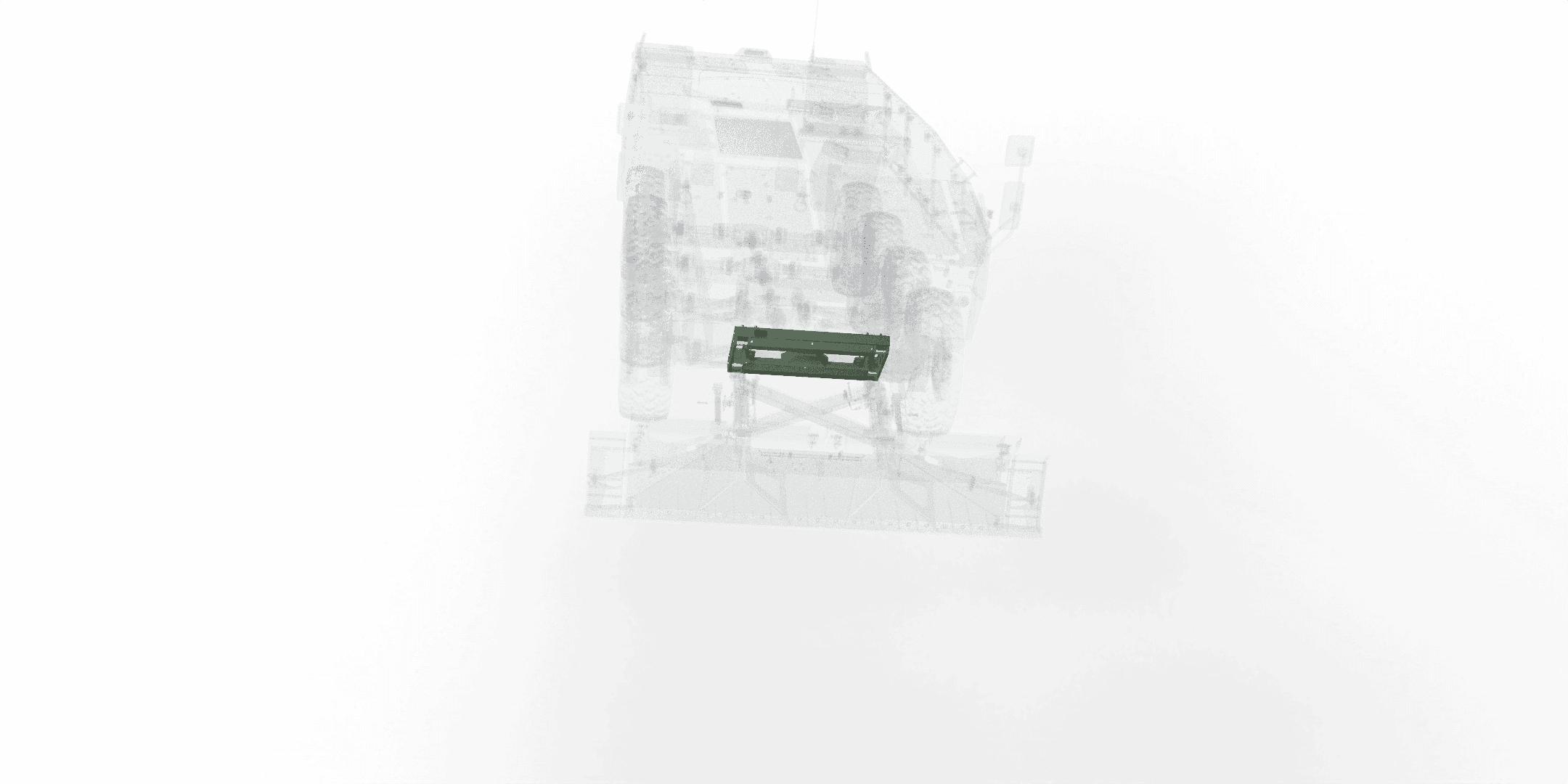

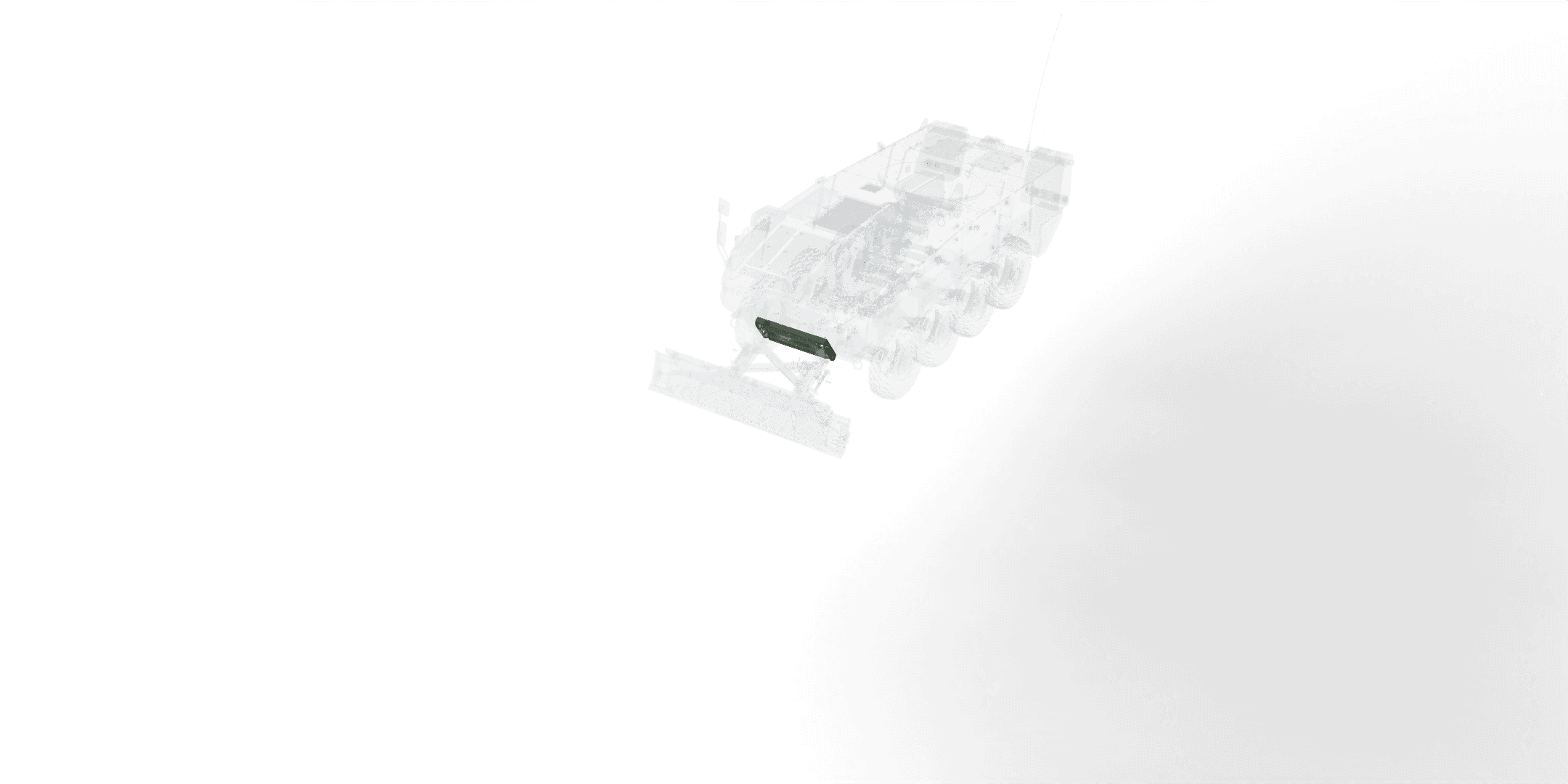

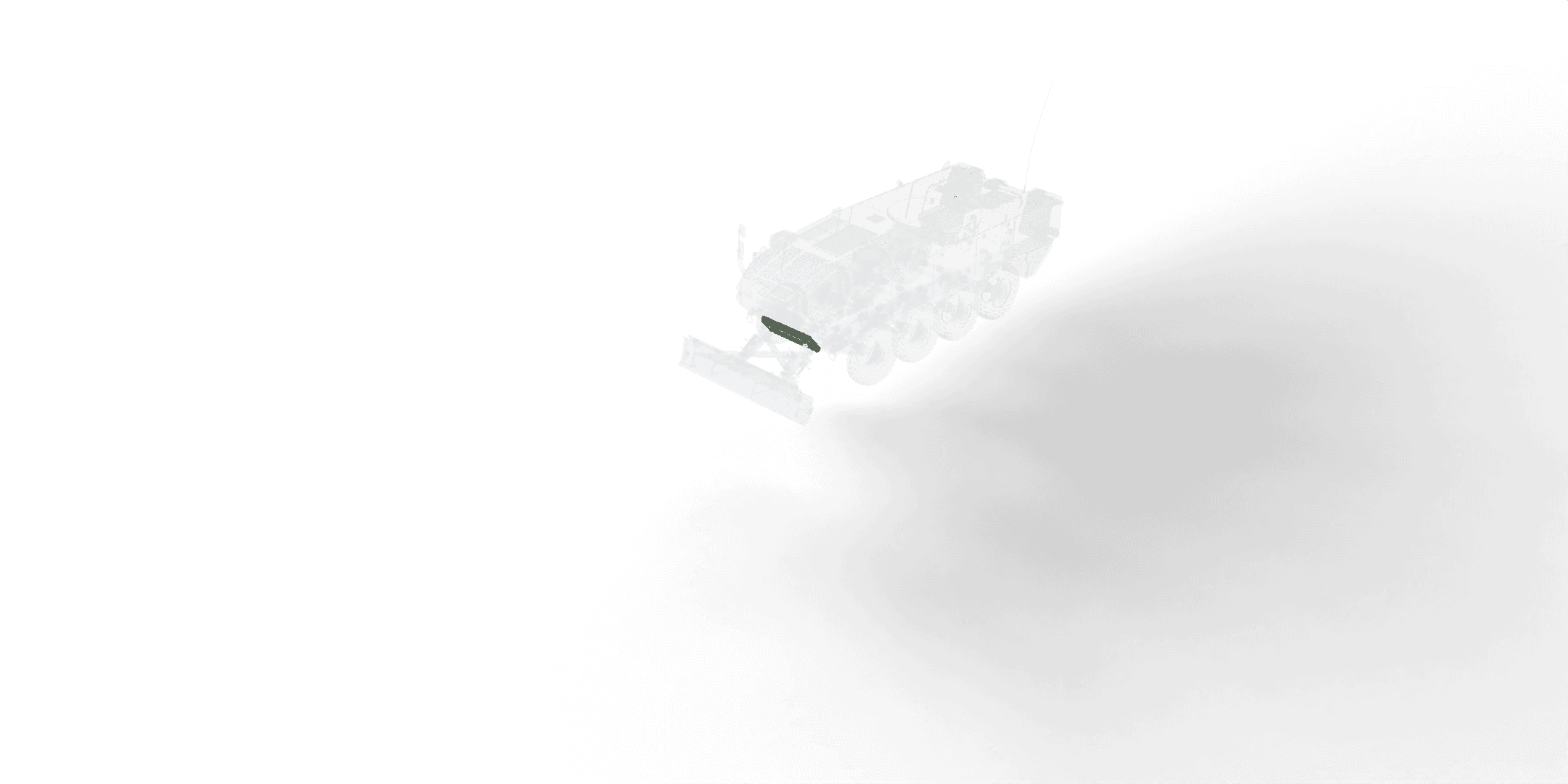

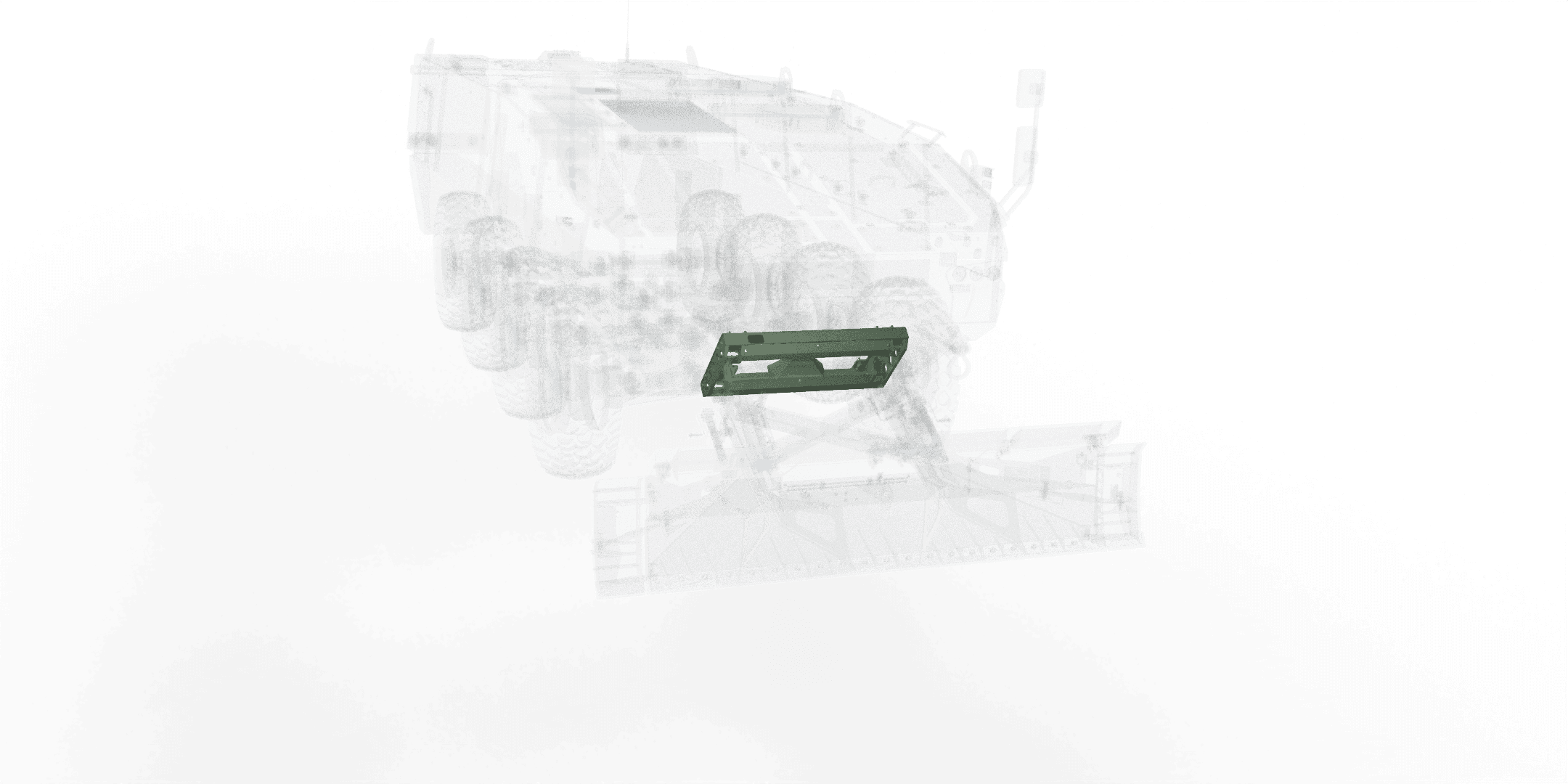

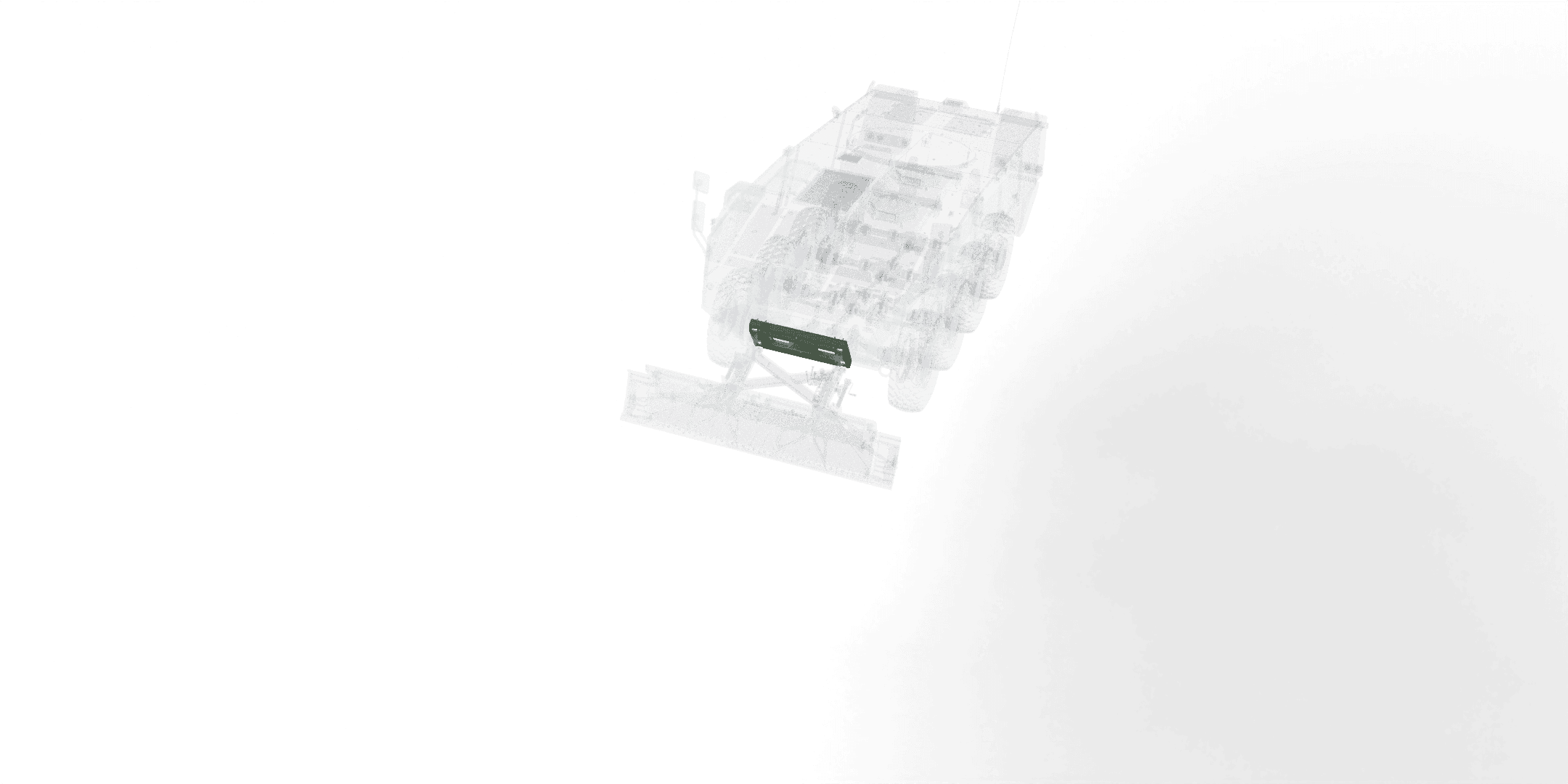

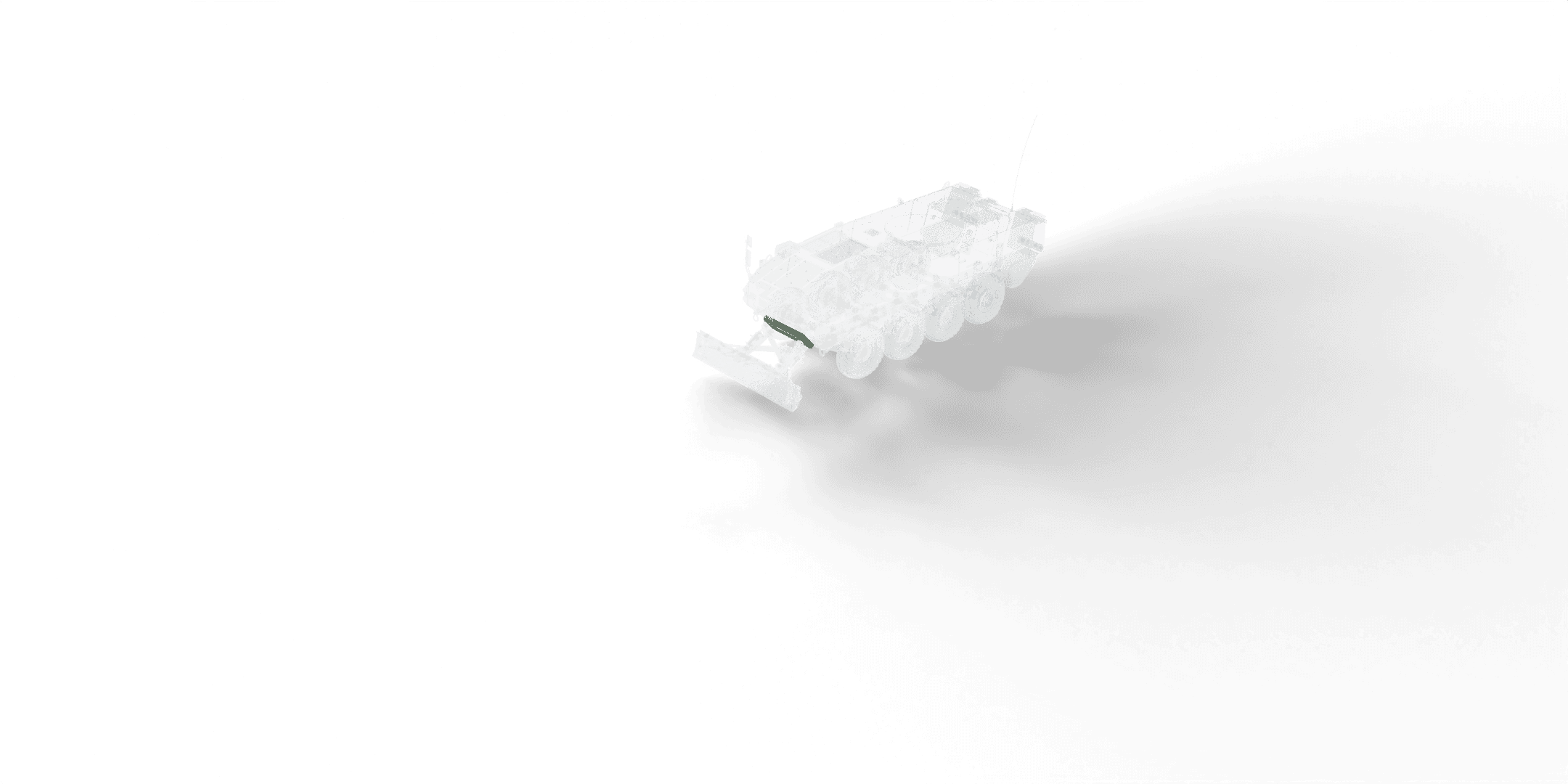

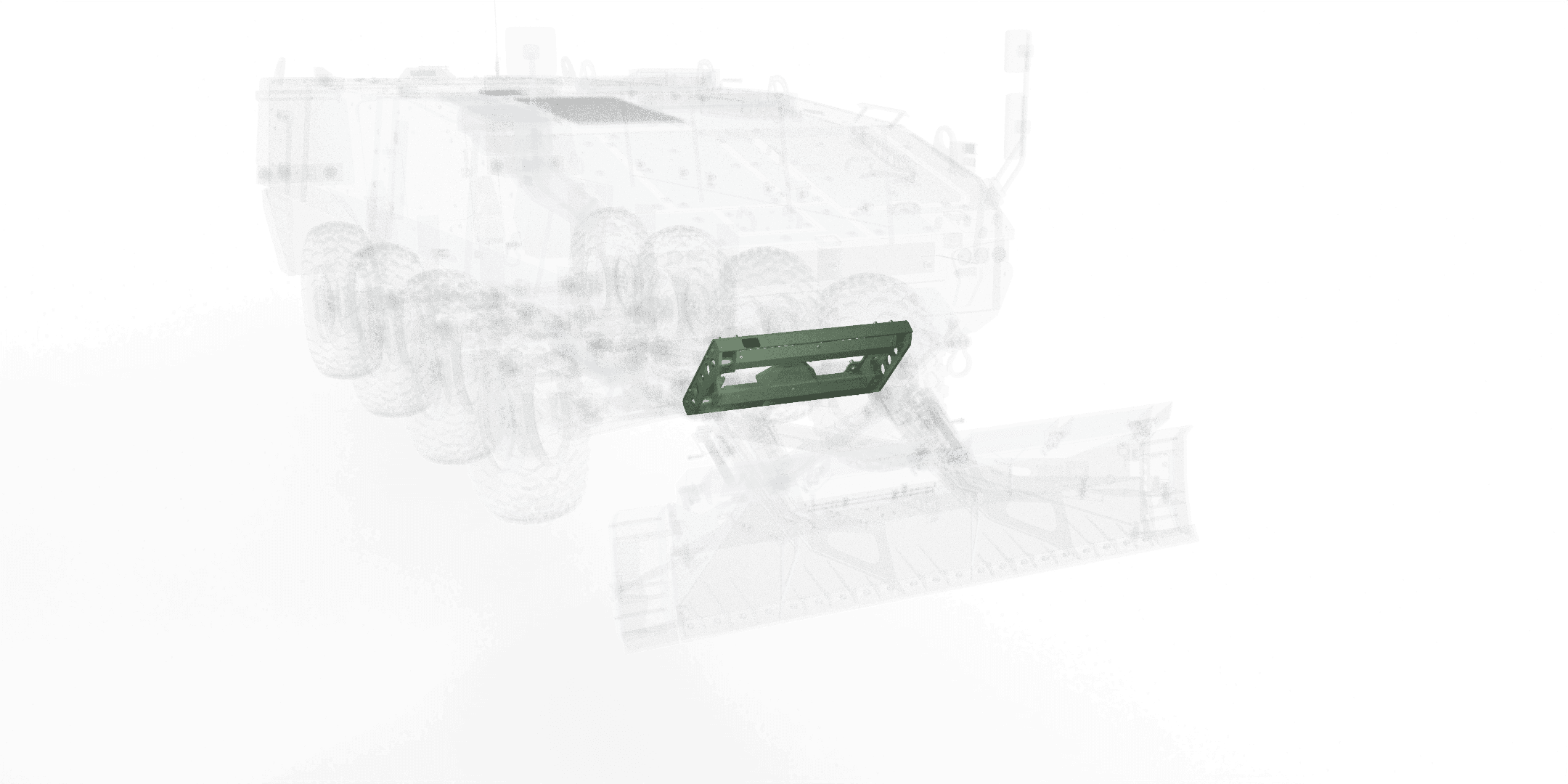

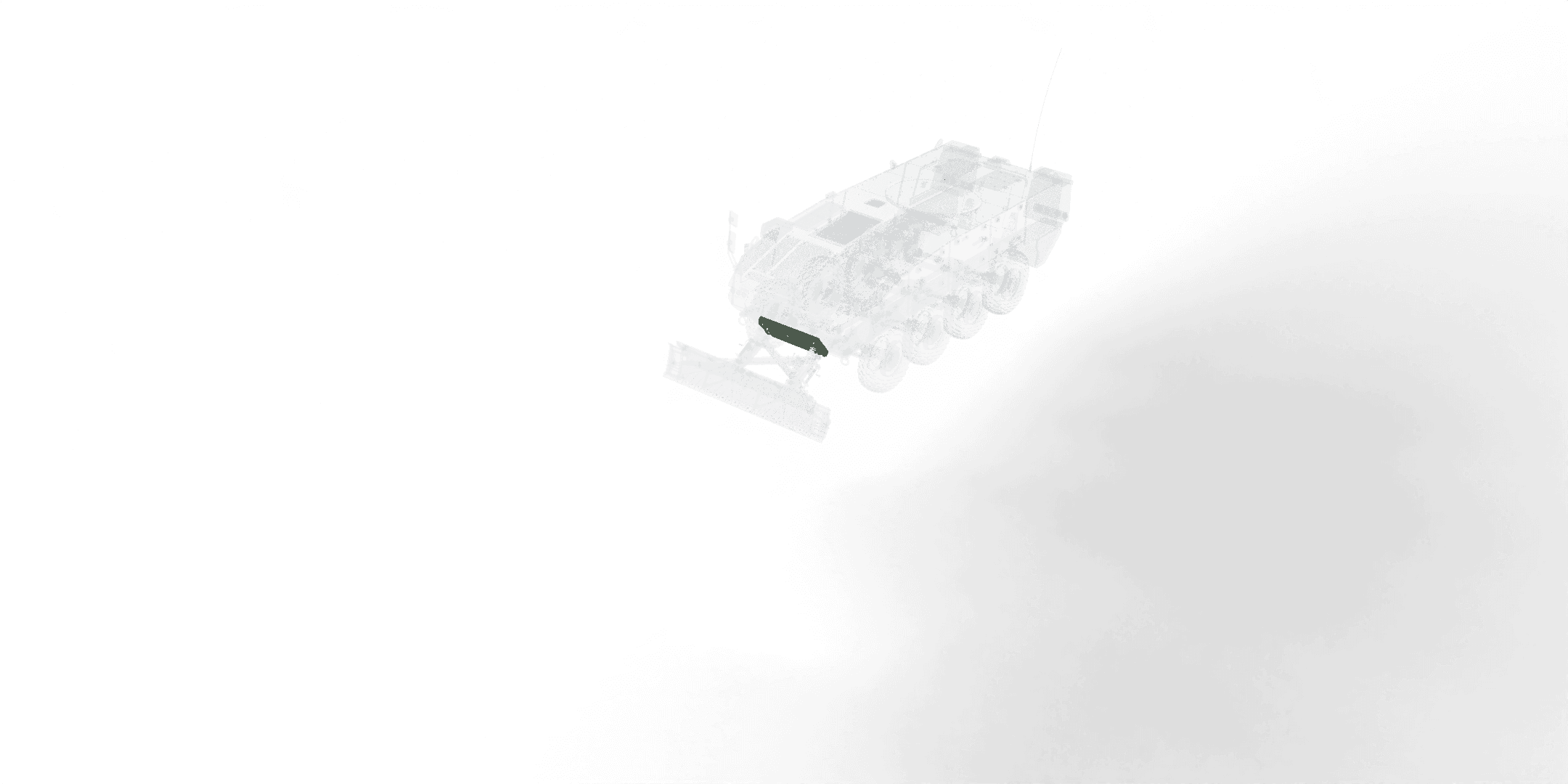

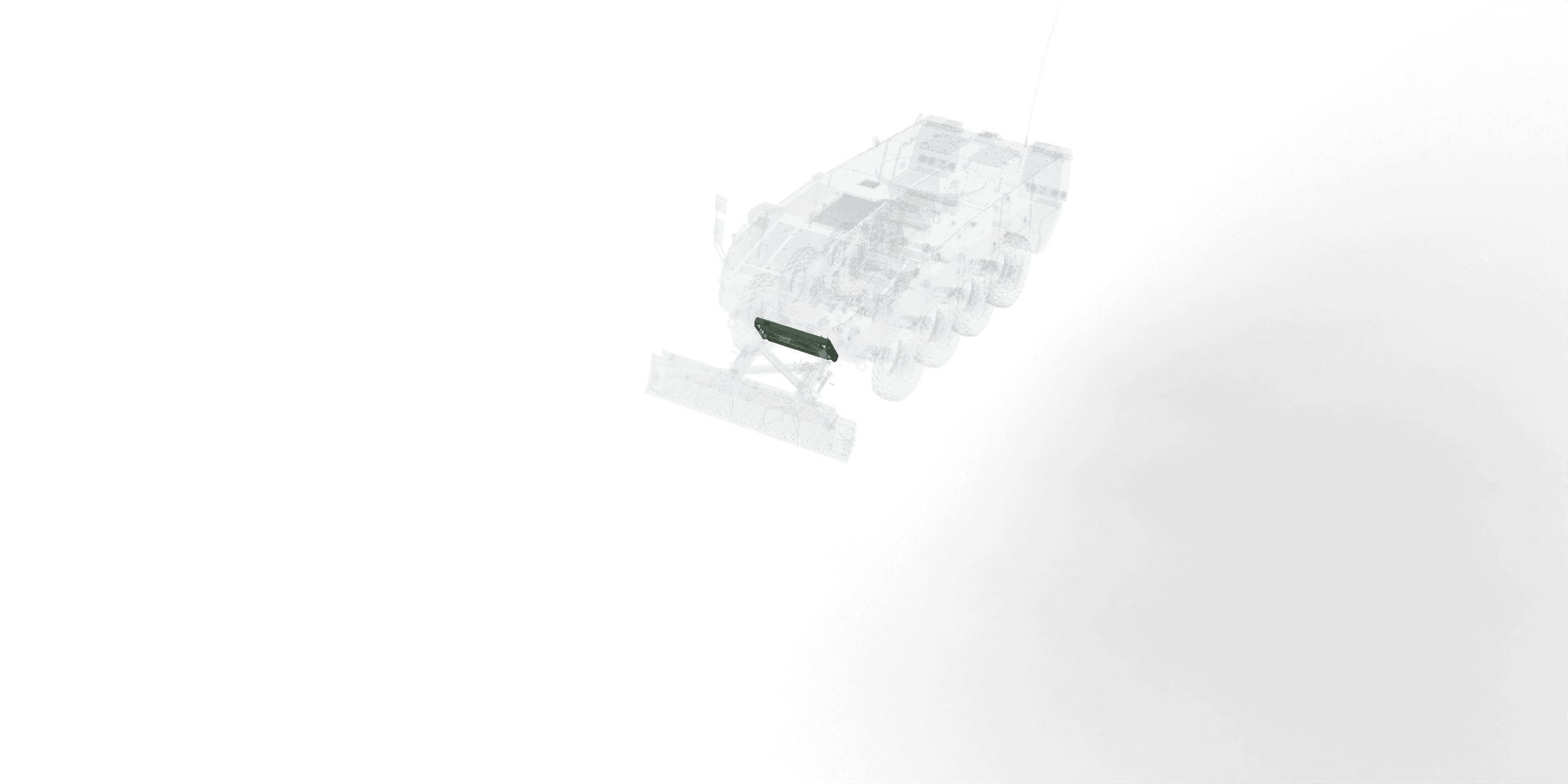

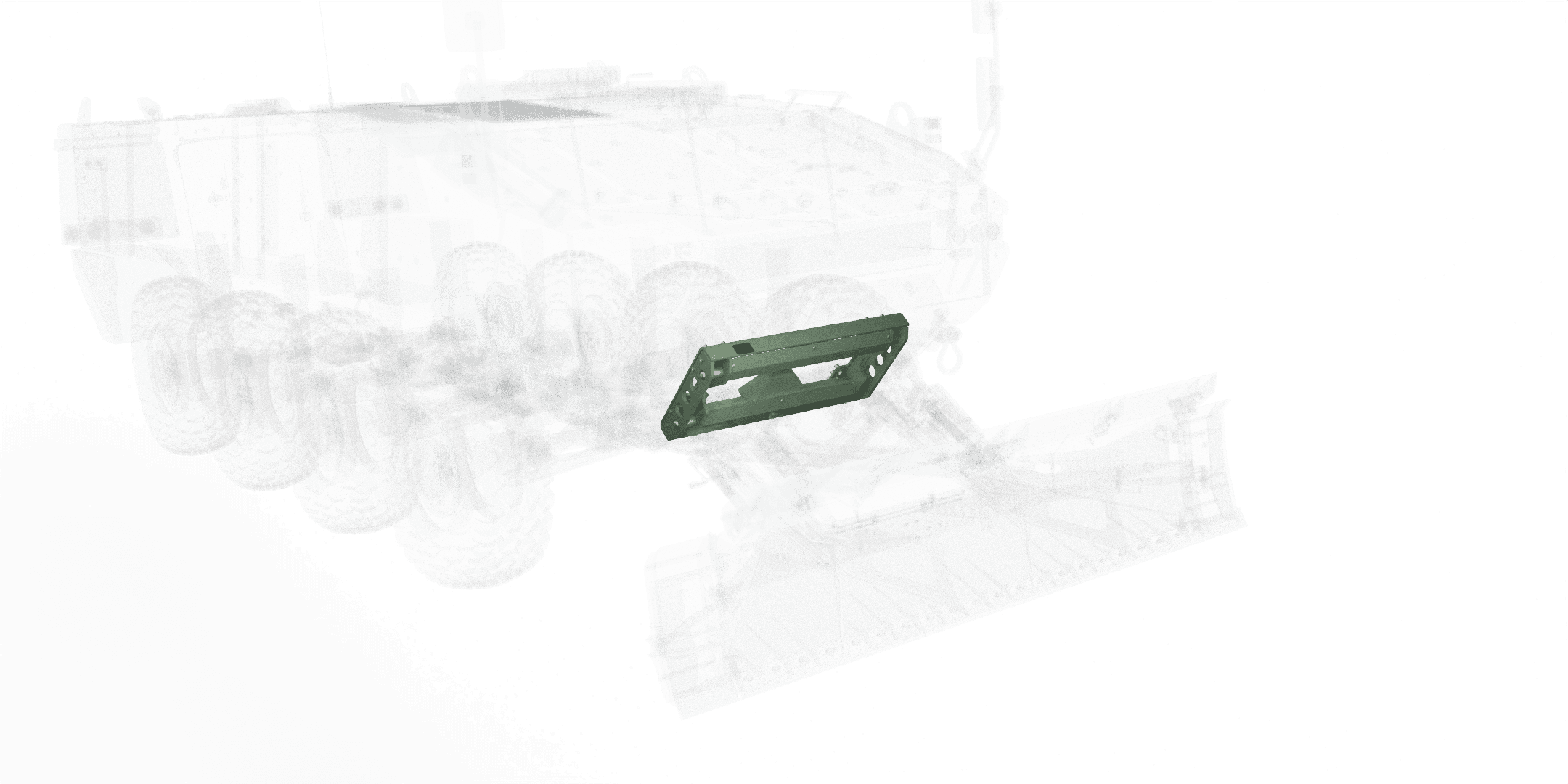

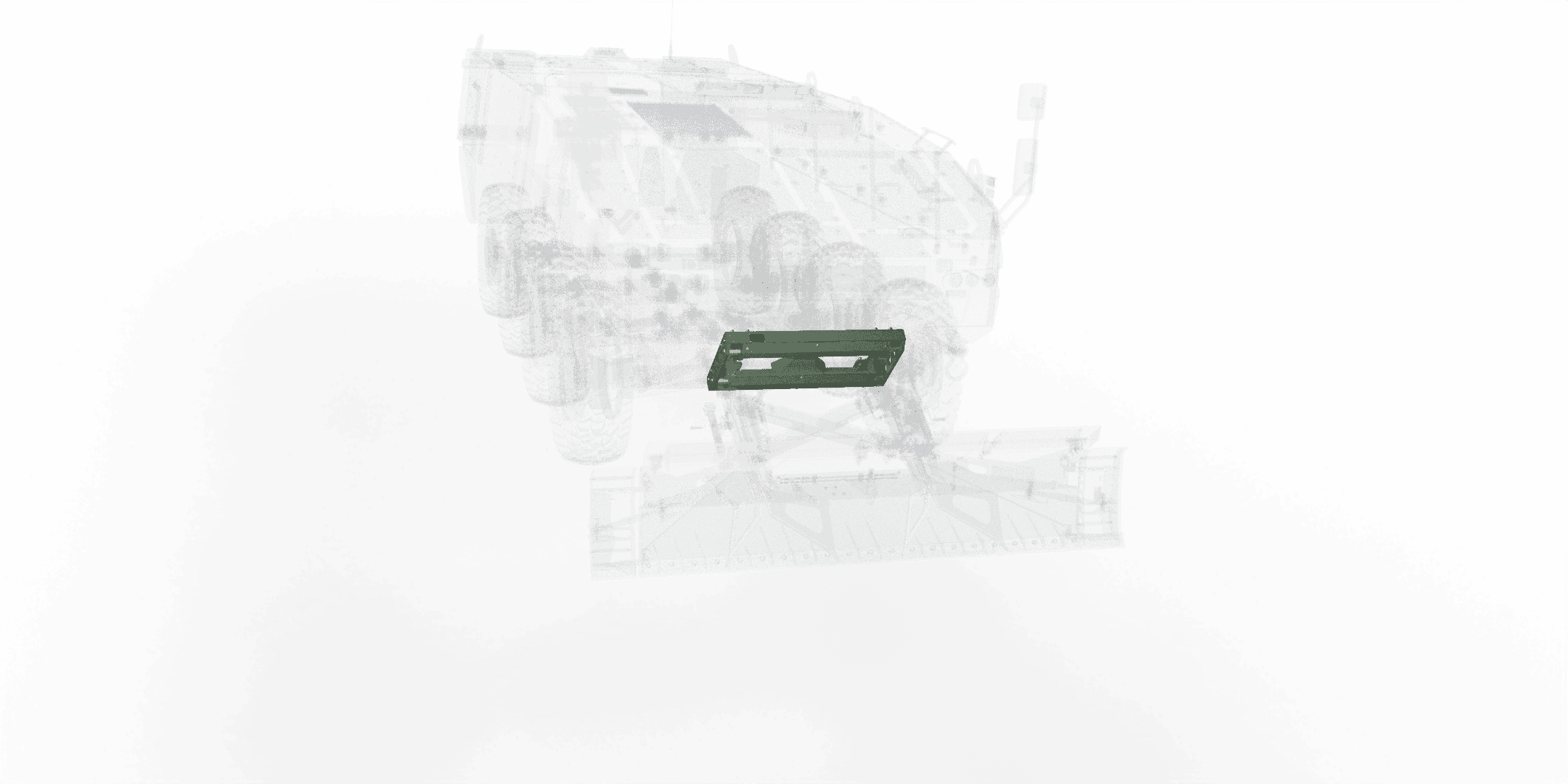

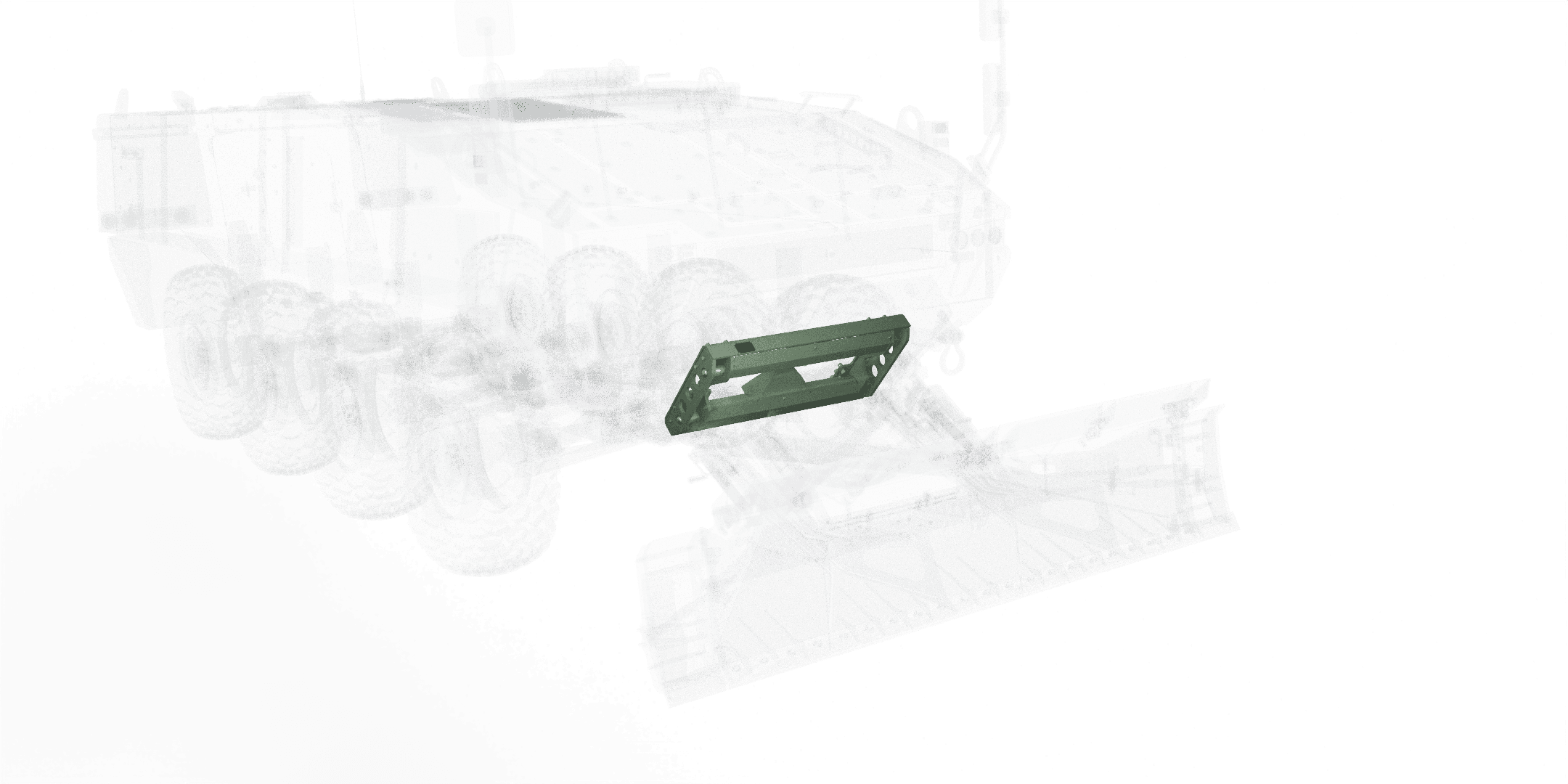

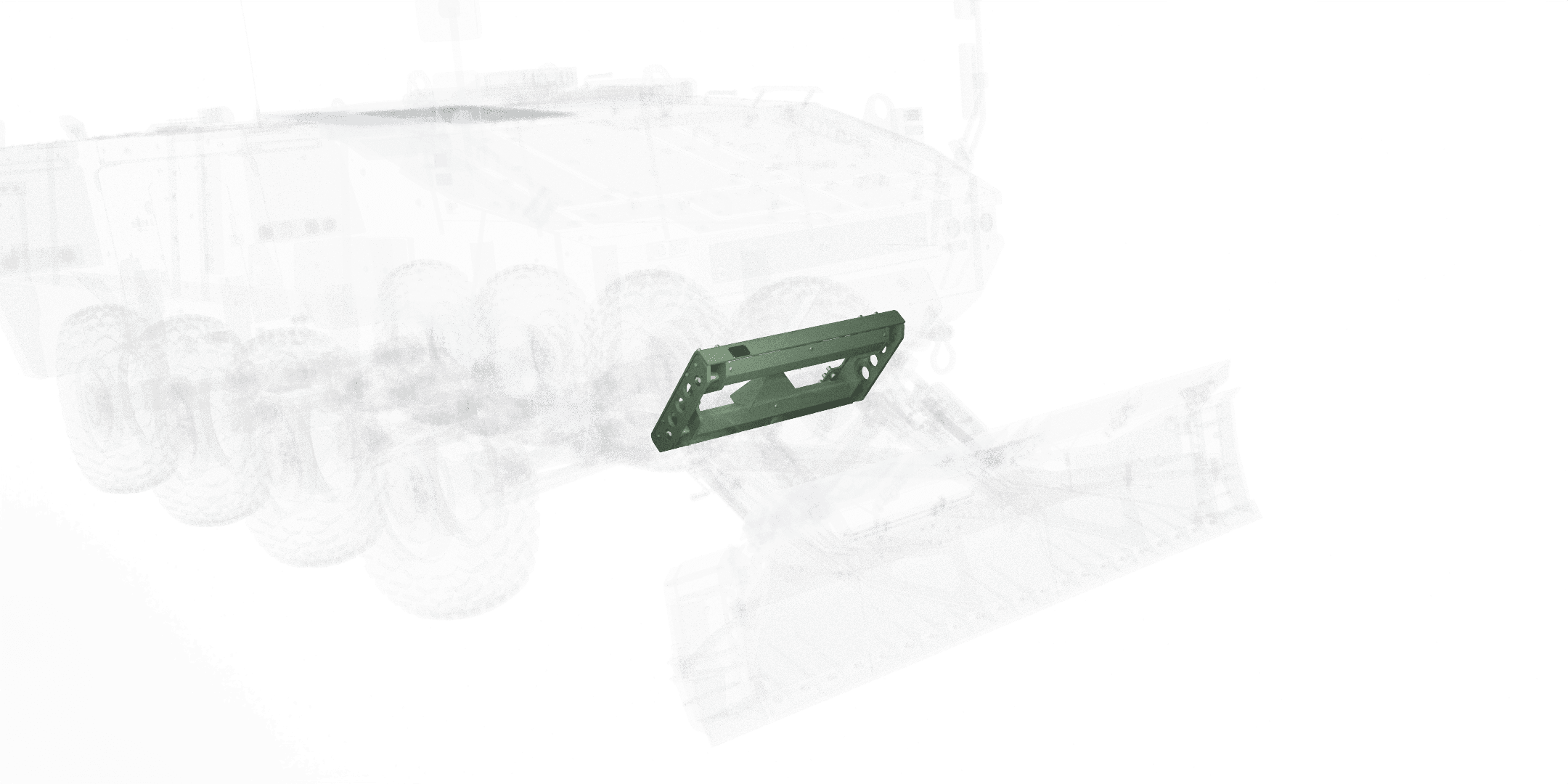

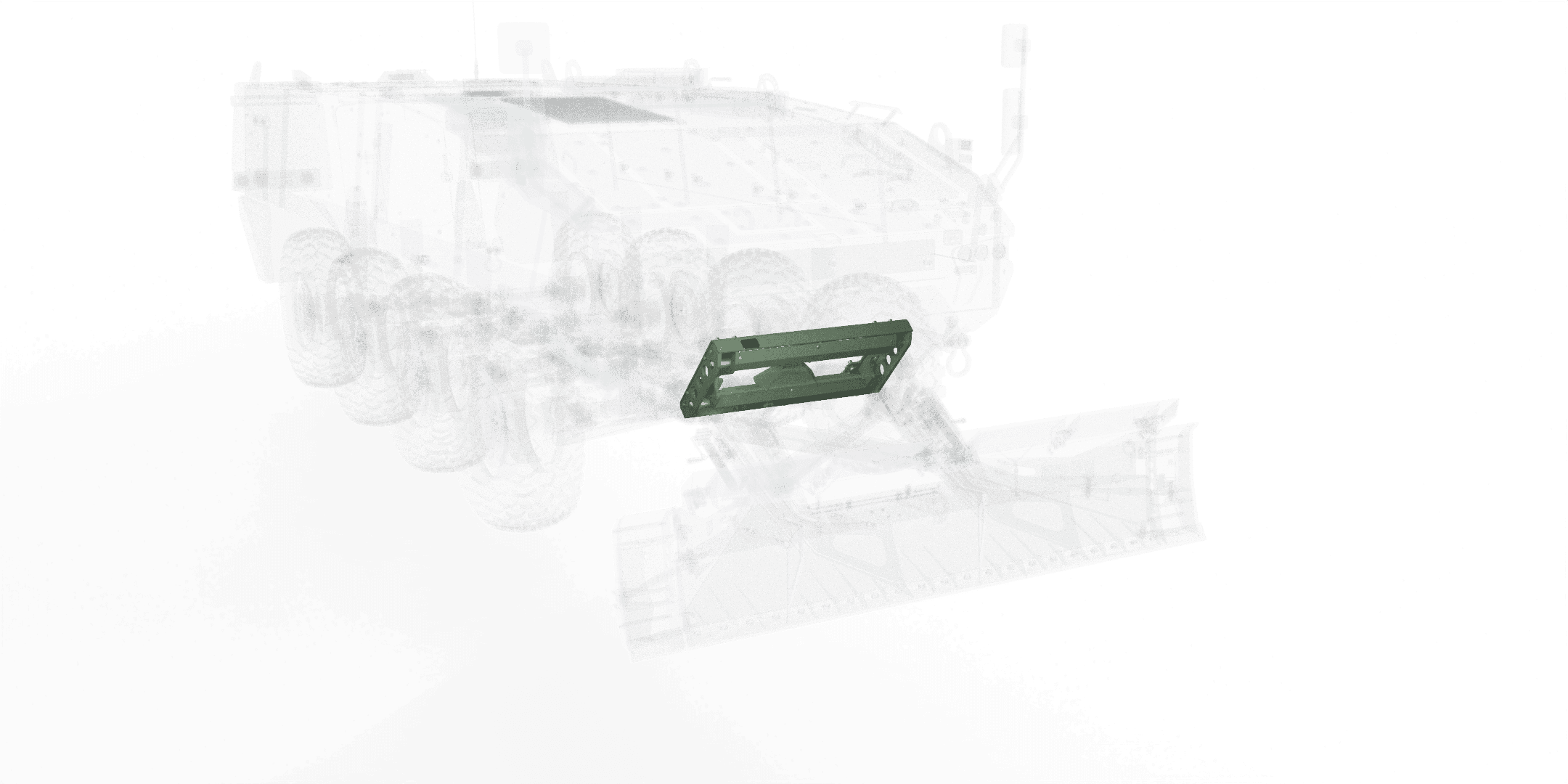

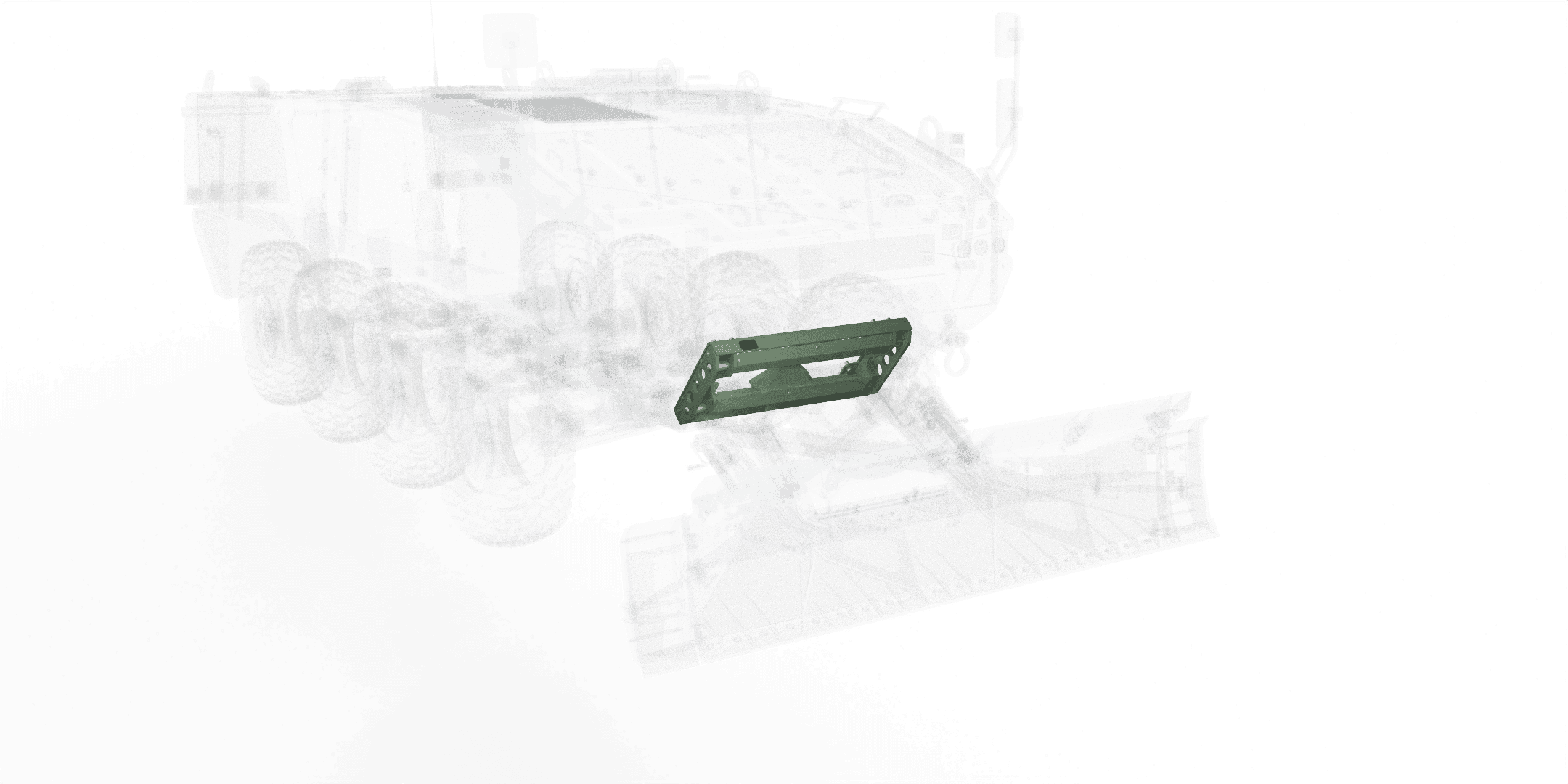

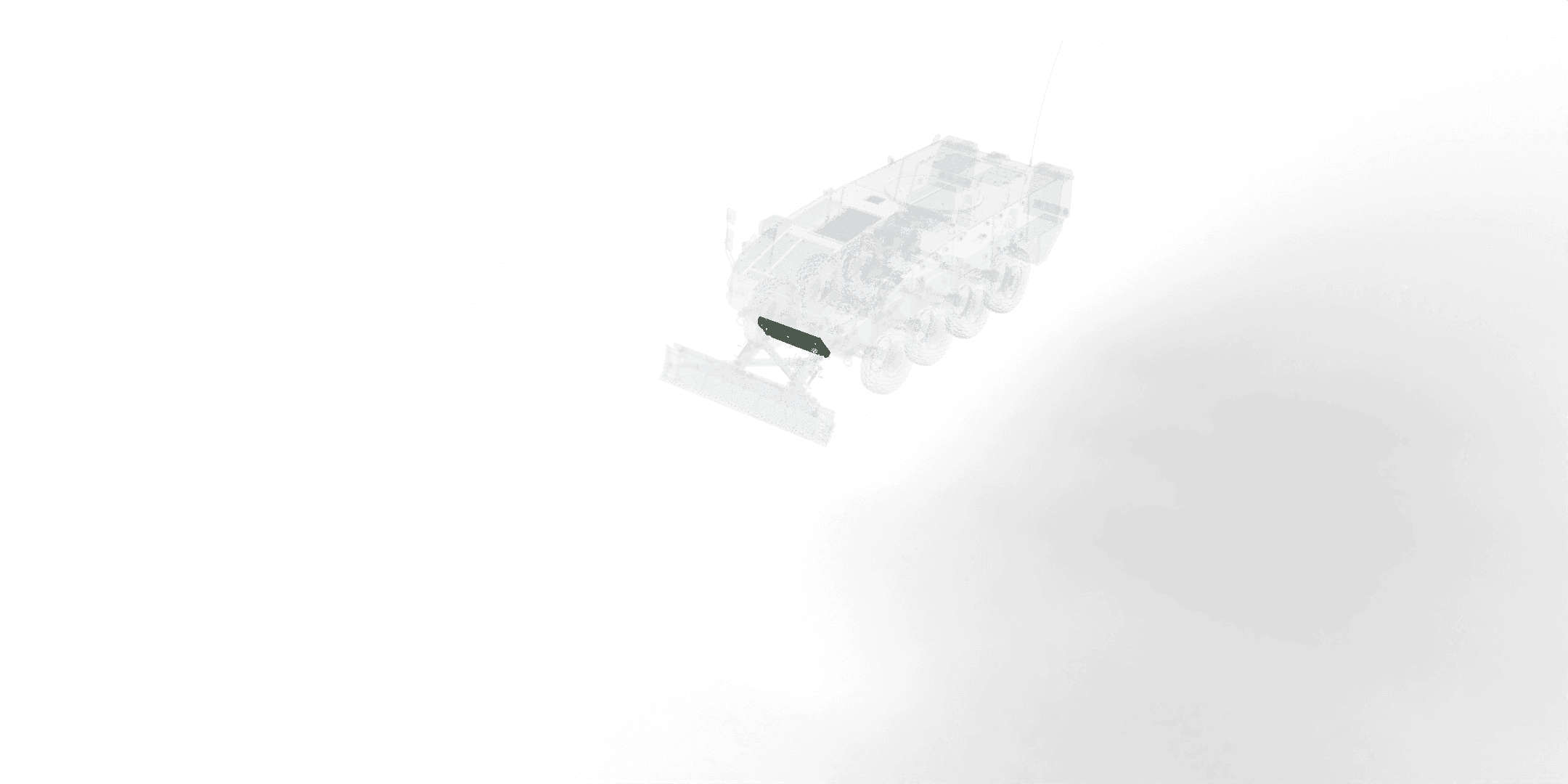

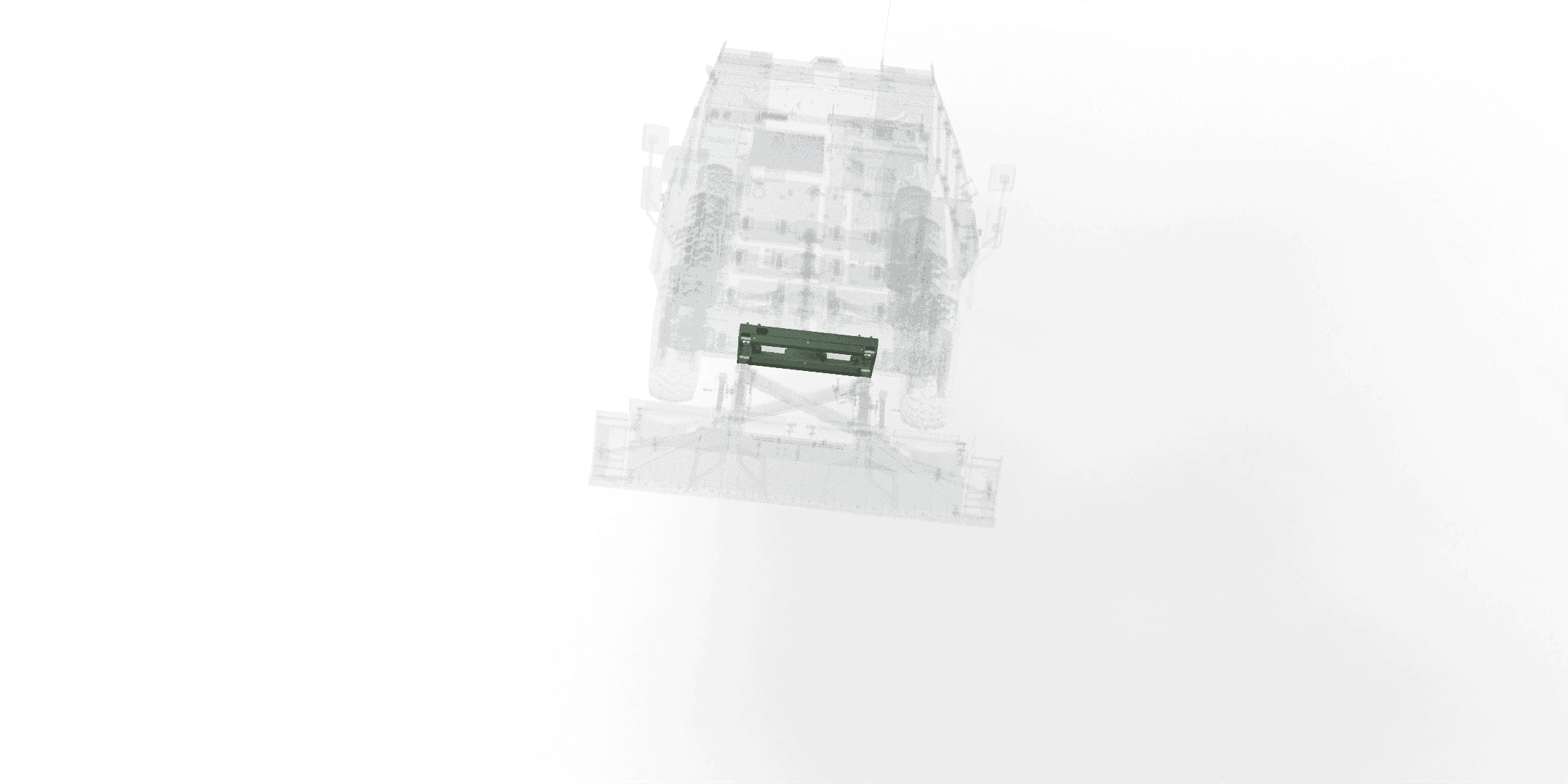

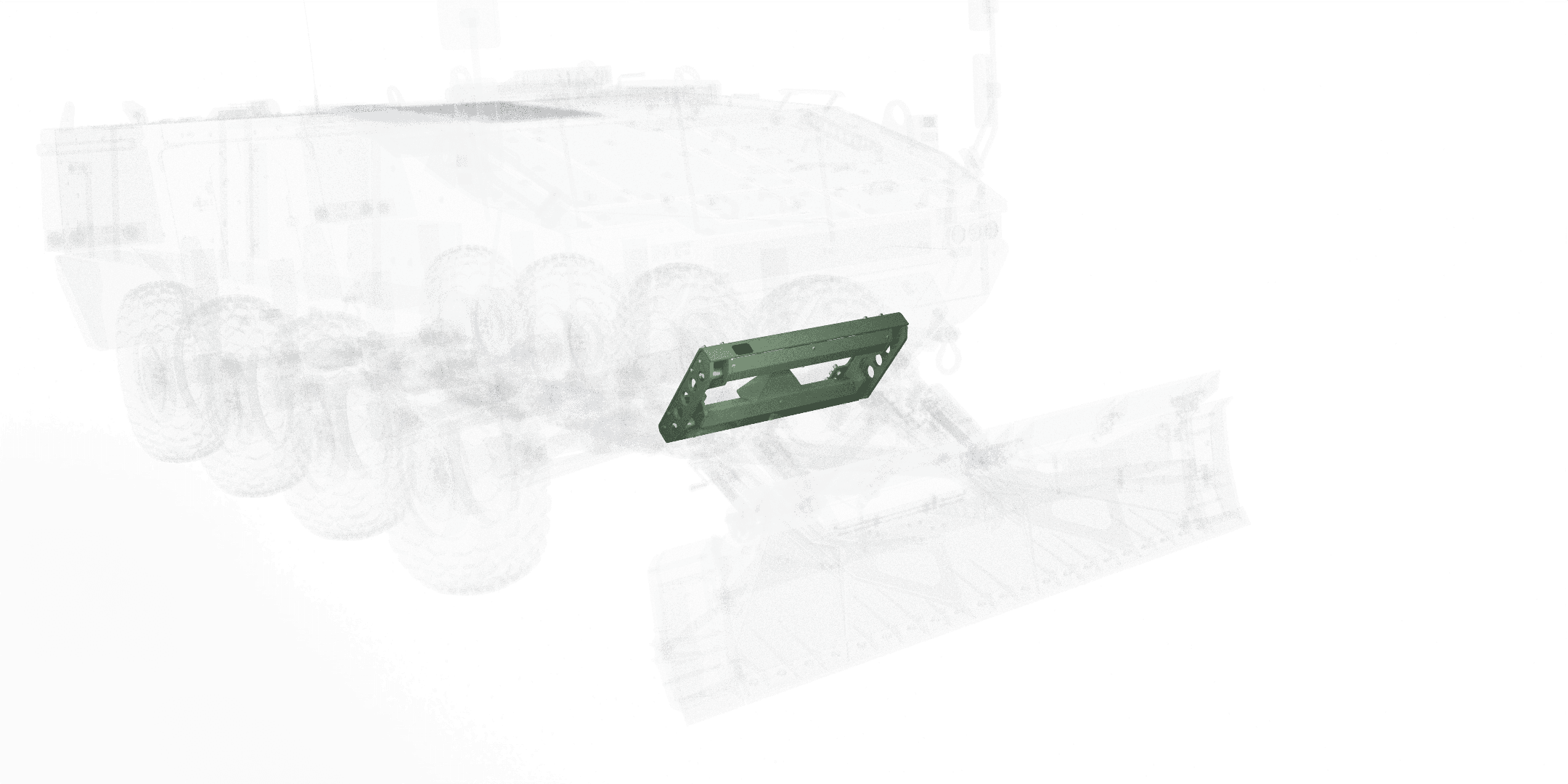

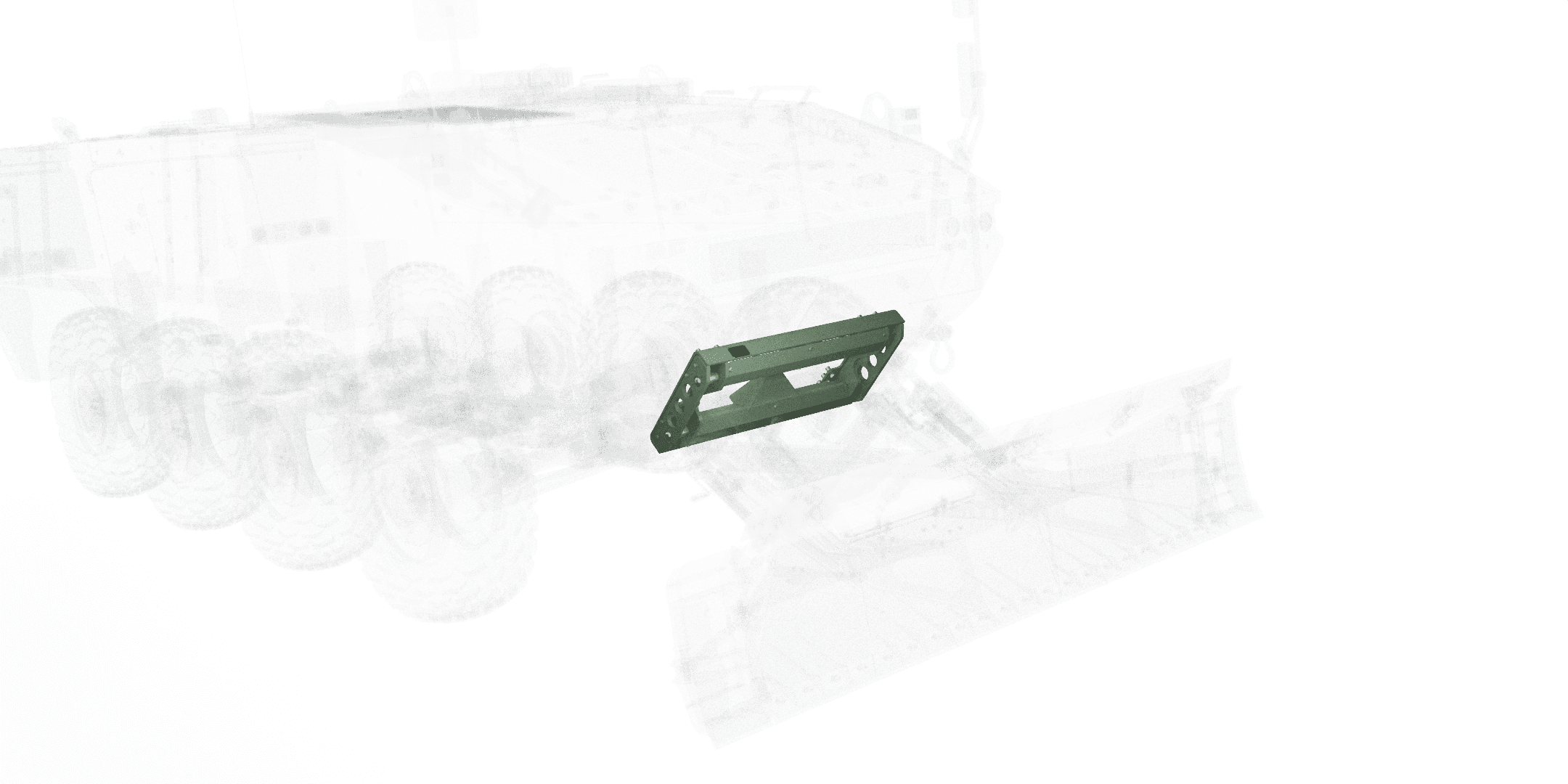

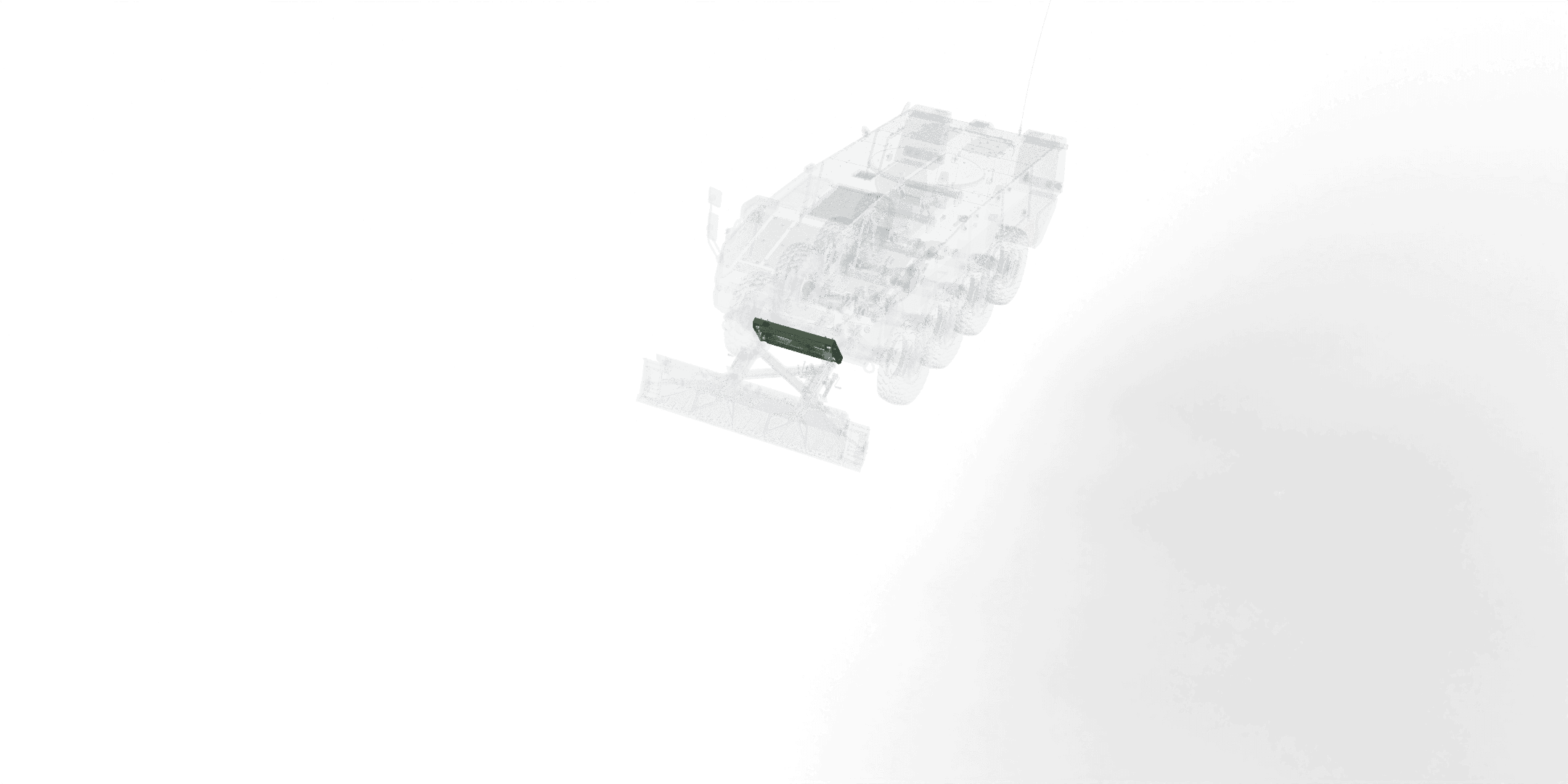

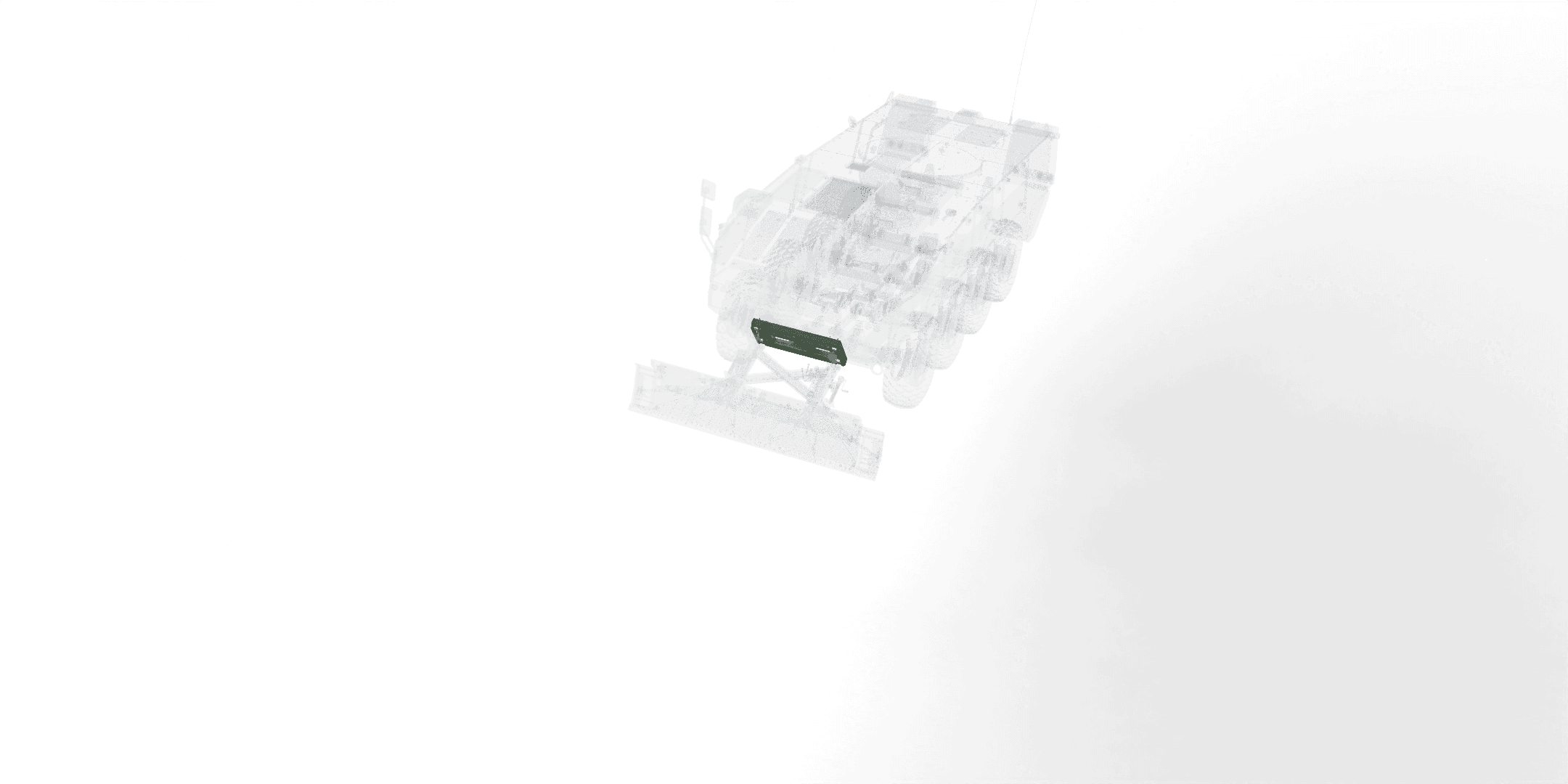

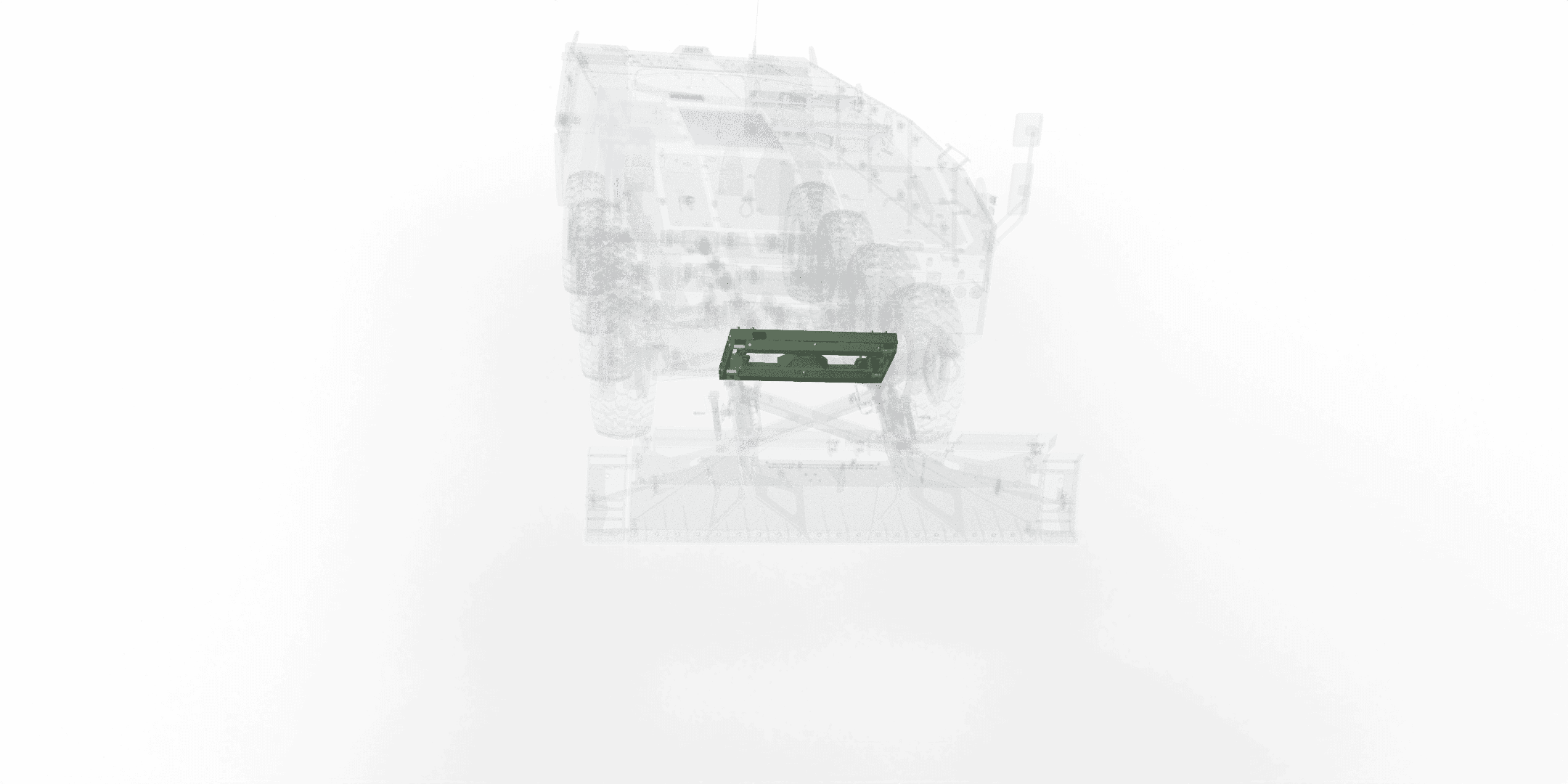

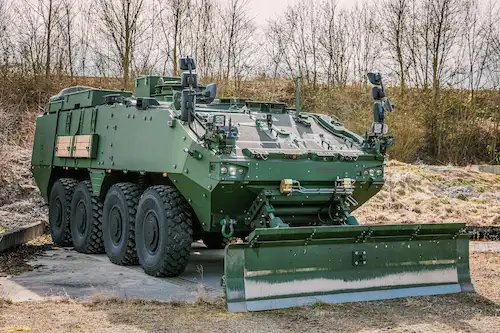

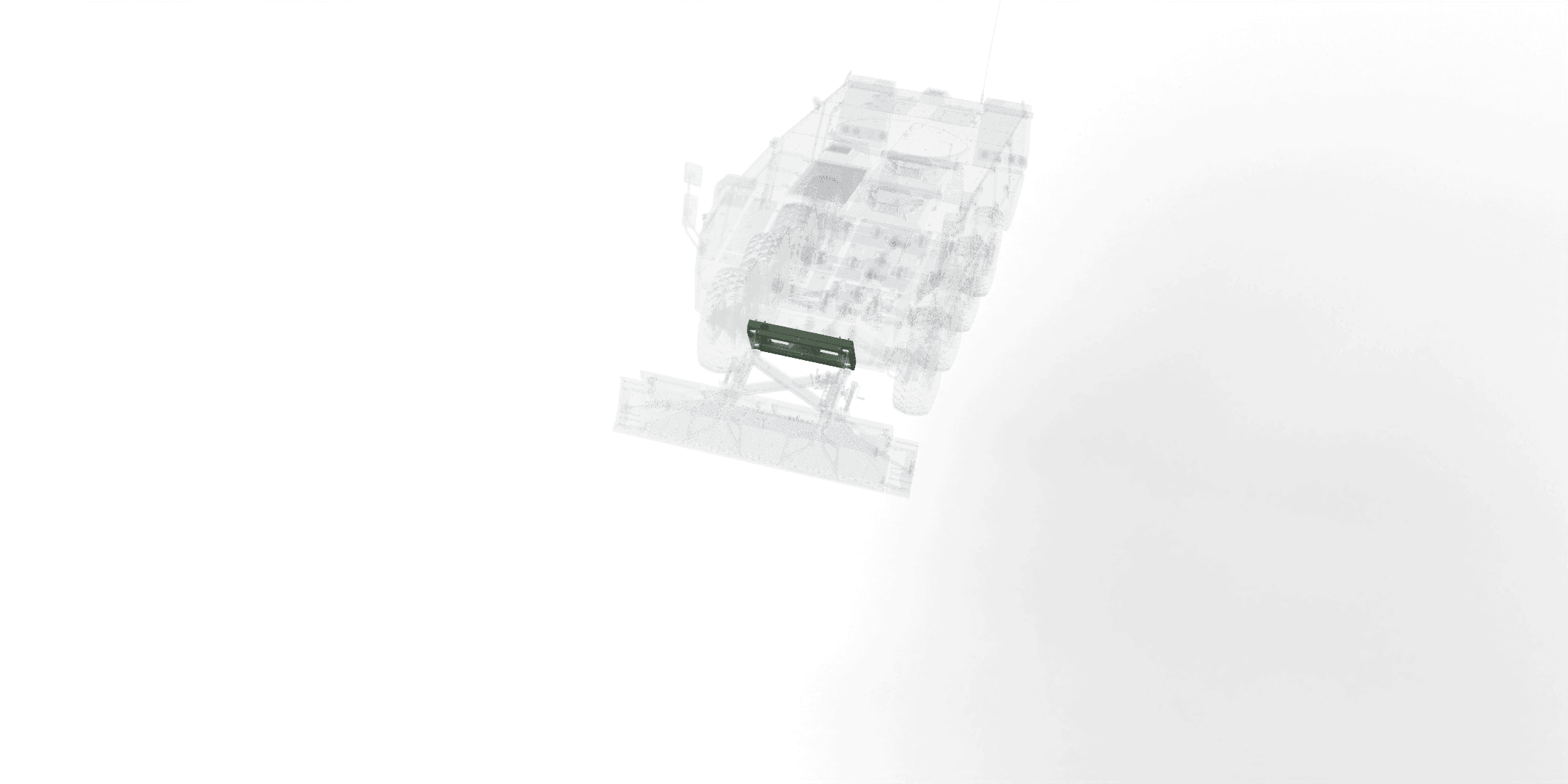

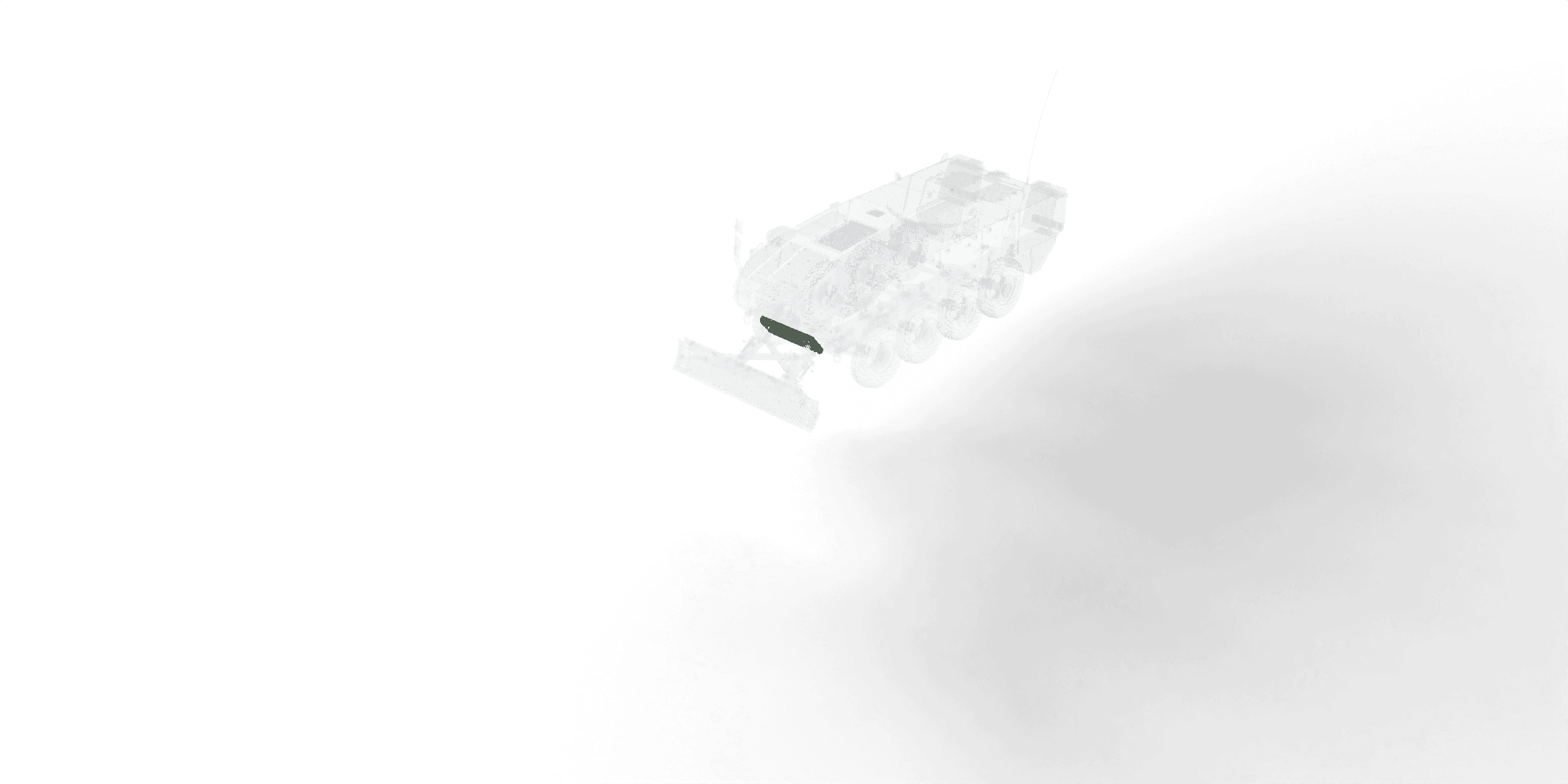

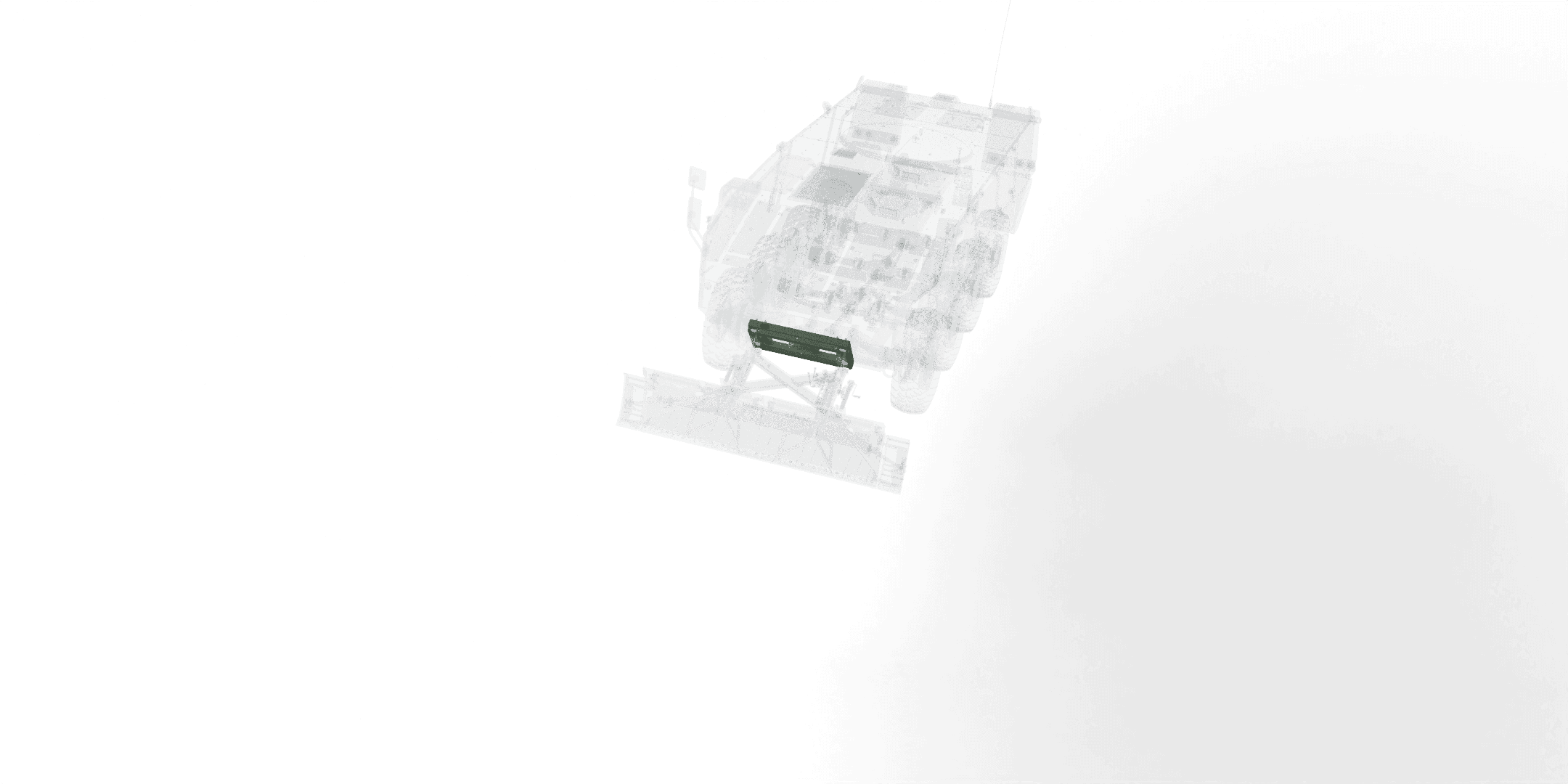

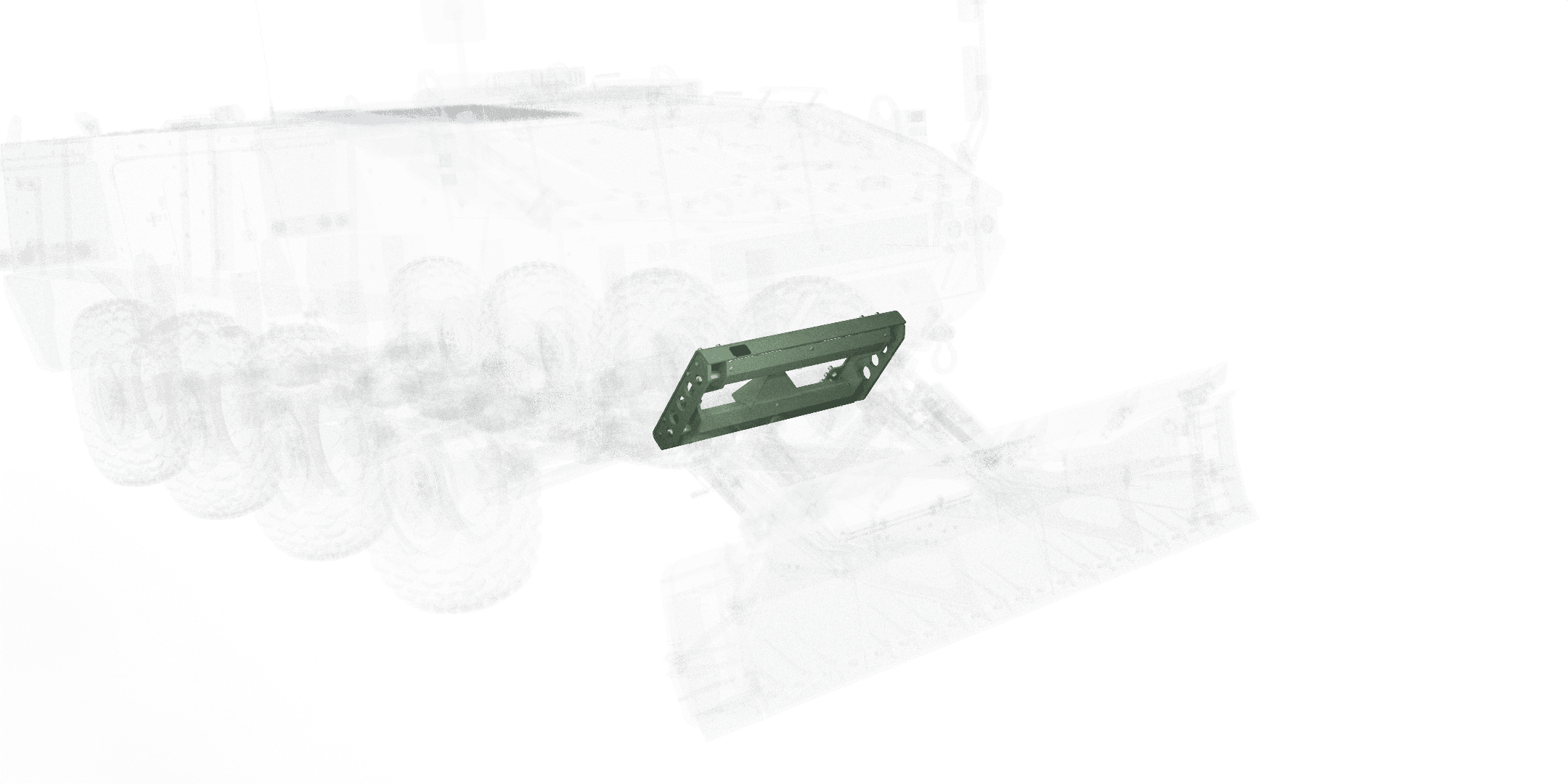

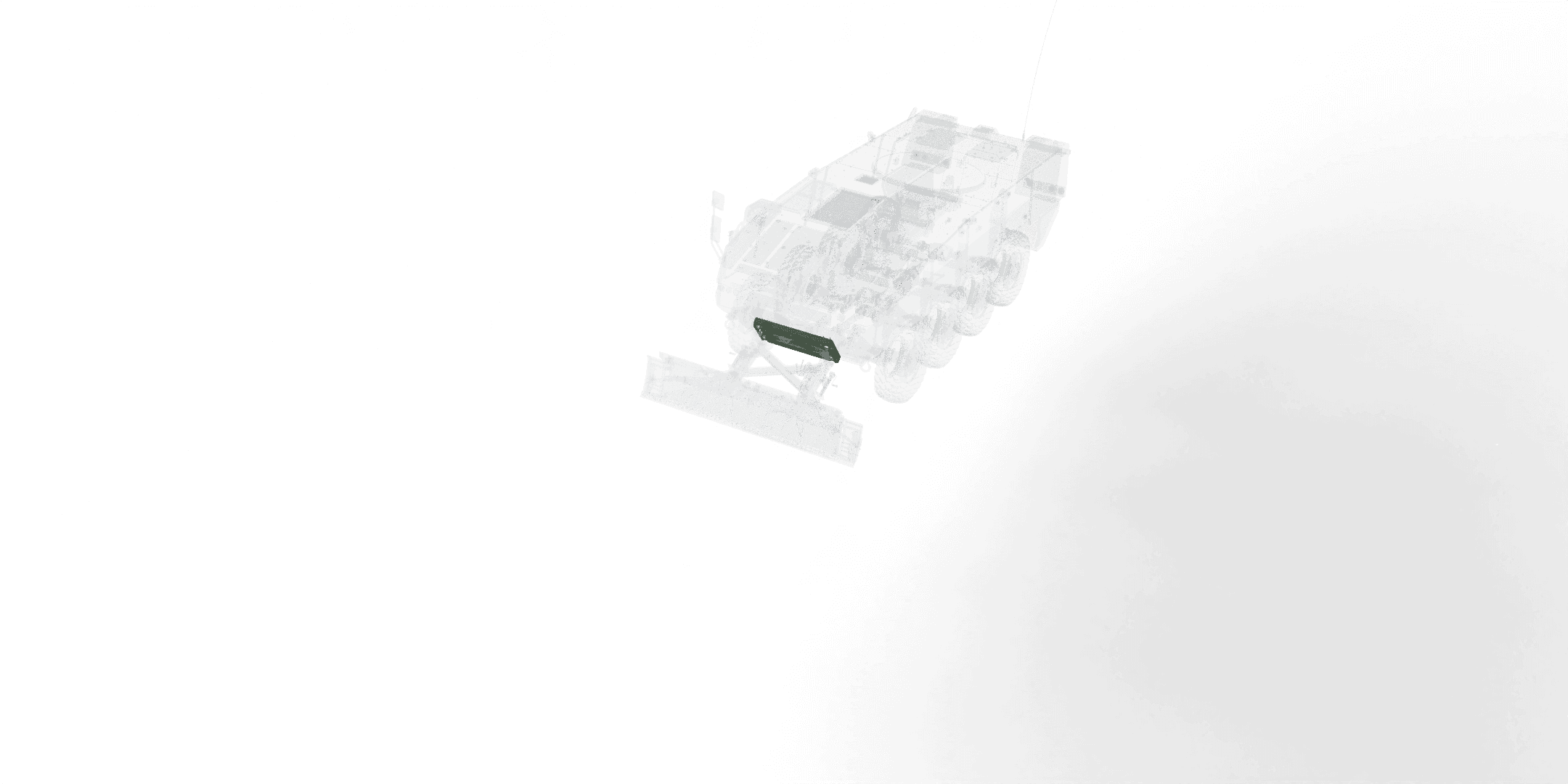

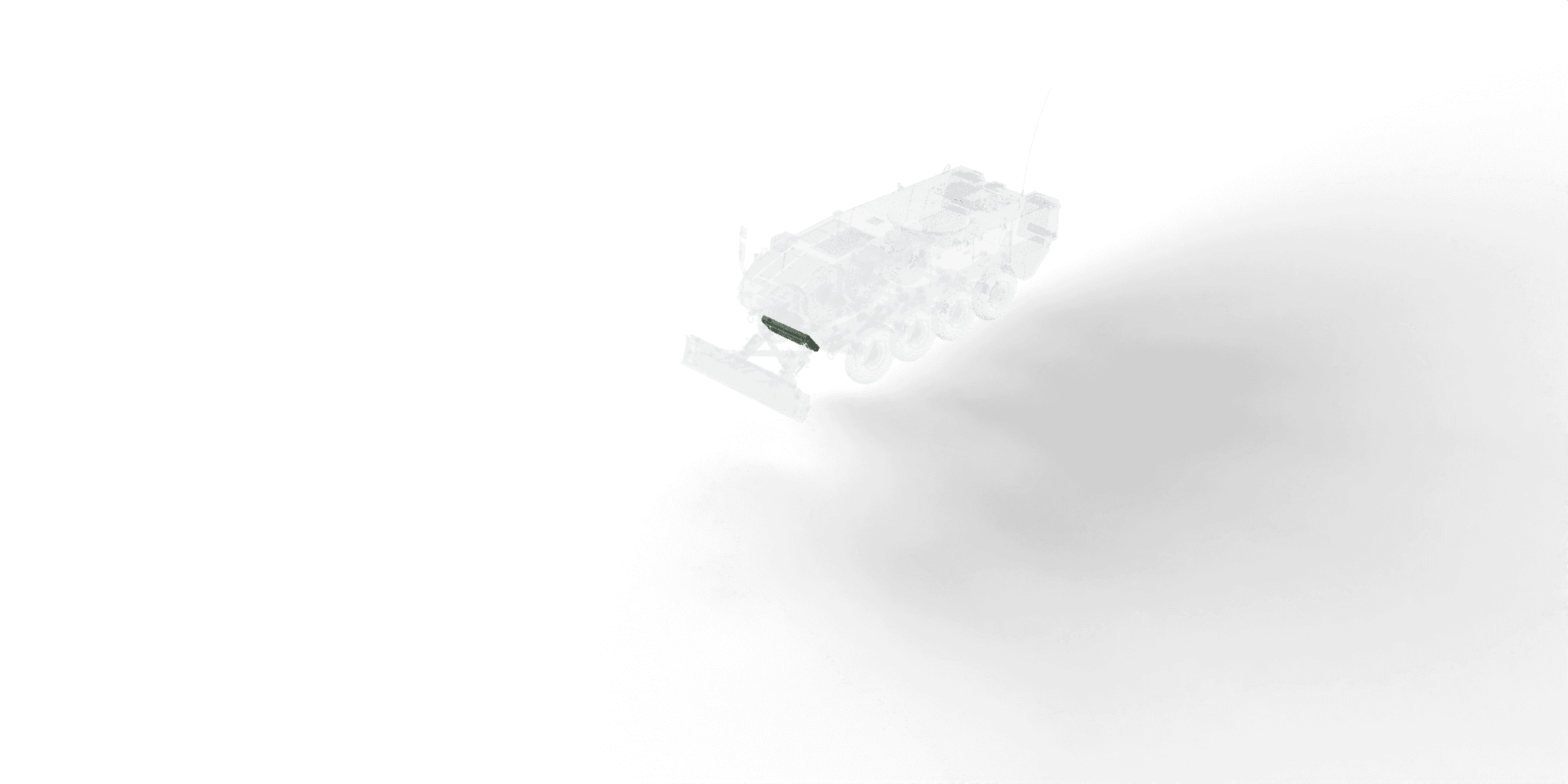

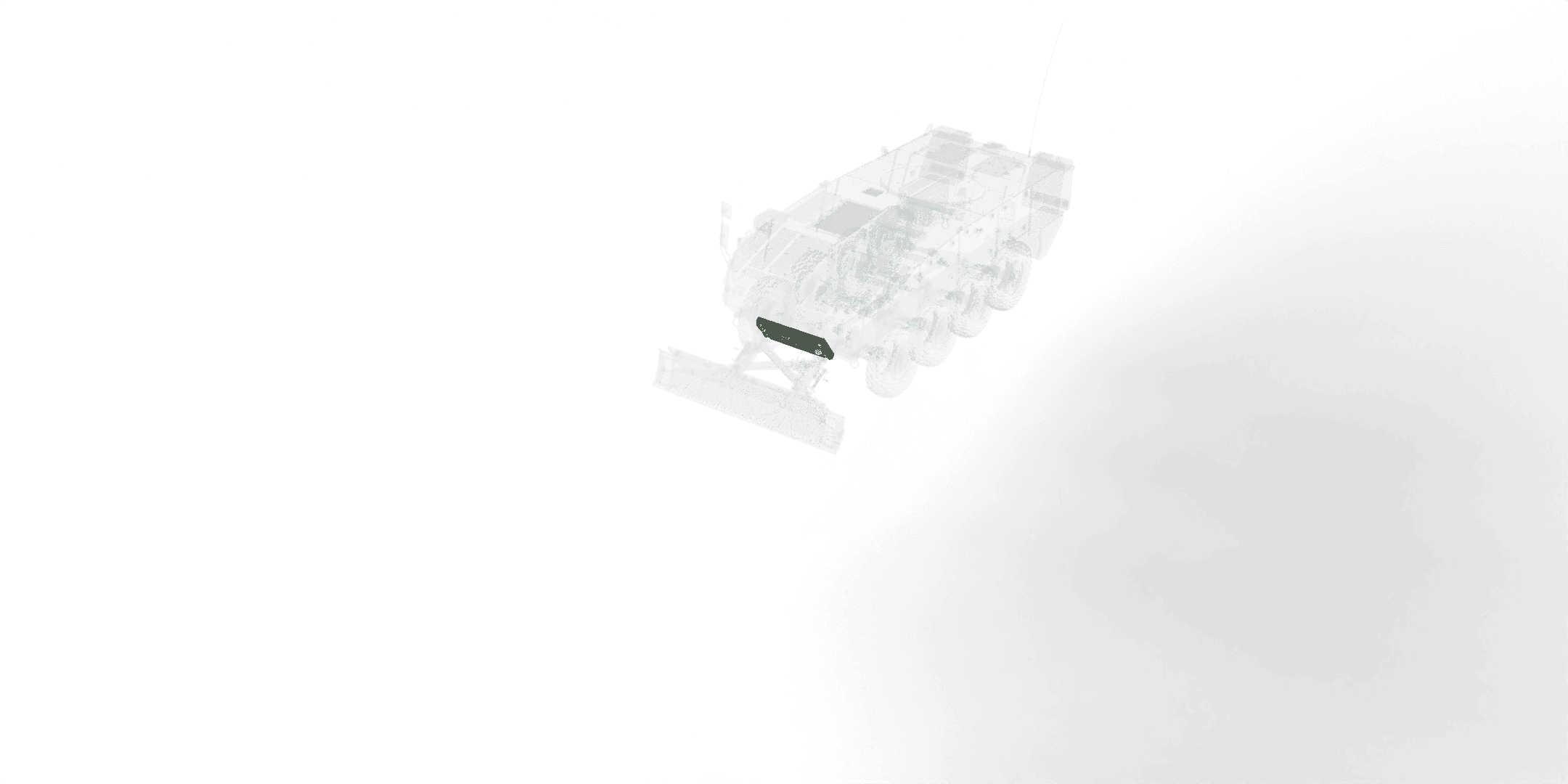

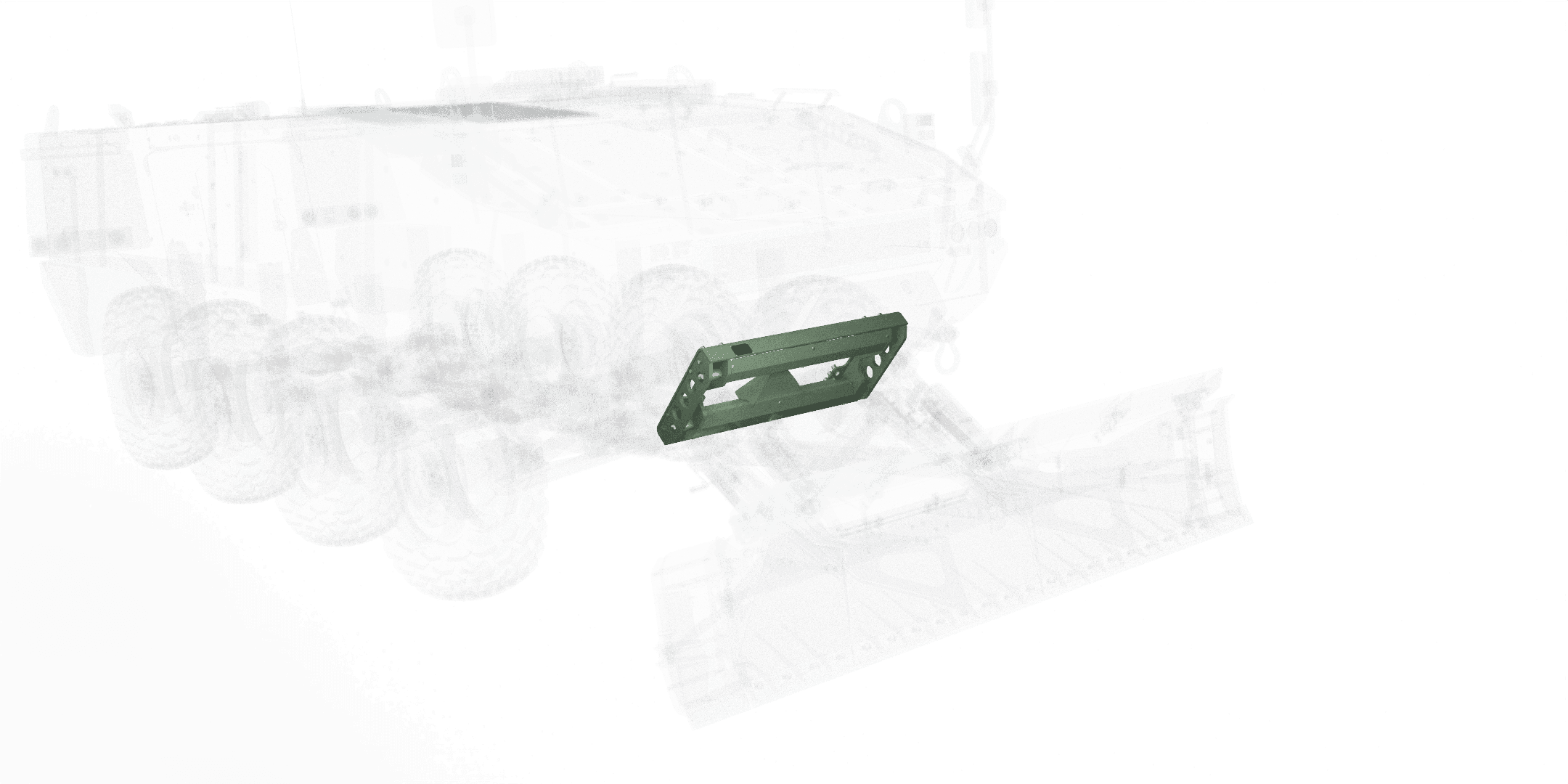

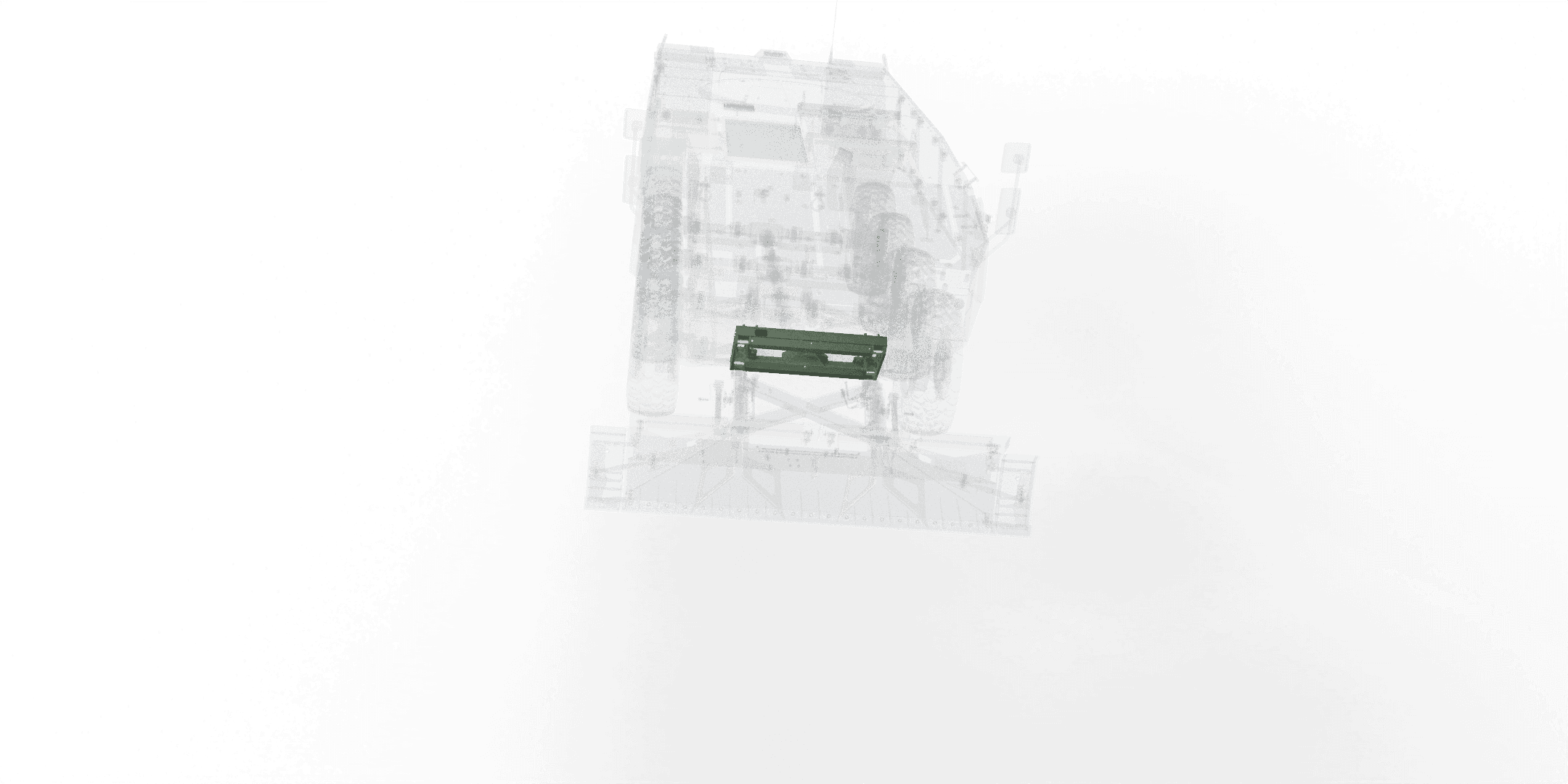

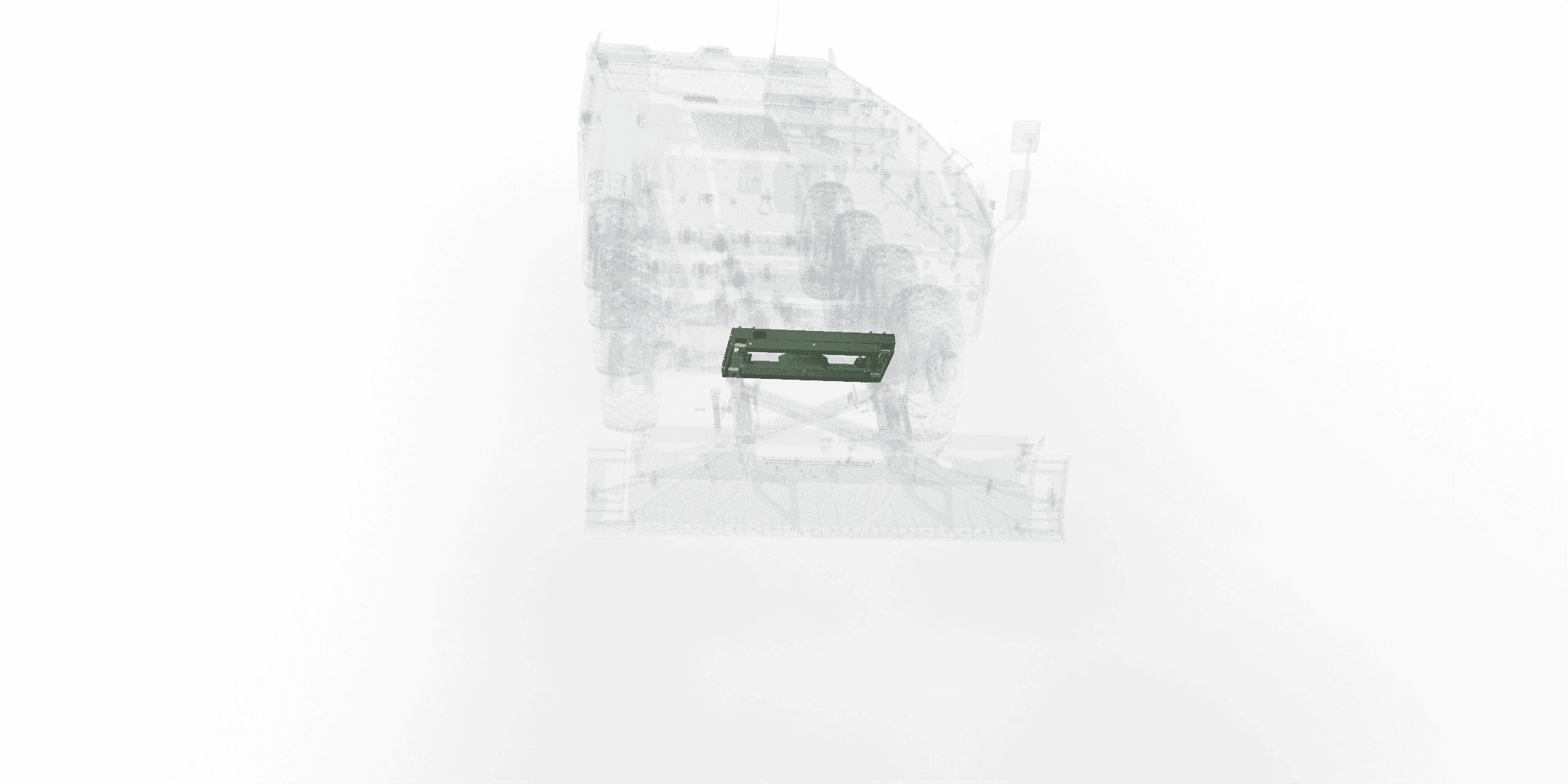

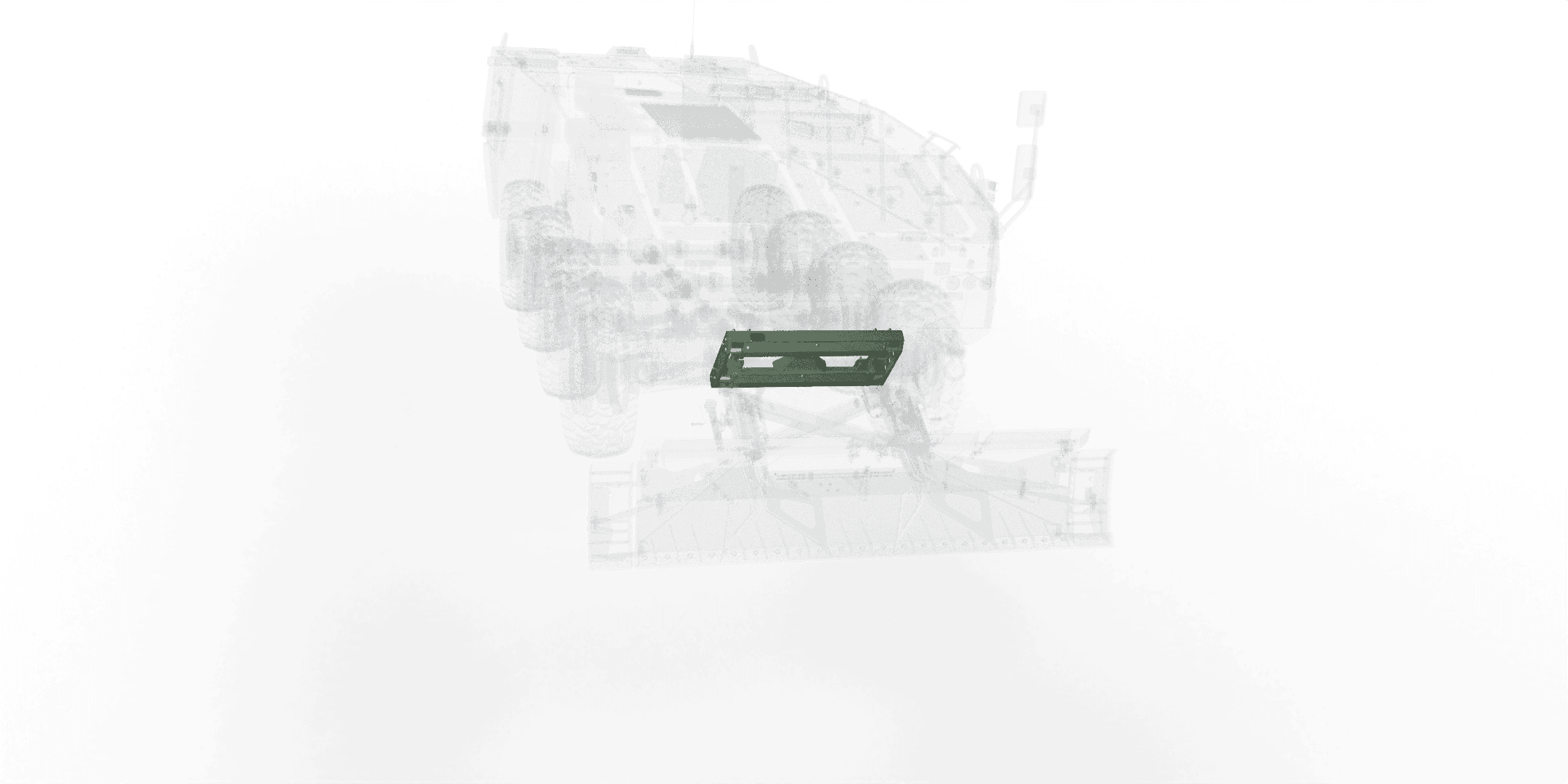

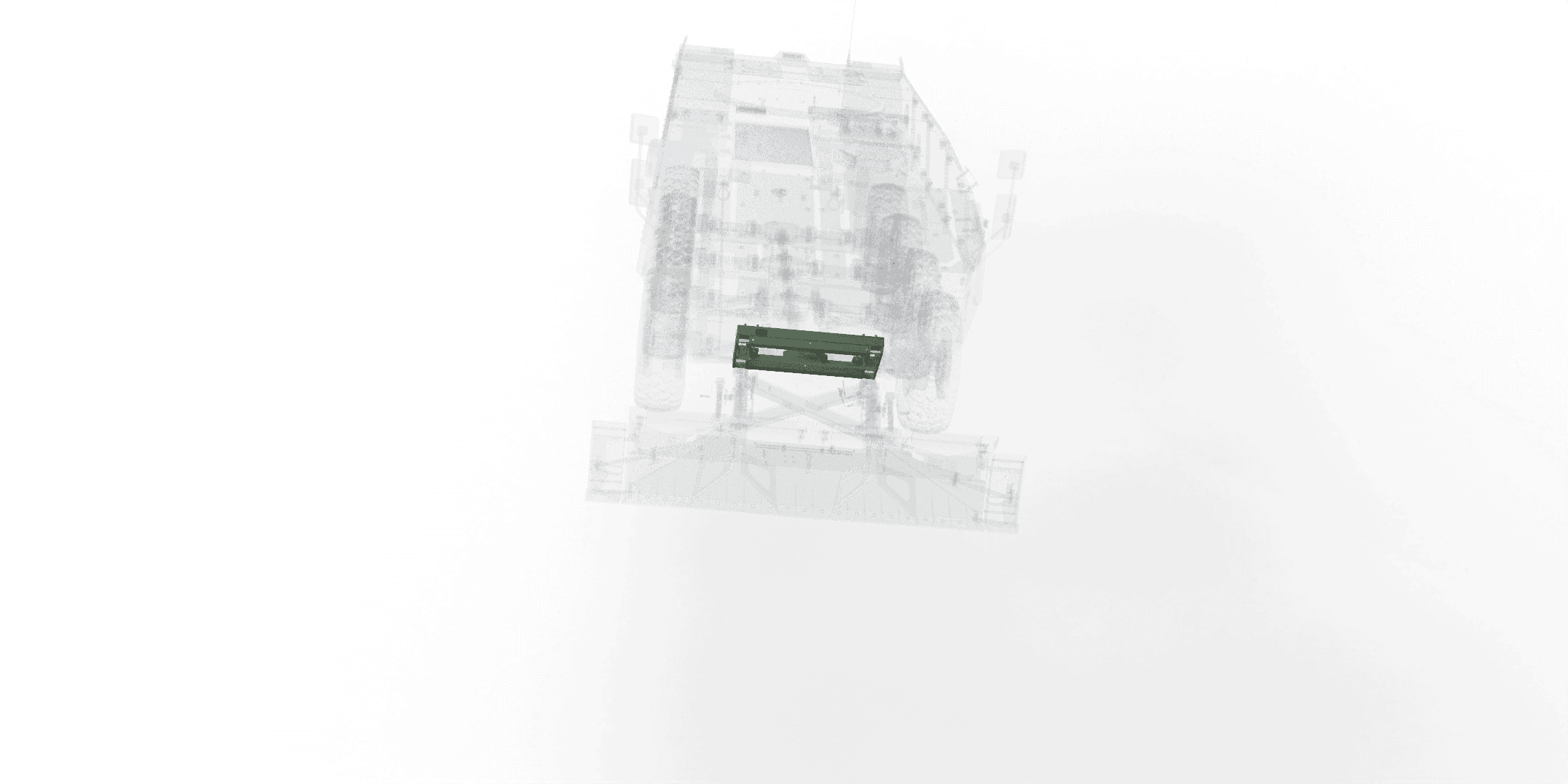

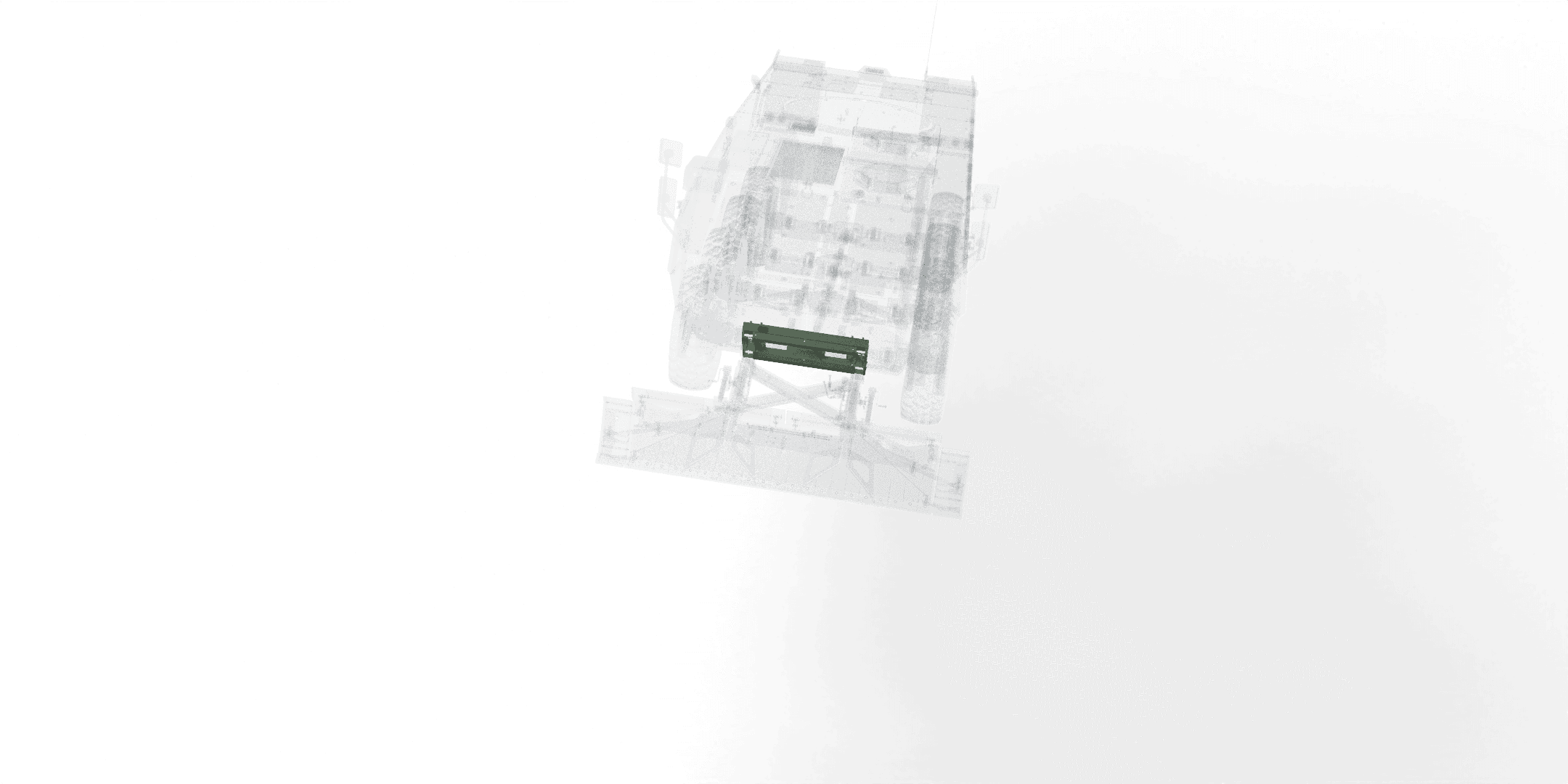

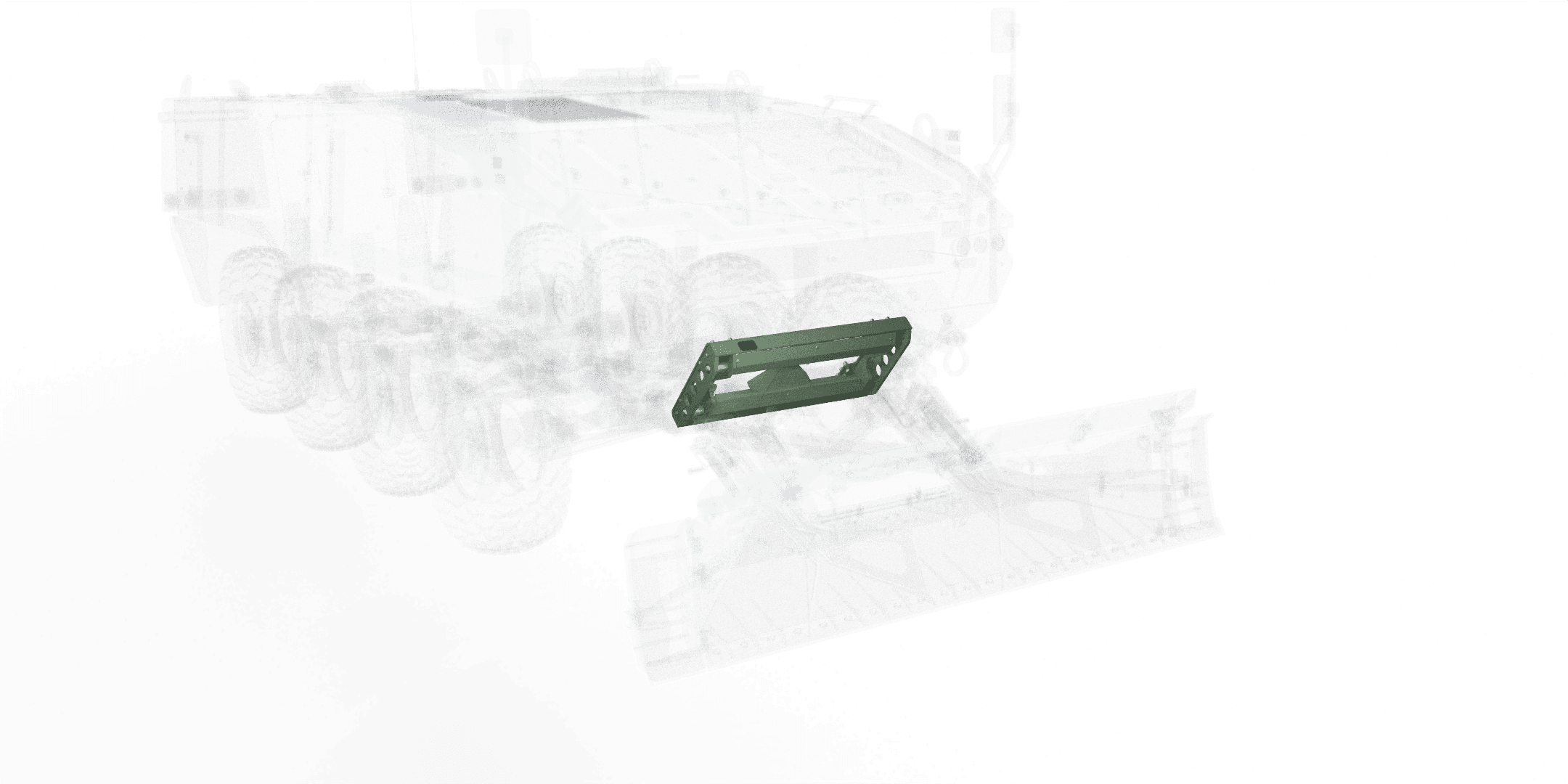

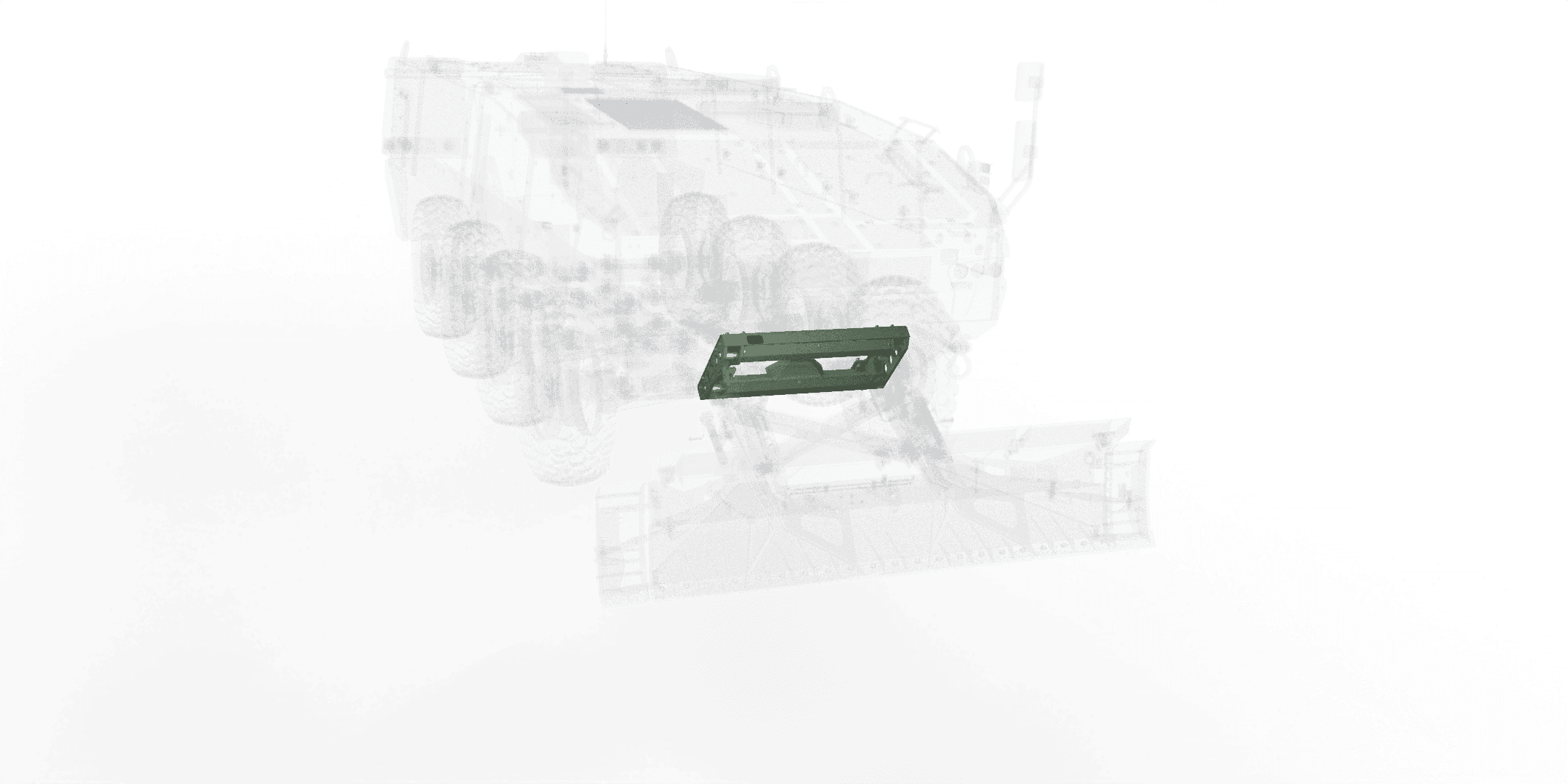

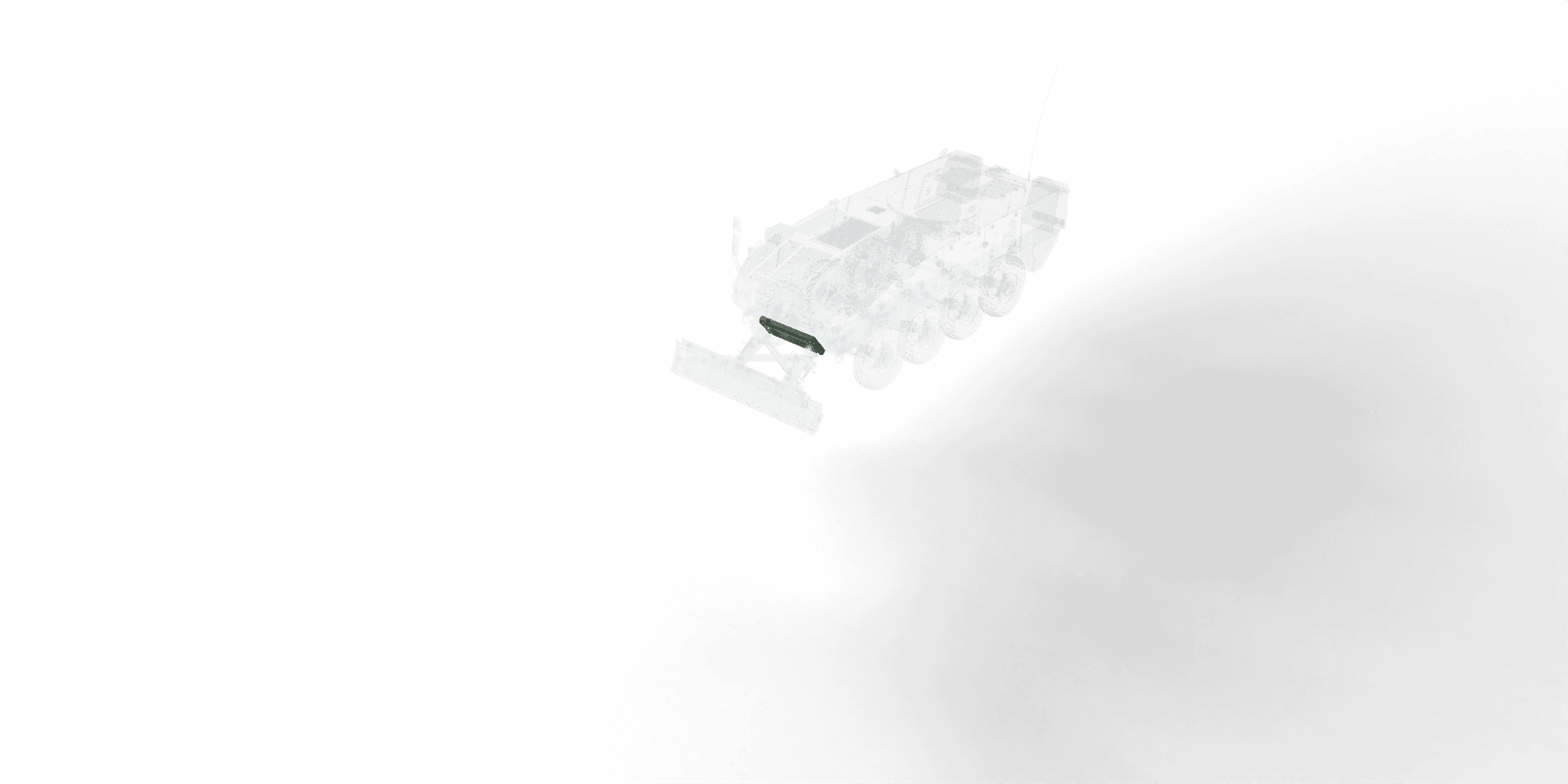

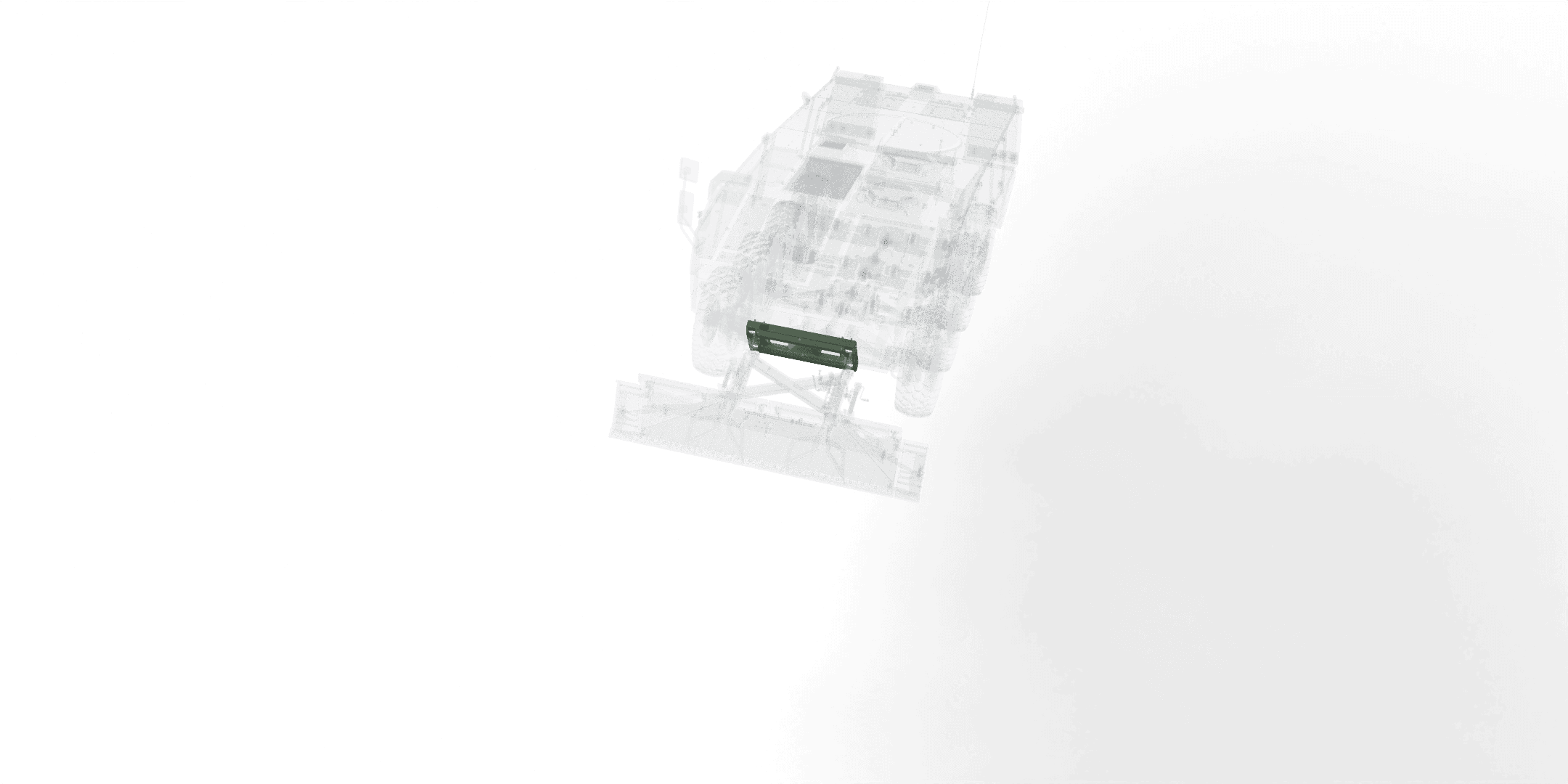

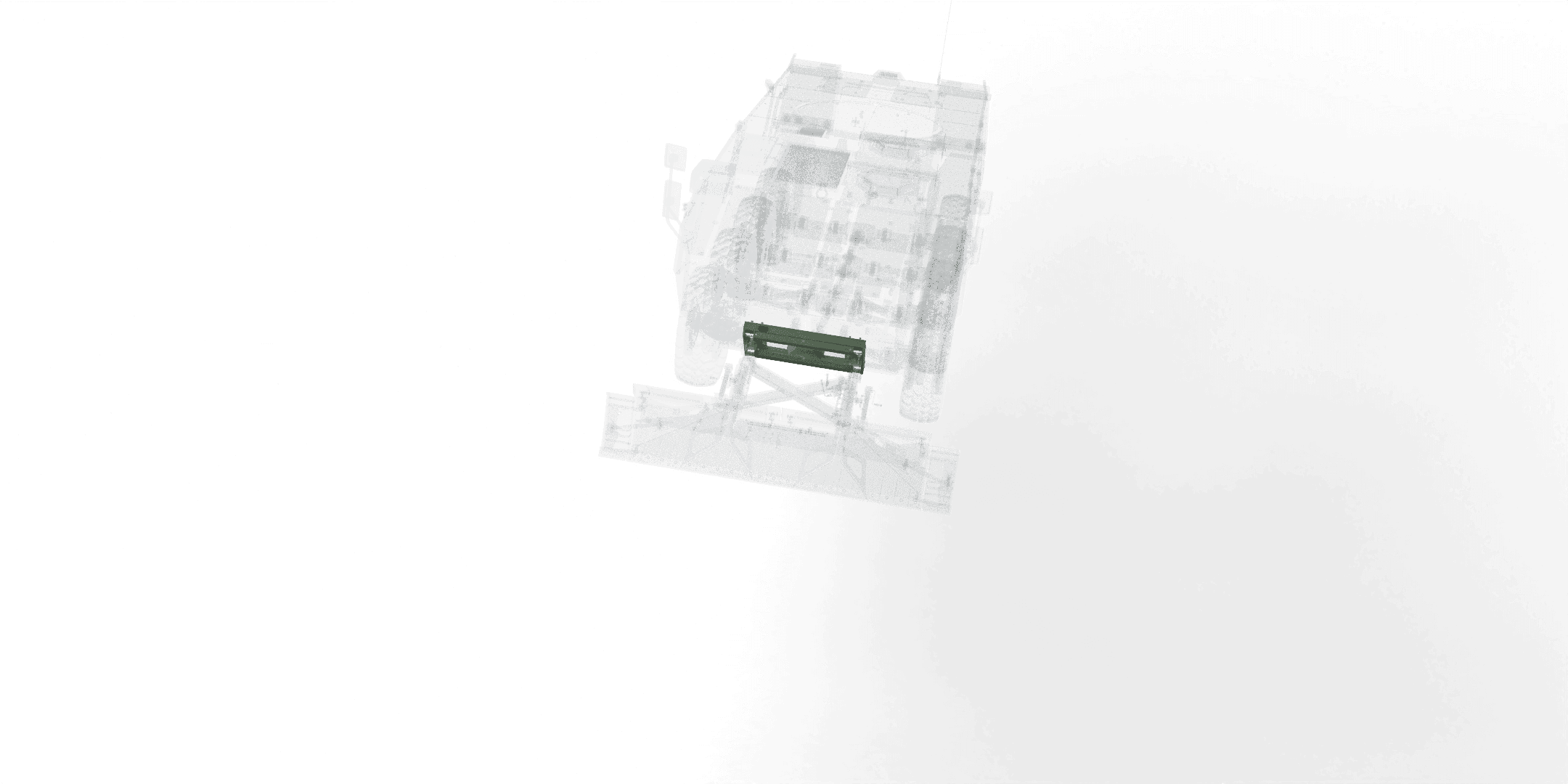

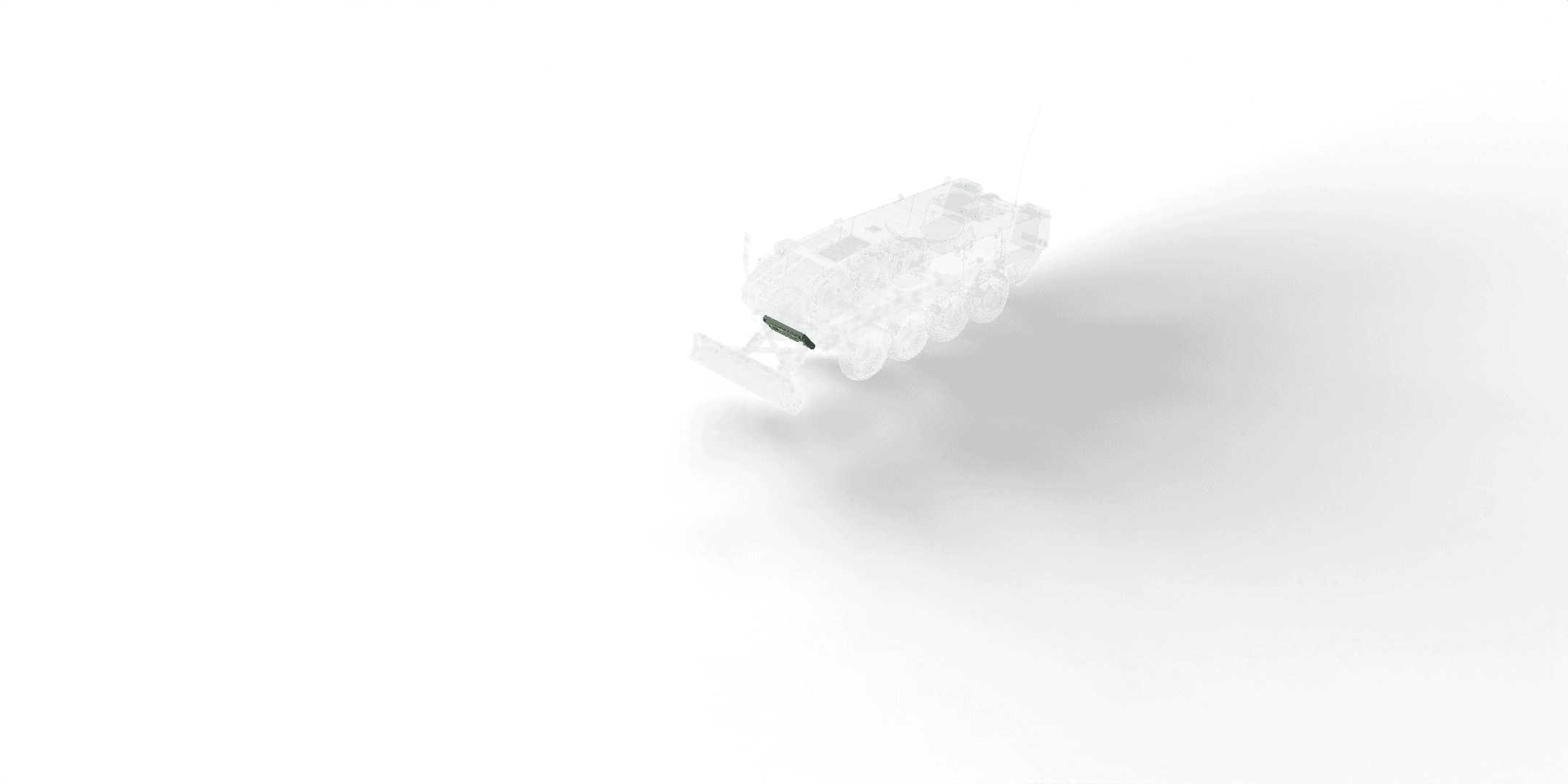

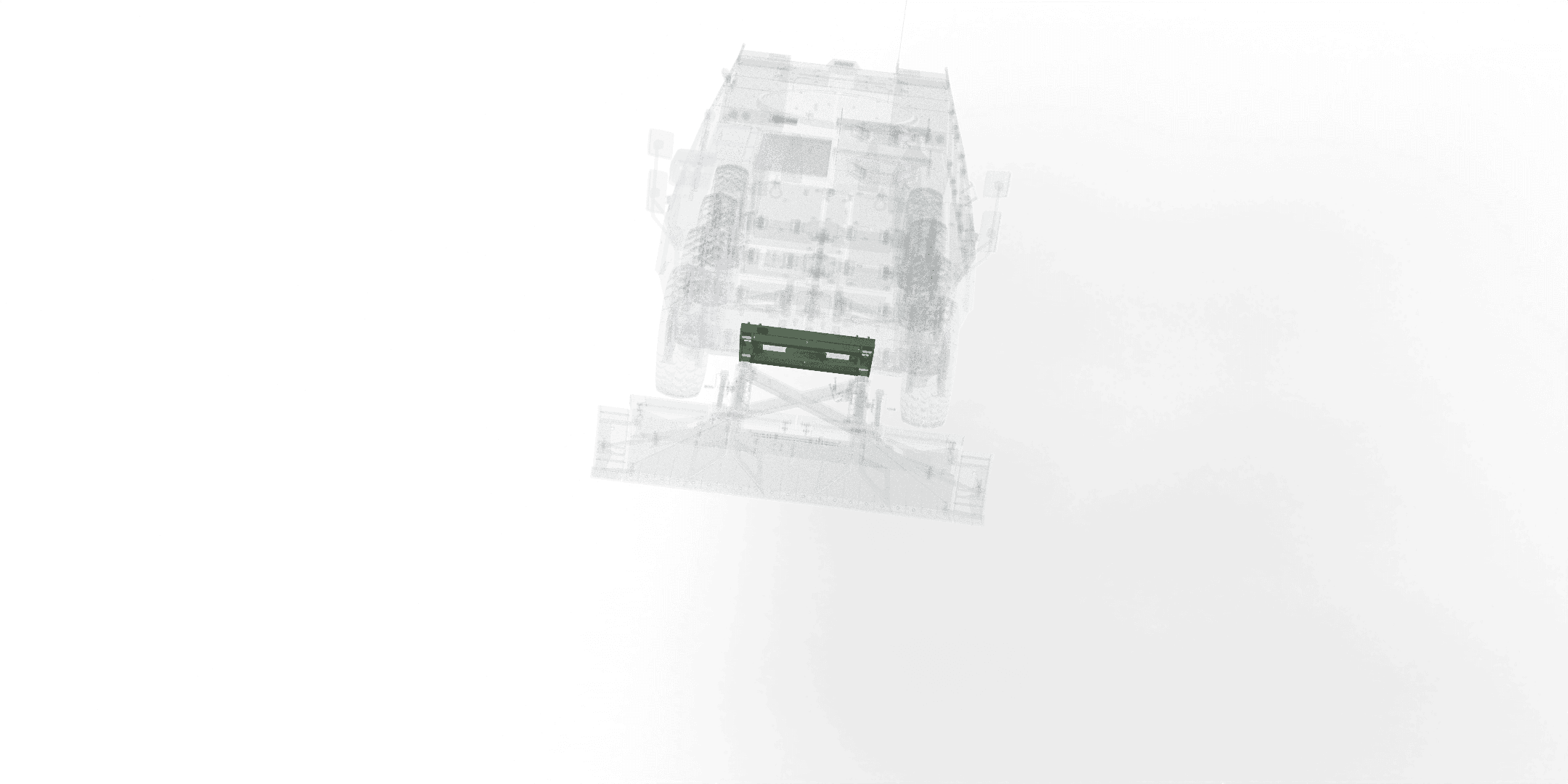

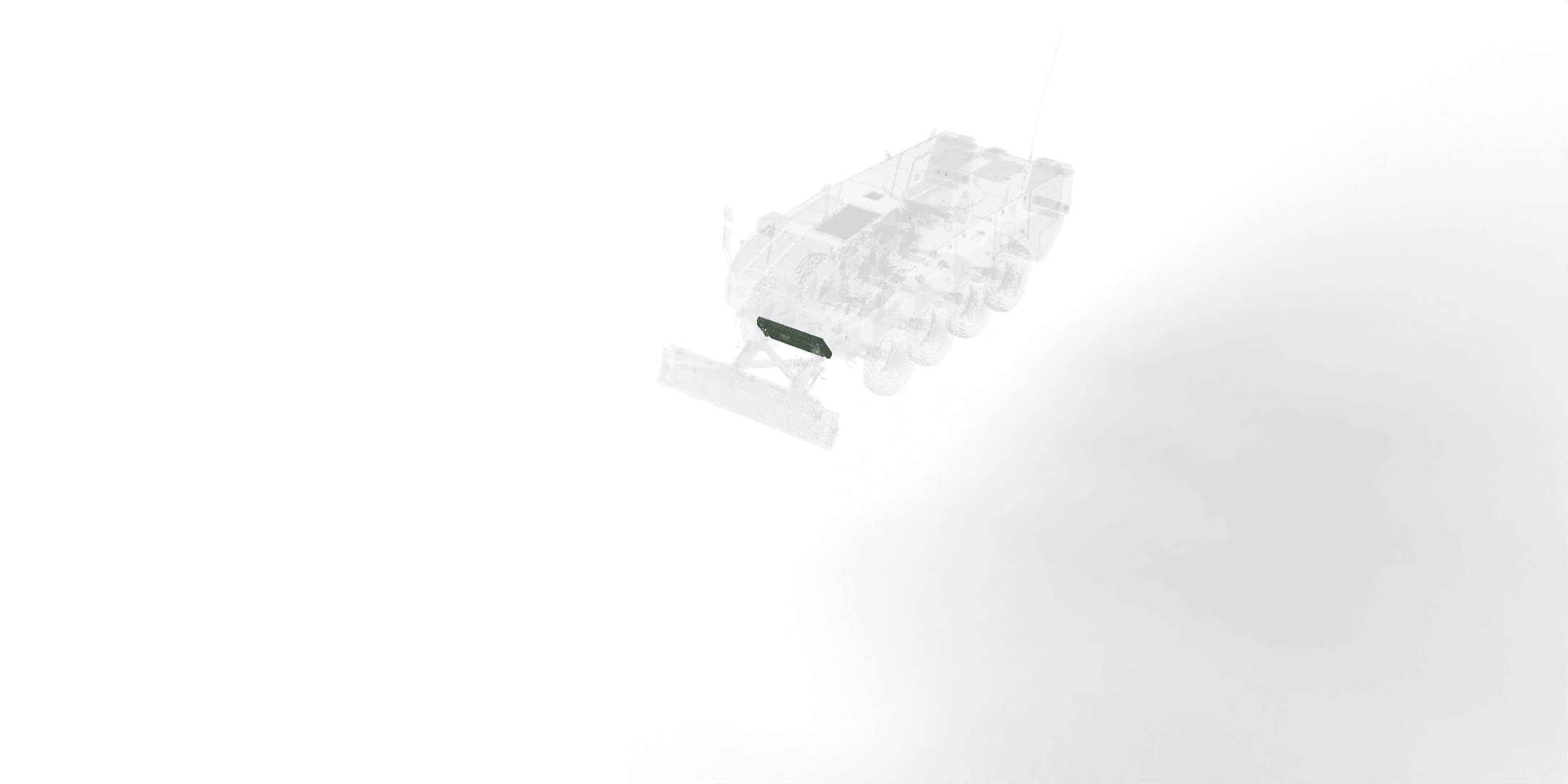

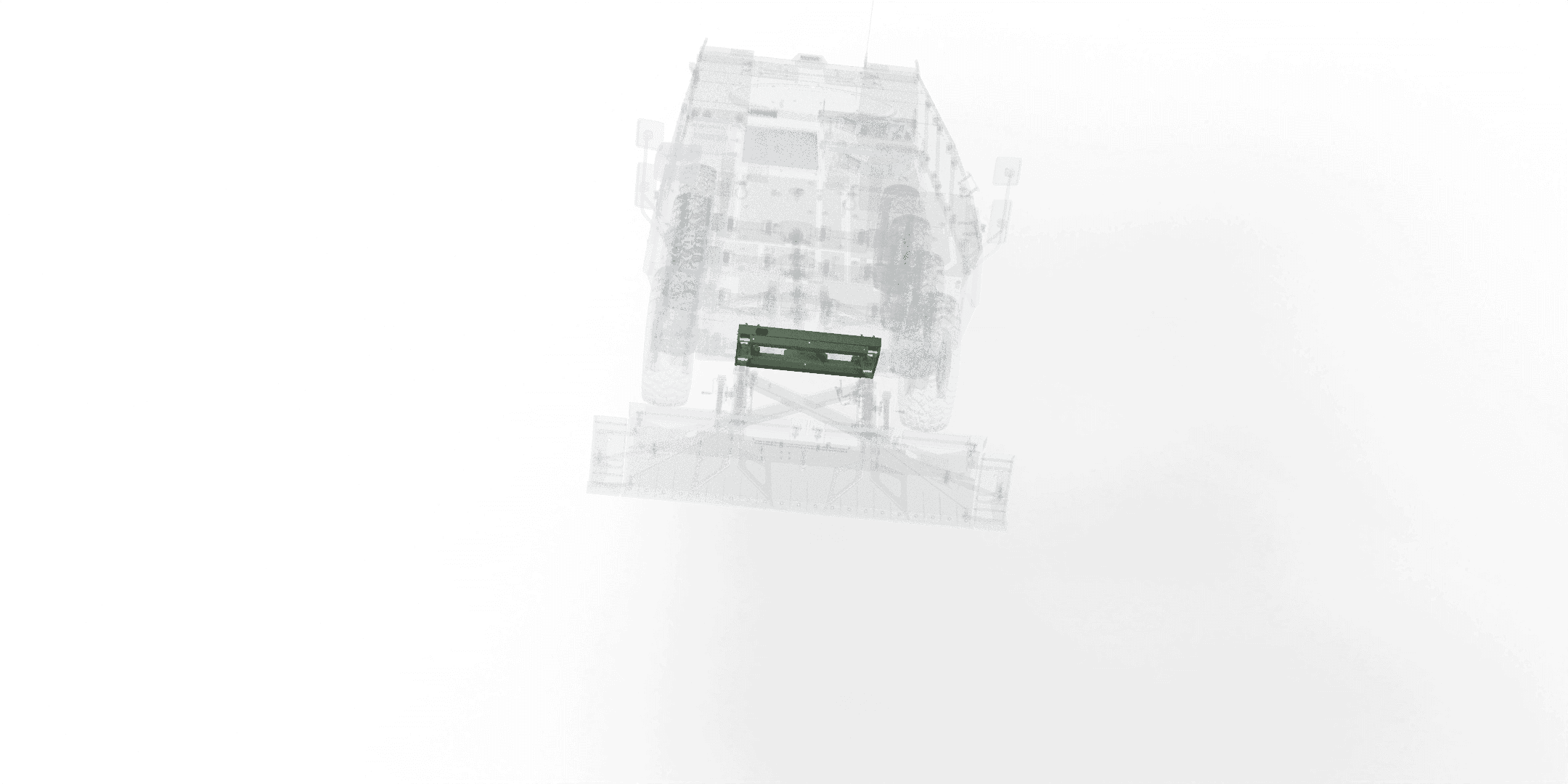

The Quick Coupler Adapter enables the safe, rapid and repeatable coupling of mission‑specific attachments to protected host vehicles. Mounted to the front of the vehicle, it allows operators to change between any GCS attachment, including dozer blades, manipulators and clearance devices within minutes, without special equipment.
The Quick Coupler Adapter is used where operational tempo, safety and configuration flexibility are critical. By reducing exposure time during attachment changes and ensuring controlled, positively locked connections, it supports continuous operations across clearance, engineering and route‑opening tasks. It forms a core interface between host vehicle and attachments within GCS Combat Engineering and Clearance configurations.
The Quick Coupler Adapter enables the safe, rapid and repeatable coupling of mission‑specific attachments to protected host vehicles. Mounted to the front of the vehicle, it allows operators to change between any GCS attachment, including dozer blades, manipulators and clearance devices within minutes, without special equipment.
The Quick Coupler Adapter is used where operational tempo, safety and configuration flexibility are critical. By reducing exposure time during attachment changes and ensuring controlled, positively locked connections, it supports continuous operations across clearance, engineering and route‑opening tasks. It forms a core interface between host vehicle and attachments within GCS Combat Engineering and Clearance configurations.
The Quick Coupler Adapter enables the safe, rapid and repeatable coupling of mission‑specific attachments to protected host vehicles. Mounted to the front of the vehicle, it allows operators to change between any GCS attachment, including dozer blades, manipulators and clearance devices within minutes, without special equipment.
The Quick Coupler Adapter is used where operational tempo, safety and configuration flexibility are critical. By reducing exposure time during attachment changes and ensuring controlled, positively locked connections, it supports continuous operations across clearance, engineering and route‑opening tasks. It forms a core interface between host vehicle and attachments within GCS Combat Engineering and Clearance configurations.
The Quick Coupler Adapter enables the safe, rapid and repeatable coupling of mission‑specific attachments to protected host vehicles. Mounted to the front of the vehicle, it allows operators to change between any GCS attachment, including dozer blades, manipulators and clearance devices within minutes, without special equipment.
The Quick Coupler Adapter is used where operational tempo, safety and configuration flexibility are critical. By reducing exposure time during attachment changes and ensuring controlled, positively locked connections, it supports continuous operations across clearance, engineering and route‑opening tasks. It forms a core interface between host vehicle and attachments within GCS Combat Engineering and Clearance configurations.
Built for operational deployment
01
Fast, equipment‑free attachment change
Hydraulically actuated locking pins allow coupling and decoupling of approved attachments within a few minutes, without the need for special tools or manual intervention at the interface.
02
Protected hydraulic & sensor integration
Hydraulic cylinders, lines and sensor components are enclosed by protective covers, supporting reliable operation in demanding field environments.
03
Compatible with many attachment types
Designed to interface with compatible GCS and selected third-party attachments, including dozer blades, dozer blades with manipulators and modular mine ploughs, within specified dimensional and weight limits.
04
Controlled & monitored locking mechanism
Four hydraulically actuated locking pins are monitored by sensors that confirm full end‑position engagement, ensuring that attachments are only considered locked when safely and correctly connected.
05
Permanent vehicle‑mounted interface

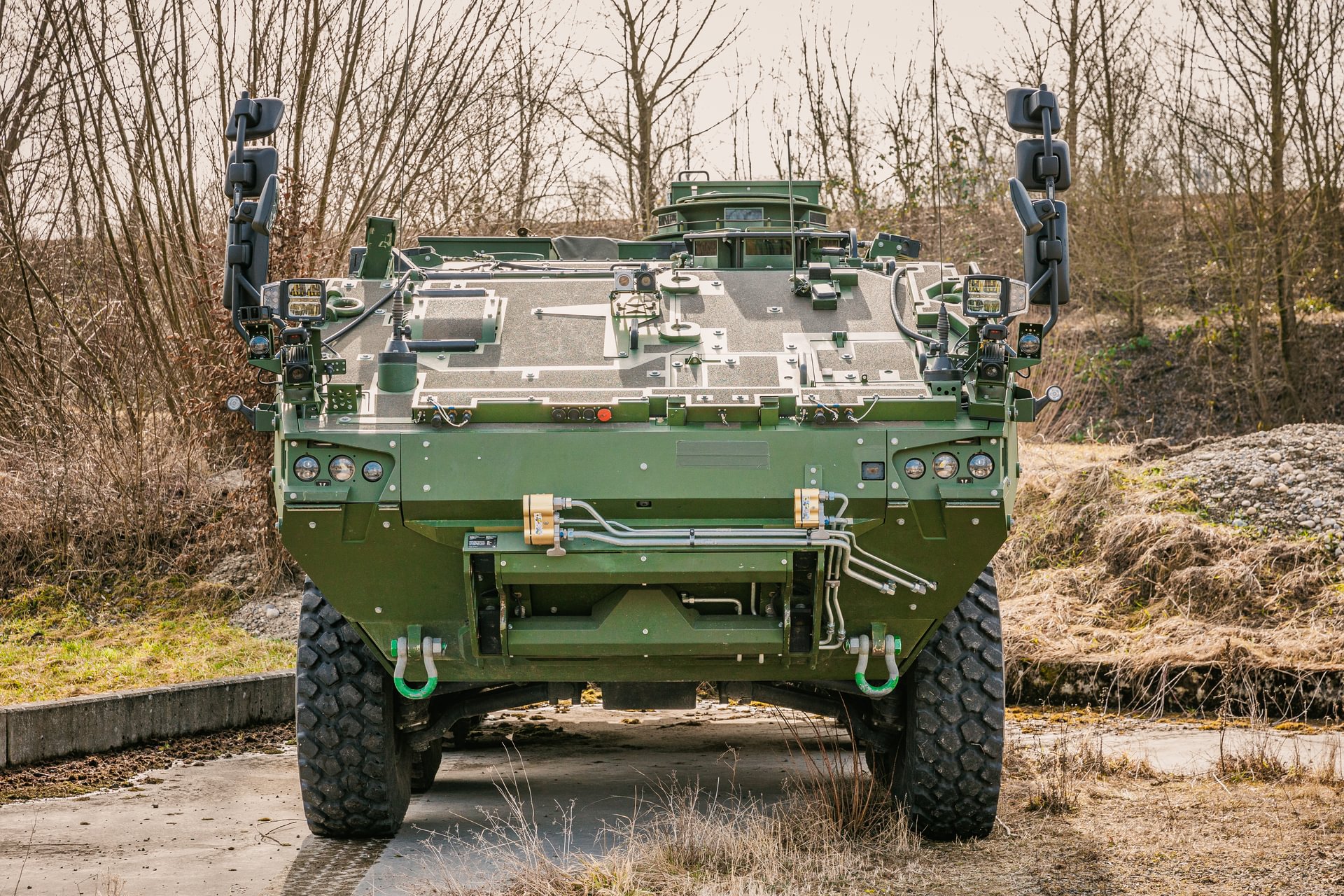

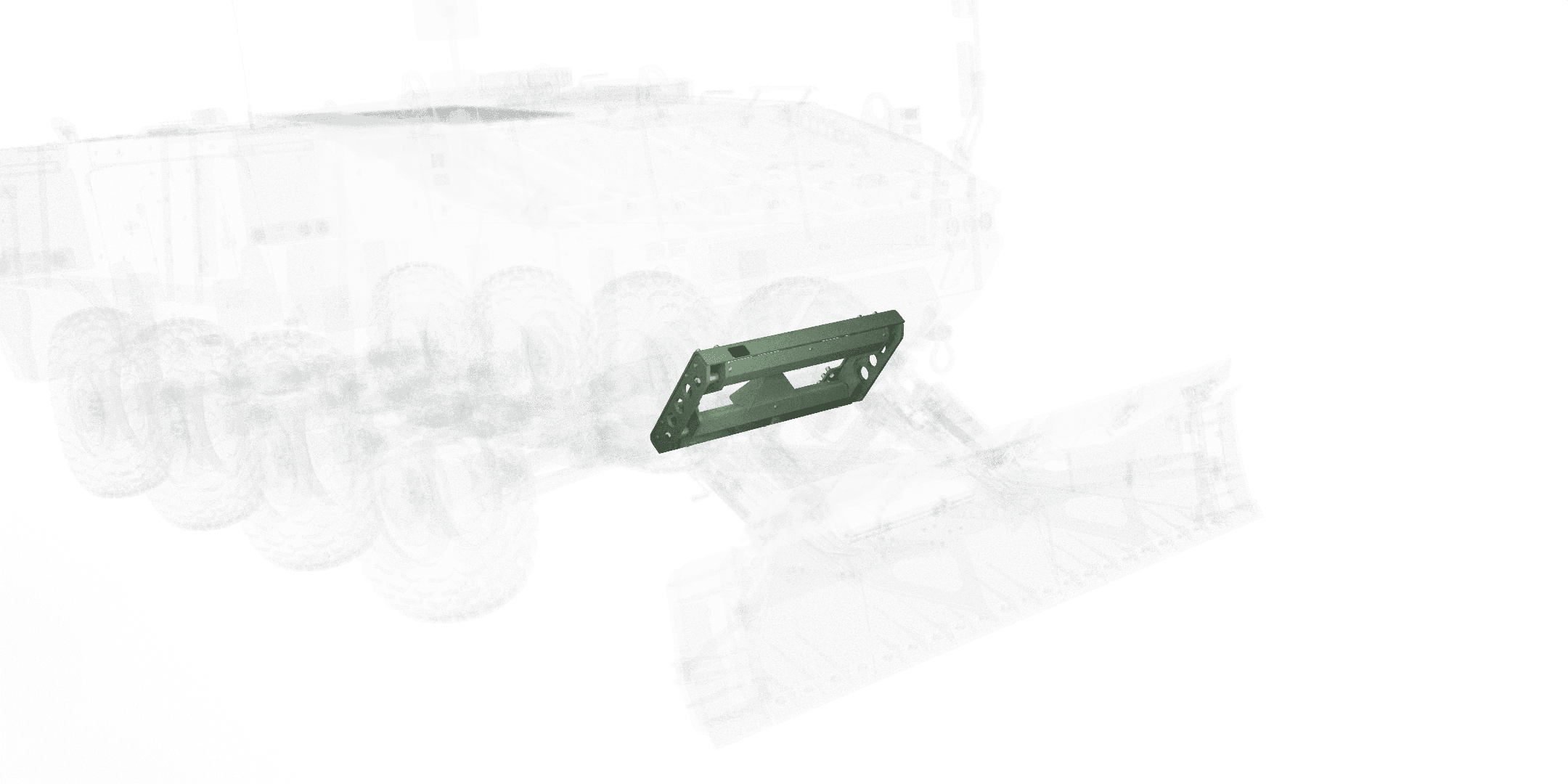

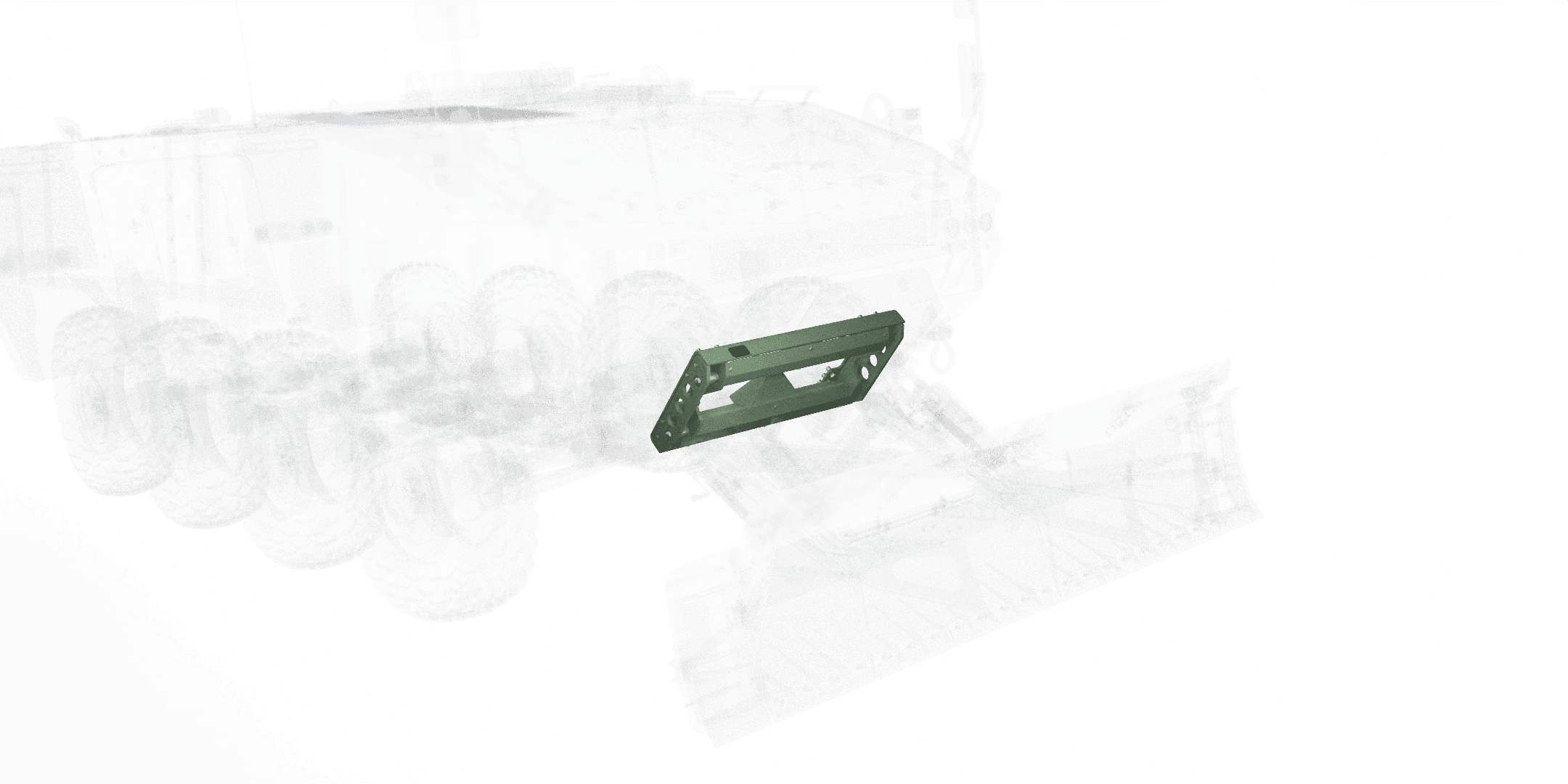

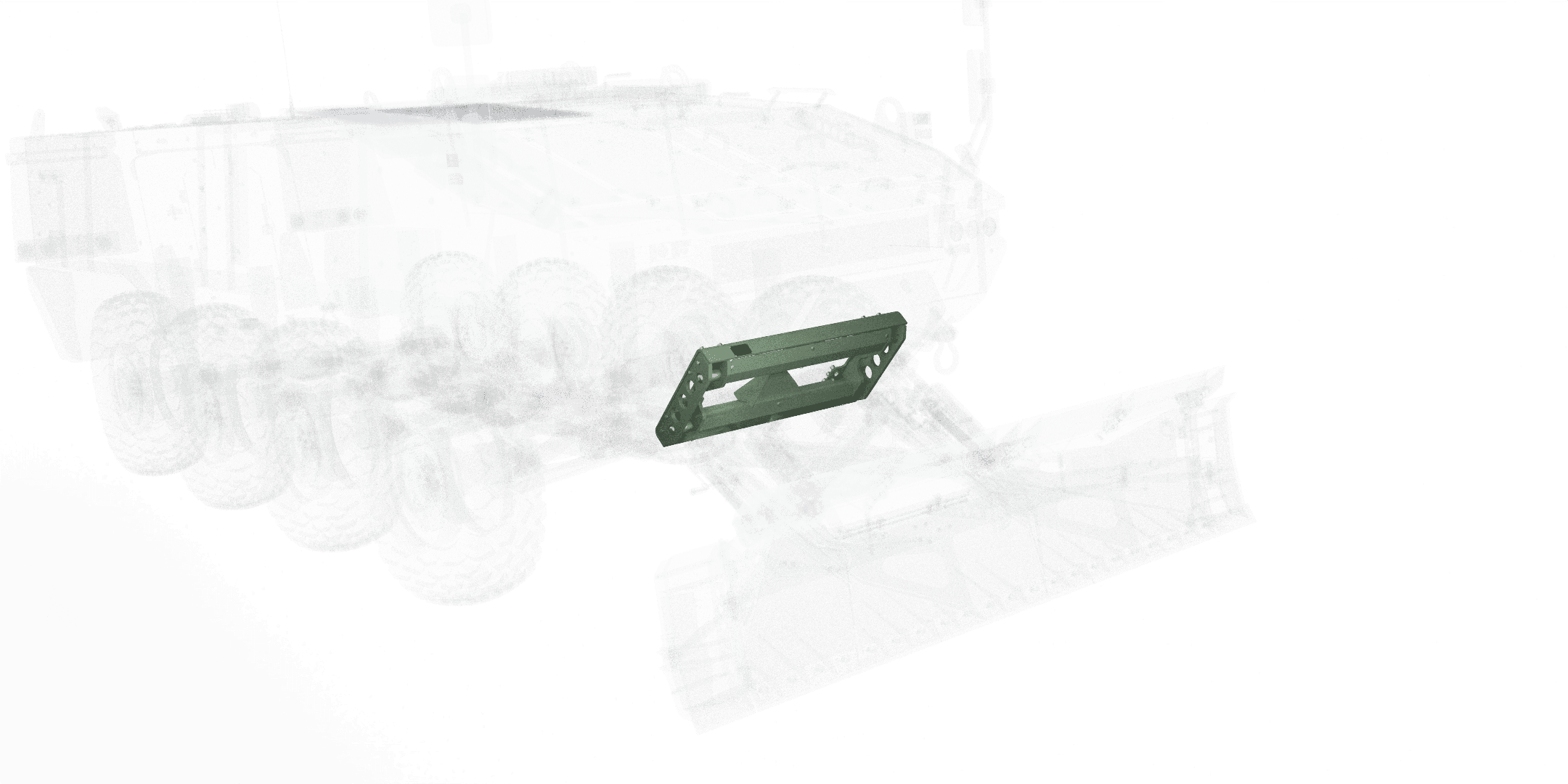

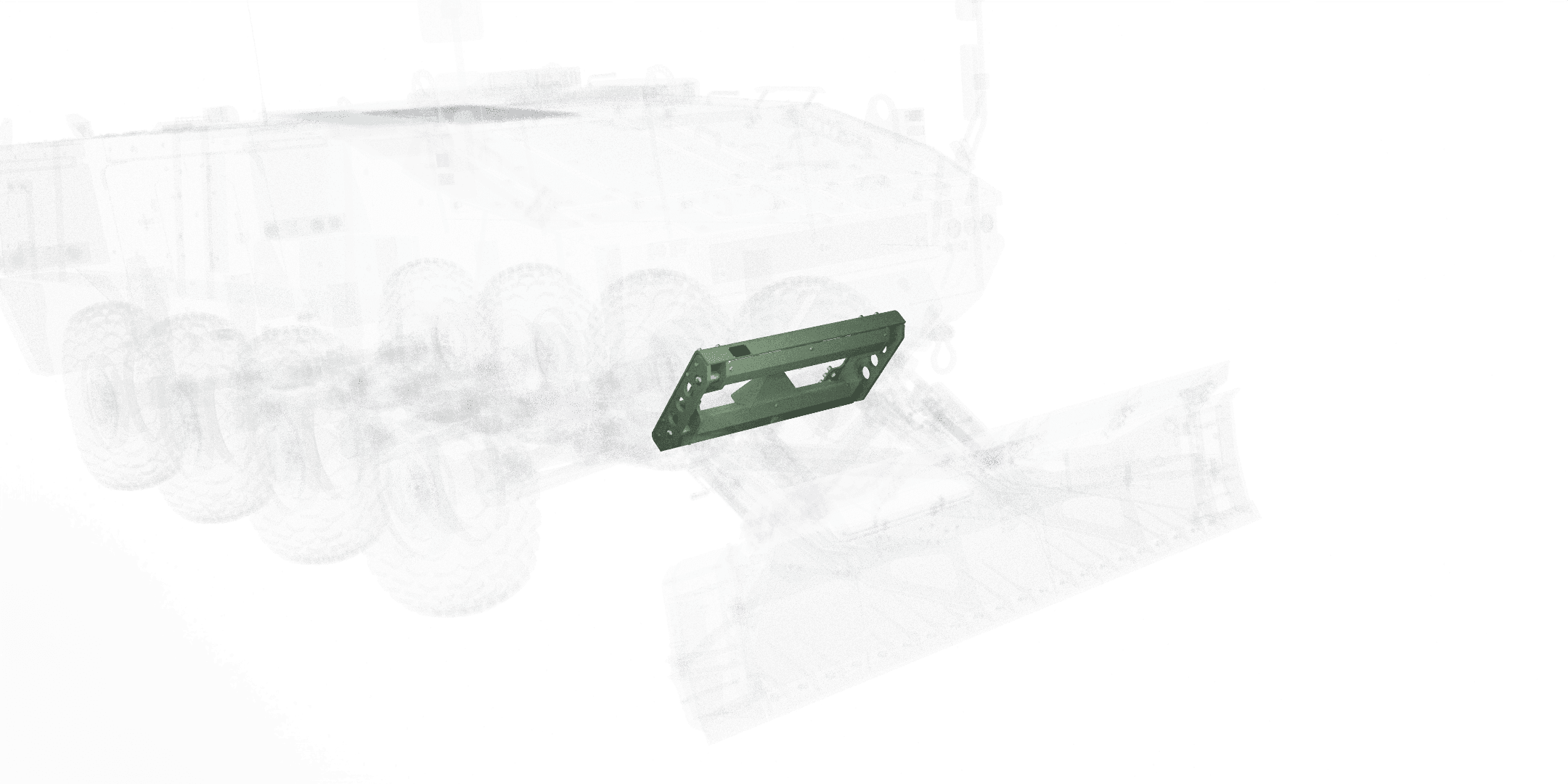

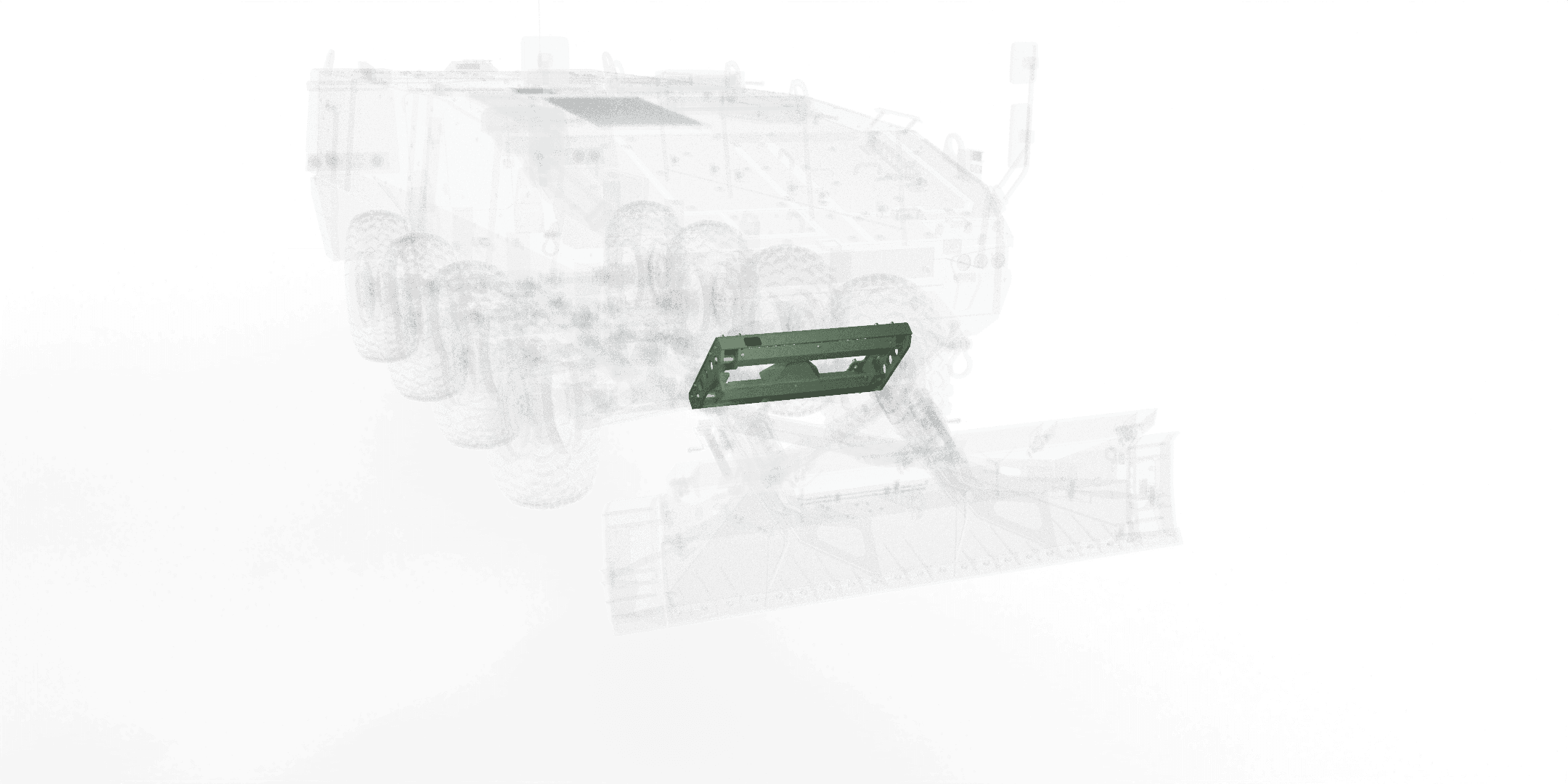

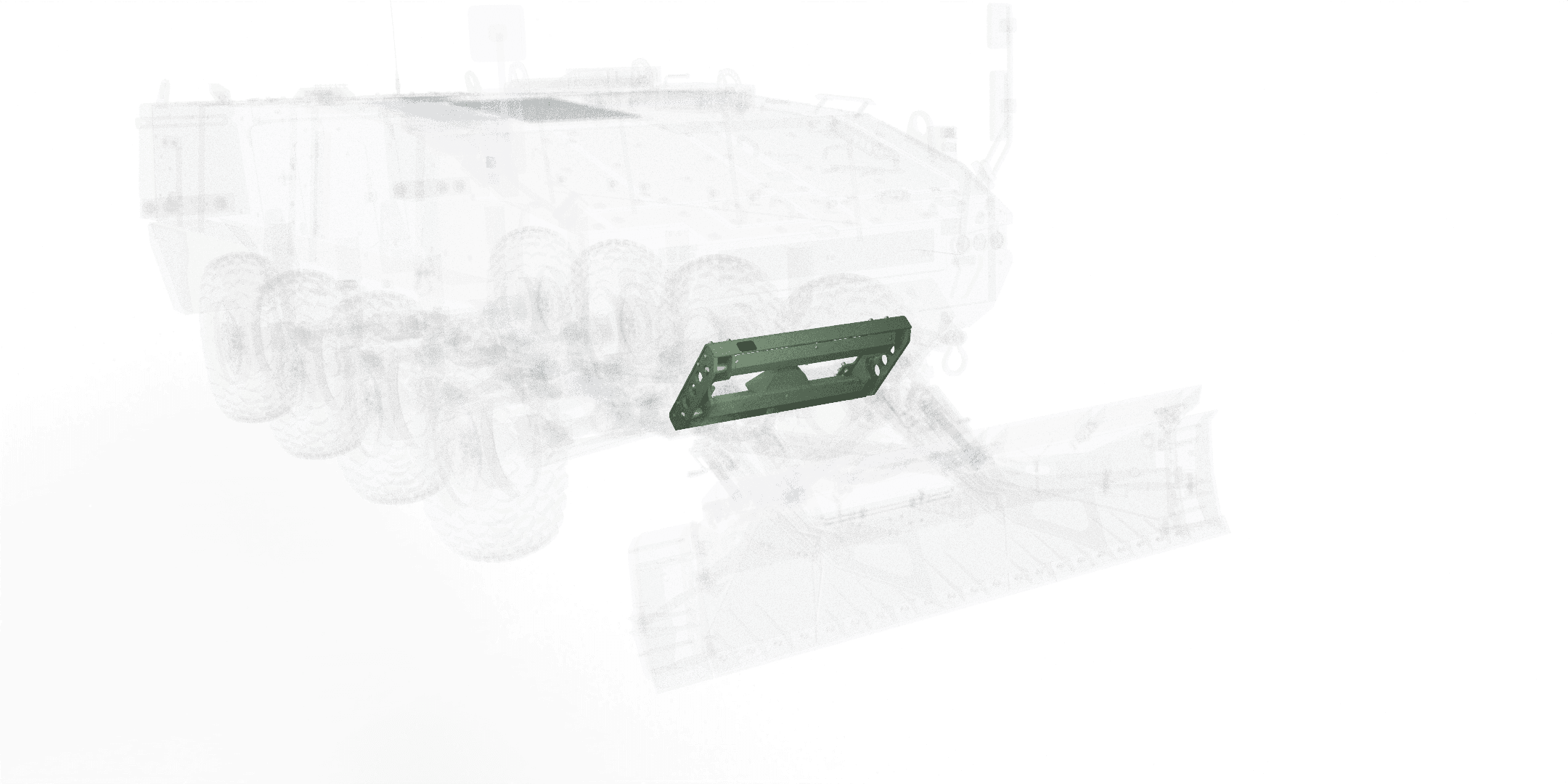

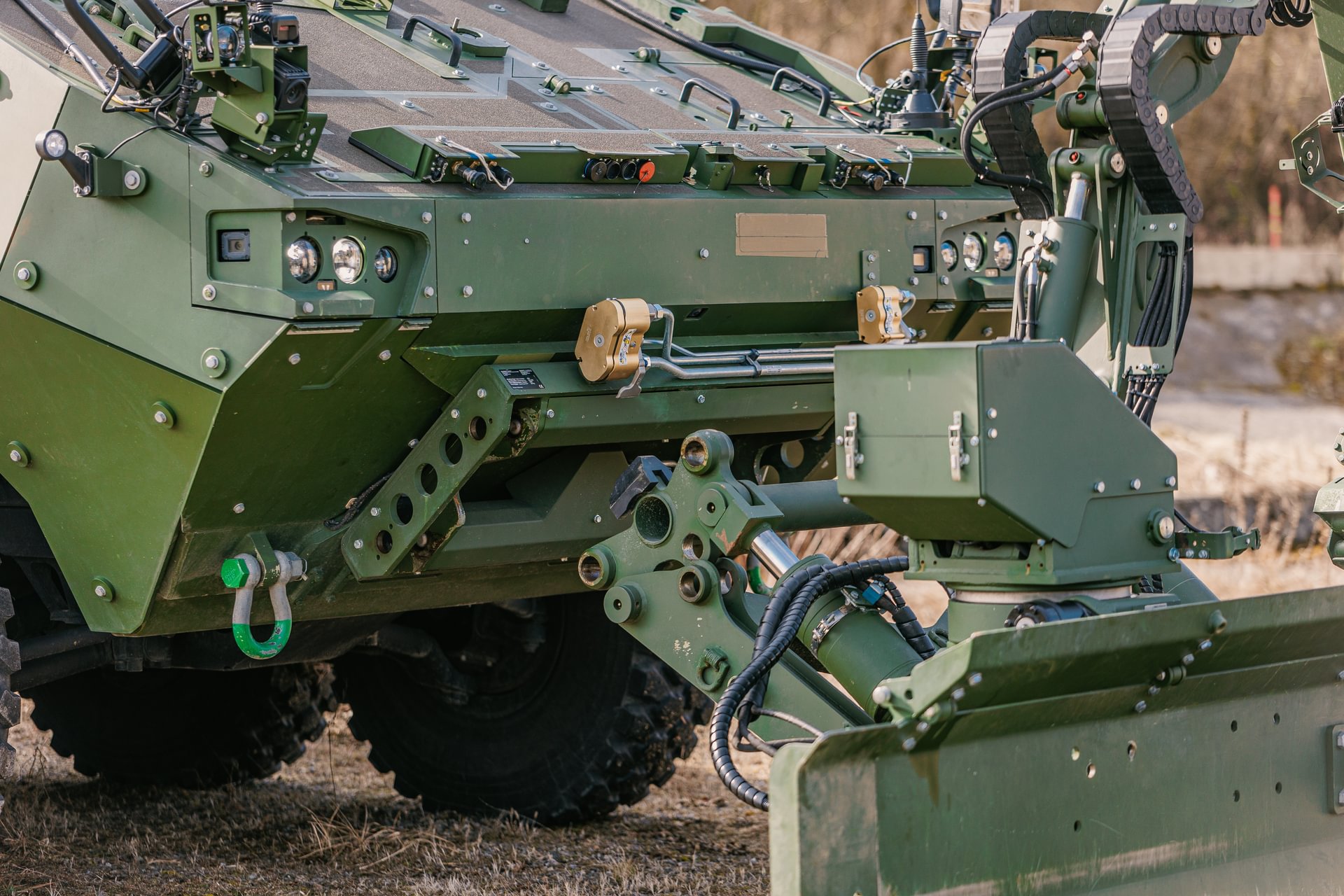

The Quick Coupler Adapter is bolted permanently to the front structure of the host vehicle, providing a stable and predictable mechanical and hydraulic interface for repeated attachment changes.
Built for operational deployment
01
Fast, equipment‑free attachment change
Hydraulically actuated locking pins allow coupling and decoupling of approved attachments within a few minutes, without the need for special tools or manual intervention at the interface.
02
Protected hydraulic & sensor integration
Hydraulic cylinders, lines and sensor components are enclosed by protective covers, supporting reliable operation in demanding field environments.
03
Compatible with many attachment types
Designed to interface with compatible GCS and selected third-party attachments, including dozer blades, dozer blades with manipulators and modular mine ploughs, within specified dimensional and weight limits.
04
Controlled & monitored locking mechanism
Four hydraulically actuated locking pins are monitored by sensors that confirm full end‑position engagement, ensuring that attachments are only considered locked when safely and correctly connected.
05
Permanent vehicle‑mounted interface
The Quick Coupler Adapter is bolted permanently to the front structure of the host vehicle, providing a stable and predictable mechanical and hydraulic interface for repeated attachment changes.
Built for operational deployment
01
Fast, equipment‑free attachment change
Hydraulically actuated locking pins allow coupling and decoupling of approved attachments within a few minutes, without the need for special tools or manual intervention at the interface.
02
Protected hydraulic & sensor integration
Hydraulic cylinders, lines and sensor components are enclosed by protective covers, supporting reliable operation in demanding field environments.
03
Compatible with many attachment types
Designed to interface with compatible GCS and selected third-party attachments, including dozer blades, dozer blades with manipulators and modular mine ploughs, within specified dimensional and weight limits.
04
Controlled & monitored locking mechanism
Four hydraulically actuated locking pins are monitored by sensors that confirm full end‑position engagement, ensuring that attachments are only considered locked when safely and correctly connected.
05
Permanent vehicle‑mounted interface
The Quick Coupler Adapter is bolted permanently to the front structure of the host vehicle, providing a stable and predictable mechanical and hydraulic interface for repeated attachment changes.
Built for operational deployment
01
Fast, equipment‑free attachment change
Hydraulically actuated locking pins allow coupling and decoupling of approved attachments within a few minutes, without the need for special tools or manual intervention at the interface.
02
Protected hydraulic & sensor integration
Hydraulic cylinders, lines and sensor components are enclosed by protective covers, supporting reliable operation in demanding field environments.
03
Compatible with many attachment types
Designed to interface with compatible GCS and selected third-party attachments, including dozer blades, dozer blades with manipulators and modular mine ploughs, within specified dimensional and weight limits.
04
Controlled & monitored locking mechanism
Four hydraulically actuated locking pins are monitored by sensors that confirm full end‑position engagement, ensuring that attachments are only considered locked when safely and correctly connected.
05
Permanent vehicle‑mounted interface
The Quick Coupler Adapter is bolted permanently to the front structure of the host vehicle, providing a stable and predictable mechanical and hydraulic interface for repeated attachment changes.
Operational specifications
1230 mm
long
224 mm
high
Up to
2,000 kg
compatible attachment weight
Up to
3,400 mm
compatible attachment width
Approx.
150 kg
attachment weight
Four locking pins
2 upper and 2 lower, hydraulically actuated simultaneously
Capabilities this platform supports
Capabilities this platform supports
Capabilities this platform supports
Capabilities this platform supports
Route Clearance
Restoring controlled movement along critical routes affected by explosive threats
Combat Engineering
Shaping battlefield environments to support mobility, protection and control in high-threat environments
Battle Area Clearance
Restoring controlled land use across former battle areas contaminated by explosive ordnance
Minefield Breaching
Creating controlled lanes through mine and obstacle threats to support manoeuvre under operational pressure
Route Clearance
Restoring controlled movement along critical routes affected by explosive threats
Combat Engineering
Shaping battlefield environments to support mobility, protection and control in high-threat environments
Battle Area Clearance
Restoring controlled land use across former battle areas contaminated by explosive ordnance
Minefield Breaching
Creating controlled lanes through mine and obstacle threats to support manoeuvre under operational pressure
Route Clearance
Restoring controlled movement along critical routes affected by explosive threats
Combat Engineering
Shaping battlefield environments to support mobility, protection and control in high-threat environments
Battle Area Clearance
Restoring controlled land use across former battle areas contaminated by explosive ordnance
Minefield Breaching
Creating controlled lanes through mine and obstacle threats to support manoeuvre under operational pressure
Route Clearance
Restoring controlled movement along critical routes affected by explosive threats
Combat Engineering
Shaping battlefield environments to support mobility, protection and control in high-threat environments
Battle Area Clearance
Restoring controlled land use across former battle areas contaminated by explosive ordnance
Minefield Breaching
Creating controlled lanes through mine and obstacle threats to support manoeuvre under operational pressure
Related mission package components
The Quick Coupler Adapter is part of GCS’ integrated solution ecosystem, combining hardware, attachments, training, service and operational support to ensure safe, effective and sustainable clearance outcomes across different contexts.

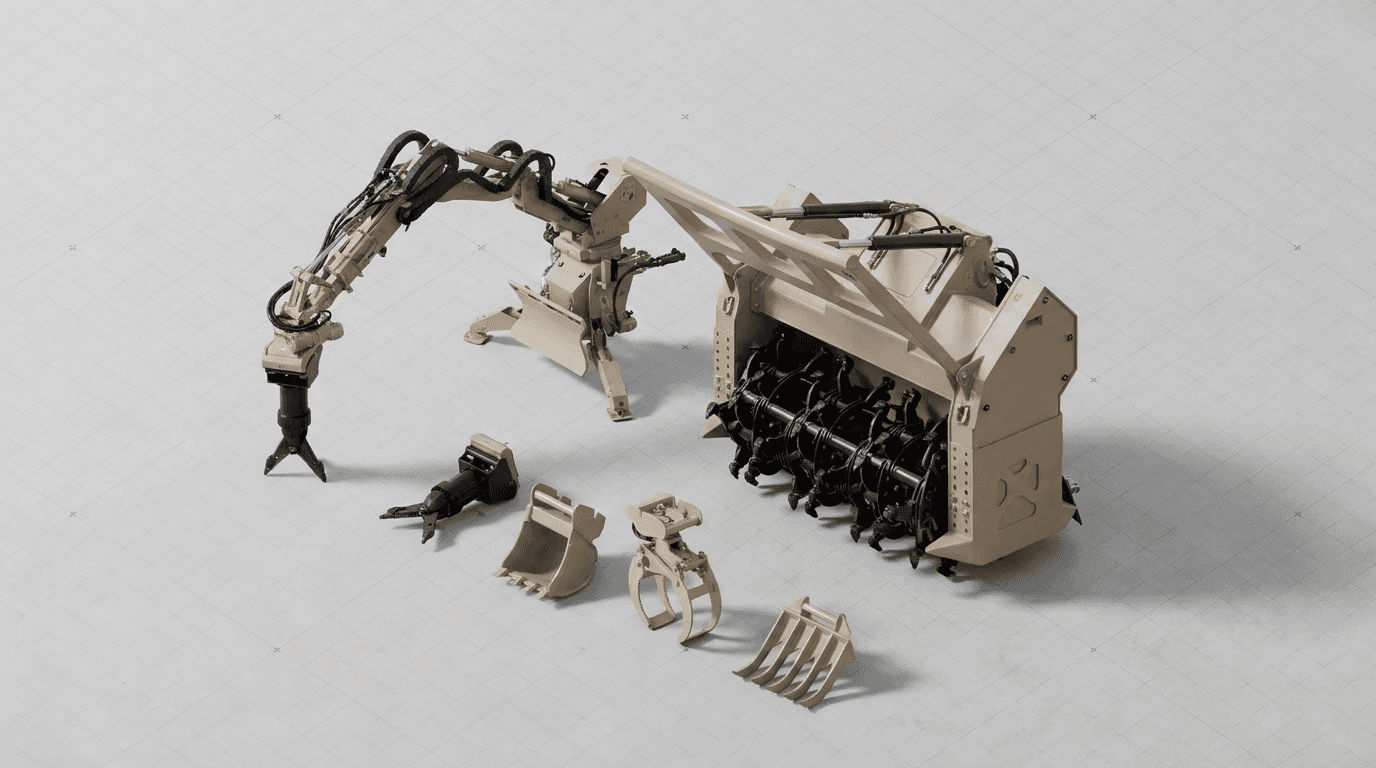

Attachments & Tools
