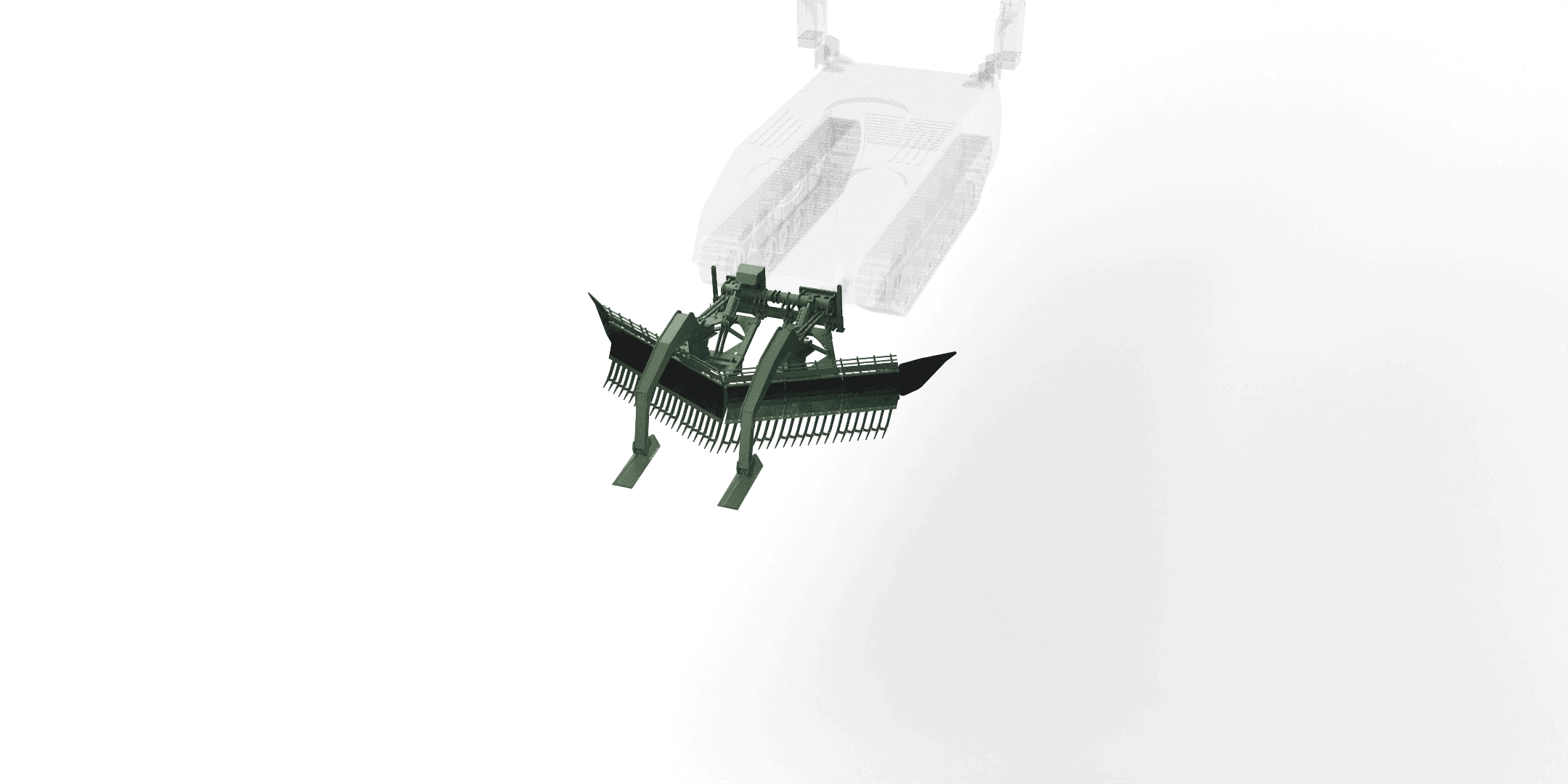

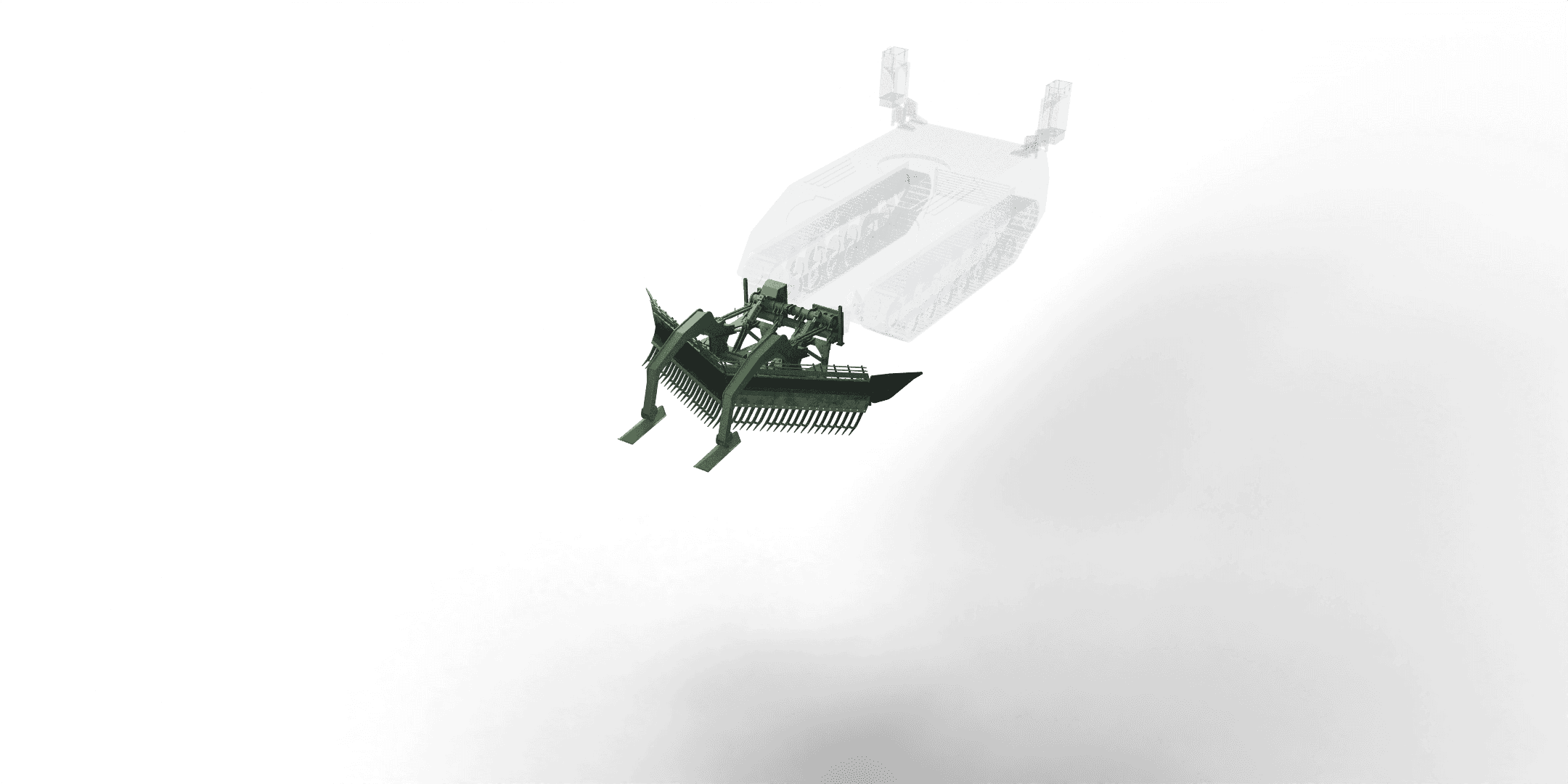

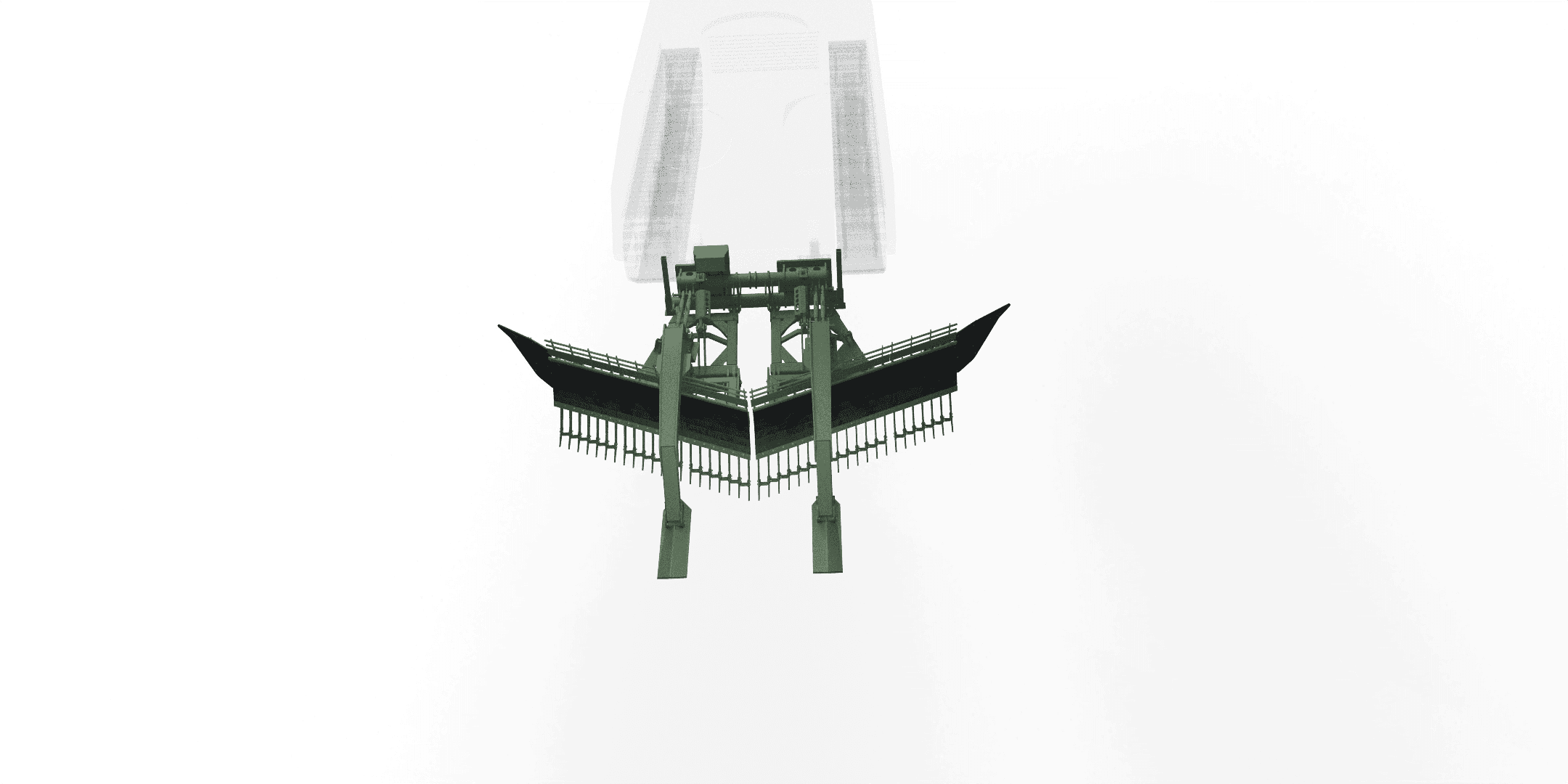

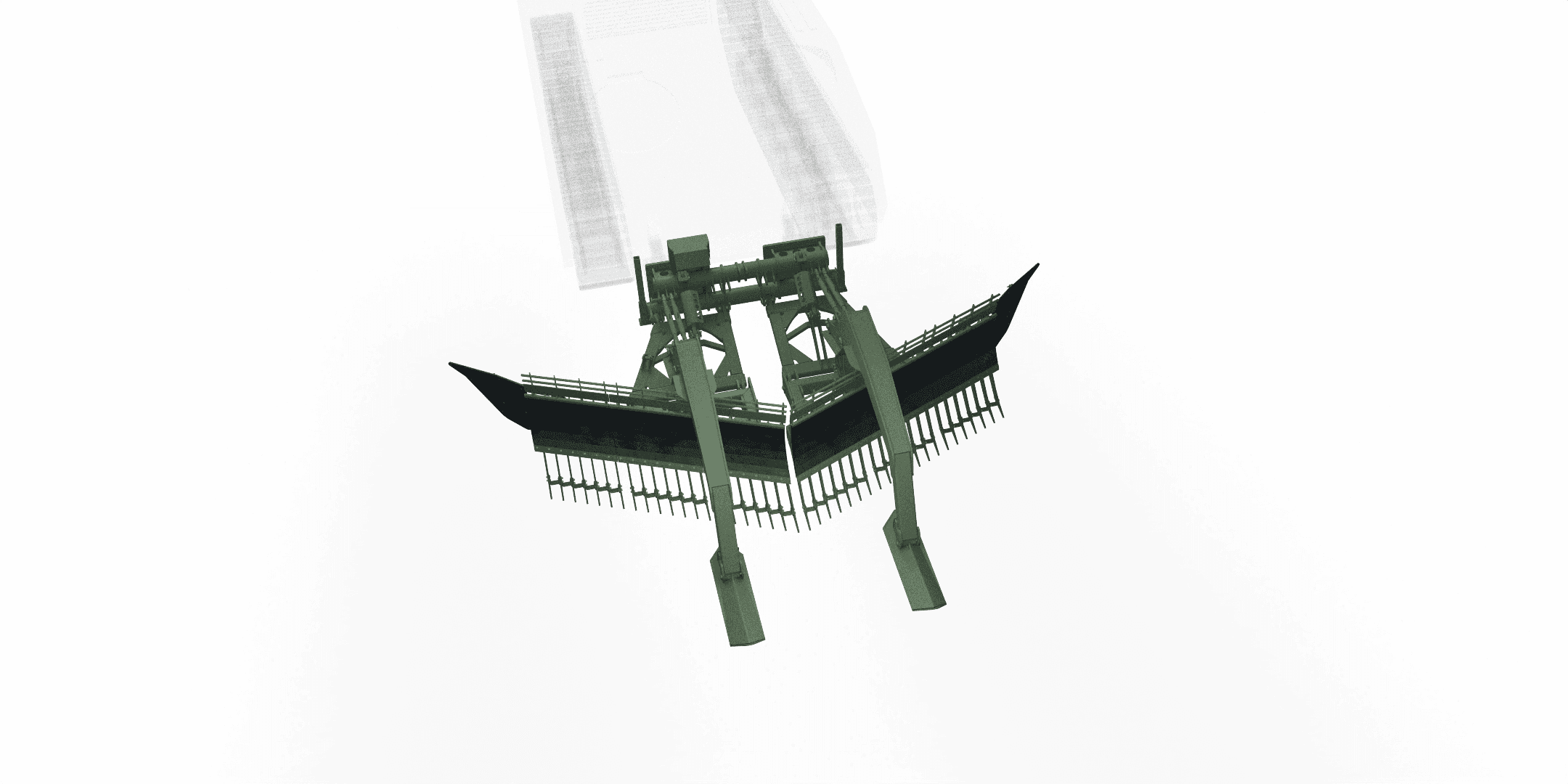

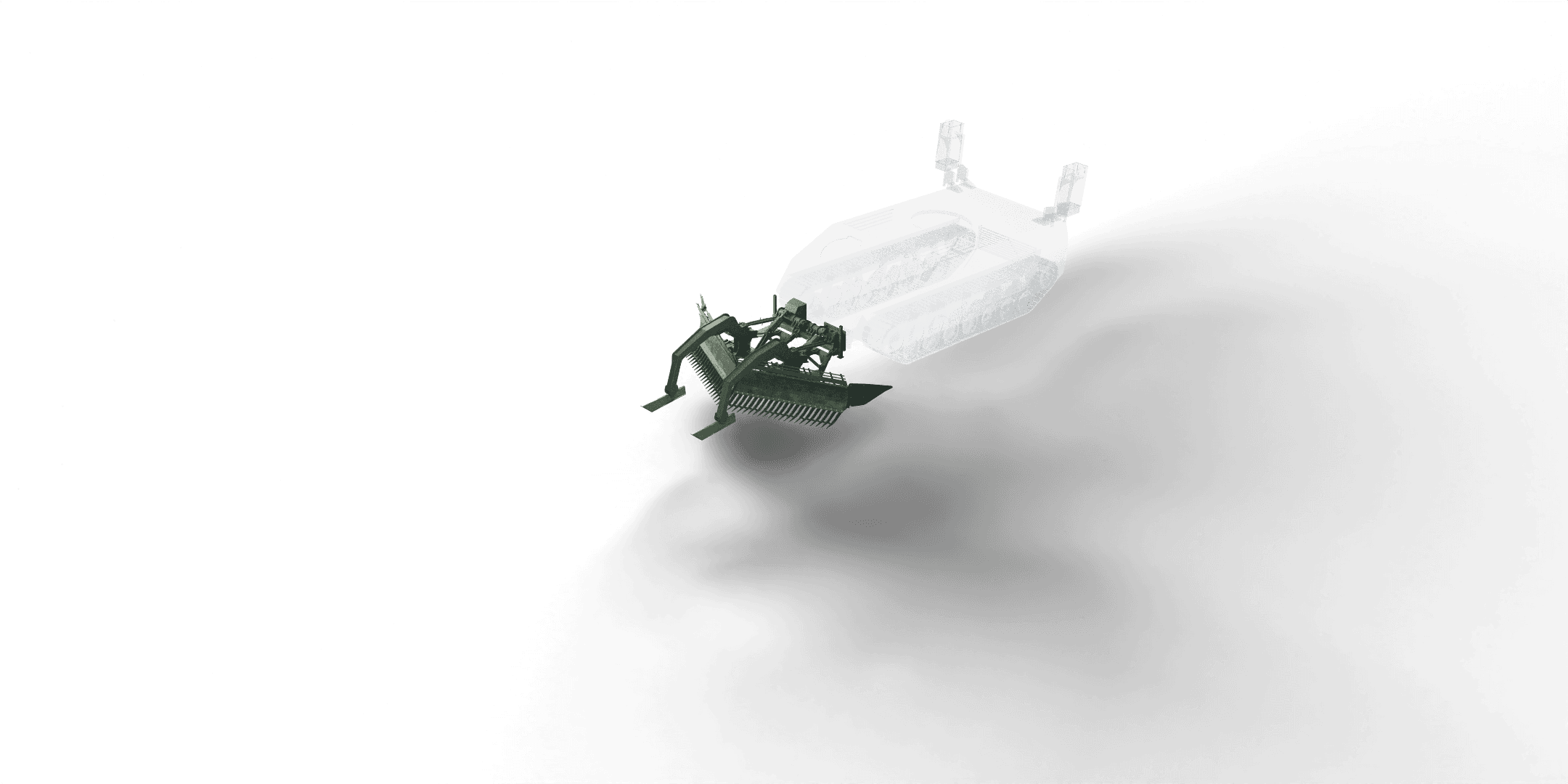

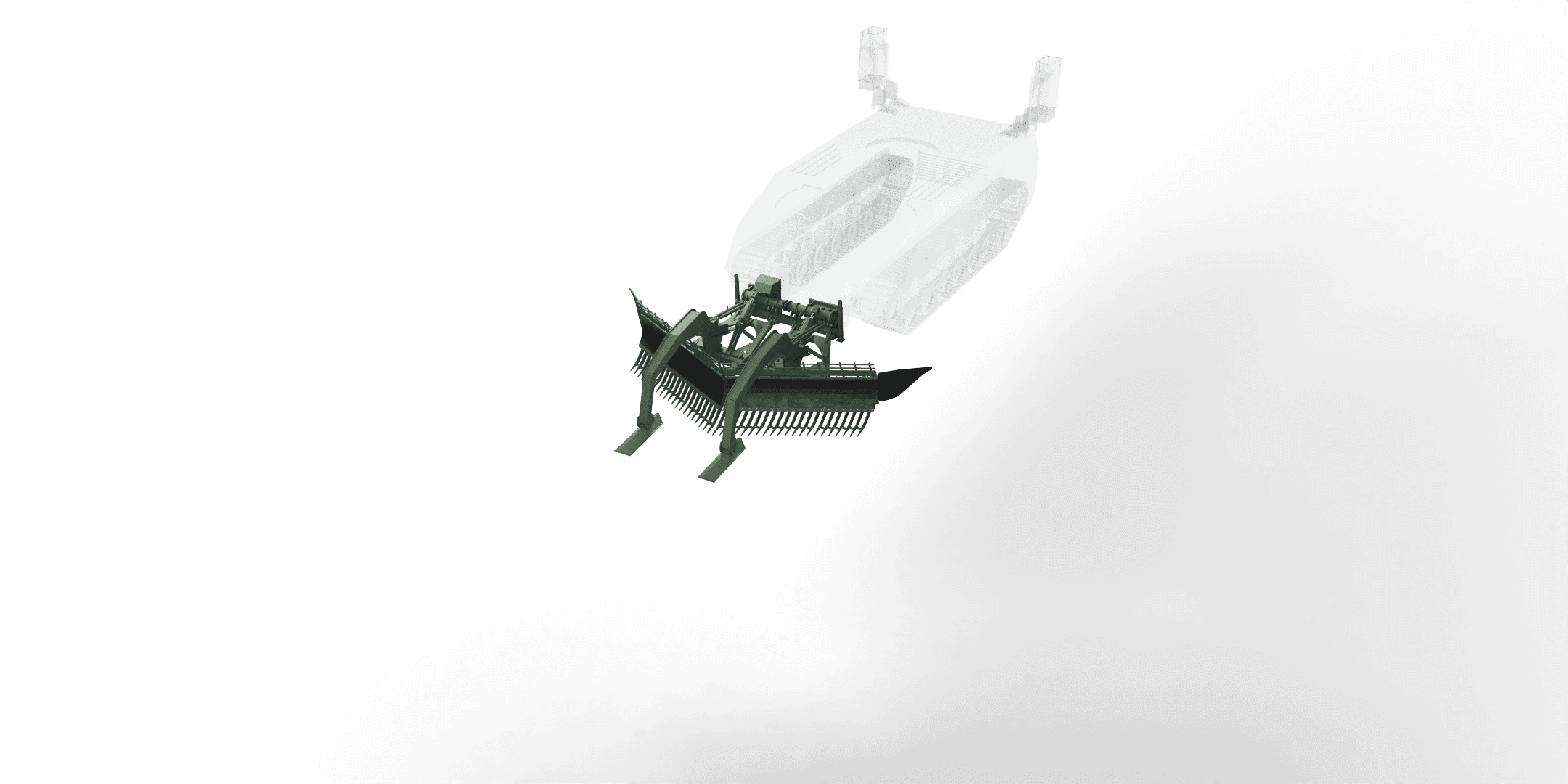

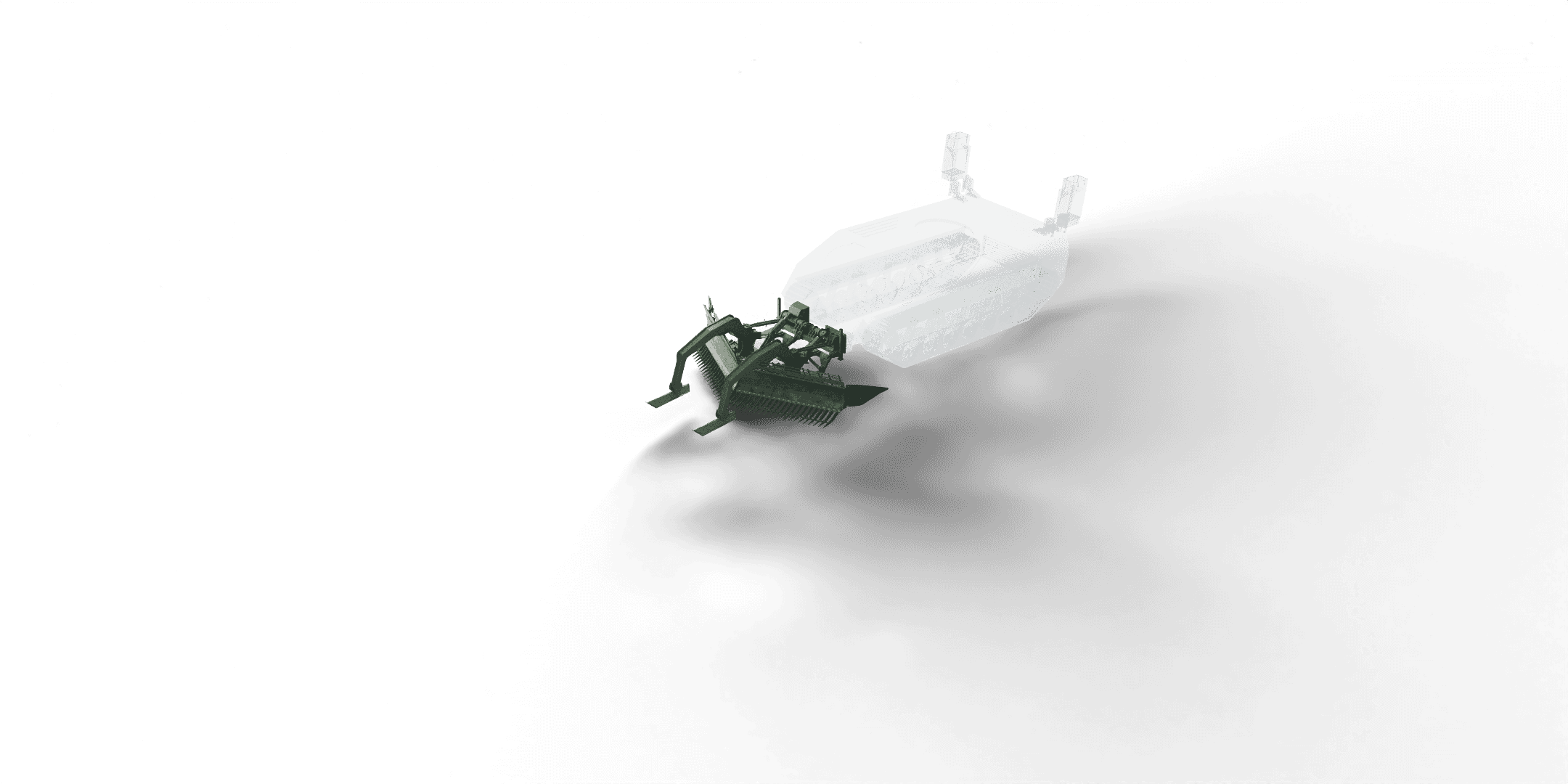

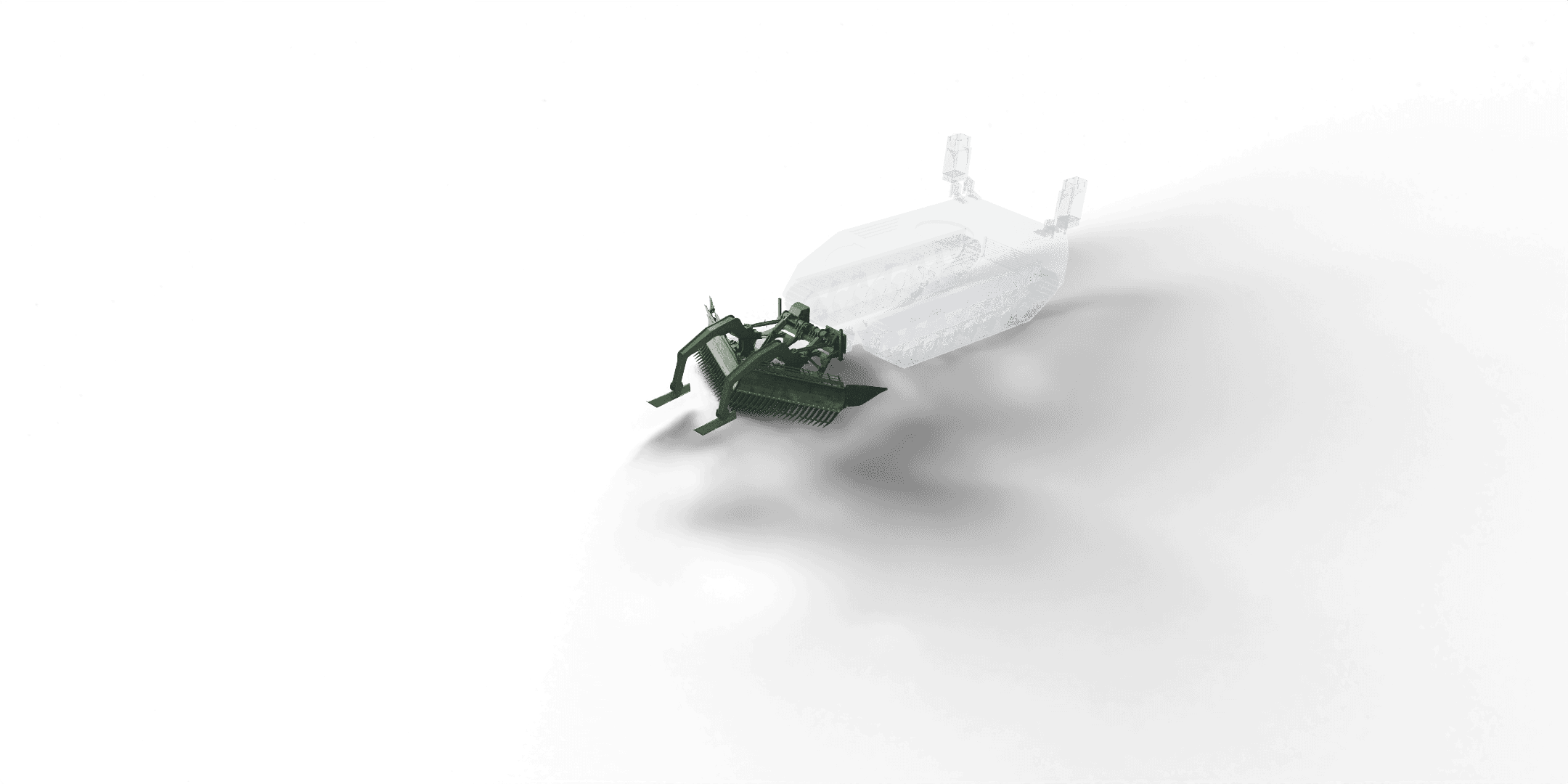

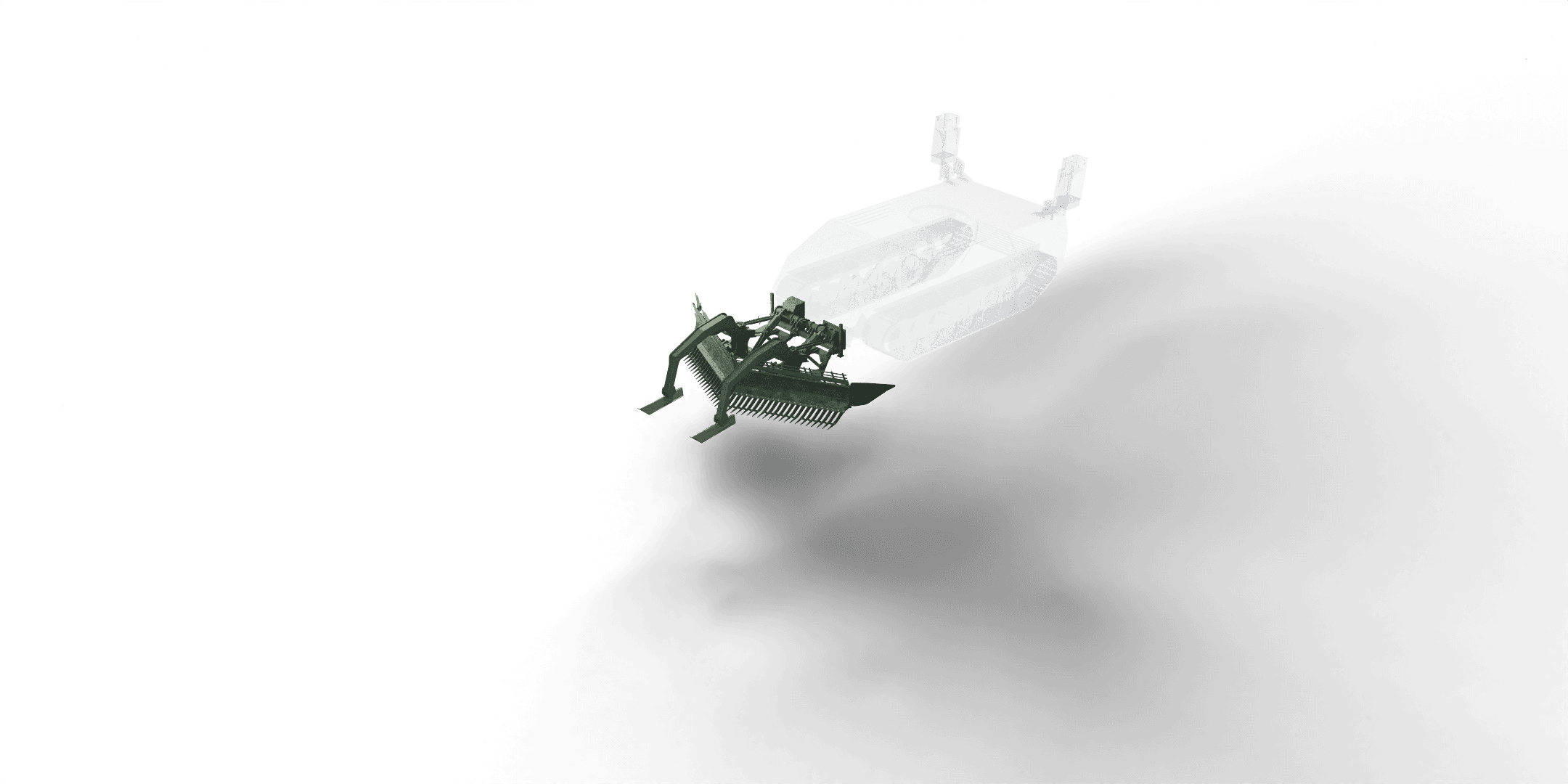

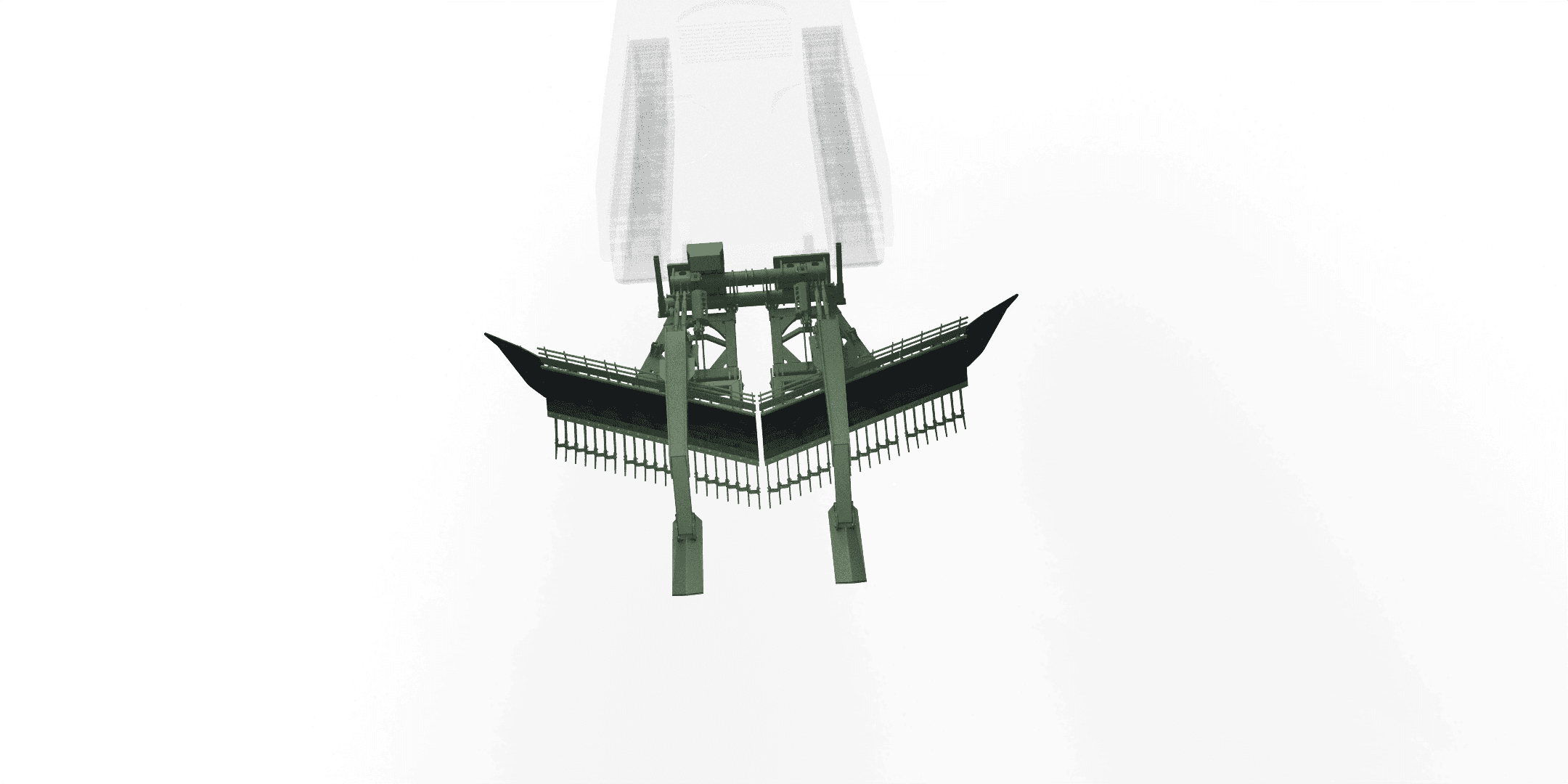

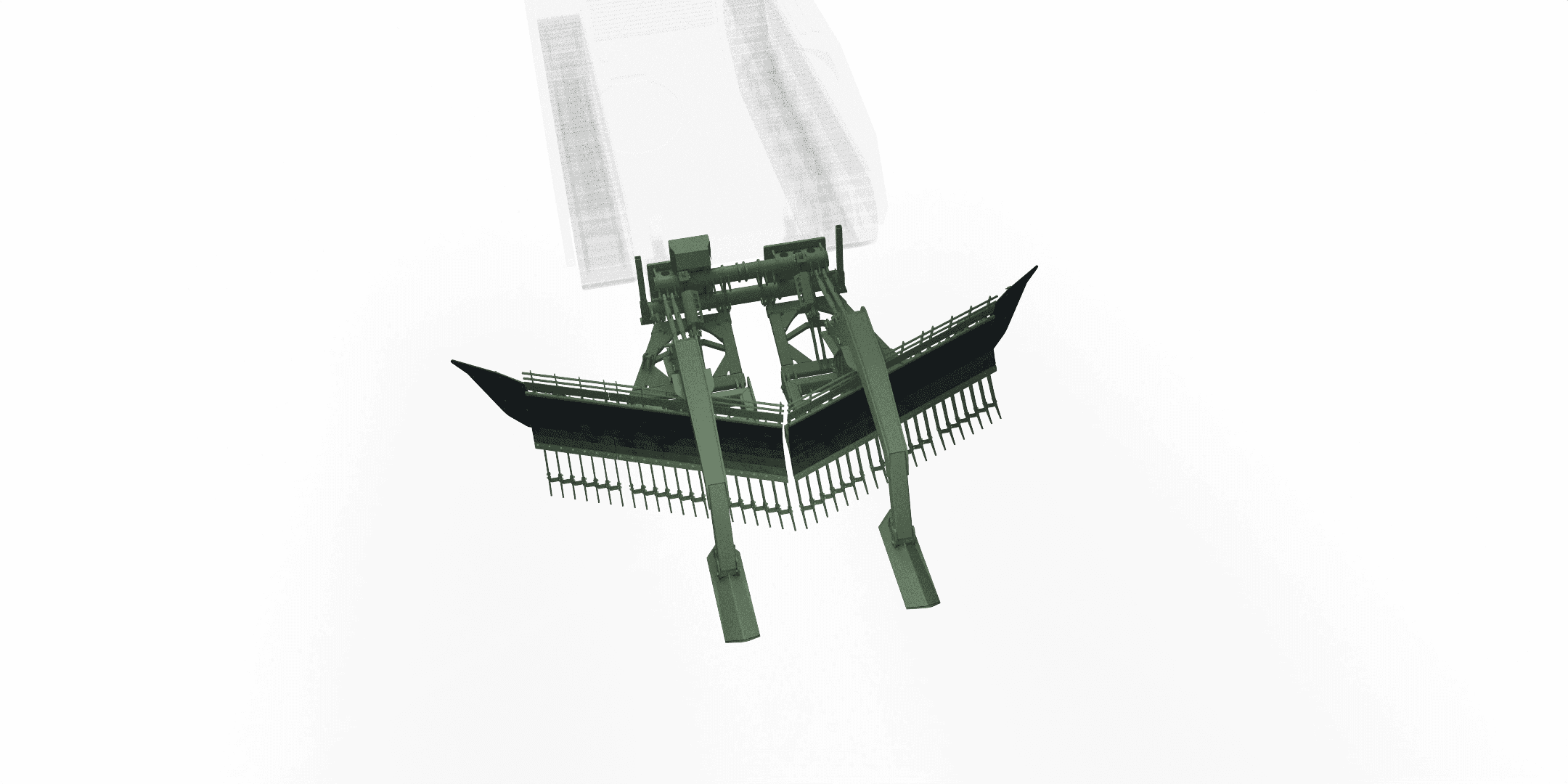

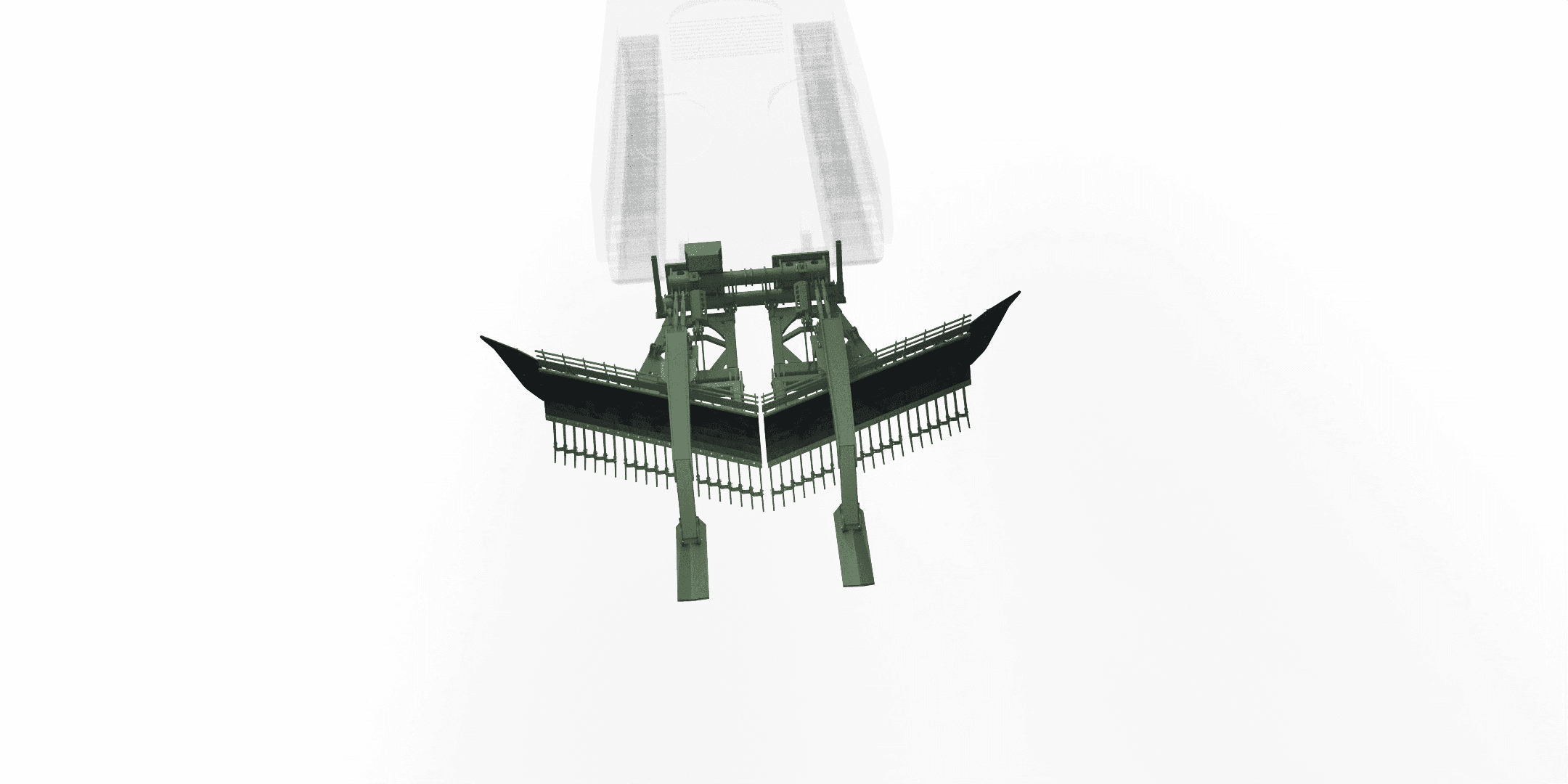

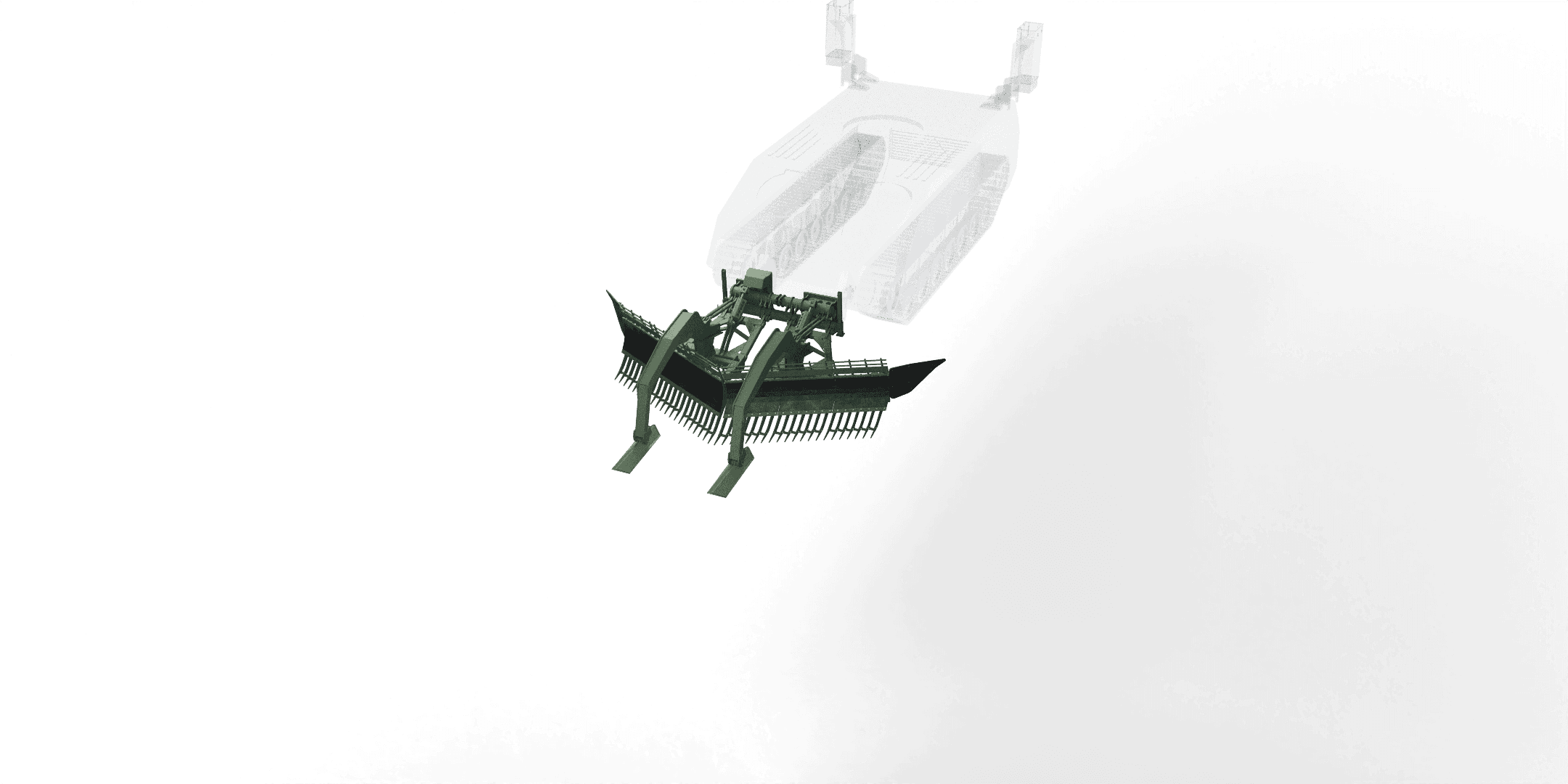

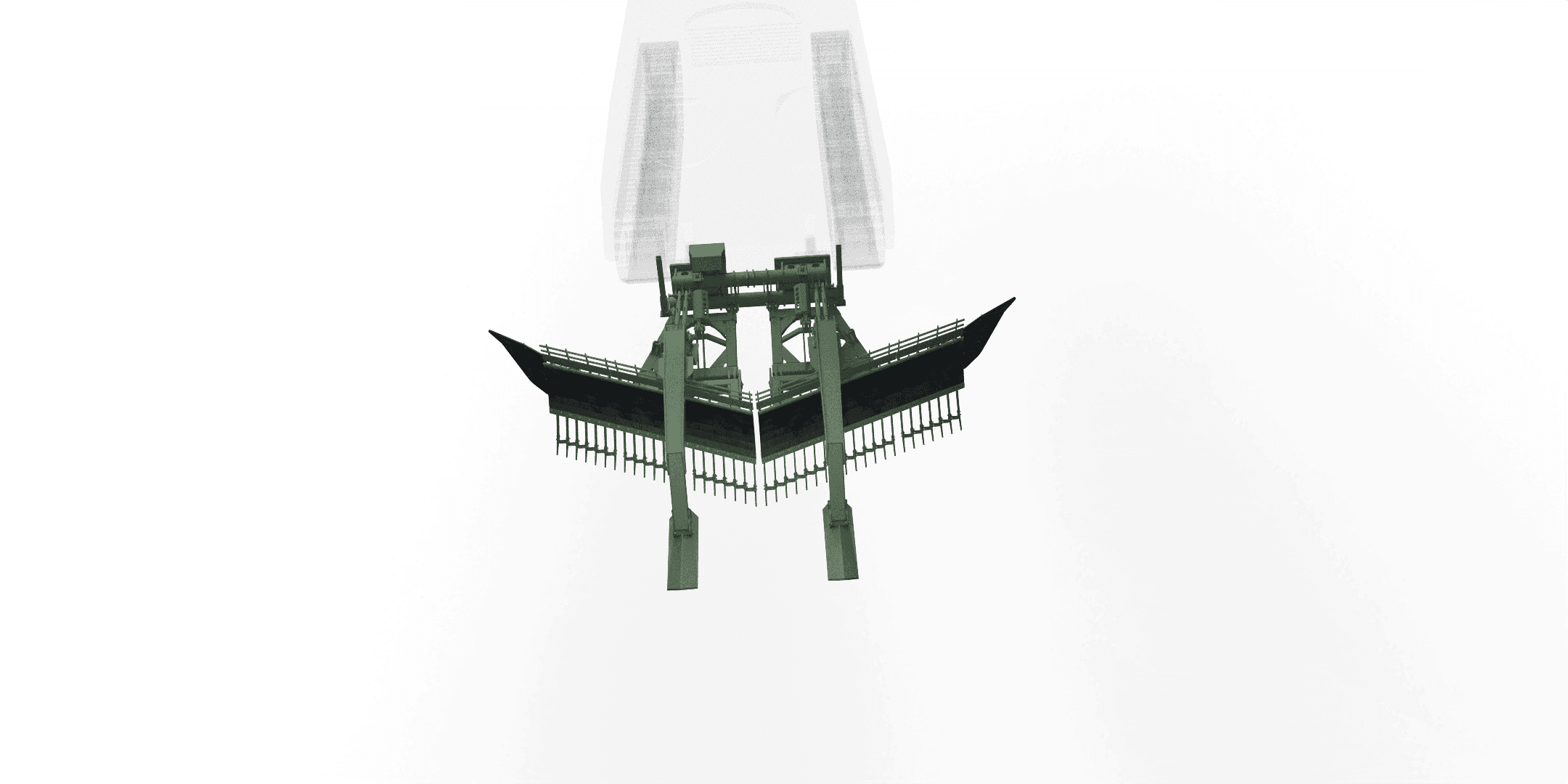

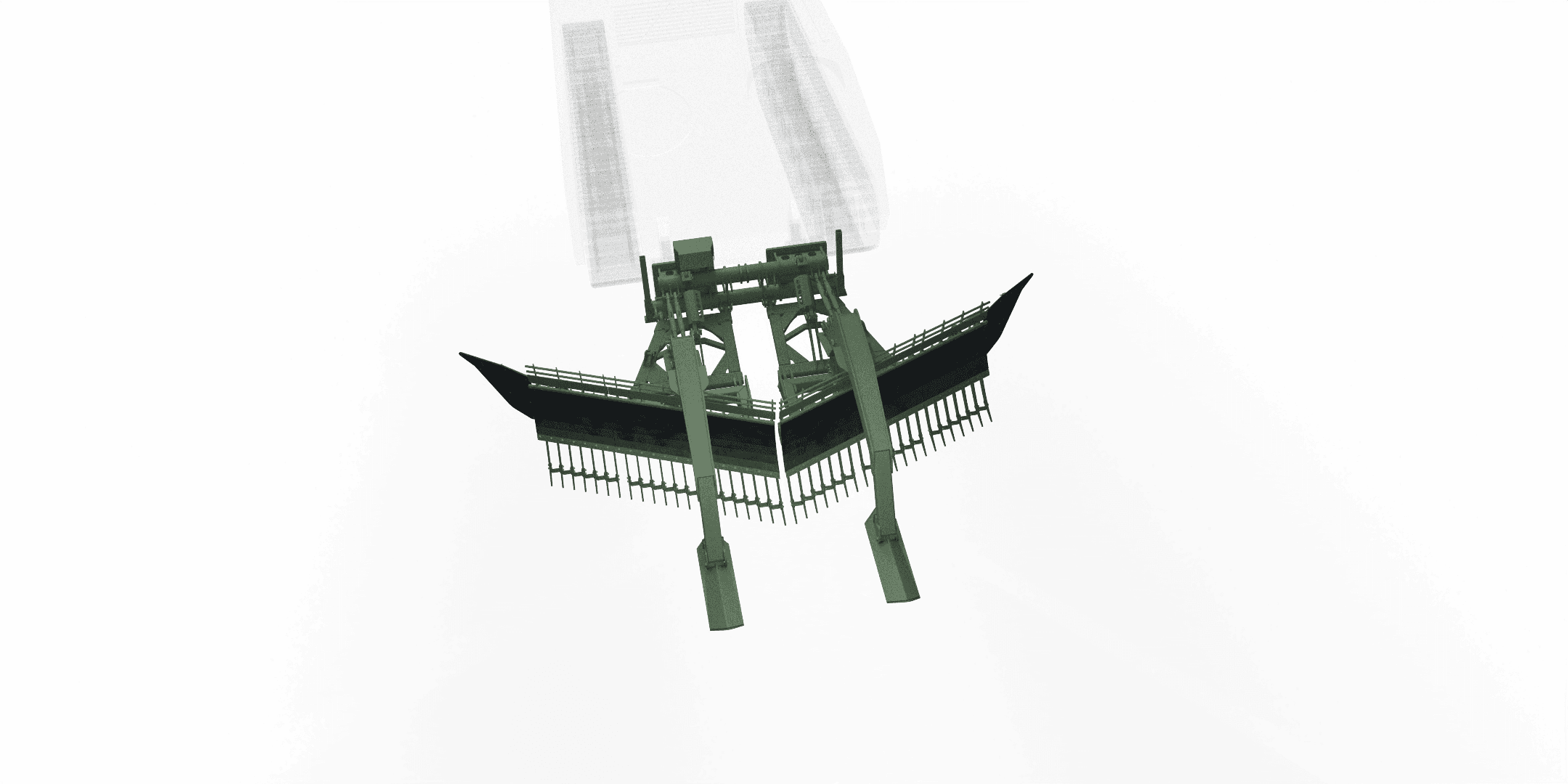

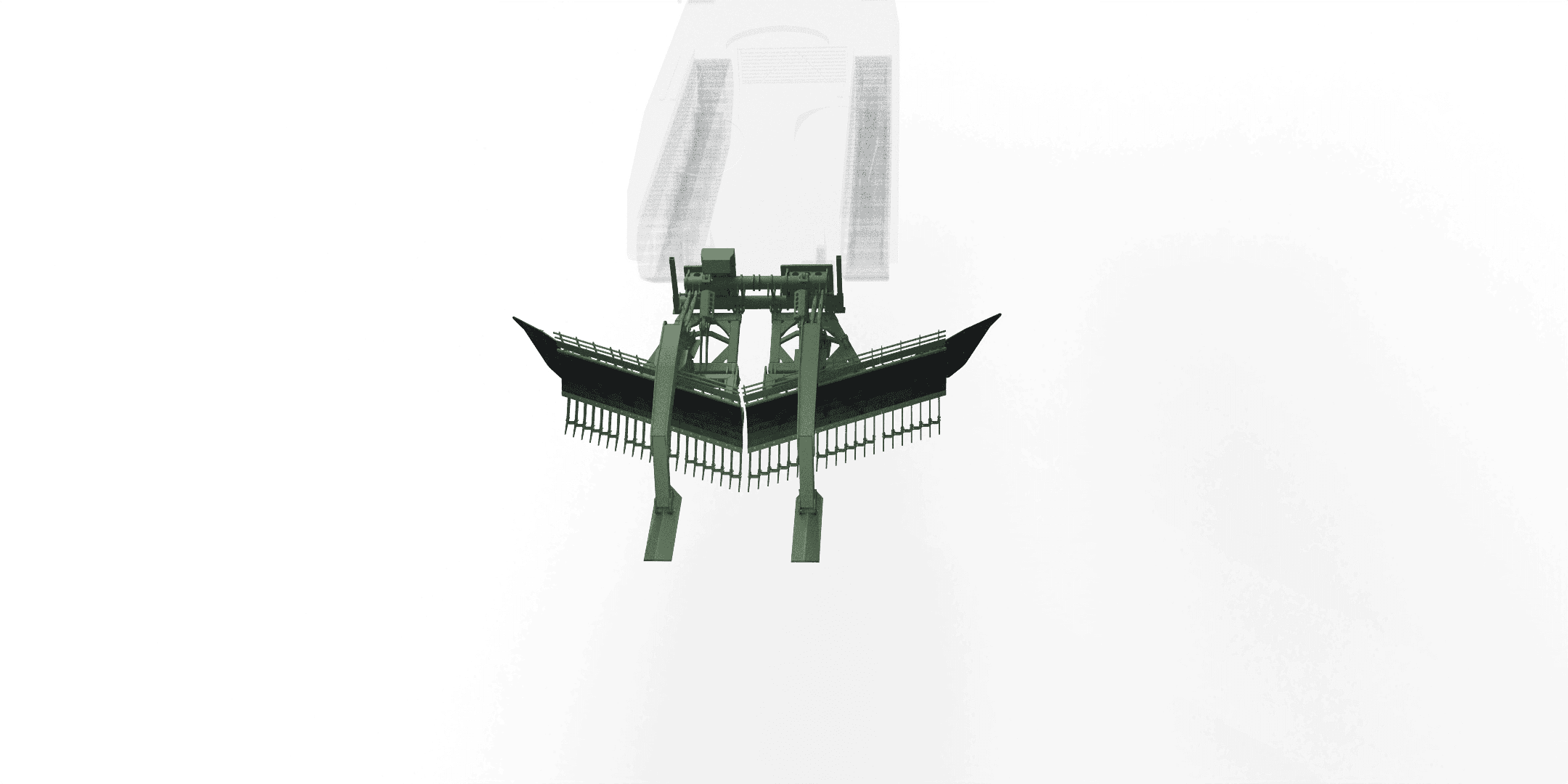

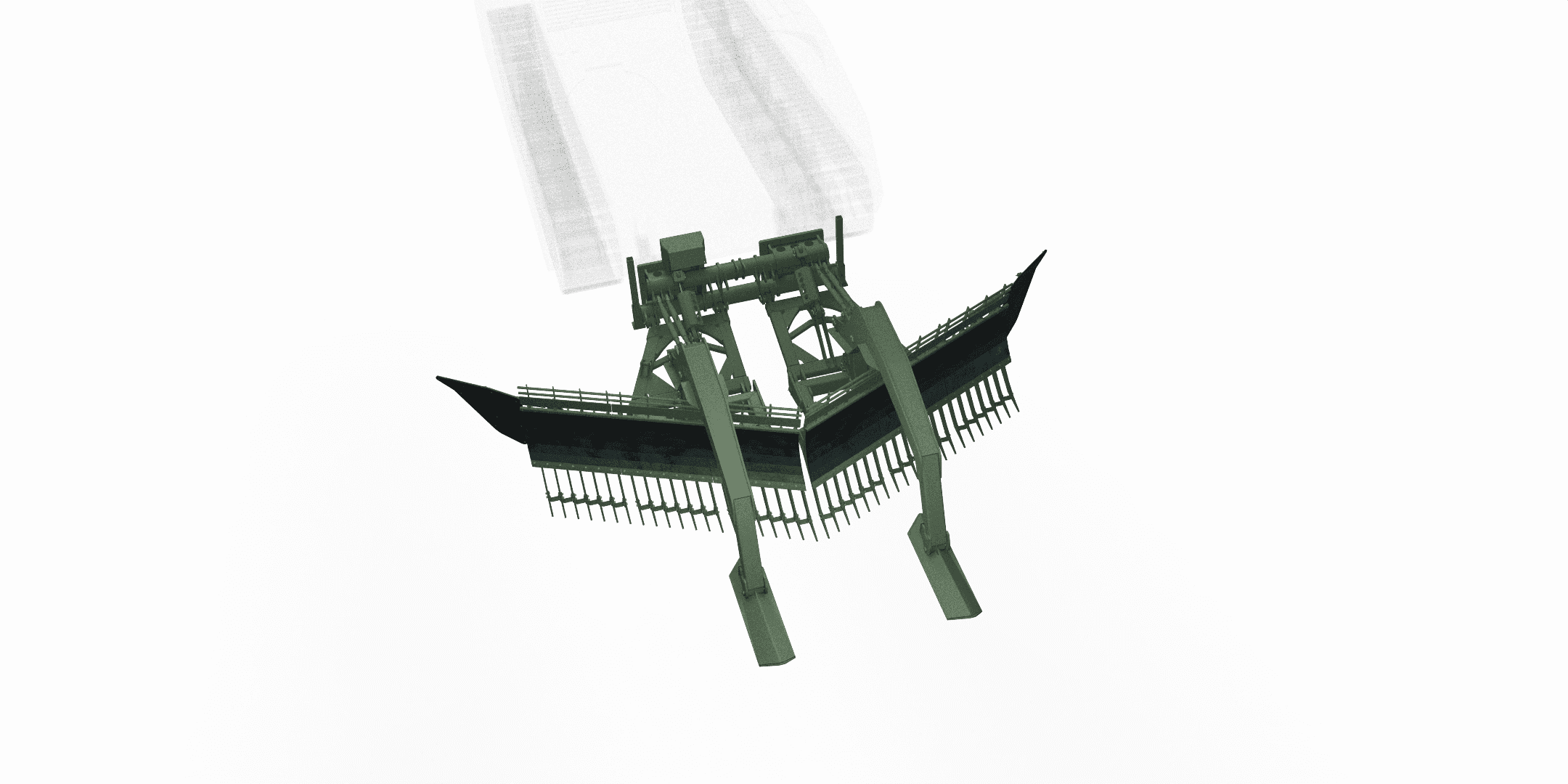

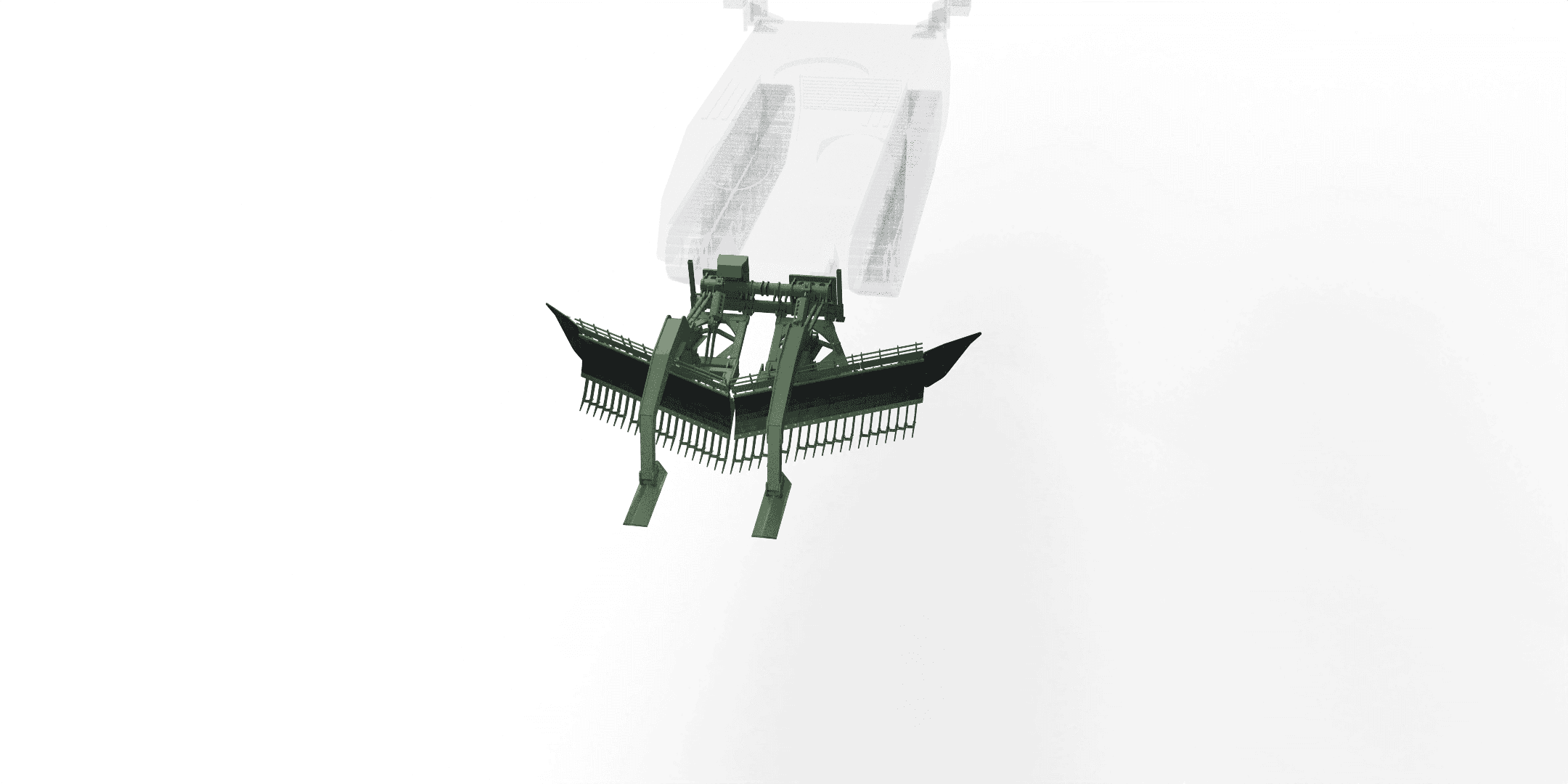

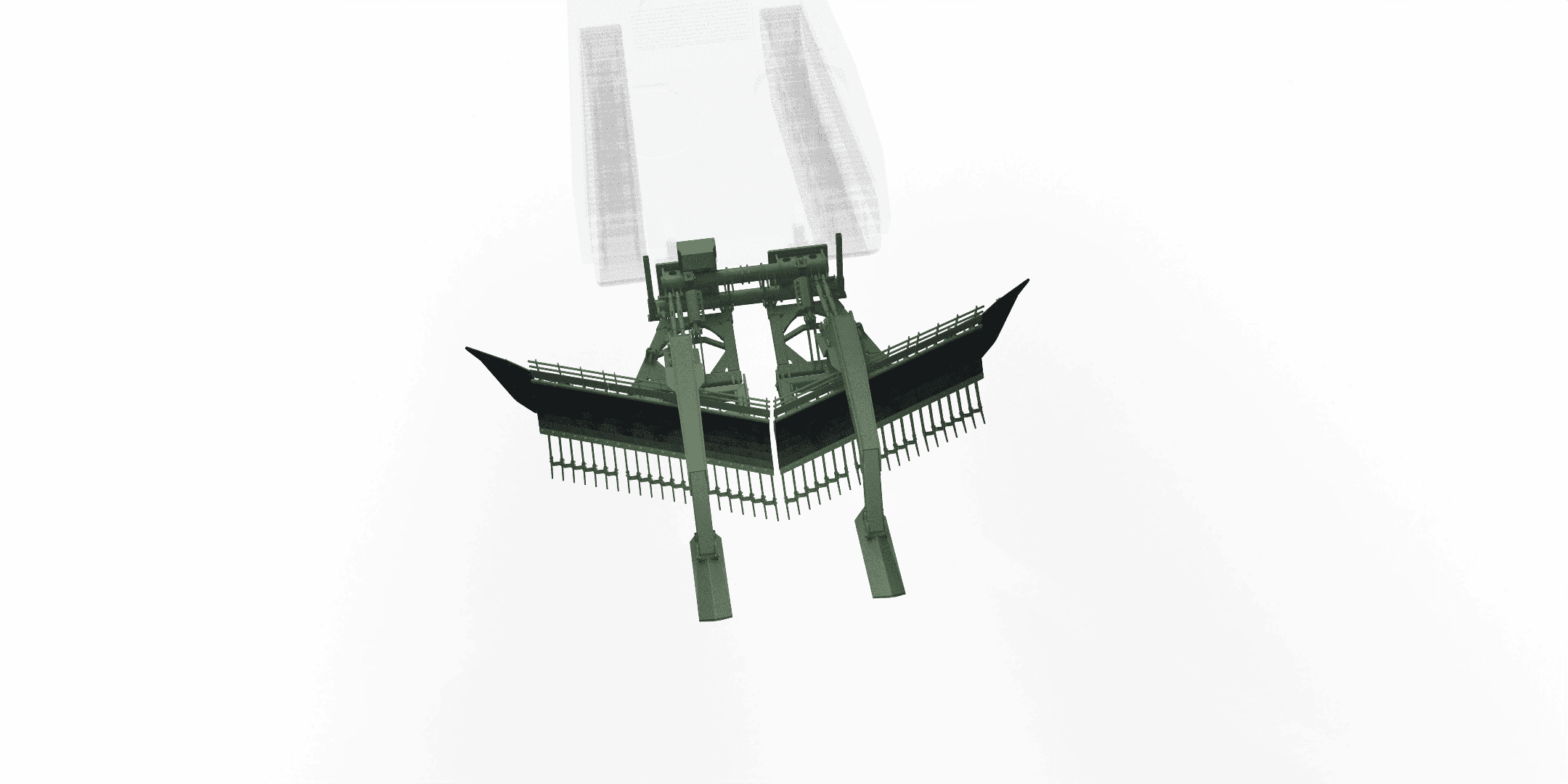

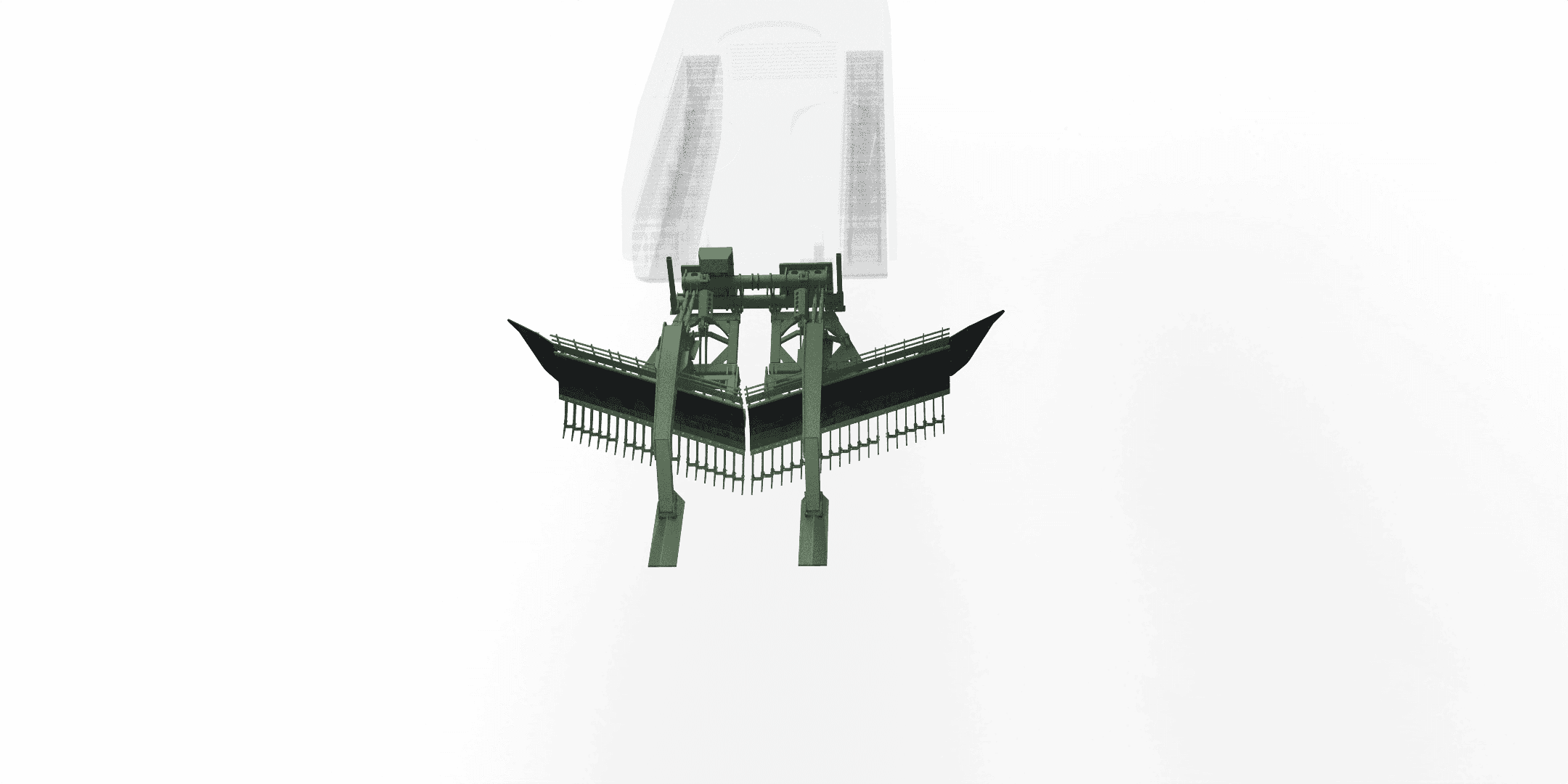

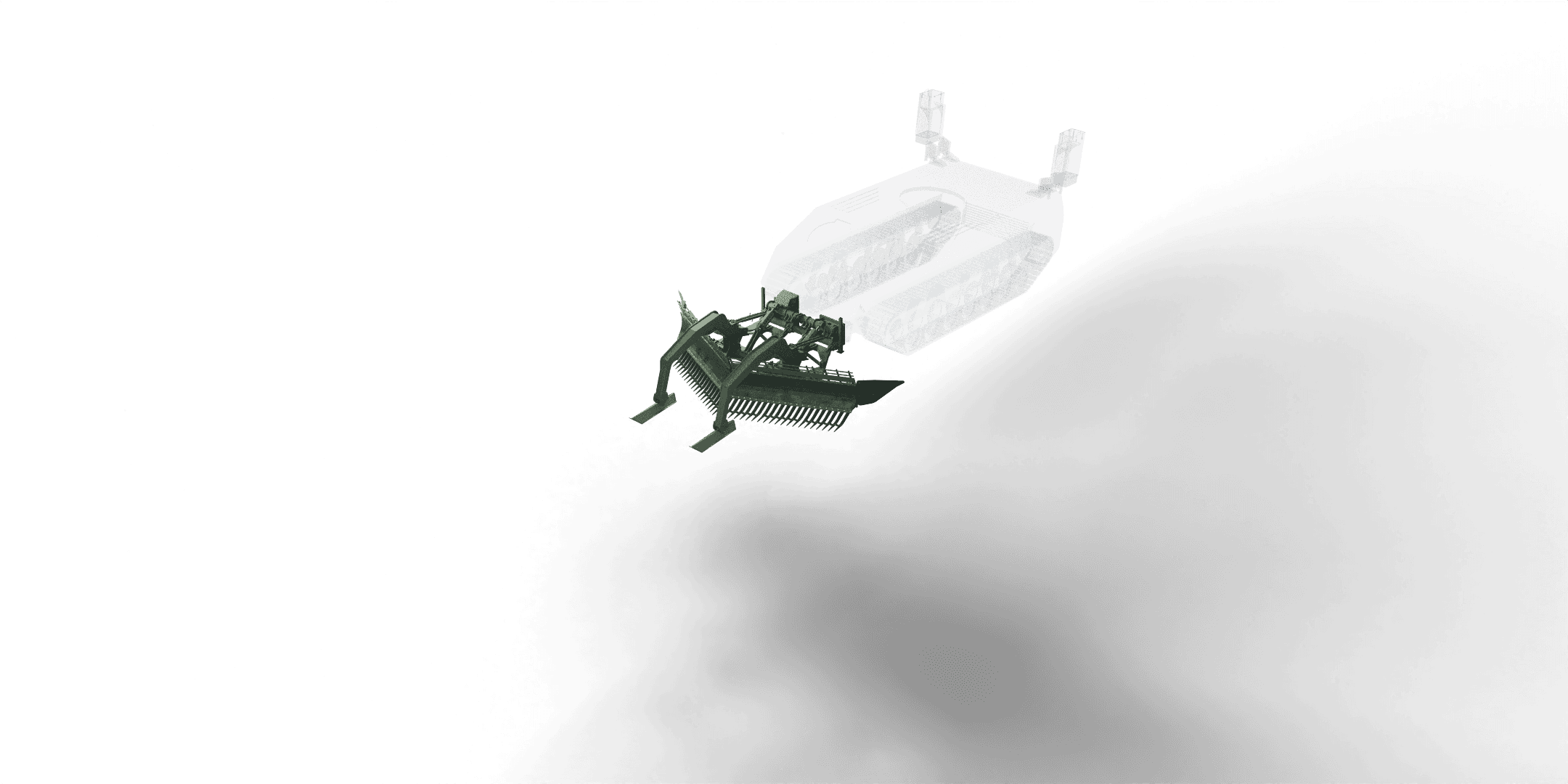

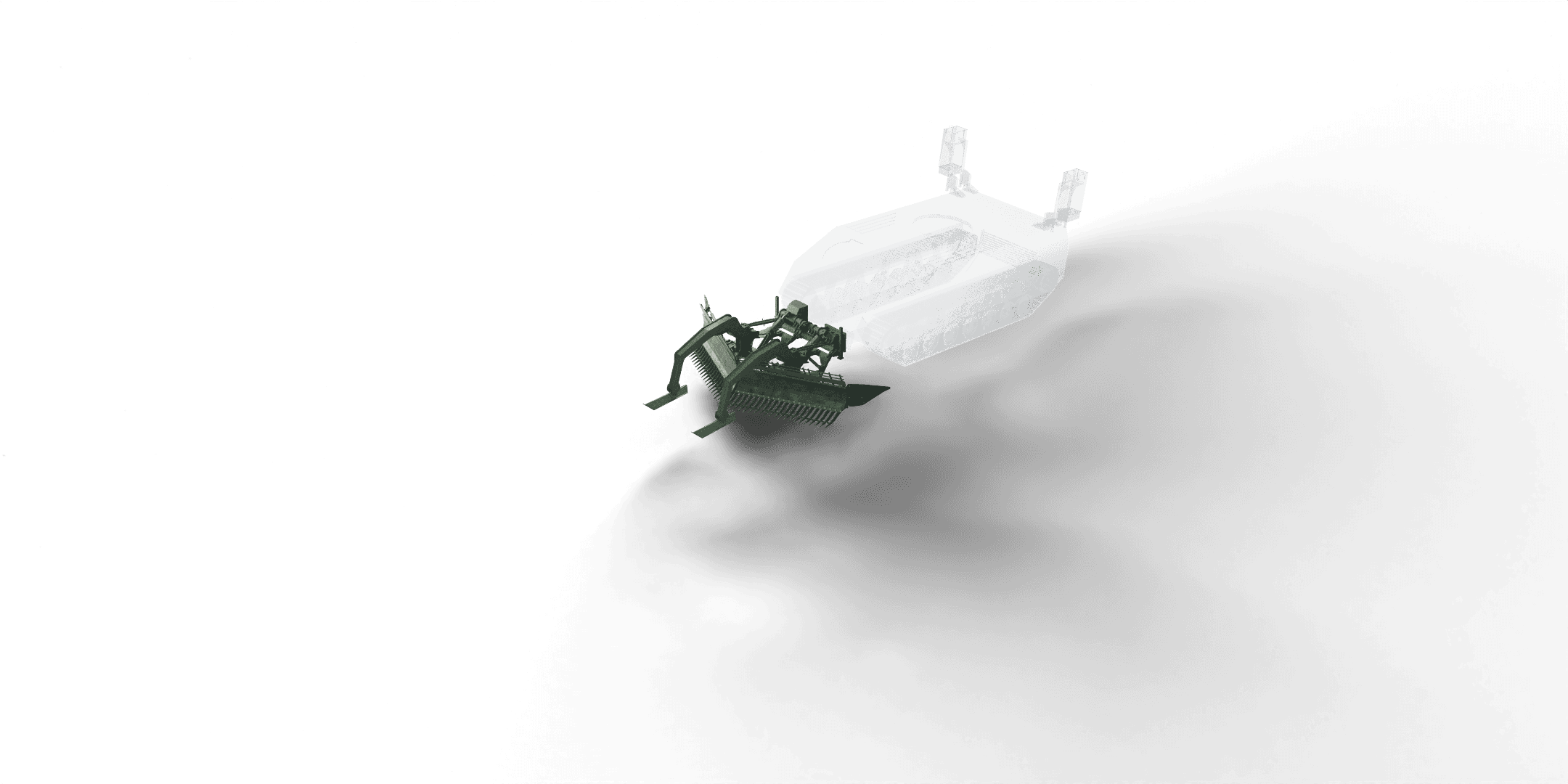

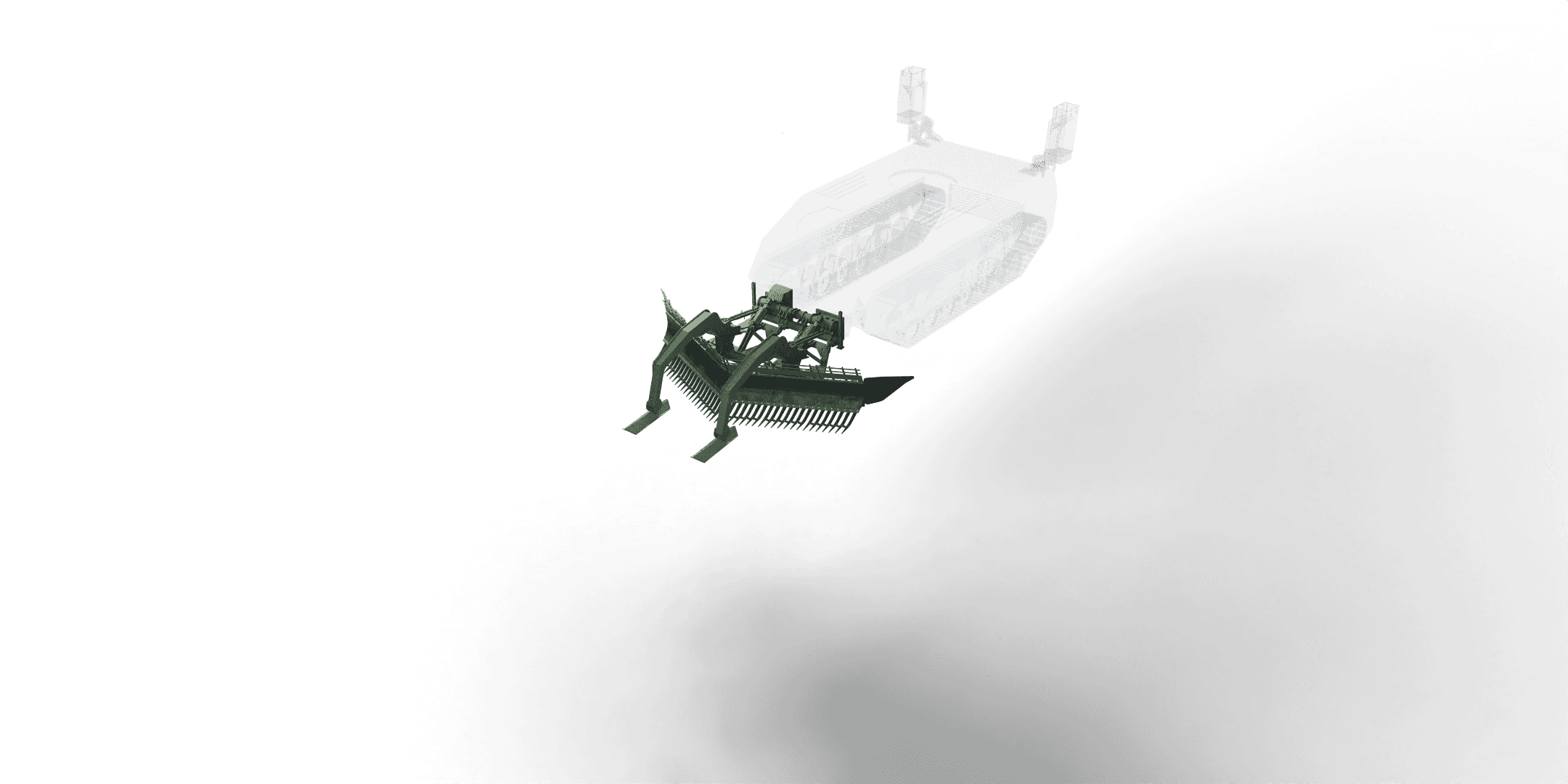

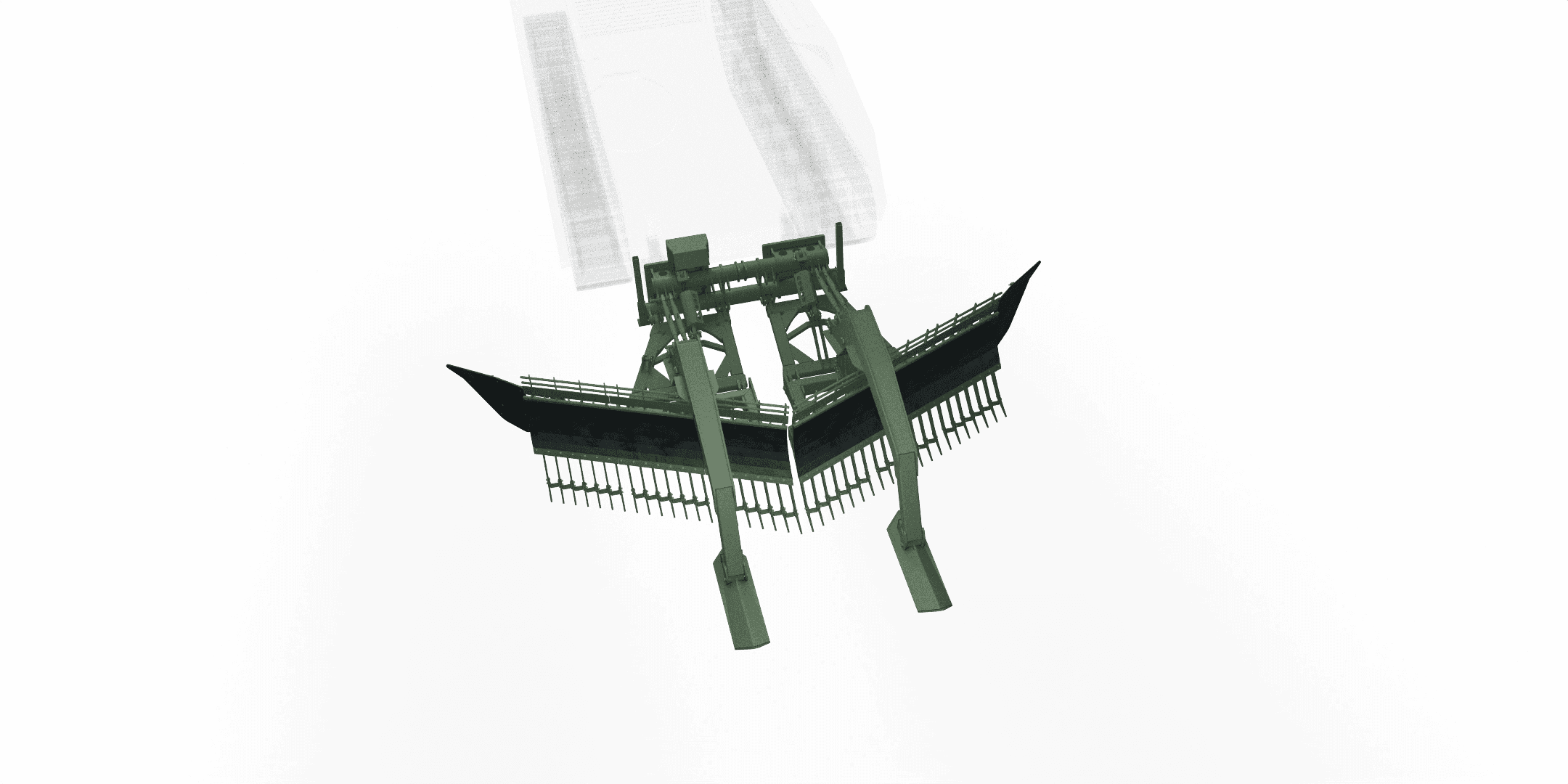

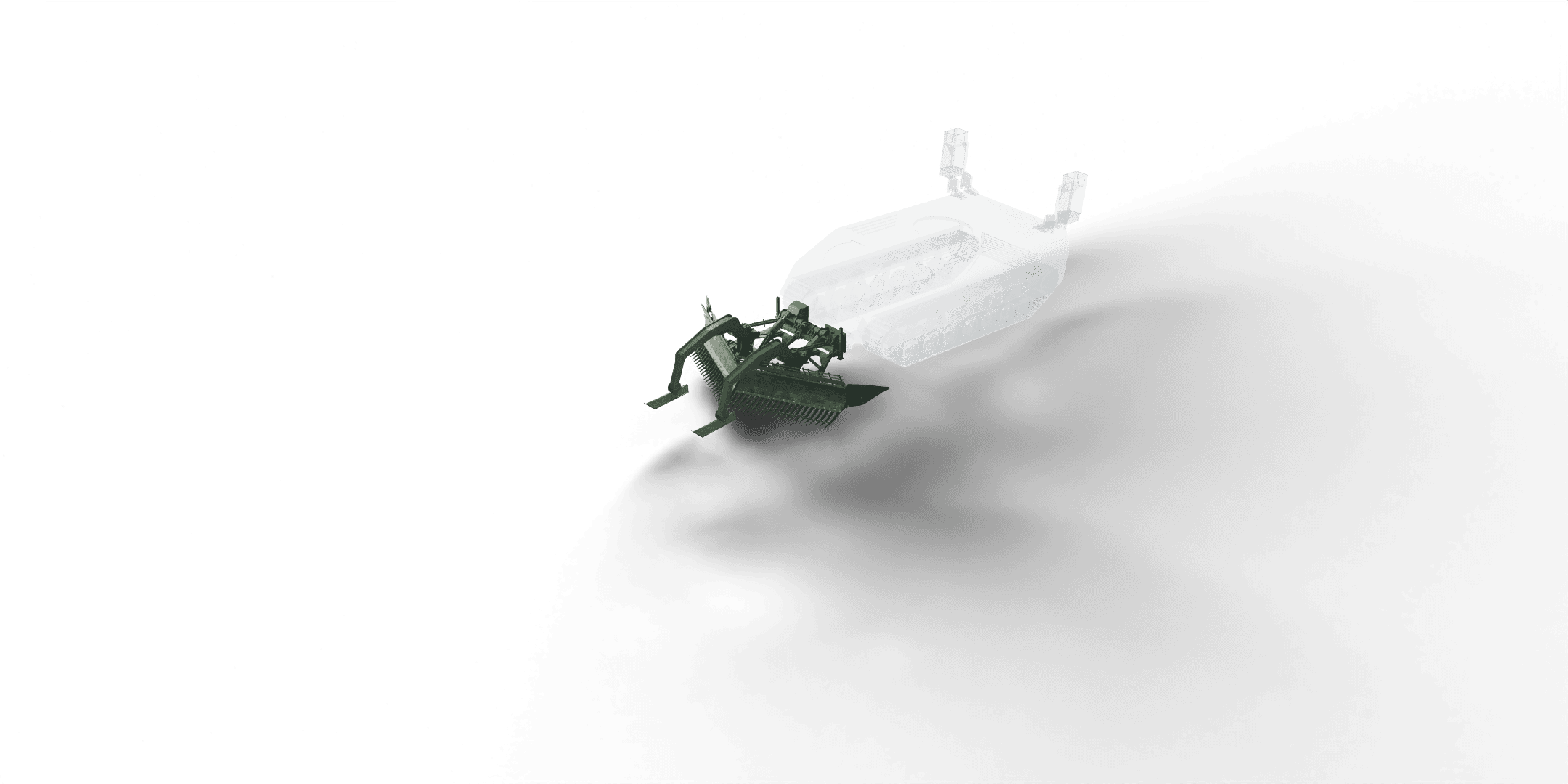

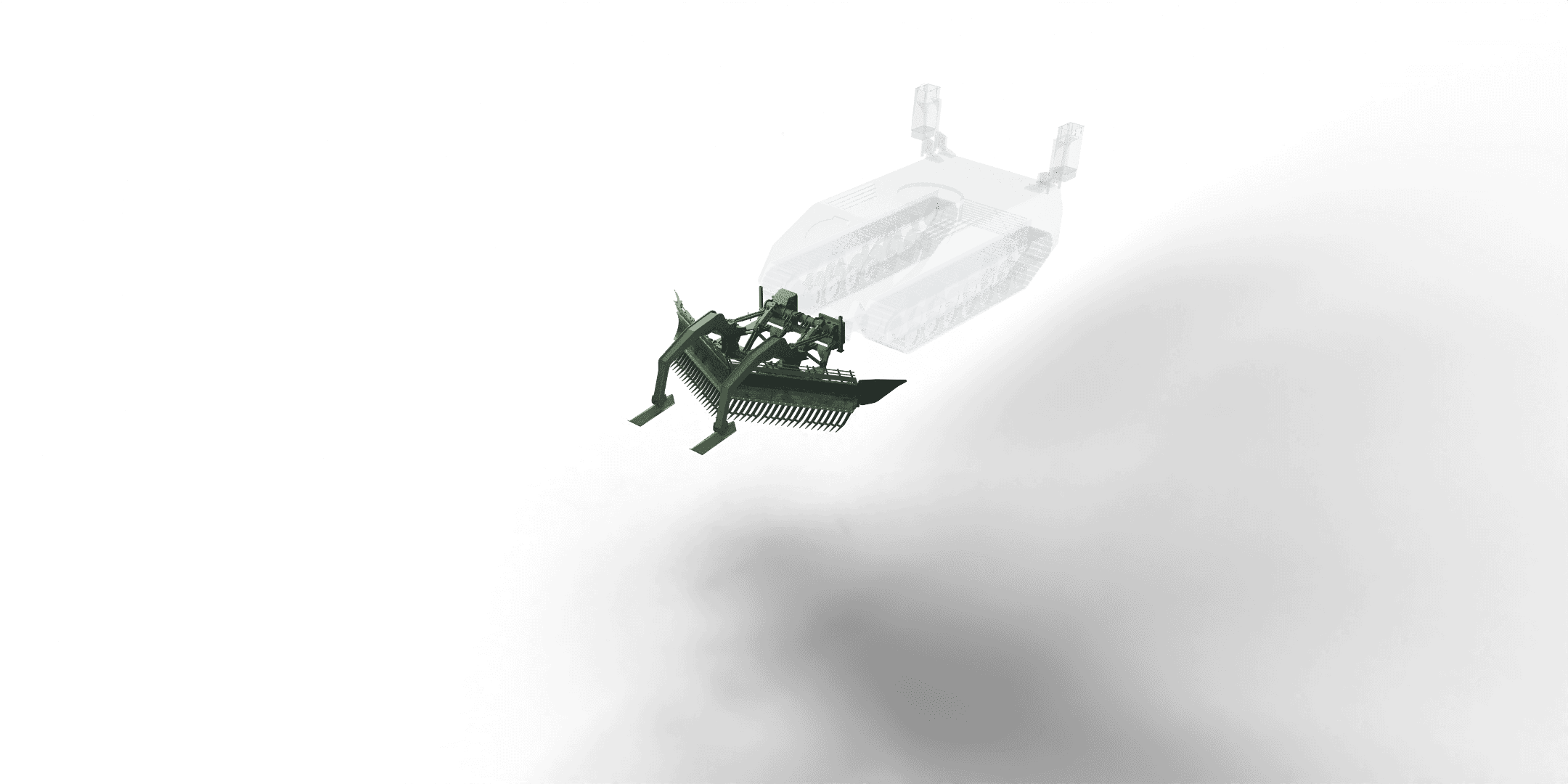

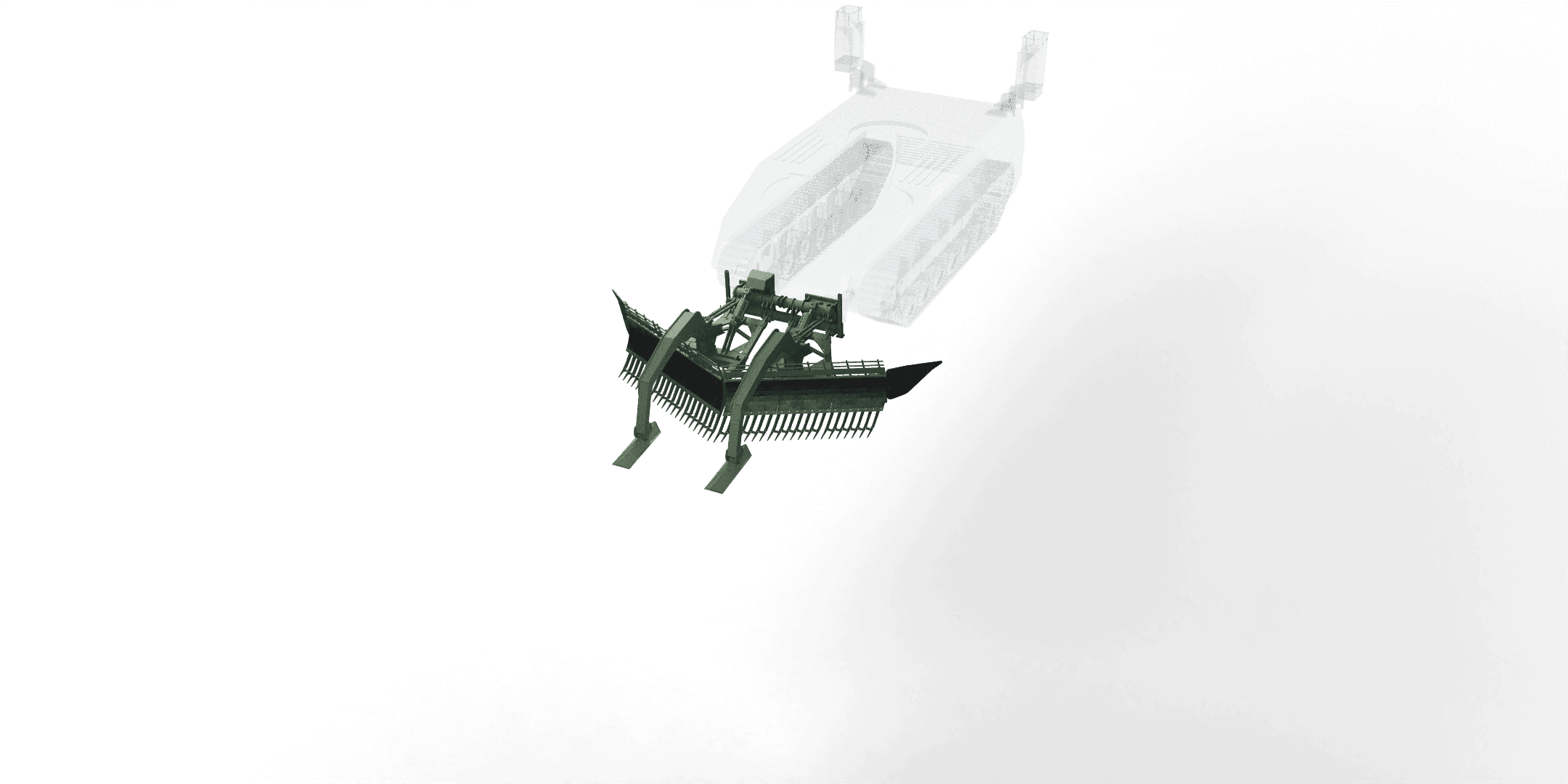

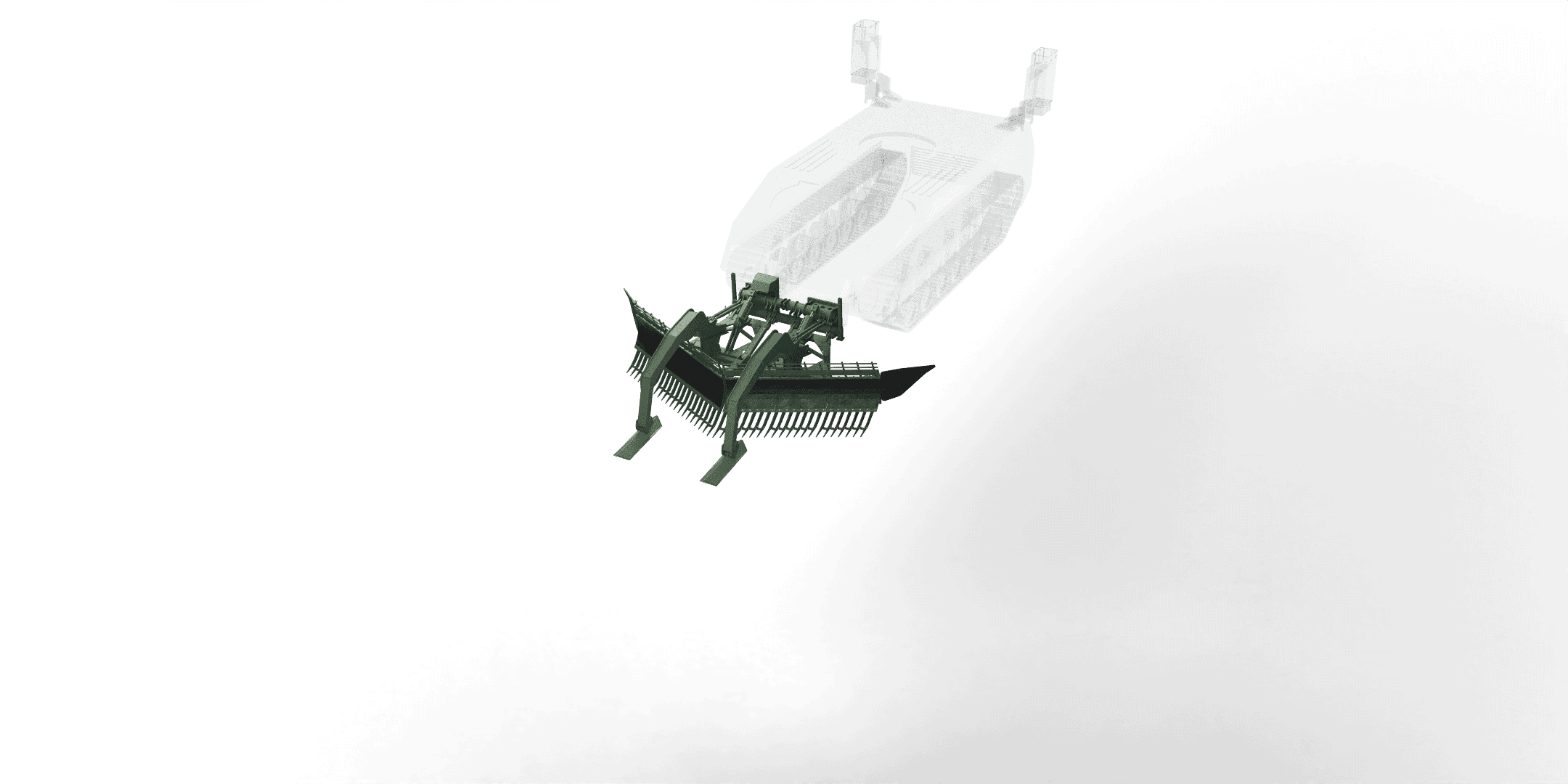

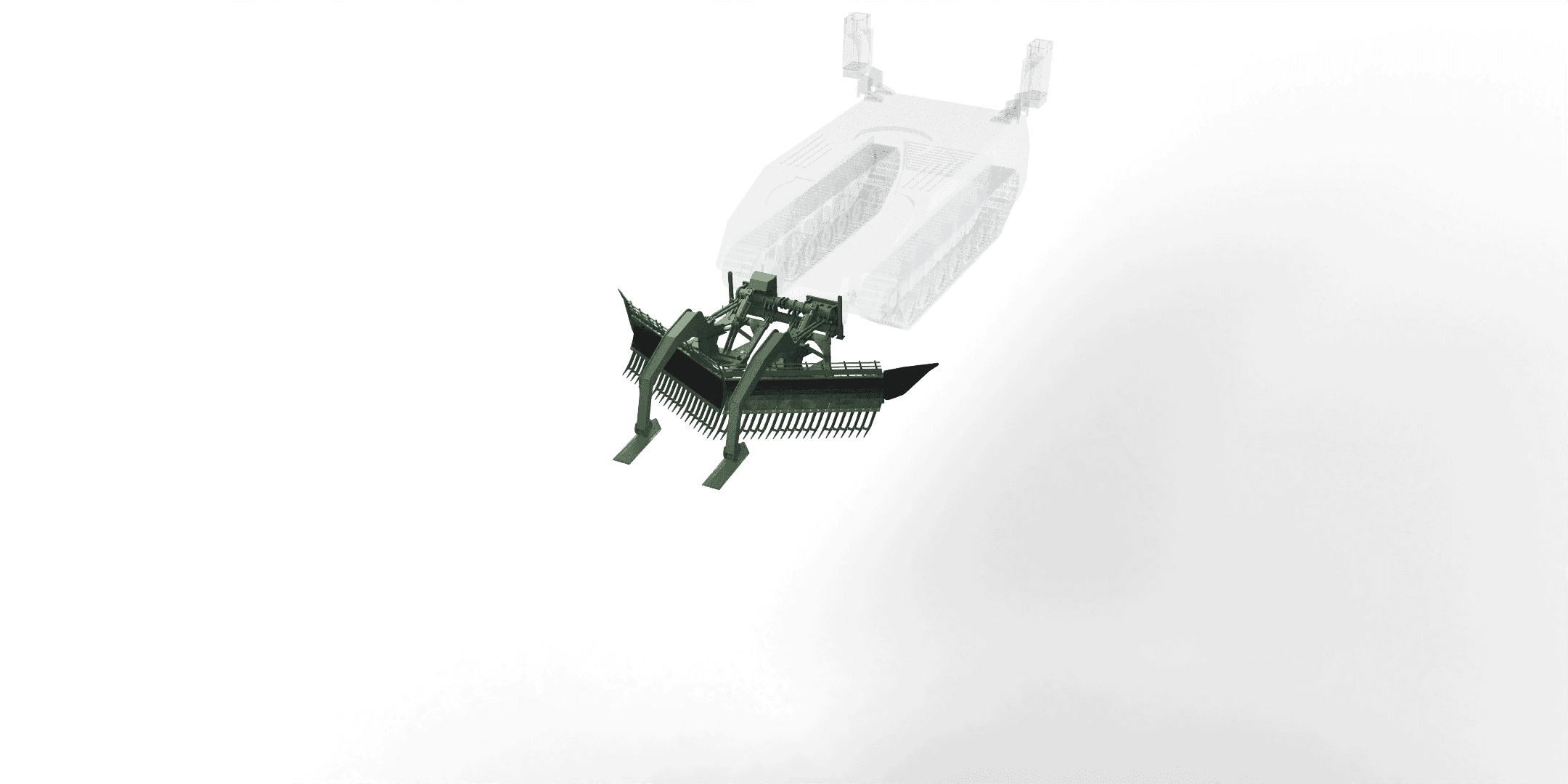

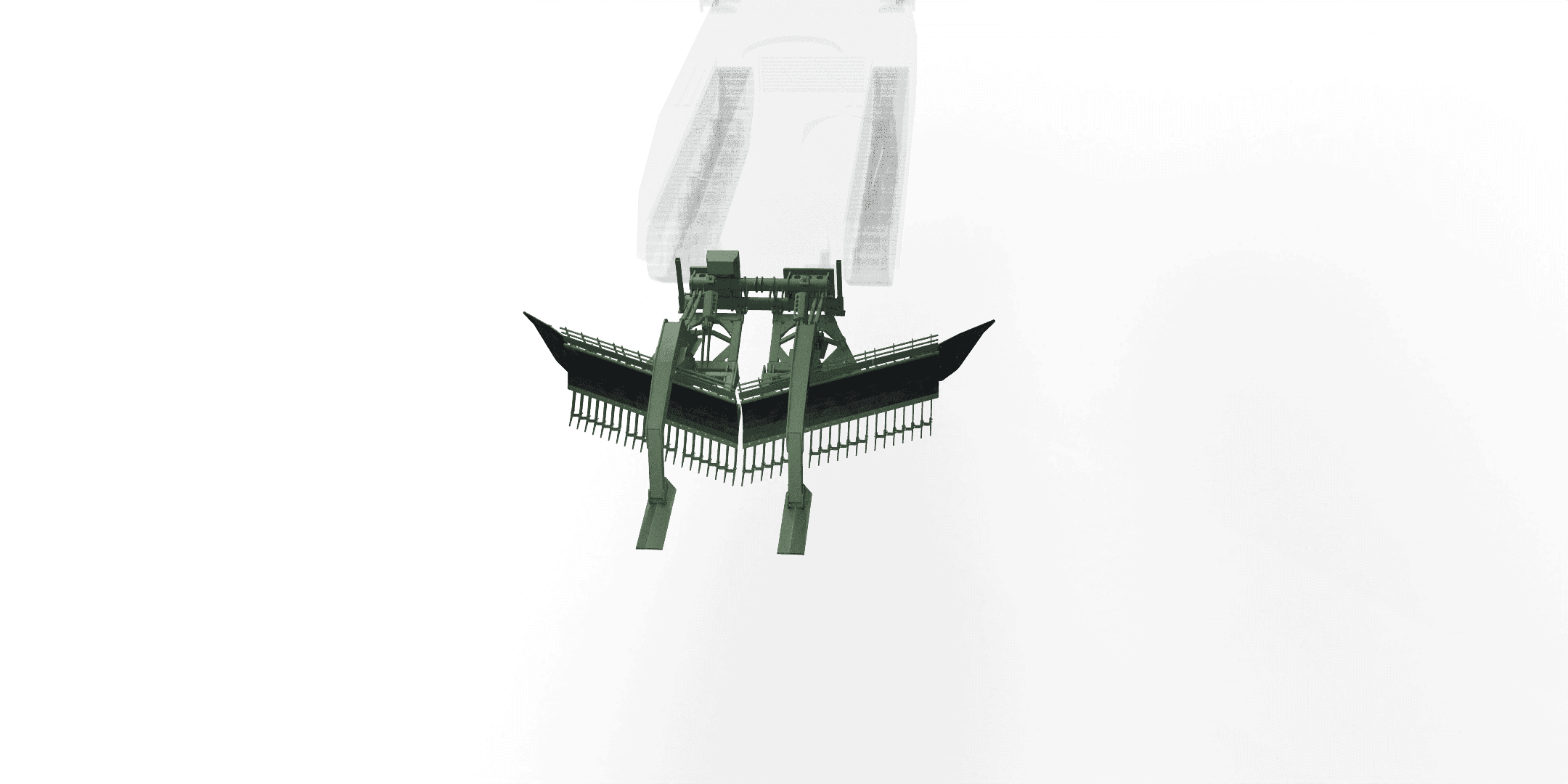

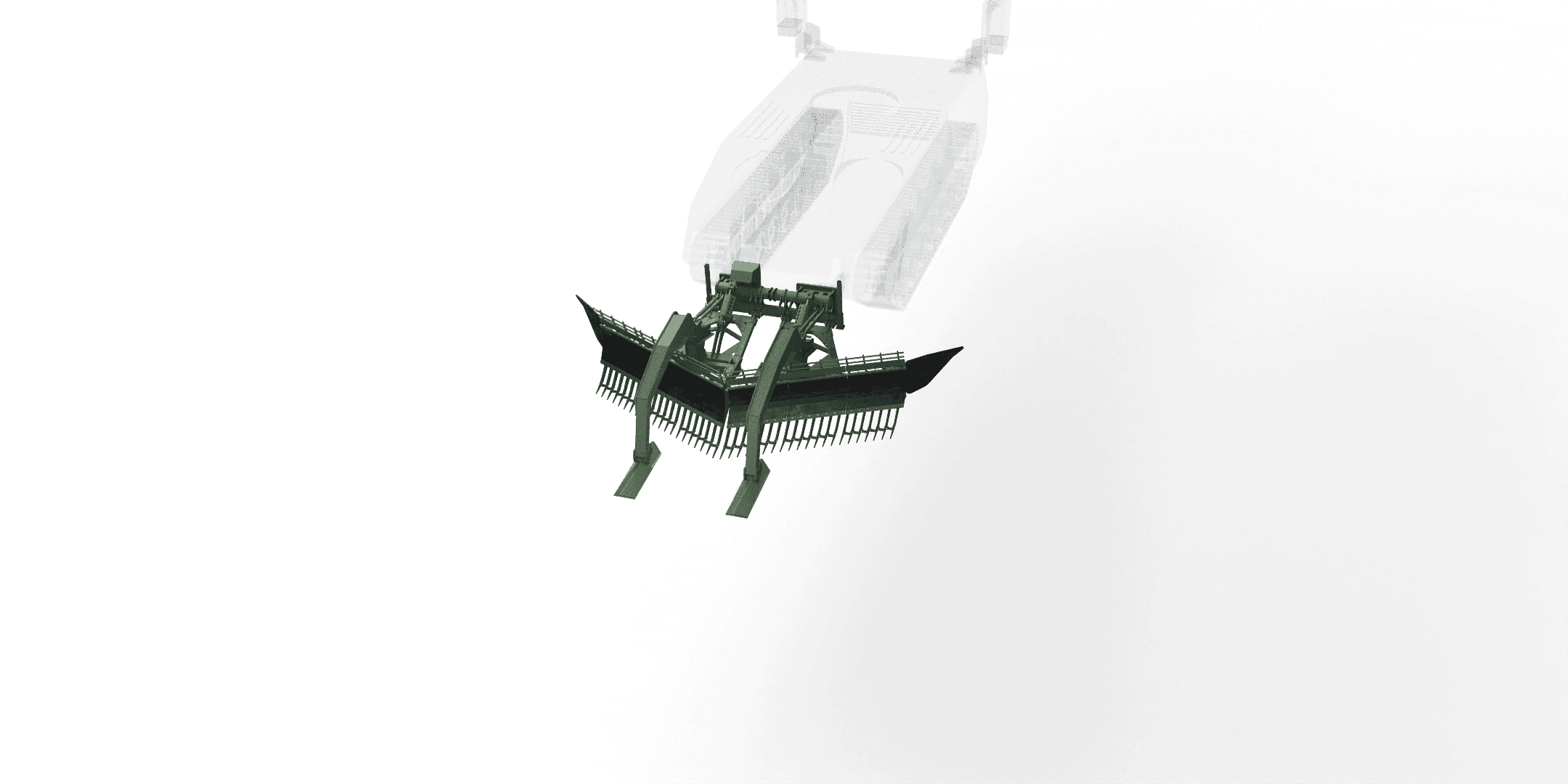

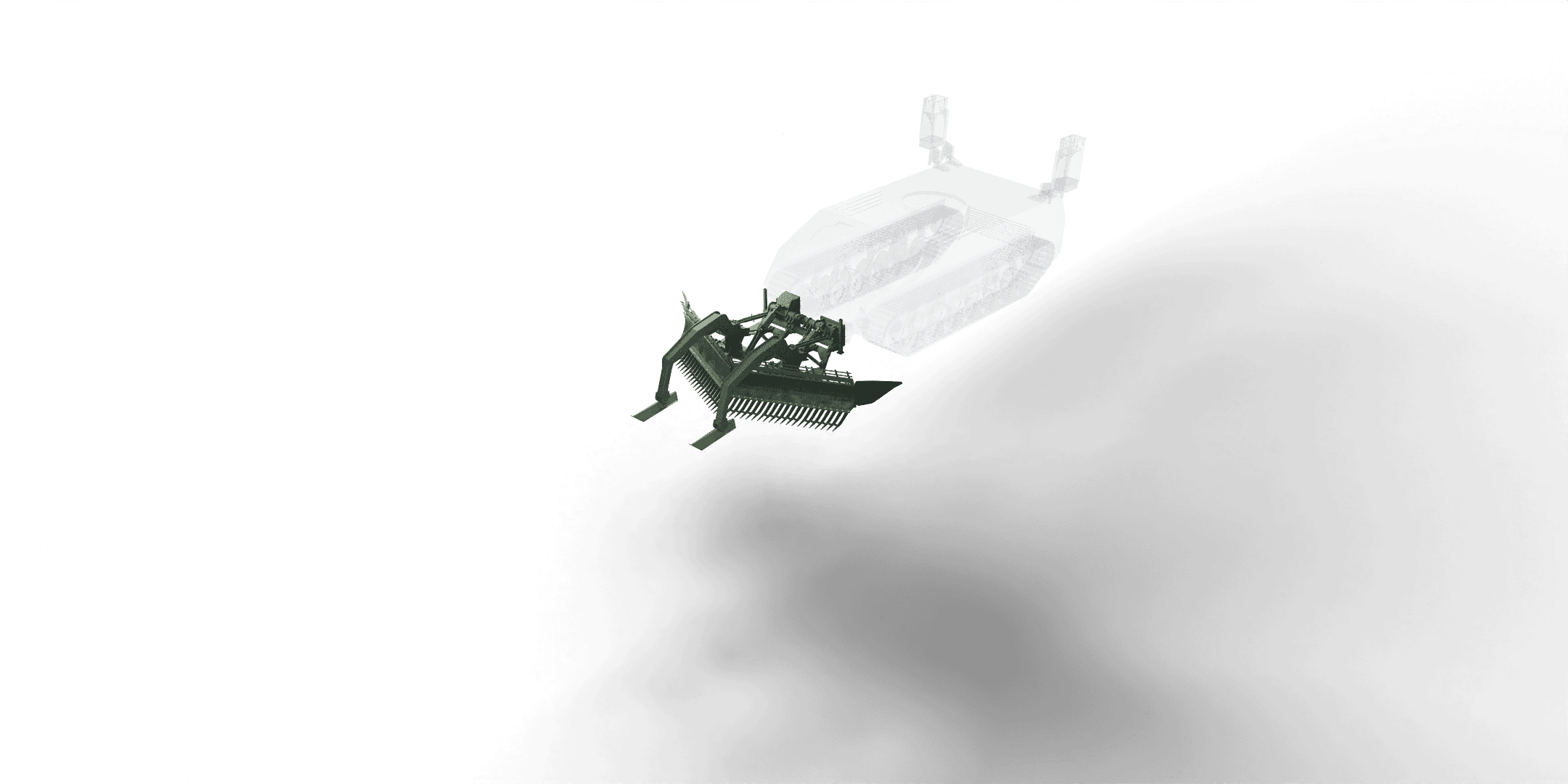

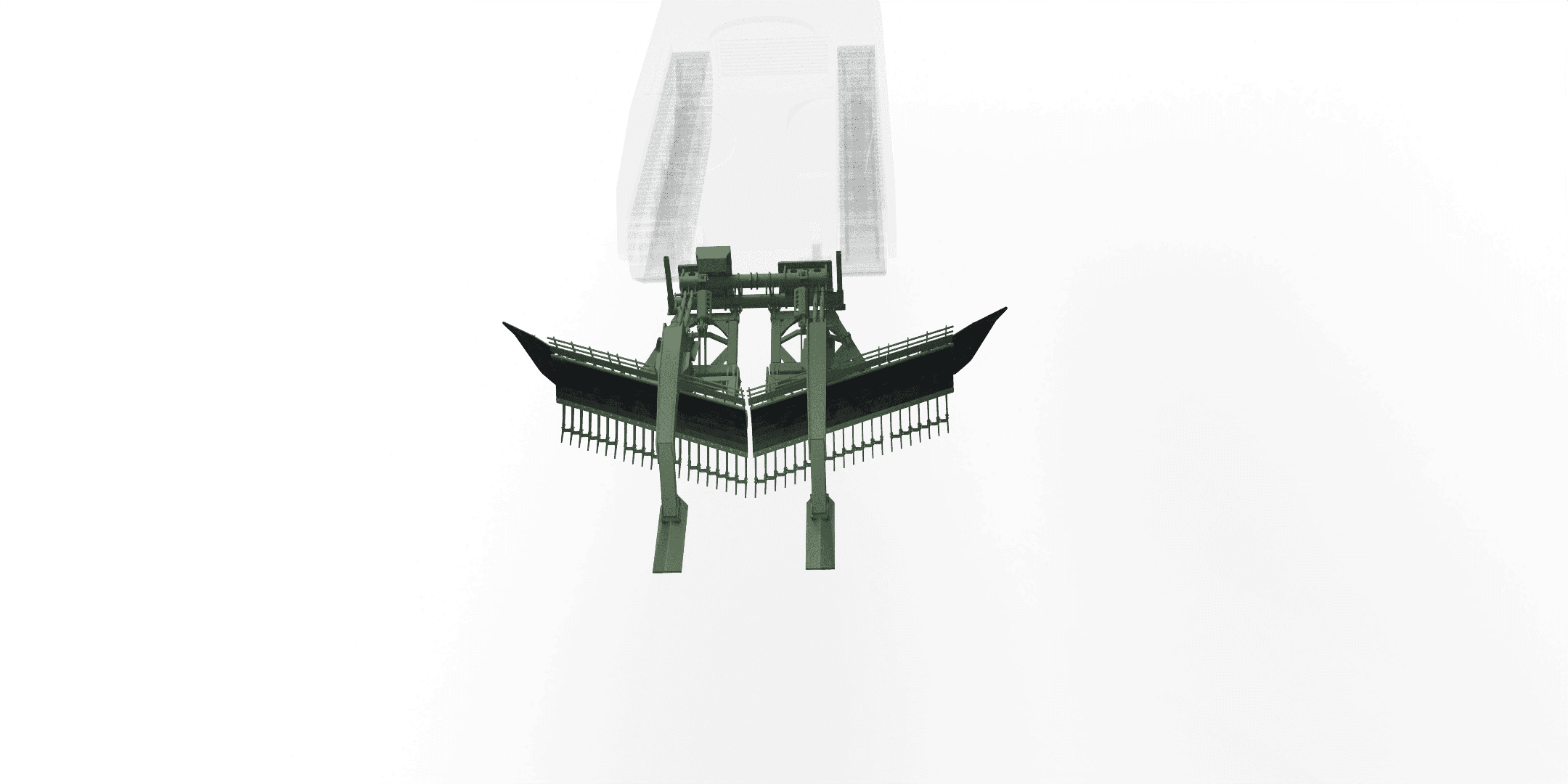

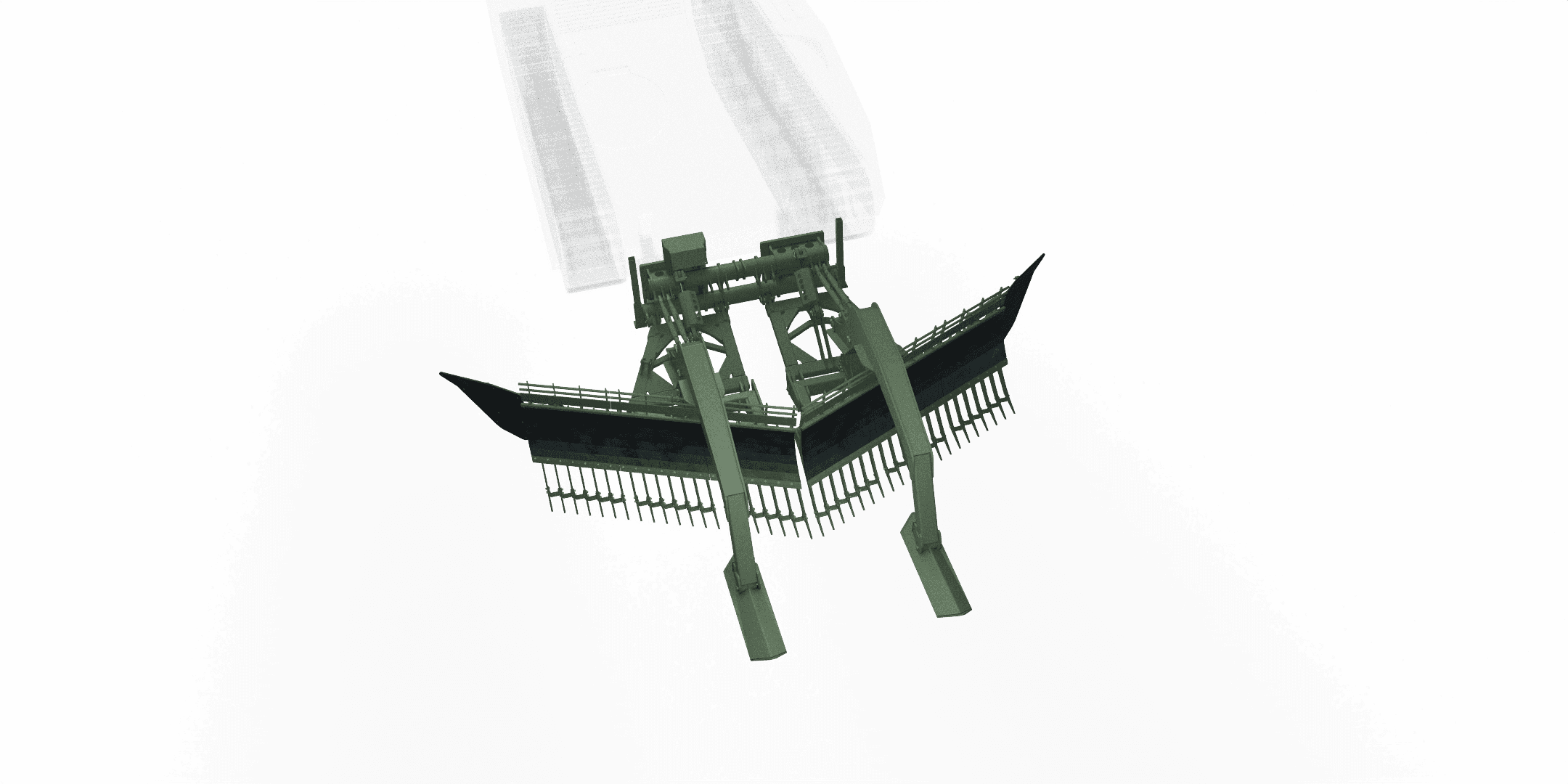

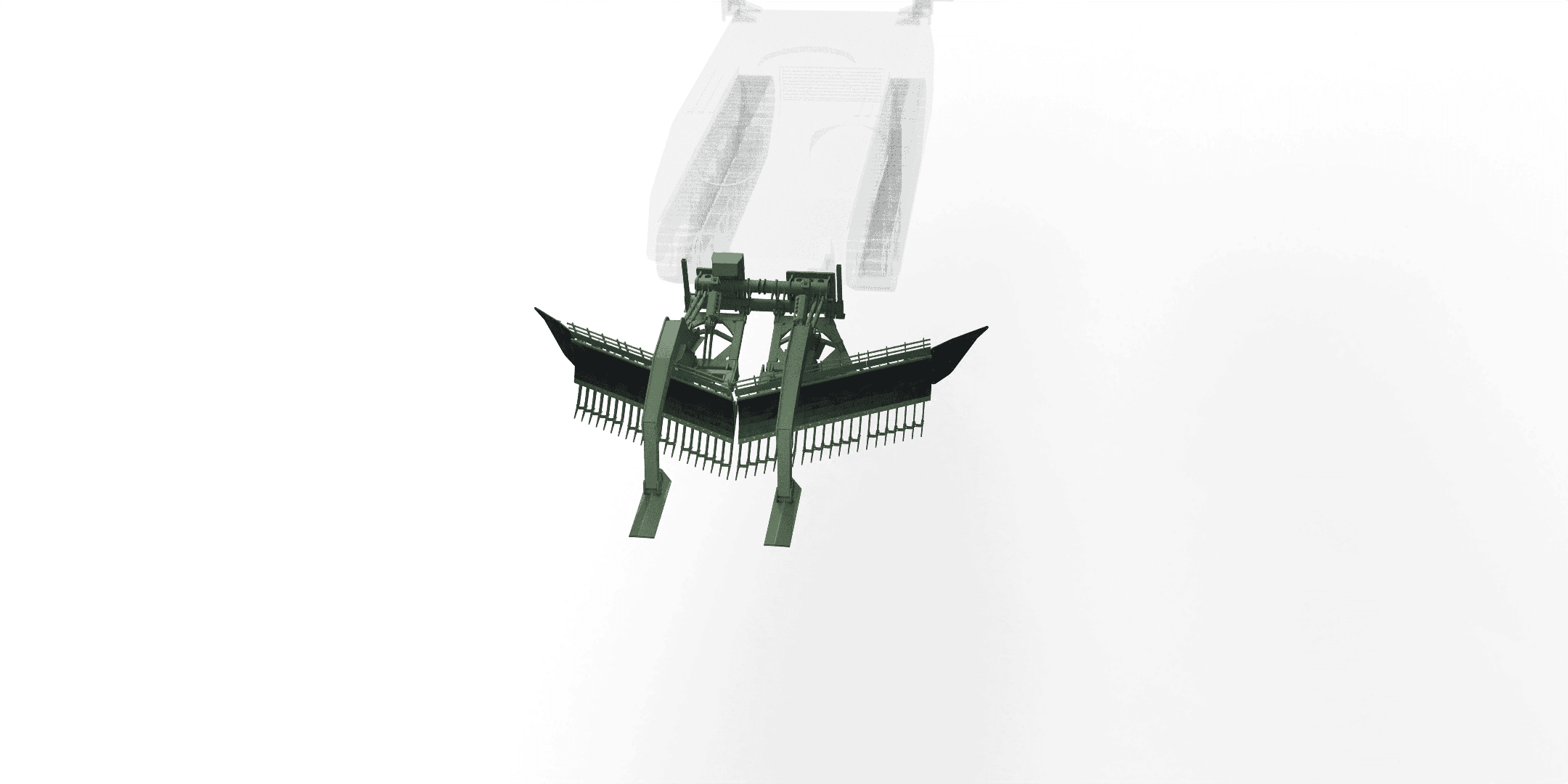

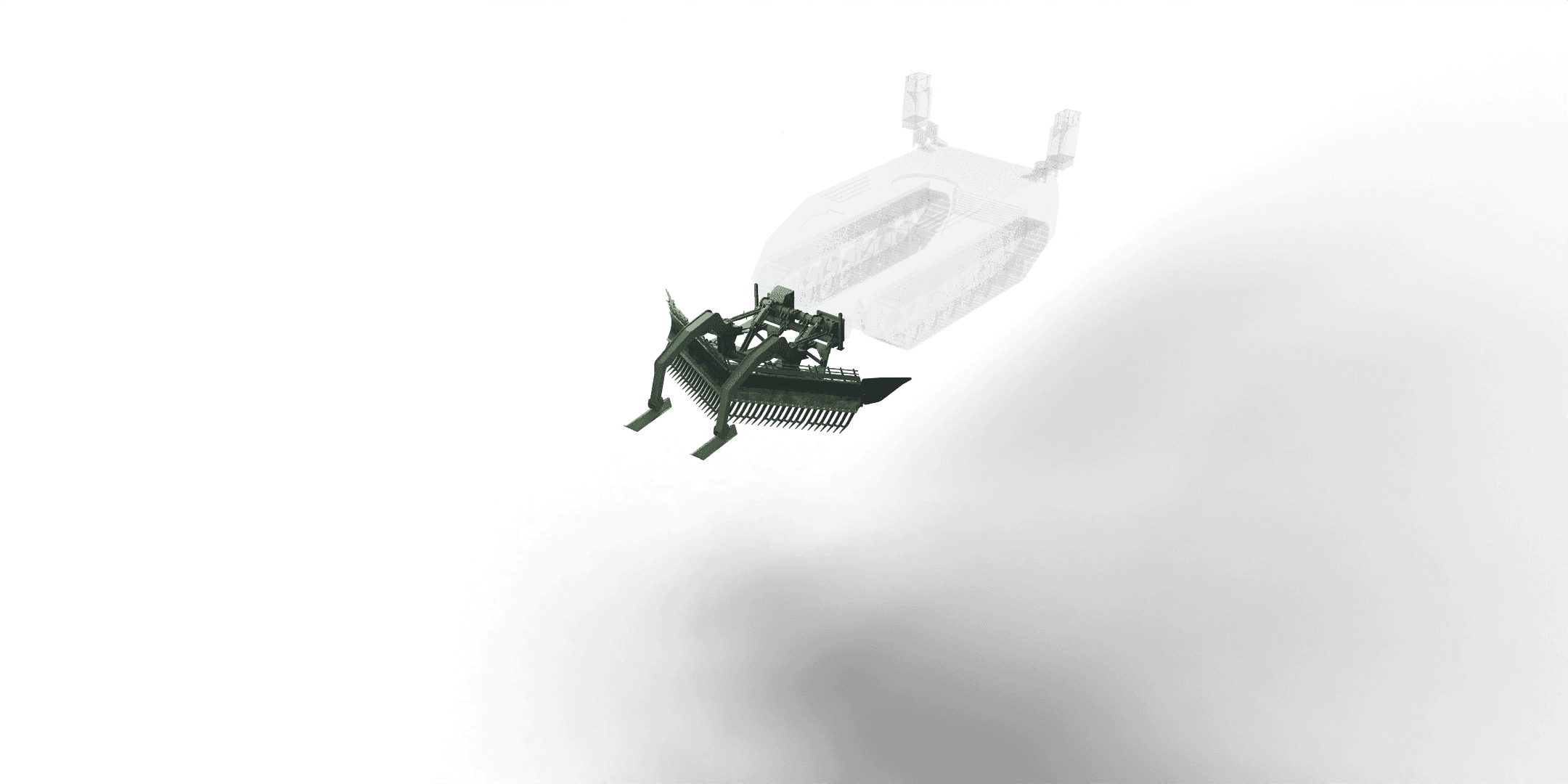

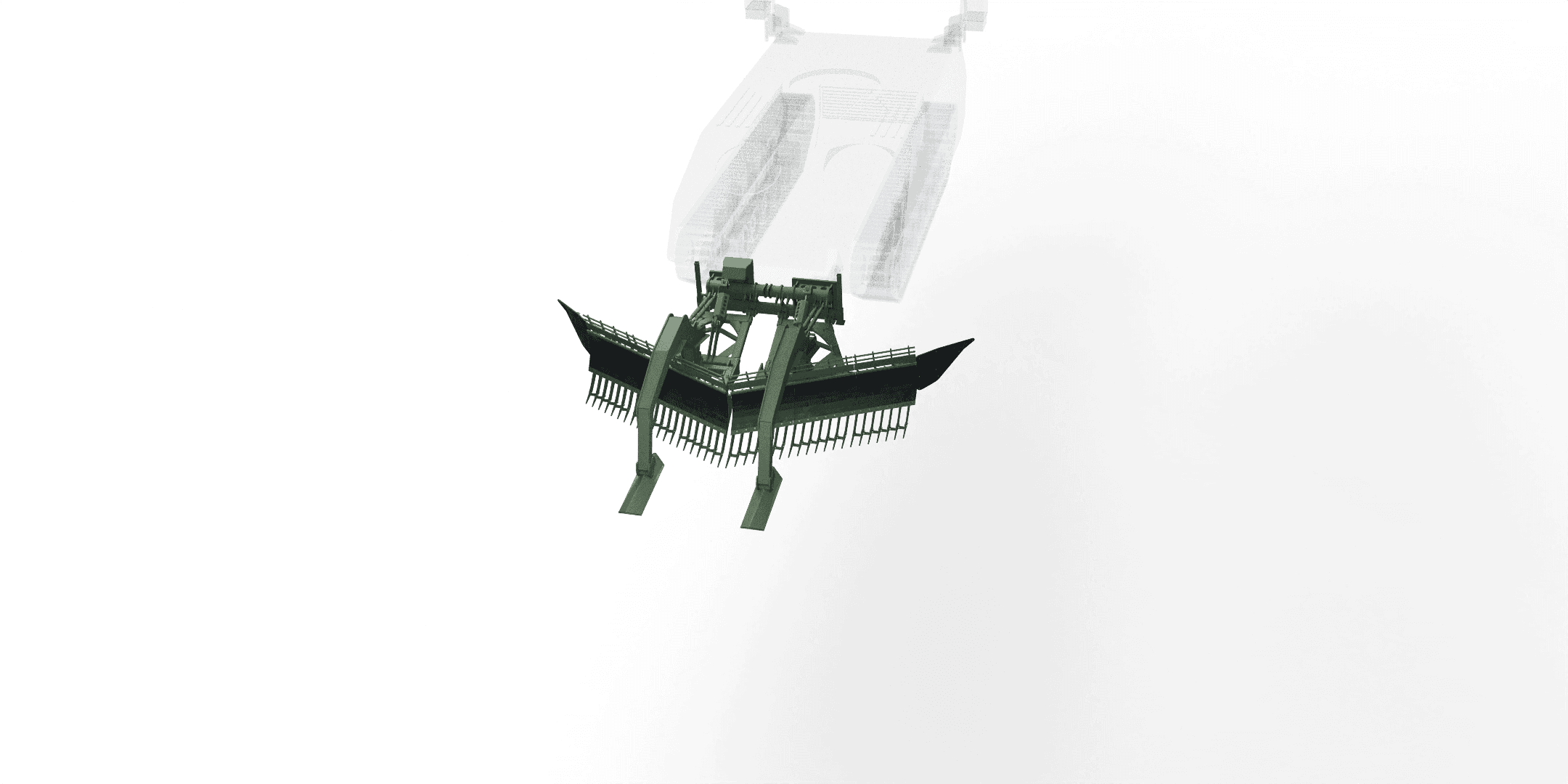

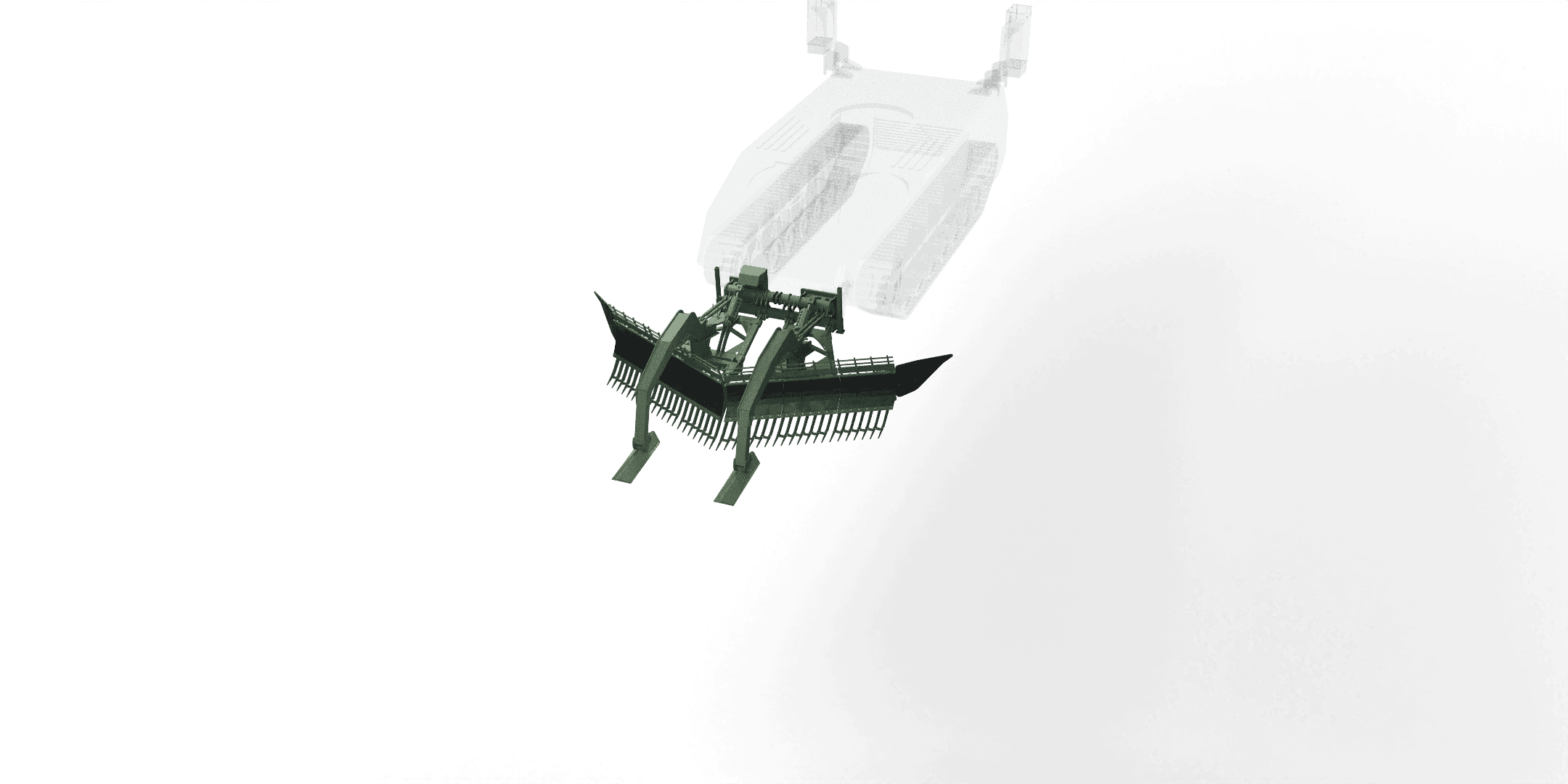

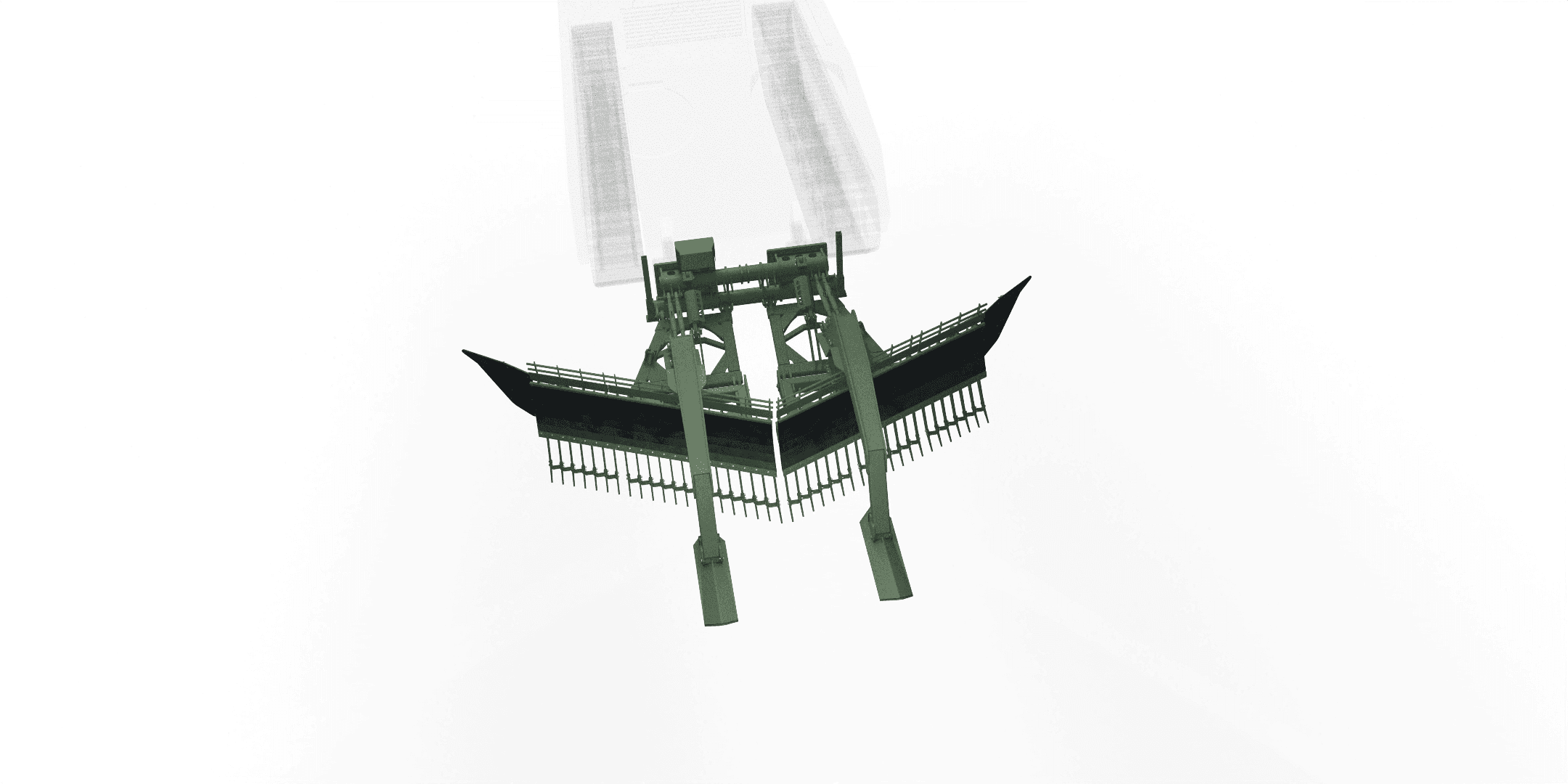

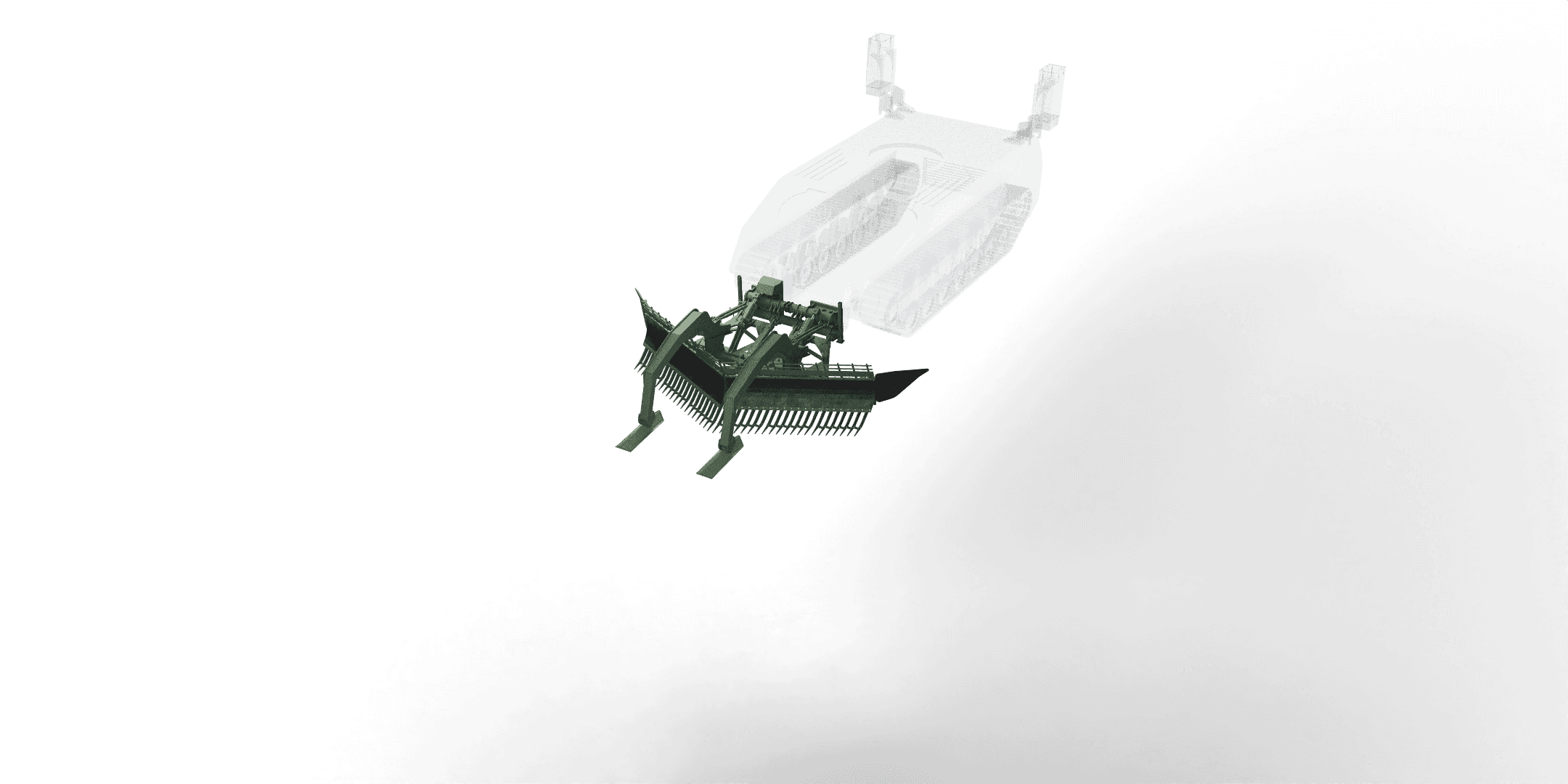

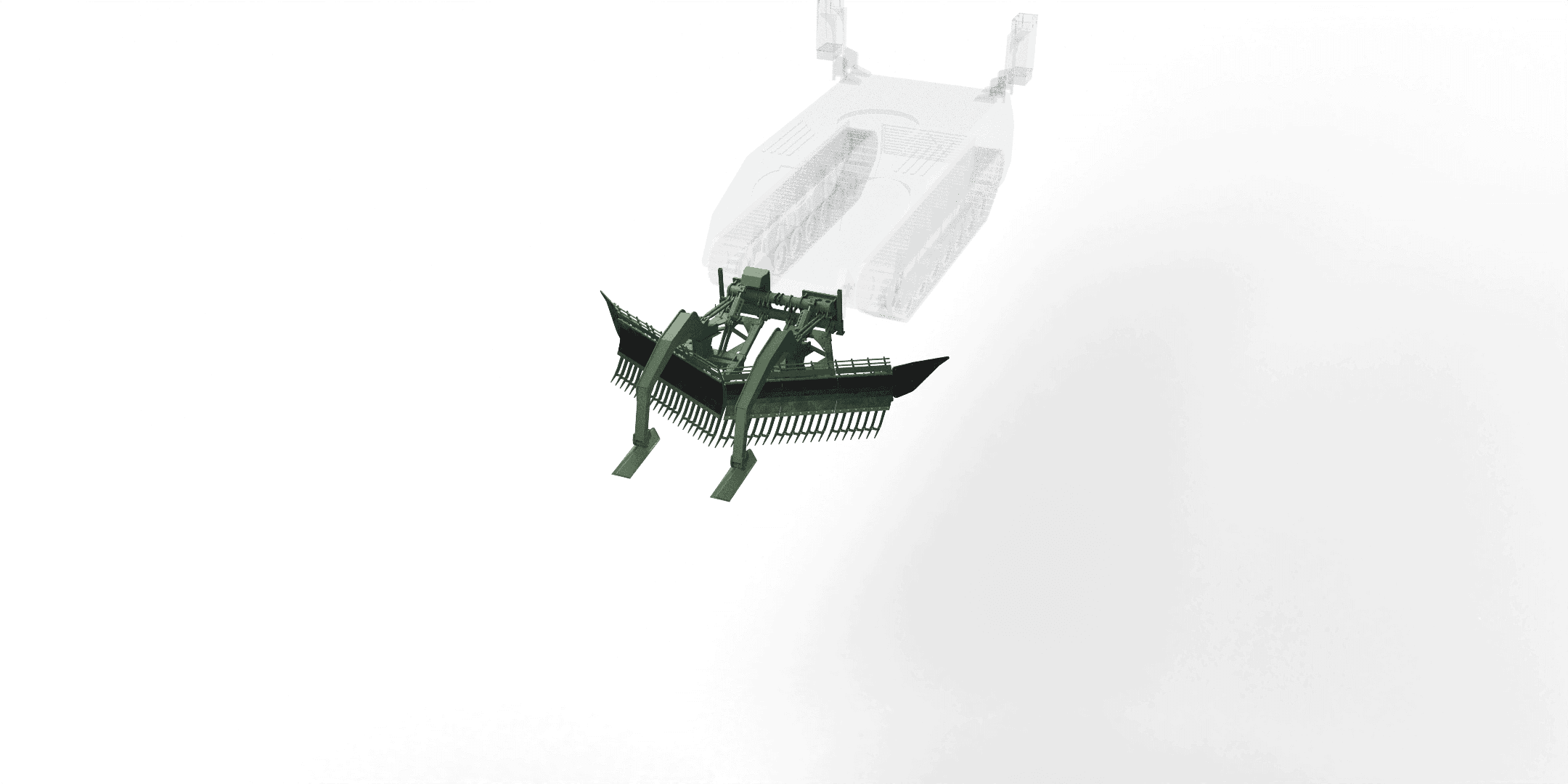

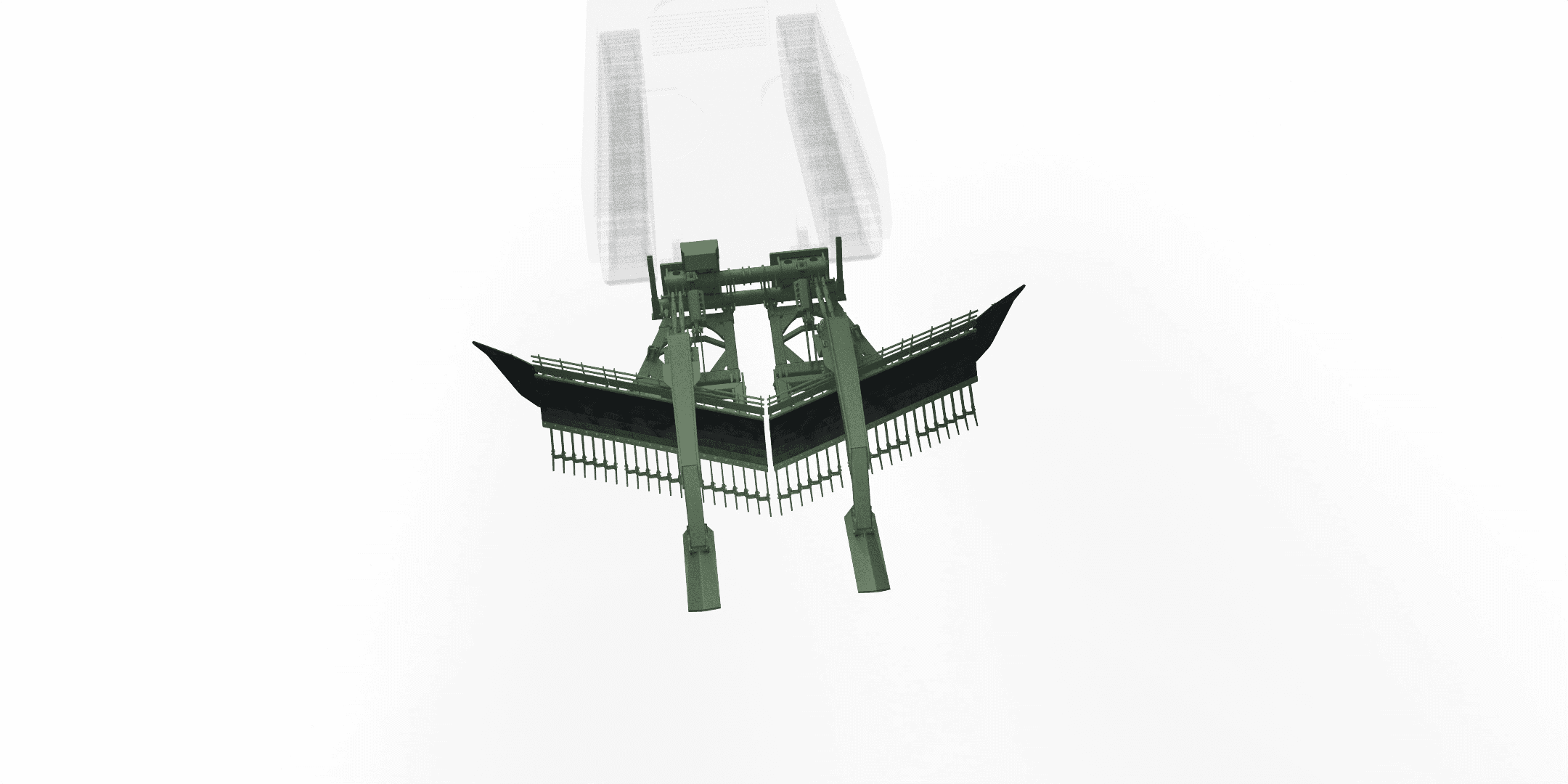

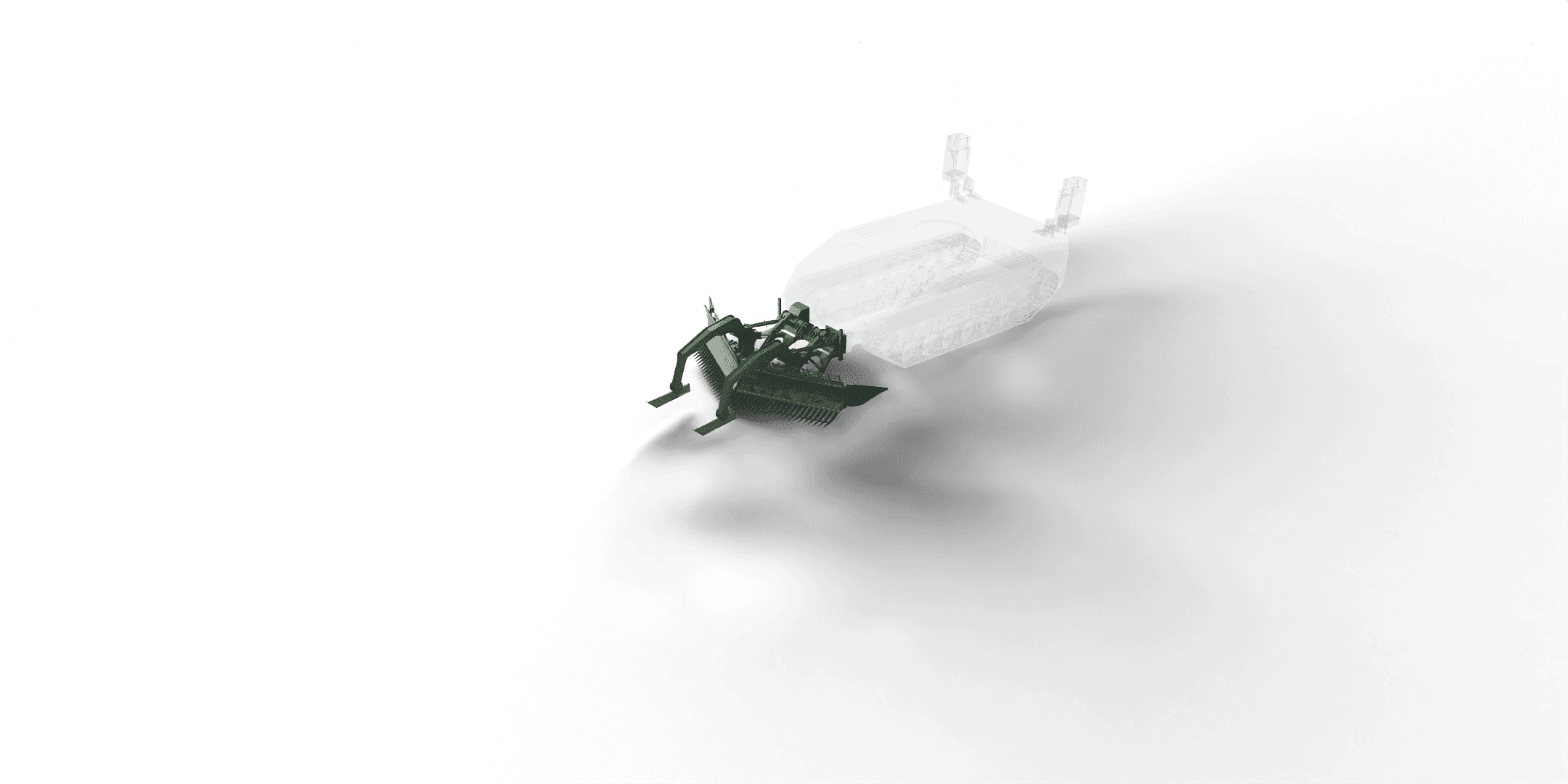

Modular Mine Plough
Full‑width minefield breaching attachment for armoured combat engineering vehicles

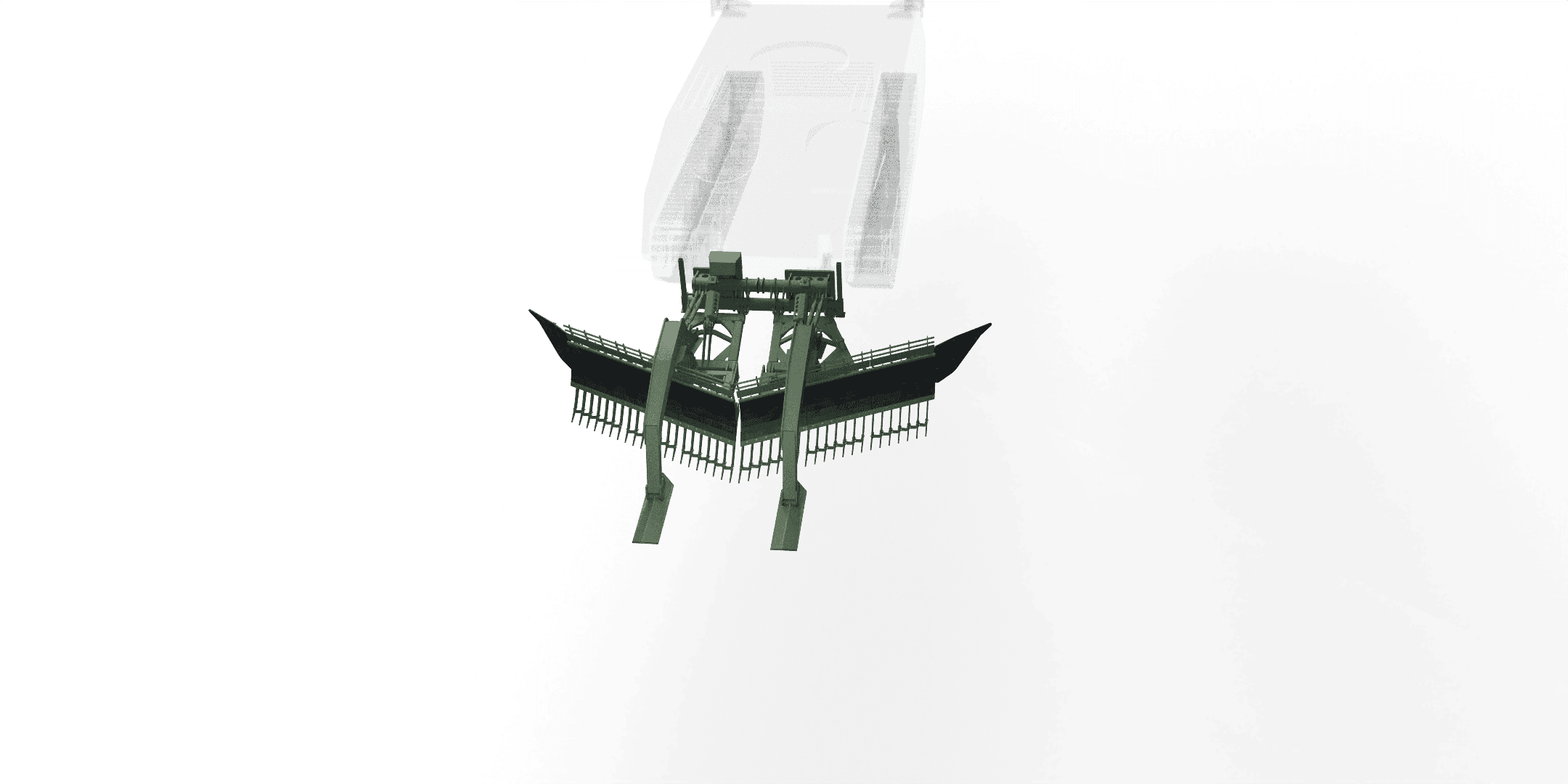

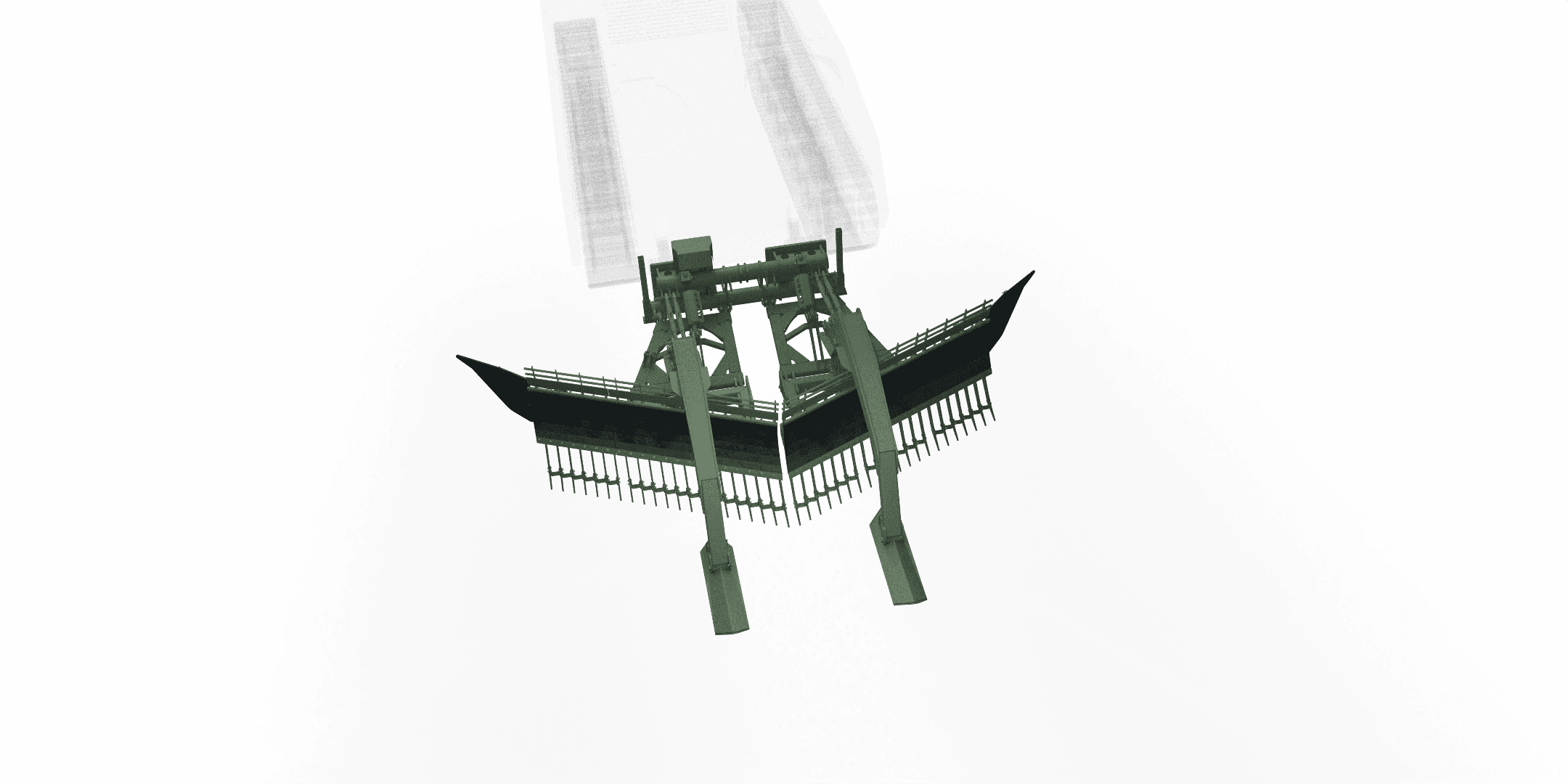

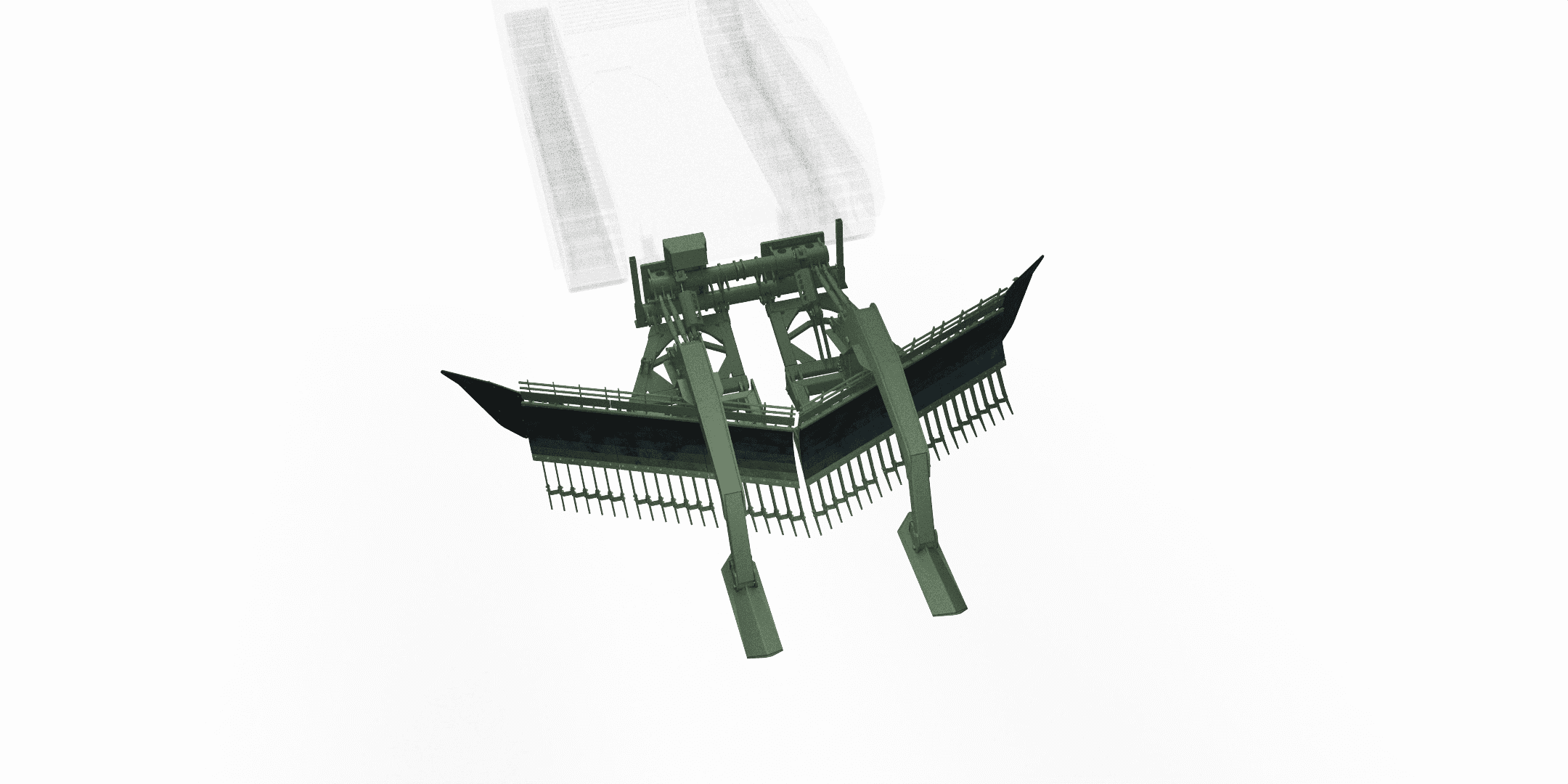

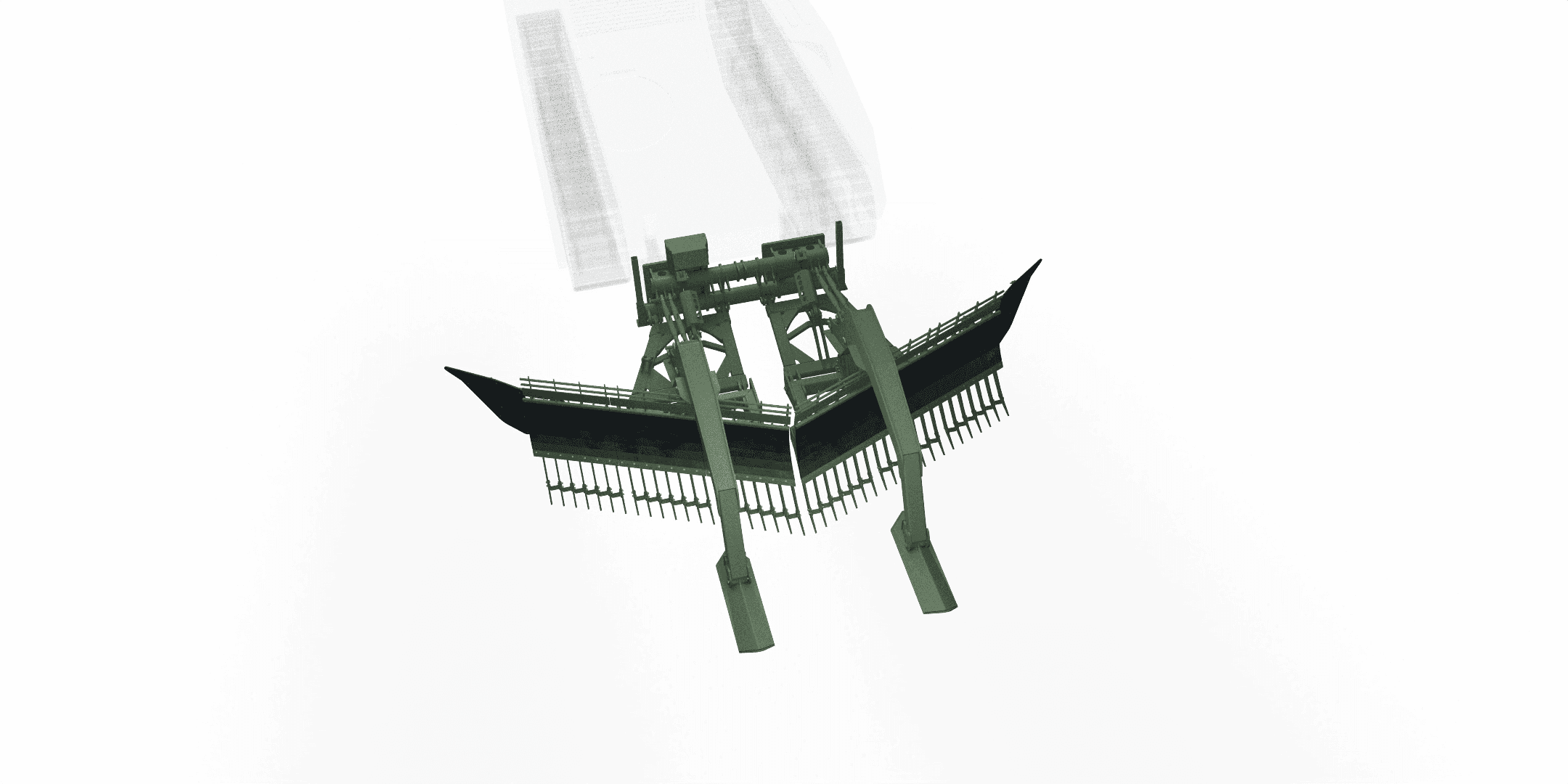

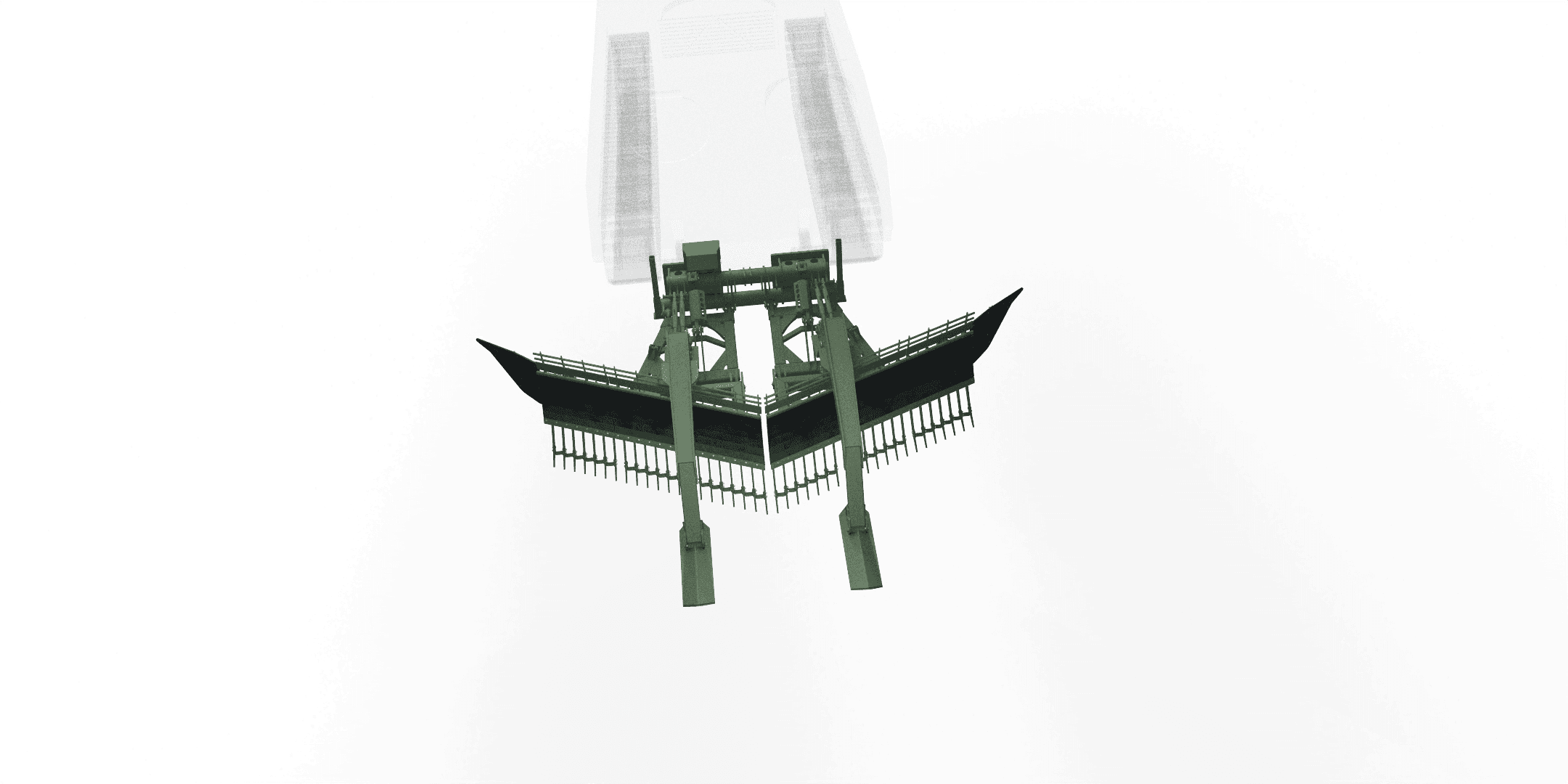

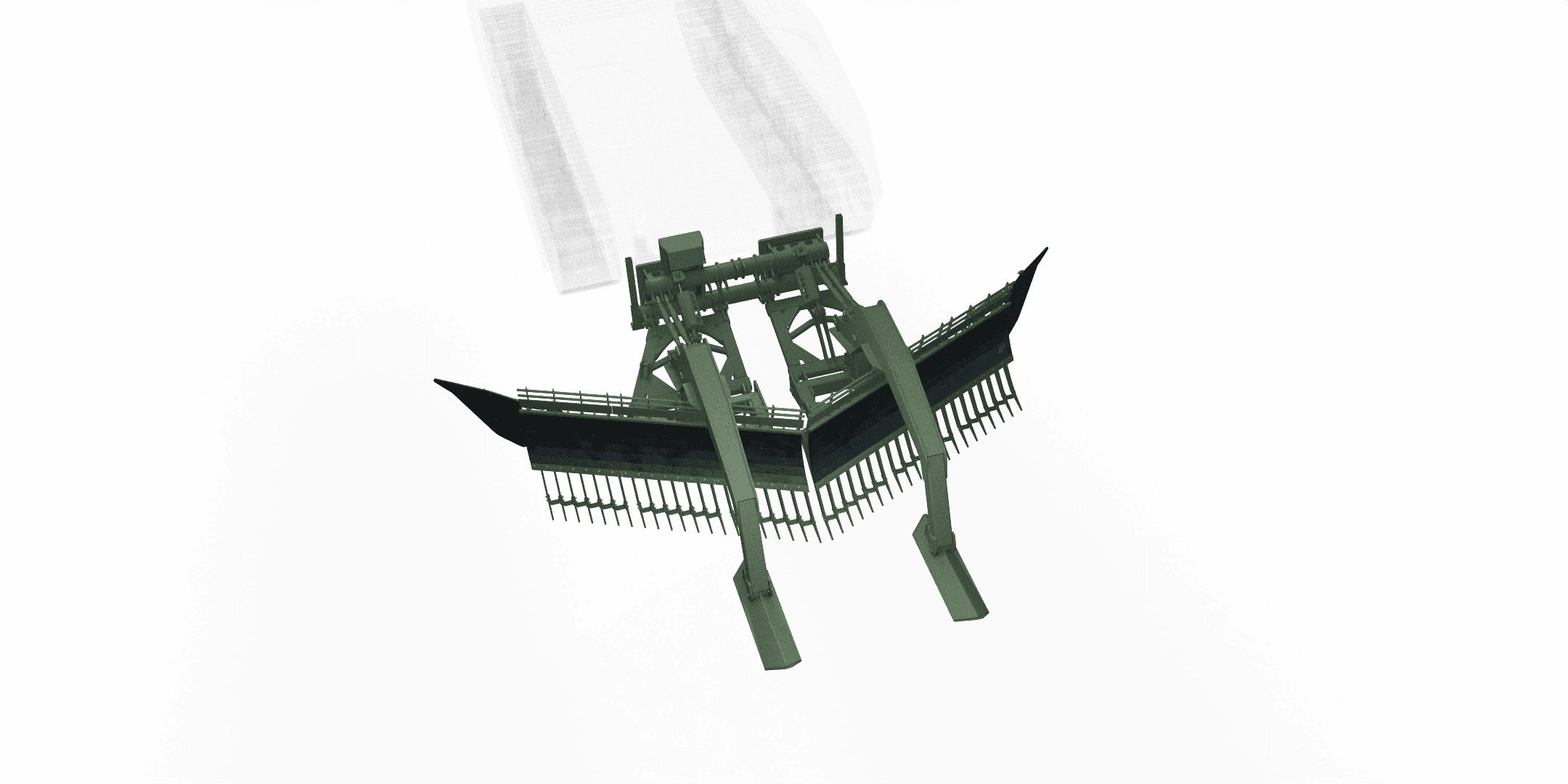

Creation of a continuous cleared lane across the full width of the host vehicle.

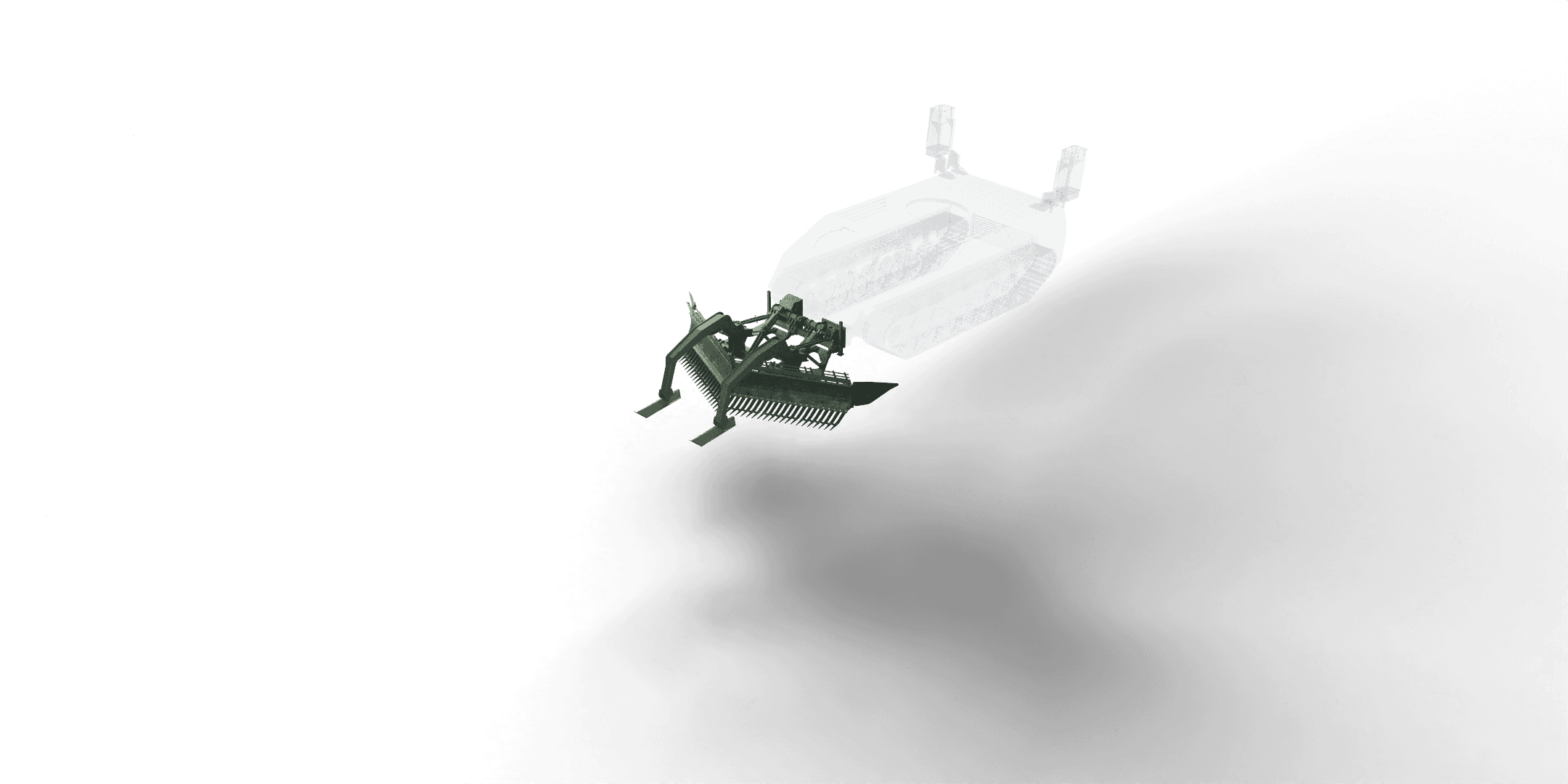

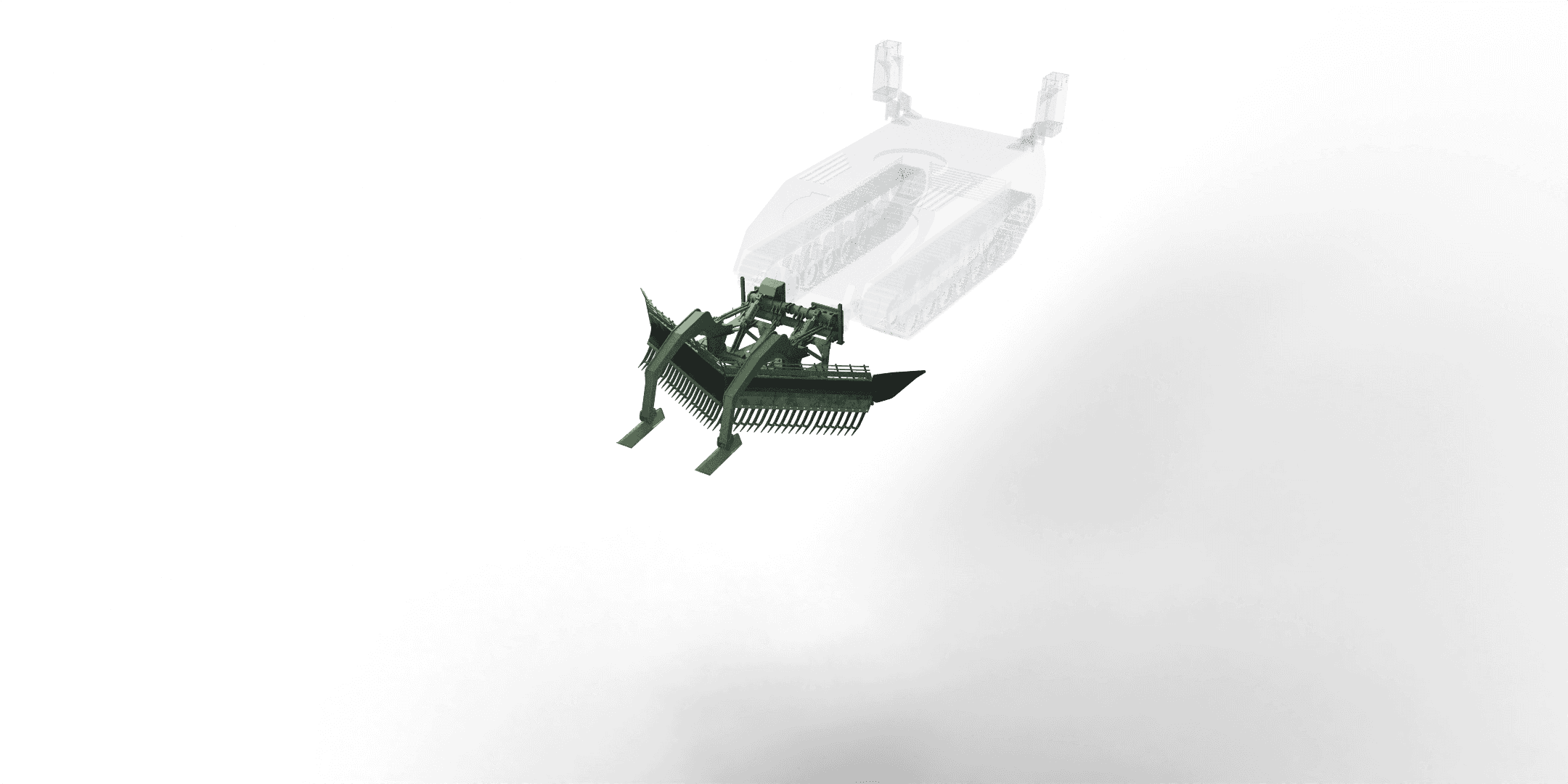

Stowed and deployed operating modes, allowing fast transition between movement and breaching.

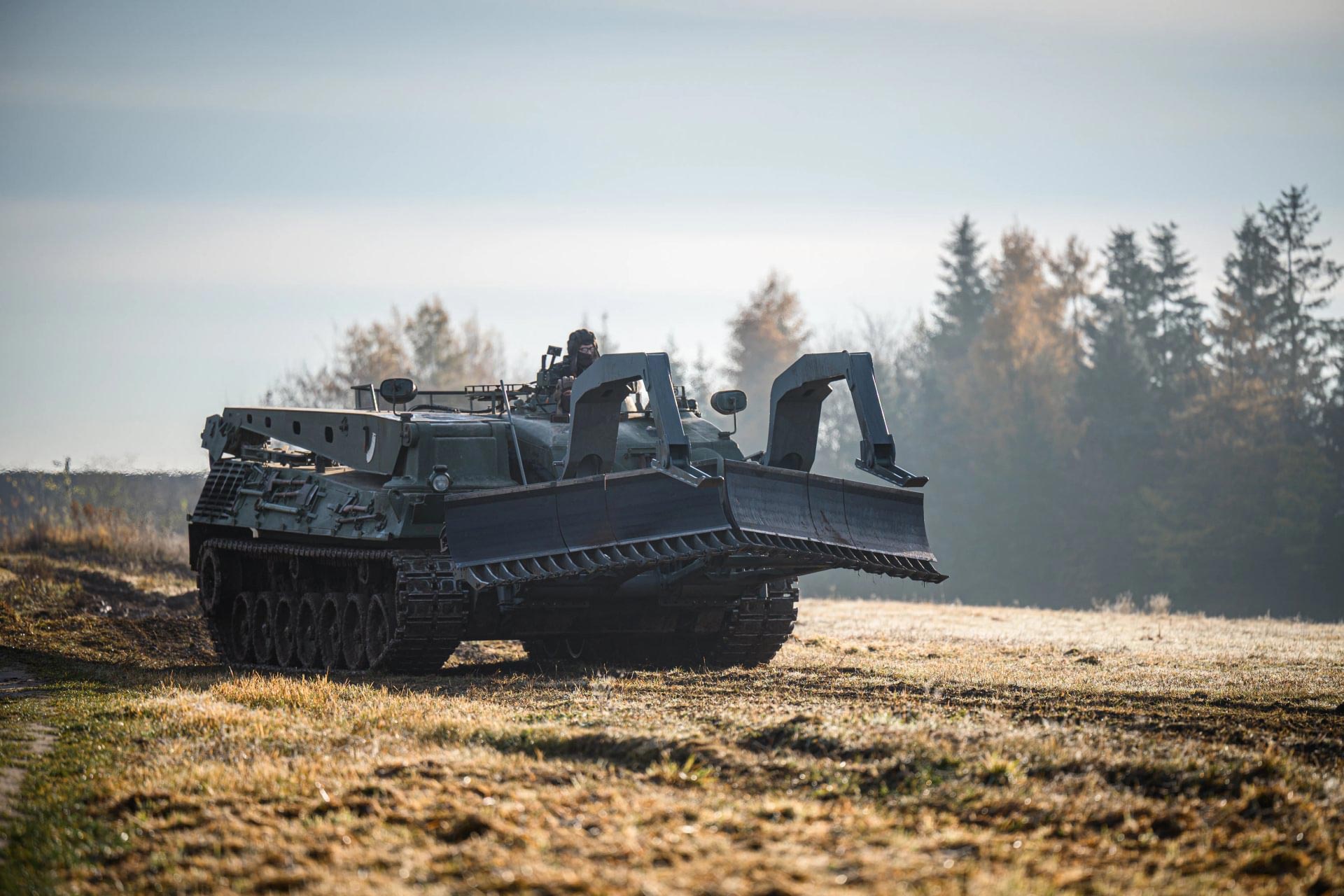

Designed for combat engineering operations, the Modular Mine Plough is a front‑mounted breaching attachment used to open safe, full‑width lanes through mined terrain. By cutting into the soil and displacing mines and buried explosive threats to both sides of the lane, the system creates a clearly defined cleared path while enabling the host vehicle to maintain forward movement.
Built for integration on protected tracked and wheeled platforms, the plough supports controlled in‑cab operation, adjustable clearance depth and consistent performance across varied terrain and soil conditions. It is intended for time‑critical breaching tasks where survivability, reliability and operational tempo are decisive.
Designed for combat engineering operations, the Modular Mine Plough is a front‑mounted breaching attachment used to open safe, full‑width lanes through mined terrain. By cutting into the soil and displacing mines and buried explosive threats to both sides of the lane, the system creates a clearly defined cleared path while enabling the host vehicle to maintain forward movement.
Built for integration on protected tracked and wheeled platforms, the plough supports controlled in‑cab operation, adjustable clearance depth and consistent performance across varied terrain and soil conditions. It is intended for time‑critical breaching tasks where survivability, reliability and operational tempo are decisive.
Designed for combat engineering operations, the Modular Mine Plough is a front‑mounted breaching attachment used to open safe, full‑width lanes through mined terrain. By cutting into the soil and displacing mines and buried explosive threats to both sides of the lane, the system creates a clearly defined cleared path while enabling the host vehicle to maintain forward movement.
Built for integration on protected tracked and wheeled platforms, the plough supports controlled in‑cab operation, adjustable clearance depth and consistent performance across varied terrain and soil conditions. It is intended for time‑critical breaching tasks where survivability, reliability and operational tempo are decisive.
Designed for combat engineering operations, the Modular Mine Plough is a front‑mounted breaching attachment used to open safe, full‑width lanes through mined terrain. By cutting into the soil and displacing mines and buried explosive threats to both sides of the lane, the system creates a clearly defined cleared path while enabling the host vehicle to maintain forward movement.
Built for integration on protected tracked and wheeled platforms, the plough supports controlled in‑cab operation, adjustable clearance depth and consistent performance across varied terrain and soil conditions. It is intended for time‑critical breaching tasks where survivability, reliability and operational tempo are decisive.
Built for operational deployment
01
Full‑width minefield breaching
The Modular Mine Plough creates a continuous cleared lane across the full width of the host vehicle. Three operational width configurations allow adaptation to different vehicle classes and mission requirements.
02
Rapid deployment and recovery
The plough operates in stowed and deployed modes, allowing fast transition between movement and breaching. Compatibility with the Quick Coupler Adapter (QCA) enables rapid attachment and removal.
03
Protected operator control
All functions are operated from inside the vehicle via a remote in‑cab joystick. Clearance depth can be adjusted during movement, enabling adaptation to changing soil and threat conditions without exposing operators.
04
Stable and consistent clearance

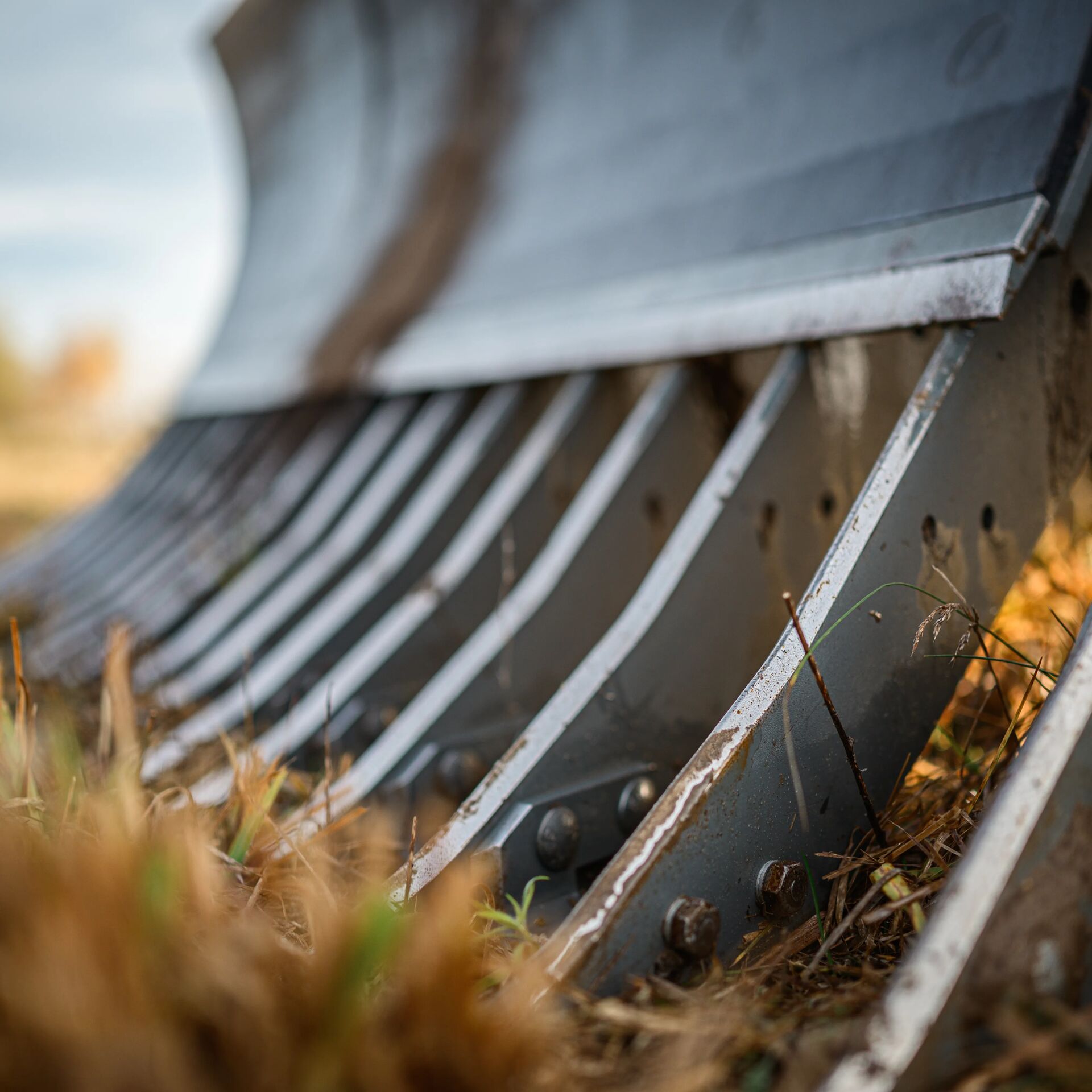

A dual skid arrangement ensures controlled ground contact and clearance depth consistency, with optimised ripper spacing preventing small mine passage and supporting reliable, high‑speed clearance across varied soils.
05
Designed for blast resilience
The structure and components are engineered to resist explosive forces and to remain operational after mine blast events, supporting mission continuity in high‑threat environments.
06
Broad host vehicle compatibility
Integration on heavy weight tracked, medium weight tracked and medium weight wheeled armoured platforms are supported.
Built for operational deployment
01
Full‑width minefield breaching
The Modular Mine Plough creates a continuous cleared lane across the full width of the host vehicle. Three operational width configurations allow adaptation to different vehicle classes and mission requirements.
02
Rapid deployment and recovery
The plough operates in stowed and deployed modes, allowing fast transition between movement and breaching. Compatibility with the Quick Coupler Adapter (QCA) enables rapid attachment and removal.
03
Protected operator control
All functions are operated from inside the vehicle via a remote in‑cab joystick. Clearance depth can be adjusted during movement, enabling adaptation to changing soil and threat conditions without exposing operators.
04
Stable and consistent clearance
A dual skid arrangement ensures controlled ground contact and clearance depth consistency, with optimised ripper spacing preventing small mine passage and supporting reliable, high‑speed clearance across varied soils.
05
Designed for blast resilience
The structure and components are engineered to resist explosive forces and to remain operational after mine blast events, supporting mission continuity in high‑threat environments.
06
Broad host vehicle compatibility
Integration on heavy weight tracked, medium weight tracked and medium weight wheeled armoured platforms are supported.
Built for operational deployment
01
Full‑width minefield breaching
The Modular Mine Plough creates a continuous cleared lane across the full width of the host vehicle. Three operational width configurations allow adaptation to different vehicle classes and mission requirements.
02
Rapid deployment and recovery
The plough operates in stowed and deployed modes, allowing fast transition between movement and breaching. Compatibility with the Quick Coupler Adapter (QCA) enables rapid attachment and removal.
03
Protected operator control
All functions are operated from inside the vehicle via a remote in‑cab joystick. Clearance depth can be adjusted during movement, enabling adaptation to changing soil and threat conditions without exposing operators.
04
Stable and consistent clearance
A dual skid arrangement ensures controlled ground contact and clearance depth consistency, with optimised ripper spacing preventing small mine passage and supporting reliable, high‑speed clearance across varied soils.
05
Designed for blast resilience
The structure and components are engineered to resist explosive forces and to remain operational after mine blast events, supporting mission continuity in high‑threat environments.
06
Broad host vehicle compatibility
Integration on heavy weight tracked, medium weight tracked and medium weight wheeled armoured platforms are supported.
Built for operational deployment
01
Full‑width minefield breaching
The Modular Mine Plough creates a continuous cleared lane across the full width of the host vehicle. Three operational width configurations allow adaptation to different vehicle classes and mission requirements.
02
Rapid deployment and recovery
The plough operates in stowed and deployed modes, allowing fast transition between movement and breaching. Compatibility with the Quick Coupler Adapter (QCA) enables rapid attachment and removal.
03
Protected operator control
All functions are operated from inside the vehicle via a remote in‑cab joystick. Clearance depth can be adjusted during movement, enabling adaptation to changing soil and threat conditions without exposing operators.
04
Stable and consistent clearance
A dual skid arrangement ensures controlled ground contact and clearance depth consistency, with optimised ripper spacing preventing small mine passage and supporting reliable, high‑speed clearance across varied soils.
05
Designed for blast resilience
The structure and components are engineered to resist explosive forces and to remain operational after mine blast events, supporting mission continuity in high‑threat environments.
06
Broad host vehicle compatibility
Integration on heavy weight tracked, medium weight tracked and medium weight wheeled armoured platforms are supported.

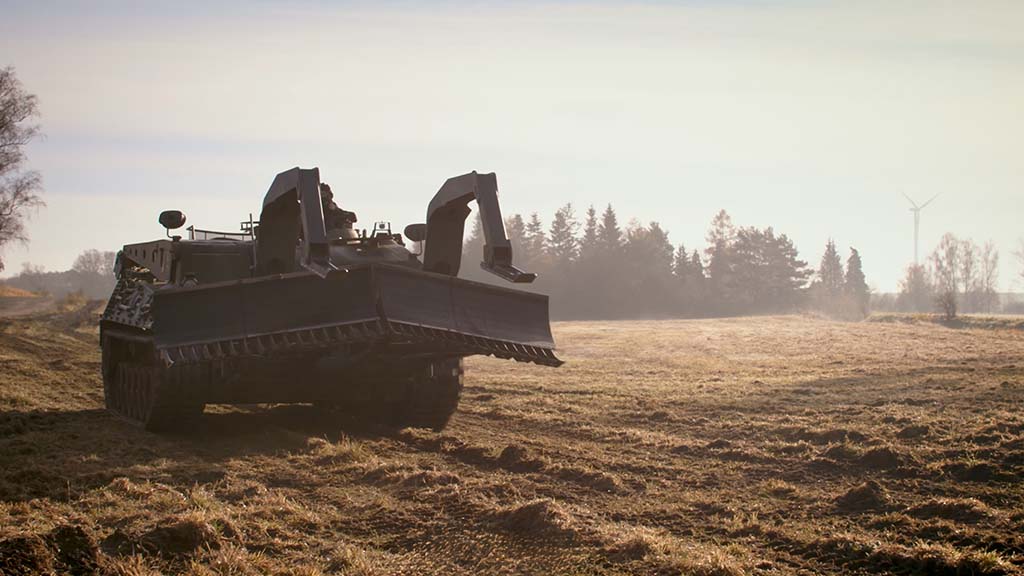

Modular Mine Plough
Play Video
Modular Mine Plough
Play Video
Modular Mine Plough
Play Video
Modular Mine Plough
Play Video
Operational specifications
3.0 m / 3.7 m / 4.5 m
cleared lane width matched to vehicle class and mission requirements
Up to
15 km/h*
clearance speed
5–300 mm
adjustable clearance depth
94 mm
ripper spacing
< 3 minutes
typical mounting time with QCA

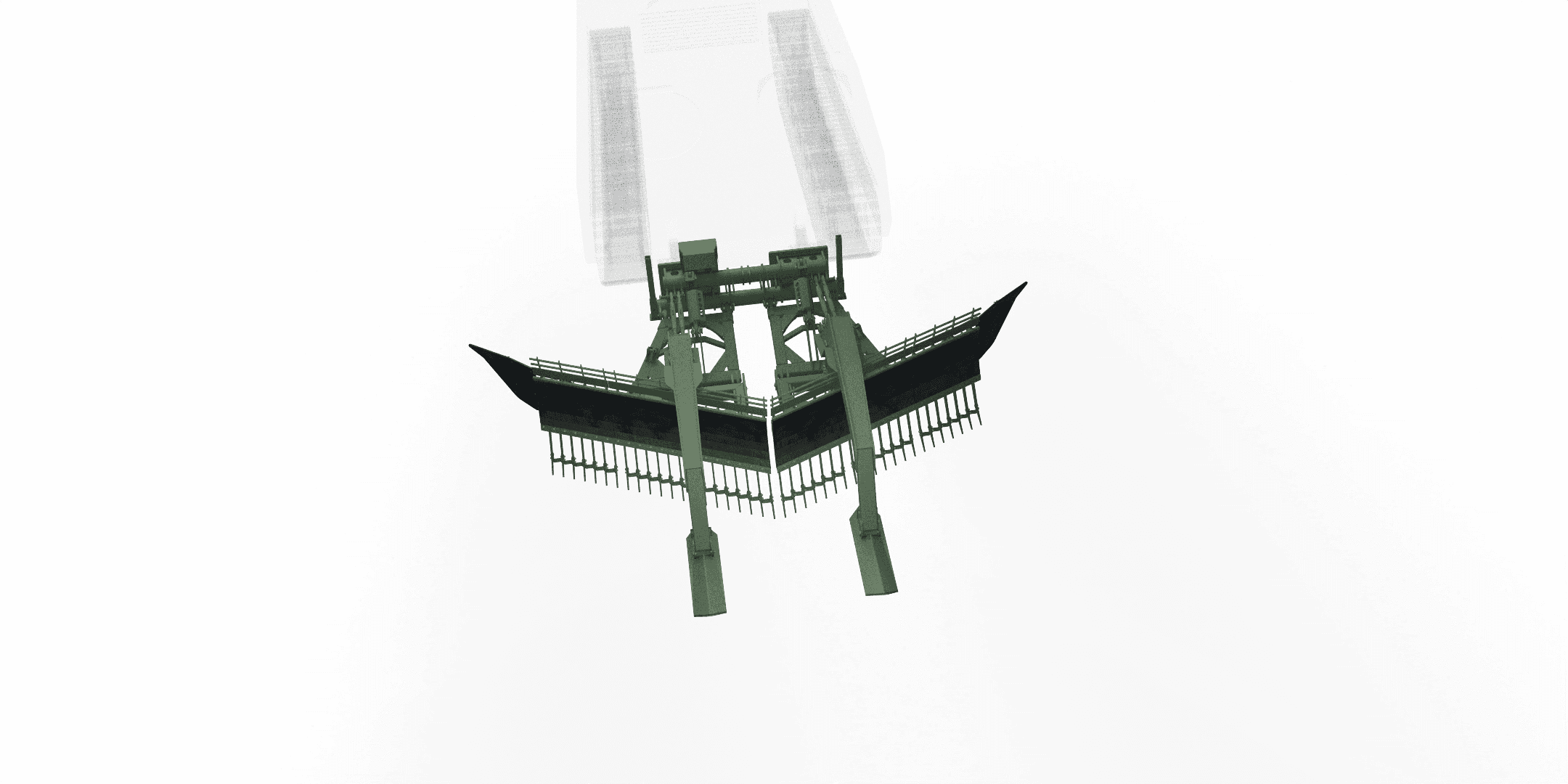

Two‑skid system
ensuring stable ground contact and depth control
Foldable extensions
improving soil displacement and lane definition
–20 °C to +50 °C
operating range supports operation in varied climates

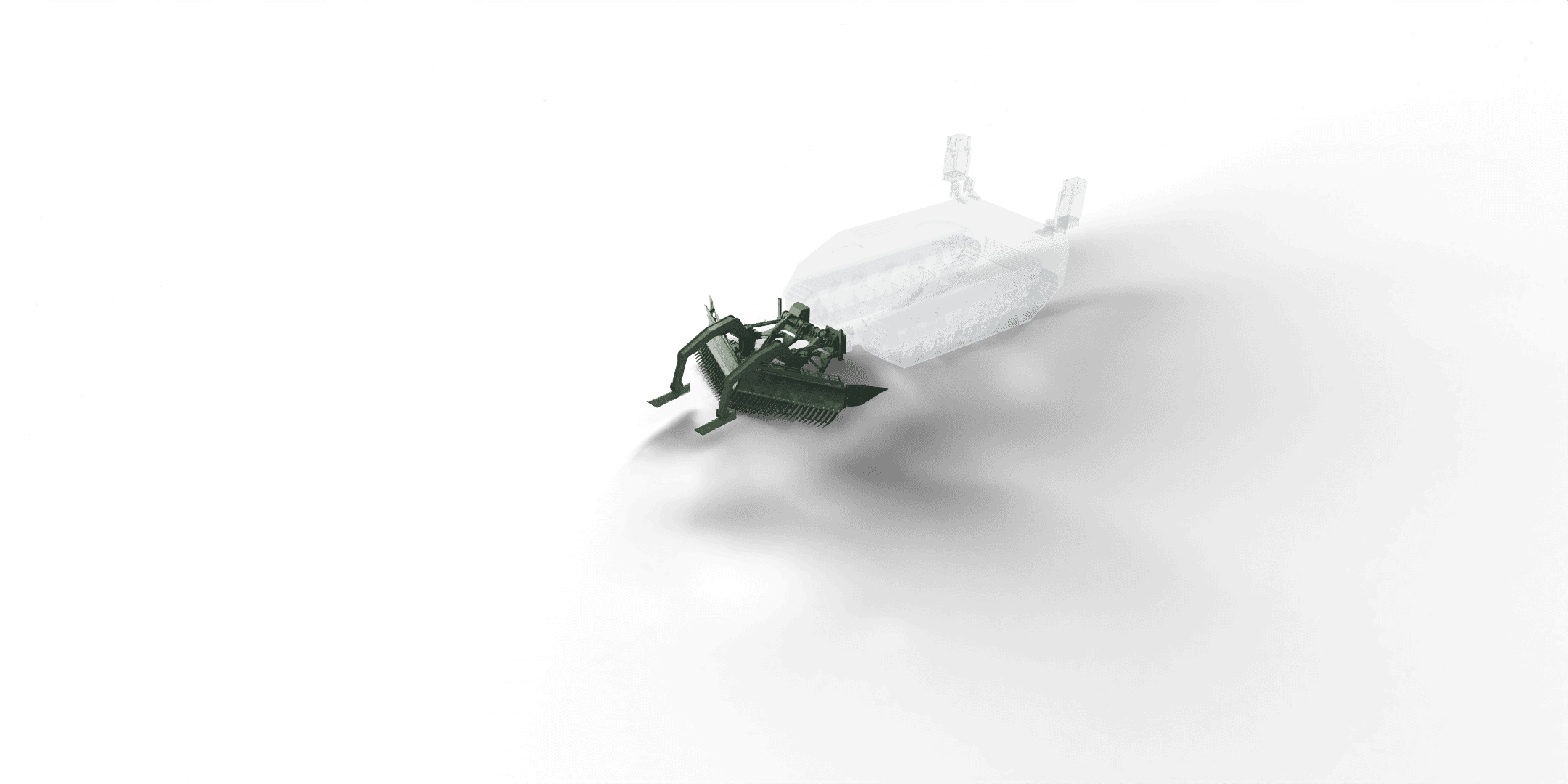

Stowed and deployed modes
allow rapid transition between movement and breaching
*Depending on configuration, host vehicle and soil conditions
