Trailer
Purpose‑designed transport trailers for safe deployment of unmanned clearance platforms and equipment
The GCS Trailer range supports the safe, compliant and efficient transport of unmanned clearance platforms, roll‑off bodies and mission equipment between base, staging areas and operational sites.
The trailers enable controlled deployment, reduce handling risk and increase operational flexibility across humanitarian, governmental and military contexts.
The GCS Trailer range supports the safe, compliant and efficient transport of unmanned clearance platforms, roll‑off bodies and mission equipment between base, staging areas and operational sites.
The trailers enable controlled deployment, reduce handling risk and increase operational flexibility across humanitarian, governmental and military contexts.
The GCS Trailer range supports the safe, compliant and efficient transport of unmanned clearance platforms, roll‑off bodies and mission equipment between base, staging areas and operational sites.
The trailers enable controlled deployment, reduce handling risk and increase operational flexibility across humanitarian, governmental and military contexts.
The GCS Trailer range supports the safe, compliant and efficient transport of unmanned clearance platforms, roll‑off bodies and mission equipment between base, staging areas and operational sites.
The trailers enable controlled deployment, reduce handling risk and increase operational flexibility across humanitarian, governmental and military contexts.
Explore our range of products
The Trailer comes in two variants, matched to platform size, payload and transport requirements

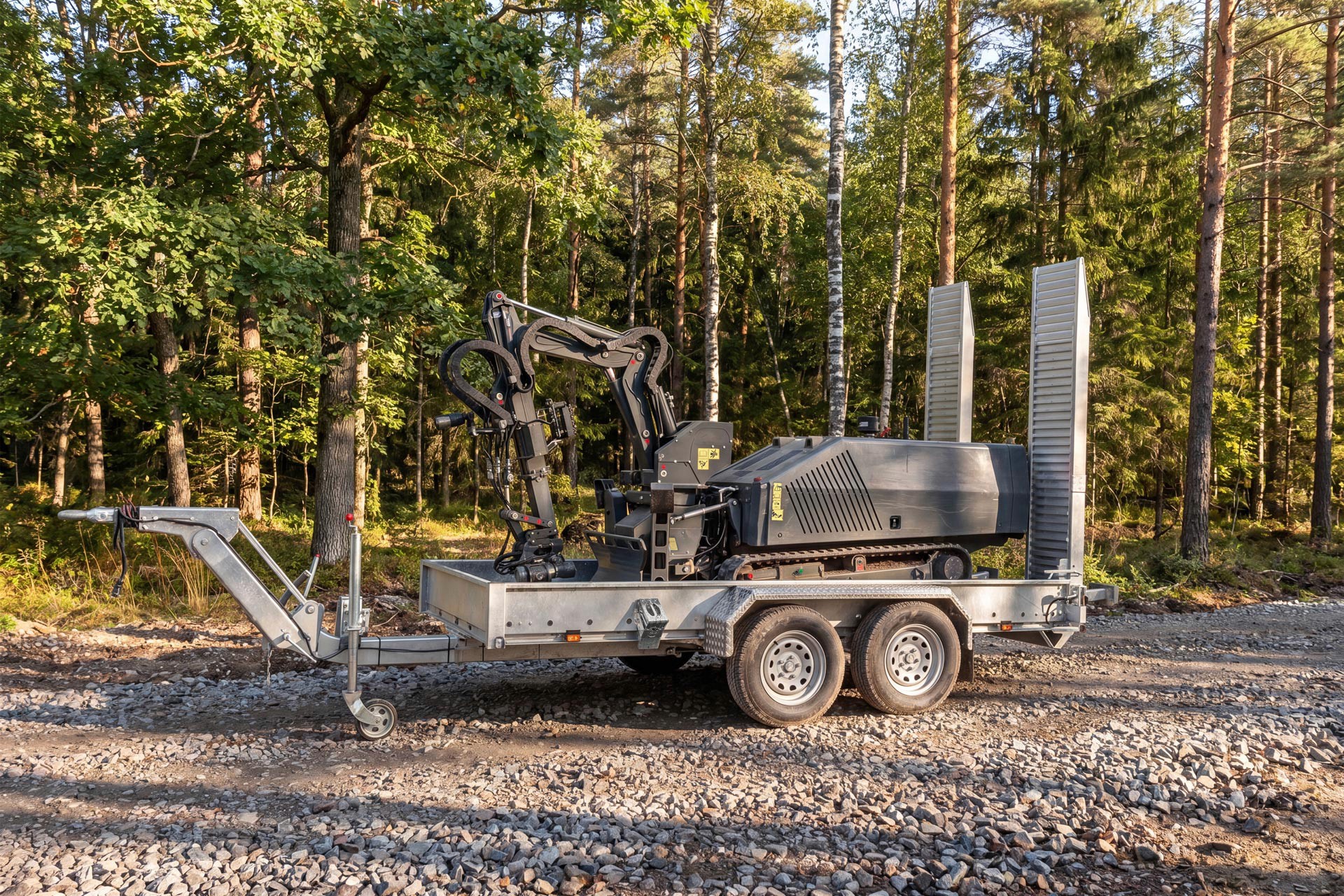

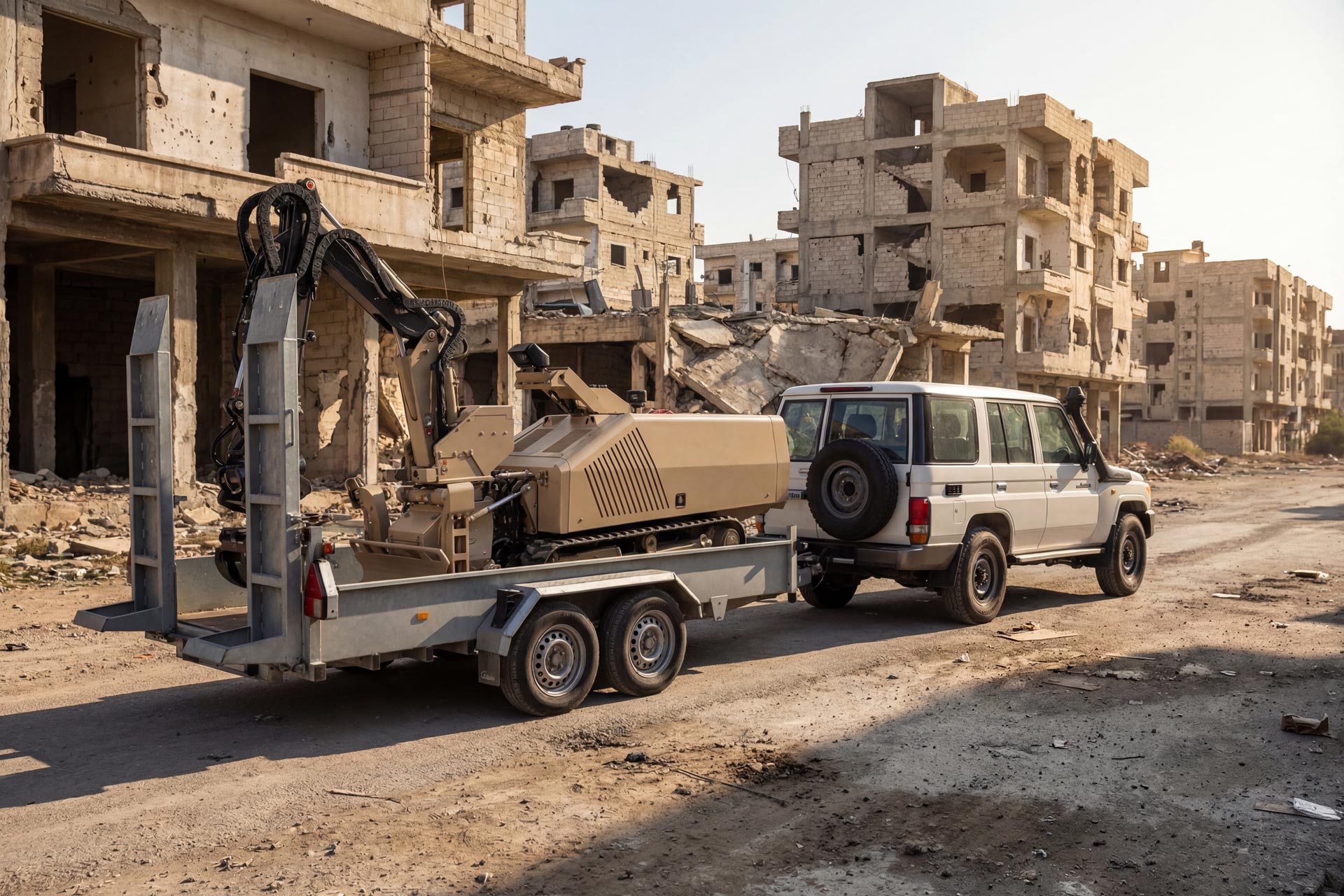

TRL-100
The TRL‑100 is a compact road‑legal transport trailer designed for the safe transport of the GCS‑100 unmanned platform and its attachments. It supports rapid deployment for clearance operations where smaller vehicles, constrained access and flexible logistics are required. The trailer features a robust steel frame, tandem axle configuration and integrated foldable ramps for safe loading and unloading.

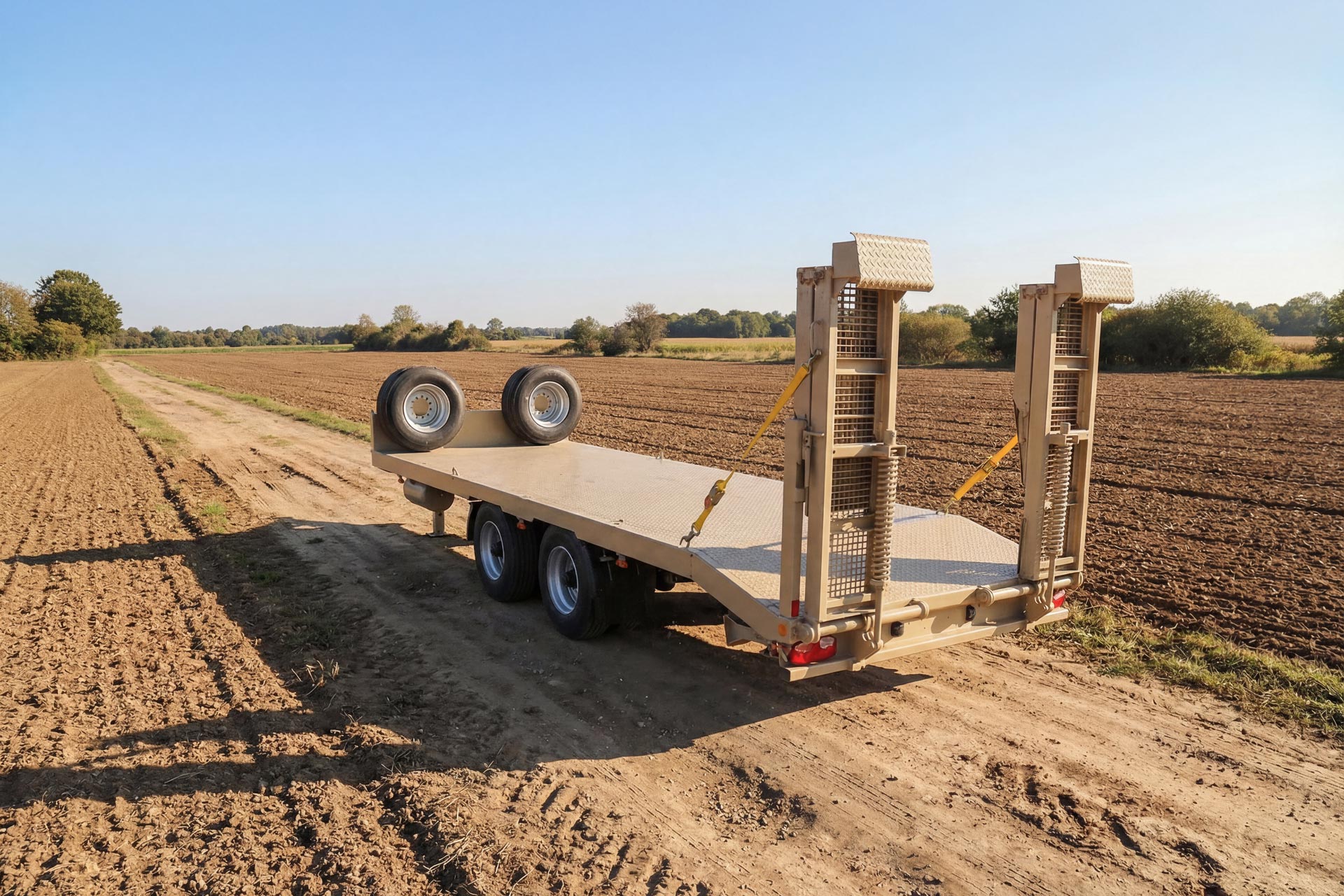

TRL-200
The TRL‑200 is a heavy‑duty low‑loader trailer designed to meet the transport requirements of the GCS‑200 platform and its attachments. Compared to the TRL-100, it supports higher payloads, larger dimensions and increased stability for long‑distance road transport and demanding operational environments. The trailer is designed for compatibility with standard towing vehicles and supports transport of roll‑off bodies, flats and equipment as integrated logistics solution.
Built for operational deployment
01
Platform‑specific transport design
Trailer geometry, payload and securing points are matched to the GCS‑100 and GCS‑200 platforms and attachments to ensure stable, compliant transport.
02
Safe loading and unloading
Integrated ramps and low loading height support controlled loading operations and reduce handling risk.
03
Road‑legal configuration
Designed for approved road transport, enabling movement between base, staging areas and deployment sites.
04
Integrated logistics compatibility
Part of the GCS Integrated Logistics Solution ecosystem, supporting combined transport configurations with trucks, flats and containers.
05
Secure load fixation
Multiple lashing points support safe transport of platforms and equipment.
Built for operational deployment
01
Platform‑specific transport design
Trailer geometry, payload and securing points are matched to the GCS‑100 and GCS‑200 platforms and attachments to ensure stable, compliant transport.
02
Safe loading and unloading
Integrated ramps and low loading height support controlled loading operations and reduce handling risk.
03
Road‑legal configuration
Designed for approved road transport, enabling movement between base, staging areas and deployment sites.
04
Integrated logistics compatibility
Part of the GCS Integrated Logistics Solution ecosystem, supporting combined transport configurations with trucks, flats and containers.
05
Secure load fixation
Multiple lashing points support safe transport of platforms and equipment.
Built for operational deployment
01
Platform‑specific transport design
Trailer geometry, payload and securing points are matched to the GCS‑100 and GCS‑200 platforms and attachments to ensure stable, compliant transport.
02
Safe loading and unloading
Integrated ramps and low loading height support controlled loading operations and reduce handling risk.
03
Road‑legal configuration
Designed for approved road transport, enabling movement between base, staging areas and deployment sites.
04
Integrated logistics compatibility
Part of the GCS Integrated Logistics Solution ecosystem, supporting combined transport configurations with trucks, flats and containers.
05
Secure load fixation
Multiple lashing points support safe transport of platforms and equipment.
Built for operational deployment
01
Platform‑specific transport design
Trailer geometry, payload and securing points are matched to the GCS‑100 and GCS‑200 platforms and attachments to ensure stable, compliant transport.
02
Safe loading and unloading
Integrated ramps and low loading height support controlled loading operations and reduce handling risk.
03
Road‑legal configuration
Designed for approved road transport, enabling movement between base, staging areas and deployment sites.
04
Integrated logistics compatibility
Part of the GCS Integrated Logistics Solution ecosystem, supporting combined transport configurations with trucks, flats and containers.
05
Secure load fixation
Multiple lashing points support safe transport of platforms and equipment.
Operational specifications
TRL-100
2,450 kg
payload capacity
6,900 mm
length
2,300 mm
width
Approx
1,050 kg
frame weight
Tandem axle
configuration
Two integrated foldable
loading ramps
Lashing points
integrated into frame
TRL-200
14,500 kg
payload capacity
7,000 mm
cassis length
2,470 mm
width
Approx.
4,500 kg
unladen weight
Tandem axle unit
with air brake system
NATO load bearing eye
adjustable drawbar 1,000 mm
1 pair (750 mm wide)
heavy duty mechanical sprung assisted ramps
All support and field equipment components support various GCS capabilities by enabling safe and efficient movement of products, and maintaining system availability and operational readiness, rather than performing clearance tasks directly.
